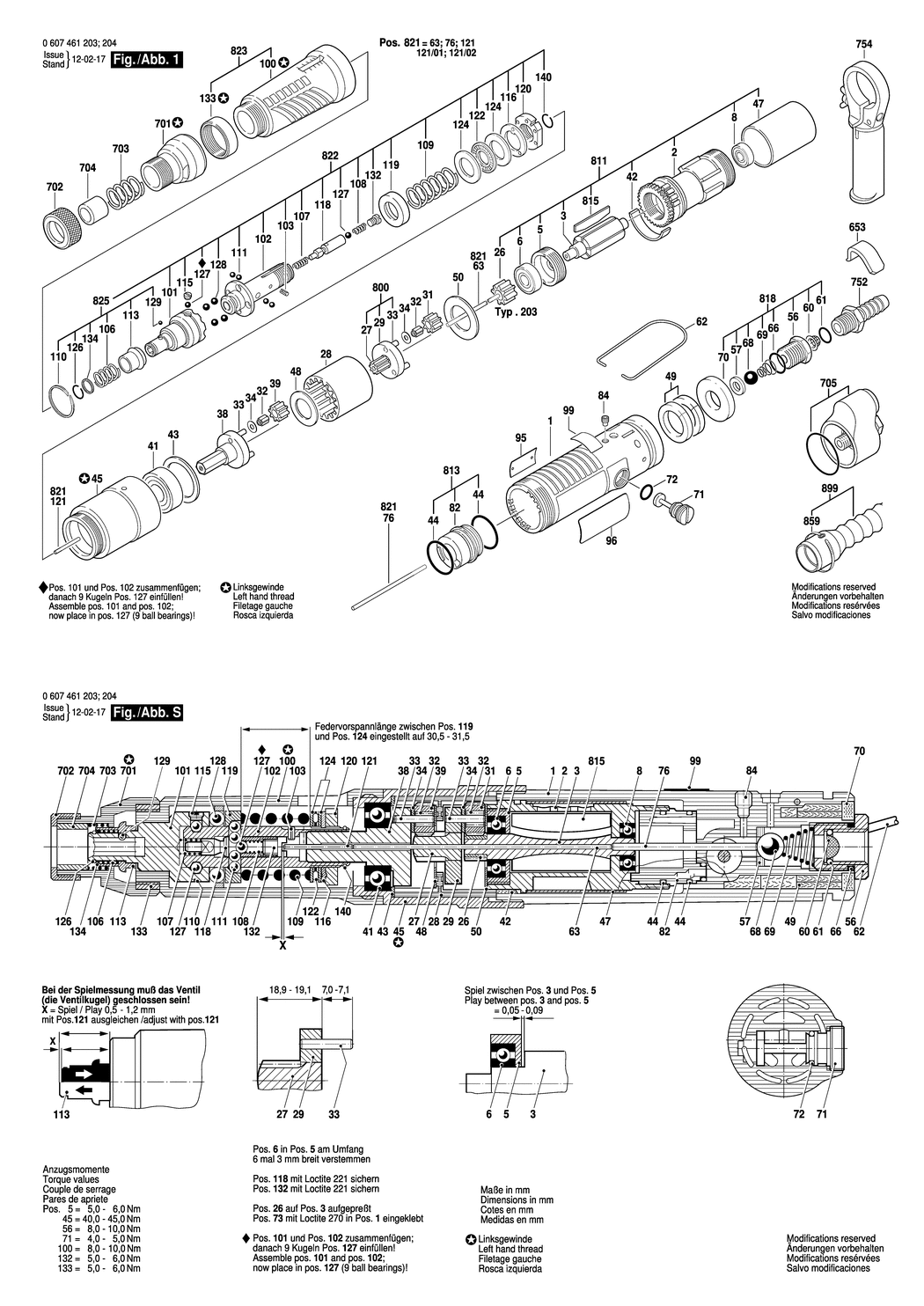

1 - MOTOR HOUSING
BSD-3605108071.A5
3605108071
|
£31.64
|
£37.97
|
|
|
2 - STATOR 400W
BSD-3604090046.A35
3604090046
|
£102.57
|
£123.08
|
|
|
3 - ROTOR
BSD-3604220064.A0
3604220064
|
£81.81
|
£98.17
|
|
|
5 - BEARING FLANGE
BSD-3605700076.A20
3605700076
|
£50.80
|
£60.96
|
|
|
6 - GROOVE BALL BEARING 9x24x7 MM
BSD-3600905039.A68
3600905039
|
£12.04
|
£14.45
|
|
|
8 - GROOVE BALL BEARING 7x17x5
BSD-1900905028.A212
1900905028
|
£33.74
|
£40.49
|
|
|
26 - CYLINDRICAL GEAR Z=15
BSD-3606316063.A7
3606316063
|
£39.13
|
£46.96
|
|
|
27 - PINION Z=12
BSD-3606300071.A0
3606300071
|
£35.42
|
£42.51
|
|
|
28 - RING GEAR Z=42
BSD-3606334054.A14
3606334054
|
£10.10
|
£12.12
|
|
|
29 - CARRIER
BSD-3606337113.A8
3606337113
|
-
|
|
|
|
31 - CYLINDRICAL GEAR Z=15
BSD-3606316059.A14
3606316059
|
-
|
|
|
|
32 - NEEDLE-ROLLER CAGE
BSD-3600913006.A9
3600913006
|
£7.72
|
£9.27
|
|
|
33 - NEEDLE ROLLER
BSD-3603201047.A10
3603201047
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.20 MM
BSD-2600100586.A70
2600100586
|
£1.84
|
£2.21
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337118.A11
3606337118
|
£68.42
|
£82.10
|
|
|
39 - CYLINDRICAL GEAR
BSD-3606316116.A13
3606316116
|
£21.68
|
£26.01
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905045.A37
3600905045
|
£16.41
|
£19.69
|
|
|
42 - NON-WOVEN FABRIC
BSD-3601010028.A1
3601010028
|
-
|
|
|
|
43 - STOP DISC
BSD-3600102021.A27
3600102021
|
£3.72
|
£4.47
|
|
|
44 - O-RING 26.0x1.5 MM
BSD-2600210018.A93
2600210018
|
£3.72
|
£4.47
|
|
|
45 - GEAR HOUSING
BSD-3605125038.A16
3605125038
|
£48.38
|
£58.06
|
|
|
47 - SPIGOT
BSD-3600700032.A22
3600700032
|
£21.68
|
£26.01
|
|
|
48 - STOP DISC
BSD-3600101040.A7
3600101040
|
£2.16
|
£2.59
|
|
|
49 - SILENCER
BSD-3601010006.A23
3601010006
|
£1.84
|
£2.21
|
|
|
50 - RETAINING WASHER
BSD-3600101036.A6
3600101036
|
£4.26
|
£5.11
|
|
|
56 - FITTING
BSD-3603458008.A107
3603458008
|
£8.67
|
£10.41
|
|
|
57 - SEALING DISK
BSD-3600206006.A30
3600206006
|
-
|
|
|
|
60 - STRAINER
BSD-3600002000.A102
3600002000
|
£3.72
|
£4.47
|
|
|
61 - O-RING 10x2 MM
BSD-1900210306.A49
1900210306
|
£1.84
|
£2.21
|
|
|
62 - SUSPENSION LOOP
BSD-3604720004.A33
3604720004
|
£2.94
|
£3.53
|
|
|
63 - STRAIGHT PIN
BSD-3604710055.A7
3604710055
|
£7.72
|
£9.27
|
|
|
66 - O-RING 16x1.25 MM
BSD-3600210036.A5
3600210036
|
£2.16
|
£2.59
|
|
|
68 - BALL DIN 5401-9.5MM-III-ST
BSD-1903230528.A86
1903230528
|
£1.84
|
£2.21
|
|
|
69 - COMPRESSION SPRING
BSD-3604616008.A35
3604616008
|
-
|
|
|
|
70 - SILENCER
BSD-3600105002.A62
3600105002
|
£10.10
|
£12.12
|
|
|
71 - VALVE PISTON
BSD-3608750032.A1
3608750032
|
£11.87
|
£14.24
|
|
|
72 - O-RING
BSD-1900210307.A16
1900210307
|
£4.48
|
£5.37
|
|
|
76 - STRAIGHT PIN
BSD-3604710051.A22
3604710051
|
£10.61
|
£12.73
|
|
|
82 - INTERMEDIATE PIECE
BSD-3608750027.A21
3608750027
|
£15.65
|
£18.78
|
|
|
84 - SET SCREW M 5x5-DIN 913-45H
BSD-2912041147.A11
2912041147
|
£2.27
|
£2.72
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A461
160111A3HF
|
£3.91
|
£4.69
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601110039.A28
3601110039
|
£5.57
|
£6.68
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A876
3601119236
|
£3.91
|
£4.69
|
|
|
100 - HOUSING
BSD-3605125035.A13
3605125035
|
£16.41
|
£19.69
|
|
|
101 - CLUTCH ELEMENT
BSD-3606445032.A16
3606445032
|
£142.02
|
£170.42
|
|
|
102 - DRIVE SHAFT
BSD-3606122008.A2
3606122008
|
£126.12
|
£151.34
|
|
|
103 - COILED SPRING PIN DIN 7343-2x5
BSD-2917800033.A62
2917800033
|
£1.75
|
£2.10
|
|
|
106 - COMPRESSION SPRING
BSD-3604615009.A4
3604615009
|
£2.27
|
£2.72
|
|
|
107 - COMPRESSION SPRING
BSD-3604610003.A89
3604610003
|
£3.91
|
£4.69
|
|
|
108 - COMPRESSION SPRING
BSD-3604610002.A21
3604610002
|
£3.91
|
£4.69
|
|
|
109 - COMPRESSION SPRING dia 4 MM
BSD-3604619000.A3
3604619000
|
£7.36
|
£8.83
|
|
|
110 - RETAINING RING
BSD-3604601001.A33
3604601001
|
£2.16
|
£2.59
|
|
|
111 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A601
1903230007
|
£1.84
|
£2.21
|
|
|
113 - CLAMPING SLEEVE
BSD-3600422005.A11
3600422005
|
£8.67
|
£10.41
|
|
|
115 - SEALING PLATE
BSD-3609992353.A10
3609992353
|
£2.94
|
£3.53
|
|
|
116 - ADJUSTING DISC
BSD-3600134000.A103
3600134000
|
£2.80
|
£3.36
|
|
|
118 - LOCKING BOLT
BSD-3603150203.A4
3603150203
|
£45.67
|
£54.80
|
|
|
119 - COUPLING PLATE
BSD-3600114001.A74
3600114001
|
£19.91
|
£23.89
|
|
|
120 - ROUND NUT
BSD-3603301004.A91
3603301004
|
£21.68
|
£26.01
|
|
|
121 - ASSEMBLY OF SERVICE PARTS
BSD-3607031087.A64
3607031087
|
£12.64
|
£15.17
|
|
|
122 - ROLLER THRUST BEARING
BSD-3600921000.A10
3600921000
|
£6.85
|
£8.22
|
|
|
124 - SUPPORT DISC
BSD-3600101002.A64
3600101002
|
£2.16
|
£2.59
|
|
|
126 - RETAINING RING
BSD-3600224006.A153
3600224006
|
£2.80
|
£3.36
|
|
|
127 - BALL DIN 5401-5 G28
BSD-1903230009.A619
1903230009
|
£1.84
|
£2.21
|
|
|
128 - BALL DIN 5401-6 G28
BSD-1903230011.A324
1903230011
|
£2.74
|
£3.29
|
|
|
129 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A326
1903230004
|
£2.27
|
£2.72
|
|
|
132 - SCREW PLUG
BSD-3603463000.A57
3603463000
|
£2.74
|
£3.29
|
|
|
133 - KNURLED NUT
BSD-3603340019.A10
3603340019
|
£16.41
|
£19.69
|
|
|
134 - STOP DISC dia11.15xdia12.85 MM
BSD-3600101039.A12
3600101039
|
£2.16
|
£2.59
|
|
|
140 - RETAINING RING 14 DIN 9045
BSD-2916600008.A158
2916600008
|
£2.80
|
£3.36
|
|
|
653 - ANGLE PIECE
BSD-3601329007.A205
3601329007
|
£4.48
|
£5.37
|
|
|
701 - SCREW CAP
BSD-3600508014.A8
3600508014
|
£10.10
|
£12.12
|
|
|
702 - UNION NUT
BSD-3603313002.A5
3603313002
|
£17.22
|
£20.67
|
|
|
703 - COMPRESSION SPRING
BSD-3604615000.A93
3604615000
|
£1.75
|
£2.10
|
|
|
704 - GUIDE SLEEVE
BSD-3600329000.A10
3600329000
|
£7.36
|
£8.83
|
|
|
705 - AIR HOSE SET
BSD-3607030024.A22
3607030024
|
£39.61
|
£47.53
|
|
|
752 - HOSE FITTING
BSD-2603386002.A69
2603386002
|
£5.30
|
£6.36
|
|
|
754 - AUXILIARY HANDLE
BSD-3602025009.A14
3602025009
|
£18.96
|
£22.75
|
|
|
800 - PLANETARY-GEAR CARRIER
BSD-3606337110.A2
3606337110
|
£68.42
|
£82.10
|
|
|
811 - ASSEMBLY OF SERVICE PARTS
BSD-3607030078.A0
3607030078
|
-
|
|
|
|
813 - ASSEMBLY OF SERVICE PARTS
BSD-3607030028.A7
3607030028
|
£12.04
|
£14.45
|
|
|
815 - ROTOR LAMELLA
BSD-3607030030.A39
3607030030
|
£31.64
|
£37.97
|
|
|
818 - ASSEMBLY OF SERVICE PARTS
BSD-3607030033.A19
3607030033
|
£31.64
|
£37.97
|
|
|
821 - ASSEMBLY OF SERVICE PARTS
BSD-3607030059.A3
3607030059
|
£39.13
|
£46.96
|
|
|
822 - ASSEMBLY OF SERVICE PARTS
BSD-3607030079.A0
3607030079
|
£410.78
|
£492.94
|
|
|
823 - ASSEMBLY OF SERVICE PARTS
BSD-3607030062.A2
3607030062
|
£39.13
|
£46.96
|
|
|
825 - ASSEMBLY OF SERVICE PARTS
BSD-3607030064.A14
3607030064
|
£14.91
|
£17.89
|
|
|
859 - HOLDING BELT
BSD-3604710062.A75
3604710062
|
£1.84
|
£2.21
|
|
|
899 - AIR HOSE
BSD-3607000027.A30
3607000027
|
£33.74
|
£40.49
|
|
