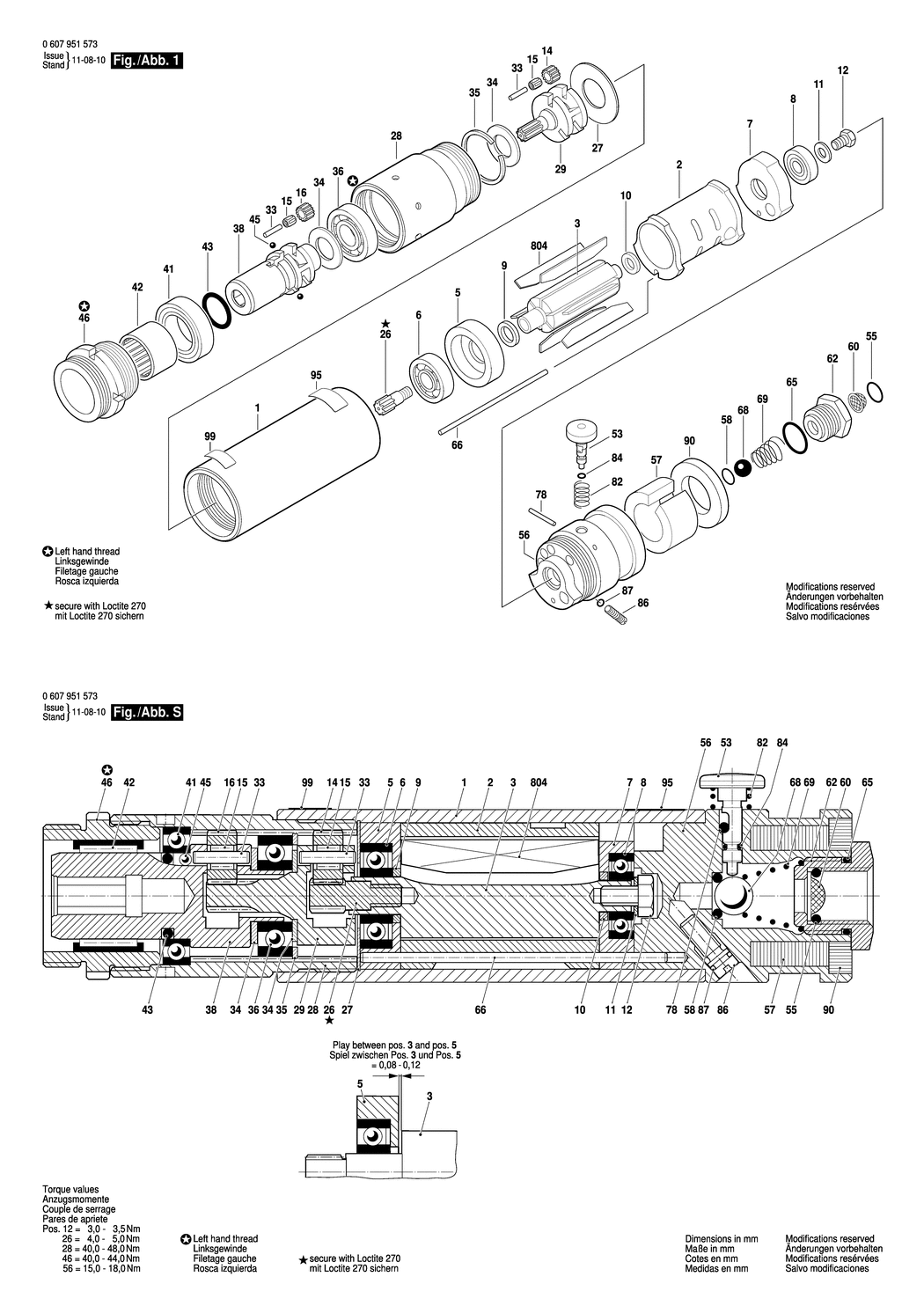

1 - MOTOR HOUSING
BSD-3600760114.A10
3600760114
|
£81.81
|
£98.17
|
|
|
2 - STATOR 370W
BSD-3604090003.A77
3604090003
|
£93.88
|
£112.65
|
|
|
3 - ROTOR
BSD-3604220025.A2
3604220025
|
£102.57
|
£123.08
|
|
|
5 - BEARING FLANGE
BSD-3605700005.A48
3605700005
|
£54.42
|
£65.30
|
|
|
6 - GROOVE BALL BEARING 9x24x7 MM
BSD-3600905039.A236
3600905039
|
£12.04
|
£14.45
|
|
|
7 - BEARING FLANGE
BSD-3605700007.A12
3605700007
|
£63.50
|
£76.20
|
|
|
8 - GROOVE BALL BEARING DIN 625-7x19x6
BSD-3600905148.A39
3600905148
|
£8.49
|
£10.19
|
|
|
9 - SPACER RING
BSD-2600202013.A47
2600202013
|
£8.67
|
£10.41
|
|
|
10 - SPACER RING
BSD-2600202014.A145
2600202014
|
£11.30
|
£13.56
|
|
|
11 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A47
2916011012
|
£1.75
|
£2.10
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A144
2911061150
|
£2.61
|
£3.13
|
|
|
14 - CYLINDRICAL GEAR
BSD-3606316101.A52
3606316101
|
£21.68
|
£26.01
|
|
|
15 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A379
3600913000
|
£4.26
|
£5.11
|
|
|
16 - CYLINDRICAL GEAR
BSD-3606316101.A51
3606316101
|
£21.68
|
£26.01
|
|
|
26 - PINION
BSD-3606300005.A1
3606300005
|
£31.64
|
£37.97
|
|
|
27 - STOP DISC
BSD-3600101001.A39
3600101001
|
£2.61
|
£3.13
|
|
|
28 - RING GEAR Z=49
BSD-3606334000.A121
3606334000
|
£102.57
|
£123.08
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337124.A4
3606337124
|
£102.57
|
£123.08
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A19
3603201000
|
£1.75
|
£2.10
|
|
|
34 - SHIM WASHER
BSD-3600103002.A139
3600103002
|
£3.72
|
£4.47
|
|
|
35 - RETAINING RING
BSD-3600224000.A128
3600224000
|
£1.75
|
£2.10
|
|
|
36 - GROOVE BALL BEARING 12x28x8
BSD-1900900287.A5
1900900287
|
£21.68
|
£26.01
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337206.A1
3606337206
|
£135.25
|
£162.30
|
|
|
41 - GROOVE BALL BEARING 20x32x7
BSD-3600905145.A2
3600905145
|
£31.64
|
£37.97
|
|
|
42 - FREEWHEELING
BSD-3600910018.A2
3600910018
|
£27.23
|
£32.68
|
|
|
43 - O-RING 15x2.5 MM
BSD-1900210113.A31
1900210113
|
£2.61
|
£3.13
|
|
|
45 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A84
1903230004
|
£2.16
|
£2.59
|
|
|
46 - THREADED RING
BSD-3603344056.A2
3603344056
|
£33.74
|
£40.49
|
|
|
53 - BOLT
BSD-3604710072.A0
3604710072
|
£27.23
|
£32.68
|
|
|
55 - O-RING 10x2 MM
BSD-1900210306.A119
1900210306
|
£1.75
|
£2.10
|
|
|
56 - VALVE HOUSING
BSD-3605190196.A3
3605190196
|
-
|
|
|
|
57 - SILENCER
BSD-3601010002.A67
3601010002
|
£2.80
|
£3.36
|
|
|
58 - O-RING 6.0x2.5 MM
BSD-3600210126.A2
3600210126
|
£1.75
|
£2.10
|
|
|
60 - STRAINER
BSD-3600002000.A274
3600002000
|
£3.72
|
£4.47
|
|
|
62 - FITTING
BSD-3603458018.A16
3603458018
|
£16.41
|
£19.69
|
|
|
65 - O-RING 16x1.25 MM
BSD-3600210036.A71
3600210036
|
£2.16
|
£2.59
|
|
|
66 - STRAIGHT PIN
BSD-3604710051.A15
3604710051
|
£10.10
|
£12.12
|
|
|
68 - BALL DIN 5401-9.5MM-III-ST
BSD-1903230528.A40
1903230528
|
£1.75
|
£2.10
|
|
|
69 - COMPRESSION SPRING
BSD-3604616018.A1
3604616018
|
£1.75
|
£2.10
|
|
|
78 - GROOVED PIN DIN 1475-2x18-ST
BSD-2917700040.A79
2917700040
|
£2.80
|
£3.36
|
|
|
82 - COMPRESSION SPRING
BSD-3604643011.A5
3604643011
|
£6.52
|
£7.83
|
|
|
84 - O-RING 3.0x1.0 MM
BSD-1600210046.A1
1600210046
|
£1.75
|
£2.10
|
|
|
86 - ADJUSTING SCREW
BSD-3603435048.A0
3603435048
|
£16.41
|
£19.69
|
|
|
87 - O-RING 4.0x1.0 MM
BSD-3600210015.A129
3600210015
|
£3.72
|
£4.47
|
|
|
90 - SILENCER
BSD-3600105002.A20
3600105002
|
£10.10
|
£12.12
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030249.A2
3607030249
|
£33.73
|
£40.48
|
|
