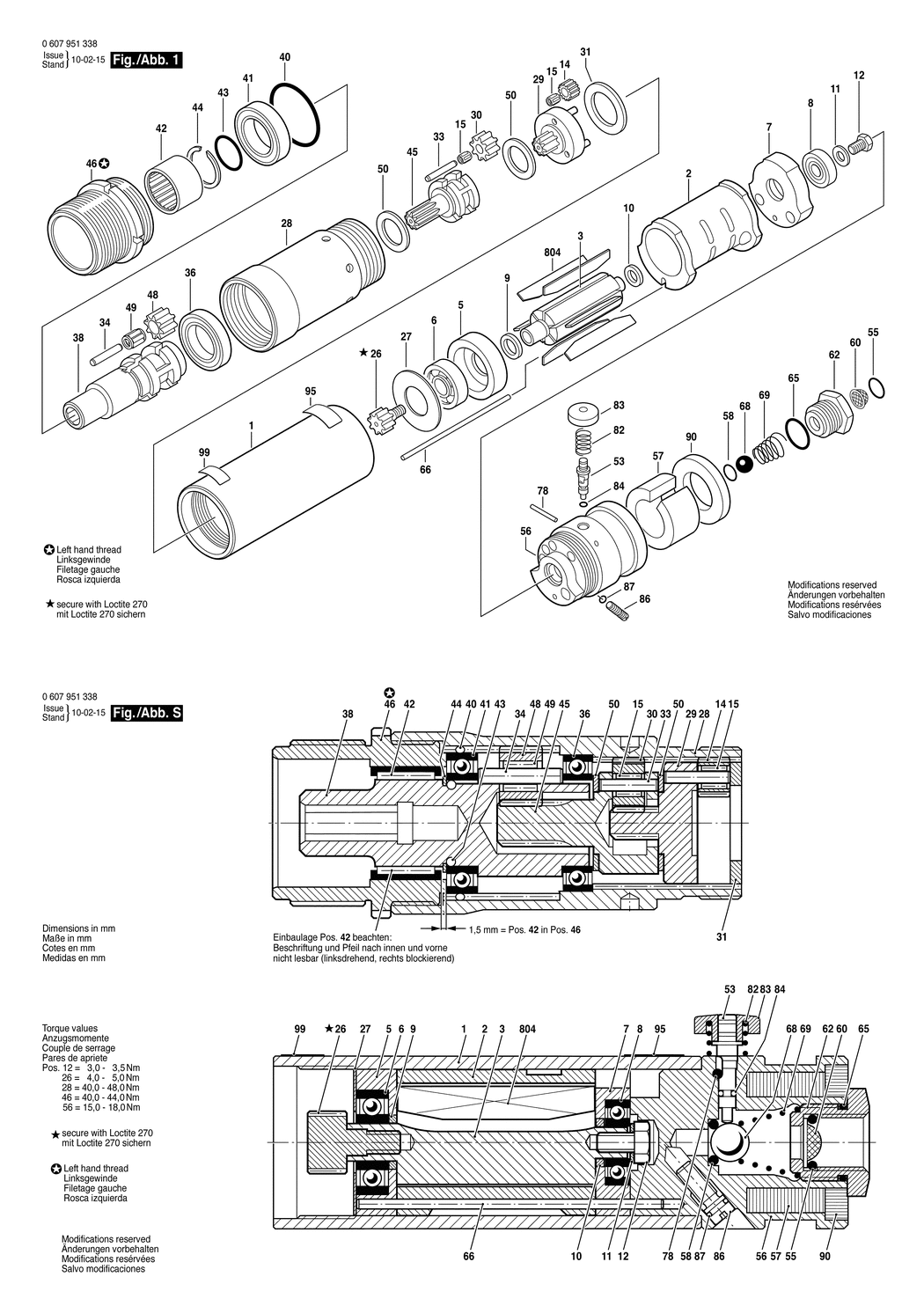

1 - MOTOR HOUSING
BSD-3600760114.A5
3600760114
|
£85.90
|
£103.08
|
|
|
2 - STATOR 370W
BSD-3604090062.A5
3604090062
|
£107.69
|
£129.23
|
|
|
3 - ROTOR
BSD-3604220025.A47
3604220025
|
£107.69
|
£129.23
|
|
|
5 - BEARING FLANGE
BSD-3605700005.A123
3605700005
|
£57.14
|
£68.57
|
|
|
6 - GROOVE BALL BEARING 9x24x7 MM
BSD-3600905039.A133
3600905039
|
£12.04
|
£14.45
|
|
|
7 - BEARING FLANGE
BSD-3605700006.A14
3605700006
|
£75.79
|
£90.95
|
|
|
8 - GROOVE BALL BEARING DIN 625-7x19x6
BSD-3600905148.A58
3600905148
|
£8.92
|
£10.70
|
|
|
9 - SPACER RING
BSD-2600202013.A95
2600202013
|
£8.67
|
£10.41
|
|
|
10 - SPACER RING
BSD-2600202014.A96
2600202014
|
£11.87
|
£14.24
|
|
|
11 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A308
2916011012
|
£1.84
|
£2.21
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A75
2911061150
|
£2.74
|
£3.29
|
|
|
14 - CYLINDRICAL GEAR Z=12
BSD-3606316098.A48
3606316098
|
£27.23
|
£32.68
|
|
|
15 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A0
3600913000
|
£4.26
|
£5.11
|
|
|
26 - PINION Z=23
BSD-3606300002.A47
3606300002
|
£25.05
|
£30.06
|
|
|
27 - STOP DISC
BSD-3600101001.A173
3600101001
|
£2.61
|
£3.13
|
|
|
28 - RING GEAR
BSD-3606334091.A5
3606334091
|
£264.25
|
£317.10
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337071.A11
3606337071
|
-
|
|
|
|
30 - CYLINDRICAL GEAR Z=16
BSD-3606316099.A54
3606316099
|
£22.76
|
£27.31
|
|
|
31 - FRICTION WASHER
BSD-3600113010.A23
3600113010
|
£2.94
|
£3.53
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A397
3603201000
|
£1.84
|
£2.21
|
|
|
34 - NEEDLE ROLLER
BSD-3603201044.A19
3603201044
|
£1.84
|
£2.21
|
|
|
36 - GROOVE BALL BEARING
BSD-3600900016.A6
3600900016
|
-
|
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337208.A5
3606337208
|
£156.22
|
£187.46
|
|
|
40 - O-RING 32.0x2.0 MM
BSD-2600210024.A5
2600210024
|
£1.75
|
£2.10
|
|
|
41 - GROOVE BALL BEARING 20x32x7
BSD-3600905145.A21
3600905145
|
£33.22
|
£39.87
|
|
|
42 - FREEWHEELING
BSD-3600910018.A21
3600910018
|
£27.23
|
£32.68
|
|
|
43 - O-RING 15x2.5 MM
BSD-1900210113.A6
1900210113
|
£2.61
|
£3.13
|
|
|
44 - SPRING RETAINING RING DIN 471 20x1.2
BSD-2916650011.A74
2916650011
|
£2.16
|
£2.59
|
|
|
45 - PLANETARY-GEAR CARRIER
BSD-3606337105.A3
3606337105
|
-
|
|
|
|
46 - THREADED RING
BSD-3603344055.A1
3603344055
|
£39.13
|
£46.96
|
|
|
48 - CYLINDRICAL GEAR Z=14
BSD-3606316053.A10
3606316053
|
£18.96
|
£22.75
|
|
|
49 - NEEDLE-ROLLER ASSEMBLY
BSD-3600903001.A0
3600903001
|
£8.67
|
£10.41
|
|
|
50 - FRICTION WASHER
BSD-3600101024.A7
3600101024
|
£7.36
|
£8.83
|
|
|
53 - BOLT
BSD-3604710070.A1
3604710070
|
£17.22
|
£20.67
|
|
|
55 - O-RING 10x2 MM
BSD-1900210306.A0
1900210306
|
£1.84
|
£2.21
|
|
|
56 - VALVE HOUSING
BSD-3605190192.A0
3605190192
|
£71.84
|
£86.21
|
|
|
57 - SILENCER
BSD-3601010002.A47
3601010002
|
£2.80
|
£3.36
|
|
|
58 - O-RING 6.0x2.5 MM
BSD-3600210126.A10
3600210126
|
£1.75
|
£2.10
|
|
|
60 - STRAINER
BSD-3600002000.A73
3600002000
|
£3.72
|
£4.47
|
|
|
62 - FITTING
BSD-3603458018.A8
3603458018
|
£16.41
|
£19.69
|
|
|
65 - O-RING 16x1.25 MM
BSD-3600210036.A36
3600210036
|
£2.27
|
£2.72
|
|
|
66 - STRAIGHT PIN
BSD-3604710051.A39
3604710051
|
£10.61
|
£12.73
|
|
|
68 - BALL DIN 5401-9.5MM-III-ST
BSD-1903230528.A63
1903230528
|
£1.84
|
£2.21
|
|
|
69 - COMPRESSION SPRING
BSD-3604616018.A13
3604616018
|
£1.84
|
£2.21
|
|
|
78 - GROOVED PIN DIN 1475-2x18-ST
BSD-2917700040.A123
2917700040
|
£2.80
|
£3.36
|
|
|
82 - COMPRESSION SPRING
BSD-3604643011.A11
3604643011
|
£6.52
|
£7.83
|
|
|
83 - PUSH-BUTTON
BSD-1603231013.A6
1603231013
|
£1.84
|
£2.21
|
|
|
84 - O-RING 1.8x1.2 MM
BSD-3600210105.A29
3600210105
|
£2.74
|
£3.29
|
|
|
86 - ADJUSTING SCREW
BSD-3603435048.A15
3603435048
|
£17.22
|
£20.67
|
|
|
87 - O-RING 4.0x1.0 MM
BSD-3600210015.A79
3600210015
|
£3.72
|
£4.47
|
|
|
90 - SILENCER
BSD-3600105002.A43
3600105002
|
£10.10
|
£12.12
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A480
160111A3HF
|
£3.91
|
£4.69
|
|
|
99 - MANUFACTURER'S NAMEPLATE
BSD-3601110331.A25
3601110331
|
£3.72
|
£4.47
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030249.A56
3607030249
|
£35.42
|
£42.50
|
|
