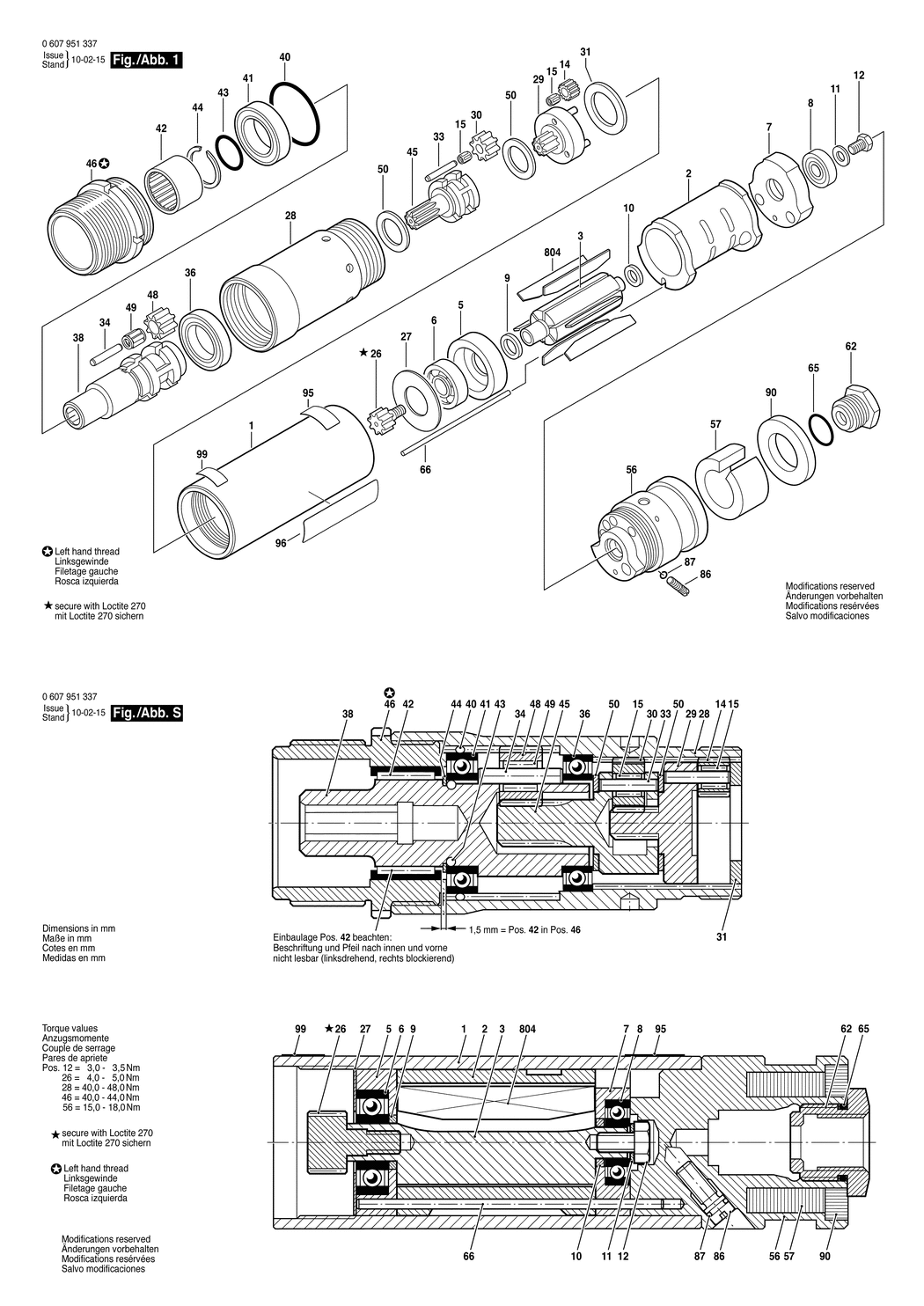

1 - MOTOR HOUSING
BSD-3600760114.A4
3600760114
|
£85.90
|
£103.08
|
|
|
2 - STATOR 370W
BSD-3604090062.A4
3604090062
|
£107.69
|
£129.23
|
|
|
3 - ROTOR
BSD-3604220025.A48
3604220025
|
£107.69
|
£129.23
|
|
|
5 - BEARING FLANGE
BSD-3605700005.A124
3605700005
|
£57.14
|
£68.57
|
|
|
6 - GROOVE BALL BEARING 9x24x7 MM
BSD-3600905039.A134
3600905039
|
£12.04
|
£14.45
|
|
|
7 - BEARING FLANGE
BSD-3605700006.A13
3605700006
|
£75.79
|
£90.95
|
|
|
8 - GROOVE BALL BEARING DIN 625-7x19x6
BSD-3600905148.A59
3600905148
|
£8.92
|
£10.70
|
|
|
9 - SPACER RING
BSD-2600202013.A96
2600202013
|
£8.67
|
£10.41
|
|
|
10 - SPACER RING
BSD-2600202014.A95
2600202014
|
£11.87
|
£14.24
|
|
|
11 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A307
2916011012
|
£1.84
|
£2.21
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A76
2911061150
|
£2.74
|
£3.29
|
|
|
14 - CYLINDRICAL GEAR Z=12
BSD-3606316098.A49
3606316098
|
£27.23
|
£32.68
|
|
|
15 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A2
3600913000
|
£4.26
|
£5.11
|
|
|
26 - PINION Z=23
BSD-3606300002.A46
3606300002
|
£25.05
|
£30.06
|
|
|
27 - STOP DISC
BSD-3600101001.A174
3600101001
|
£2.61
|
£3.13
|
|
|
28 - RING GEAR
BSD-3606334091.A4
3606334091
|
£264.25
|
£317.10
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337071.A12
3606337071
|
-
|
|
|
|
30 - CYLINDRICAL GEAR Z=16
BSD-3606316099.A55
3606316099
|
£22.76
|
£27.31
|
|
|
31 - FRICTION WASHER
BSD-3600113010.A22
3600113010
|
£2.94
|
£3.53
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A396
3603201000
|
£1.84
|
£2.21
|
|
|
34 - NEEDLE ROLLER
BSD-3603201044.A20
3603201044
|
£1.84
|
£2.21
|
|
|
36 - GROOVE BALL BEARING
BSD-3600900016.A5
3600900016
|
-
|
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337208.A4
3606337208
|
£156.22
|
£187.46
|
|
|
40 - O-RING 32.0x2.0 MM
BSD-2600210024.A6
2600210024
|
£1.75
|
£2.10
|
|
|
41 - GROOVE BALL BEARING 20x32x7
BSD-3600905145.A20
3600905145
|
£33.22
|
£39.87
|
|
|
42 - FREEWHEELING
BSD-3600910018.A20
3600910018
|
£27.23
|
£32.68
|
|
|
43 - O-RING 15x2.5 MM
BSD-1900210113.A5
1900210113
|
£2.61
|
£3.13
|
|
|
44 - SPRING RETAINING RING DIN 471 20x1.2
BSD-2916650011.A75
2916650011
|
£2.16
|
£2.59
|
|
|
45 - PLANETARY-GEAR CARRIER
BSD-3606337105.A4
3606337105
|
-
|
|
|
|
46 - THREADED RING
BSD-3603344055.A0
3603344055
|
£39.13
|
£46.96
|
|
|
48 - CYLINDRICAL GEAR Z=14
BSD-3606316053.A11
3606316053
|
£18.96
|
£22.75
|
|
|
49 - NEEDLE-ROLLER ASSEMBLY
BSD-3600903001.A1
3600903001
|
£8.67
|
£10.41
|
|
|
50 - FRICTION WASHER
BSD-3600101024.A8
3600101024
|
£7.36
|
£8.83
|
|
|
56 - VALVE HOUSING
BSD-3605190191.A2
3605190191
|
£68.42
|
£82.10
|
|
|
57 - SILENCER
BSD-3601010002.A48
3601010002
|
£2.80
|
£3.36
|
|
|
62 - FITTING
BSD-3603458019.A1
3603458019
|
£10.10
|
£12.12
|
|
|
65 - O-RING 16x1.25 MM
BSD-3600210036.A35
3600210036
|
£2.27
|
£2.72
|
|
|
66 - STRAIGHT PIN
BSD-3604710051.A40
3604710051
|
£10.61
|
£12.73
|
|
|
86 - ADJUSTING SCREW
BSD-3603435048.A12
3603435048
|
£17.22
|
£20.67
|
|
|
87 - O-RING 4.0x1.0 MM
BSD-3600210015.A82
3600210015
|
£3.72
|
£4.47
|
|
|
90 - SILENCER
BSD-3600105002.A46
3600105002
|
£10.10
|
£12.12
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A479
160111A3HF
|
£3.91
|
£4.69
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601110331.A22
3601110331
|
£3.72
|
£4.47
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A515
3601119236
|
£3.91
|
£4.69
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030249.A57
3607030249
|
£35.42
|
£42.50
|
|
