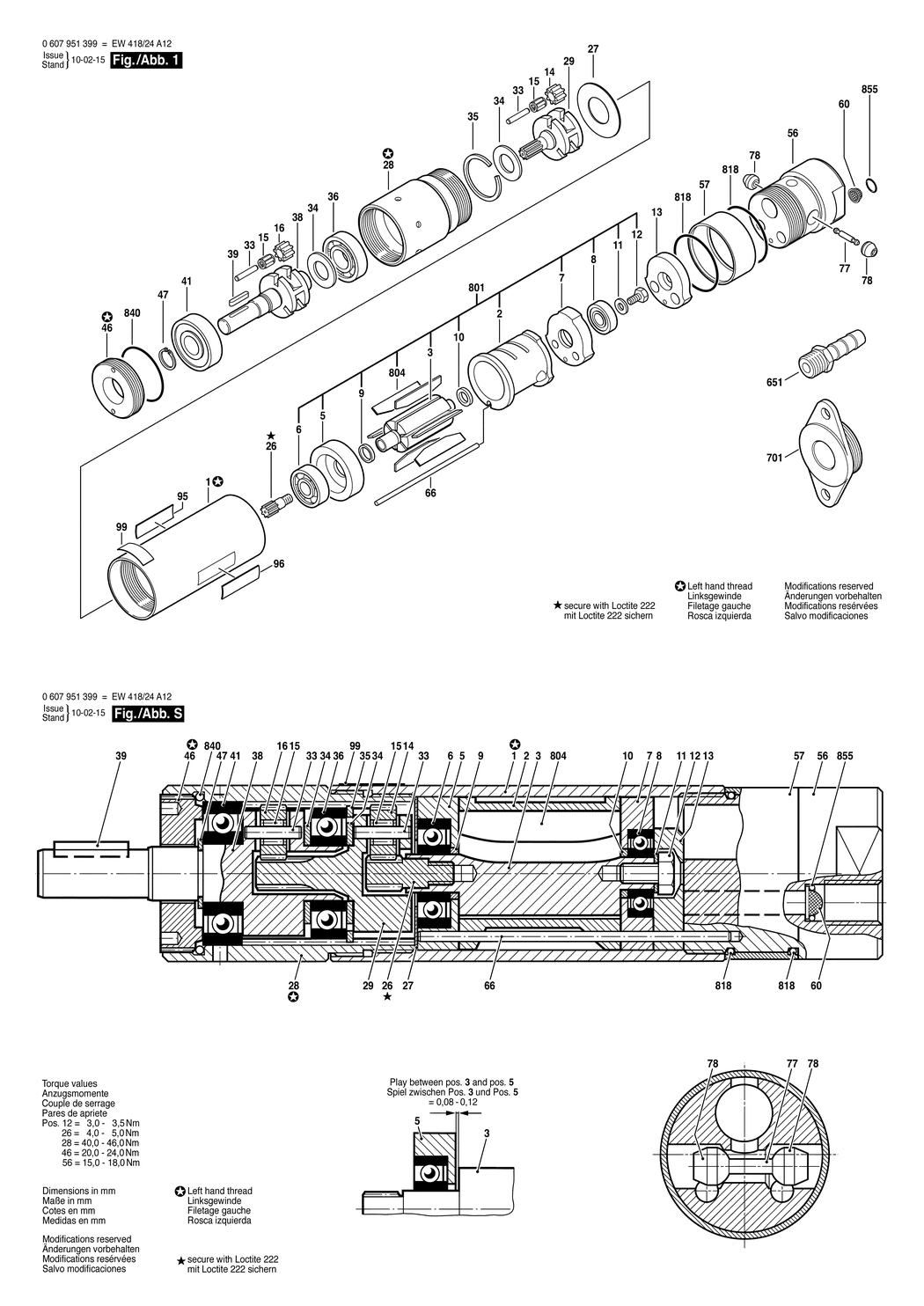

1 - MOTOR HOUSING
BSD-3600760001.A26
3600760001
|
£57.14
|
£68.57
|
|
|
2 - STATOR 370W
BSD-3604090002.A40
3604090002
|
£81.81
|
£98.17
|
|
|
3 - ROTOR
BSD-3604220025.A21
3604220025
|
£107.69
|
£129.23
|
|
|
5 - BEARING FLANGE
BSD-3605700005.A132
3605700005
|
£57.14
|
£68.57
|
|
|
6 - GROOVE BALL BEARING 9x24x7 MM
BSD-3600905039.A141
3600905039
|
£12.04
|
£14.45
|
|
|
7 - BEARING FLANGE
BSD-3605700006.A9
3605700006
|
£75.79
|
£90.95
|
|
|
8 - GROOVE BALL BEARING DIN 625-7x19x6
BSD-3600905148.A70
3600905148
|
£8.92
|
£10.70
|
|
|
9 - SPACER RING
BSD-2600202013.A98
2600202013
|
£8.67
|
£10.41
|
|
|
10 - SPACER RING
BSD-2600202014.A93
2600202014
|
£11.87
|
£14.24
|
|
|
11 - PLAIN WASHER DIN 433-5.3-ST
BSD-2916011011.A44
2916011011
|
£1.75
|
£2.10
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A96
2911061150
|
£2.74
|
£3.29
|
|
|
13 - INTERMEDIATE PIECE
BSD-3602305000.A45
3602305000
|
£37.27
|
£44.72
|
|
|
14 - CYLINDRICAL GEAR
BSD-3606316101.A39
3606316101
|
£22.76
|
£27.31
|
|
|
15 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A13
3600913000
|
£4.26
|
£5.11
|
|
|
16 - CYLINDRICAL GEAR
BSD-3606316100.A69
3606316100
|
£21.52
|
£25.83
|
|
|
26 - PINION
BSD-3606300005.A17
3606300005
|
£31.64
|
£37.97
|
|
|
27 - STOP DISC
BSD-3600101001.A158
3600101001
|
£2.61
|
£3.13
|
|
|
28 - RING GEAR Z=49
BSD-3606334000.A75
3606334000
|
£107.69
|
£129.23
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337004.A10
3606337004
|
£98.57
|
£118.28
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A382
3603201000
|
£1.84
|
£2.21
|
|
|
34 - SHIM WASHER
BSD-3600103002.A27
3600103002
|
£3.72
|
£4.47
|
|
|
35 - RETAINING RING
BSD-3600224000.A42
3600224000
|
£1.75
|
£2.10
|
|
|
36 - GROOVE BALL BEARING 12x28x8
BSD-1900900287.A148
1900900287
|
£21.68
|
£26.01
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337140.A0
3606337140
|
£195.26
|
£234.31
|
|
|
39 - PARALLEL KEY DIN 6885 A4x4x25-ST50K
BSD-1902300048.A2
1902300048
|
£2.74
|
£3.29
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905027.A28
3600905027
|
£17.22
|
£20.67
|
|
|
46 - THREADED RING
BSD-3603344000.A35
3603344000
|
£16.41
|
£19.69
|
|
|
47 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A251
2916650006
|
£1.75
|
£2.10
|
|
|
56 - CONNECTION HOUSING
BSD-3605190193.A5
3605190193
|
£59.53
|
£71.44
|
|
|
57 - PROTECTION SLEEVE
BSD-3600400004.A4
3600400004
|
£33.74
|
£40.49
|
|
|
60 - STRAINER
BSD-3600002001.A103
3600002001
|
£2.61
|
£3.13
|
|
|
66 - STRAIGHT PIN
BSD-3604710000.A28
3604710000
|
£5.87
|
£7.04
|
|
|
77 - HOLDING PIN
BSD-3603203004.A12
3603203004
|
£2.94
|
£3.53
|
|
|
78 - VALVE CONE
BSD-3603231000.A19
3603231000
|
£2.80
|
£3.36
|
|
|
86 - ADJUSTING SCREW
BSD-3603435048.A24
3603435048
|
£17.22
|
£20.67
|
|
|
87 - O-RING 4.0x1.0 MM
BSD-3600210015.A64
3600210015
|
£3.72
|
£4.47
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A504
160111A3HF
|
£3.91
|
£4.69
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601110331.A32
3601110331
|
£3.72
|
£4.47
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A498
3601119236
|
£3.91
|
£4.69
|
|
|
651 - HOSE FITTING
BSD-3603386067.A15
3603386067
|
£22.60
|
£27.12
|
|
|
701 - FASTENING FLANGE
BSD-3605700045.A16
3605700045
|
£126.12
|
£151.34
|
|
|
801 - ASSEMBLY OF SERVICE PARTS
BSD-3607031016.A20
3607031016
|
-
|
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030249.A39
3607030249
|
£35.42
|
£42.50
|
|
|
818 - PARTS SET
BSD-3607010007.A78
3607010007
|
£19.91
|
£23.89
|
|
|
840 - PARTS SET
BSD-3607010007.A79
3607010007
|
£19.91
|
£23.89
|
|
|
855 - PARTS SET
BSD-3607010020.A70
3607010020
|
£9.11
|
£10.93
|
|
