Bosch 370 WATT-SERIE / 0607951339 / --- Spare Parts

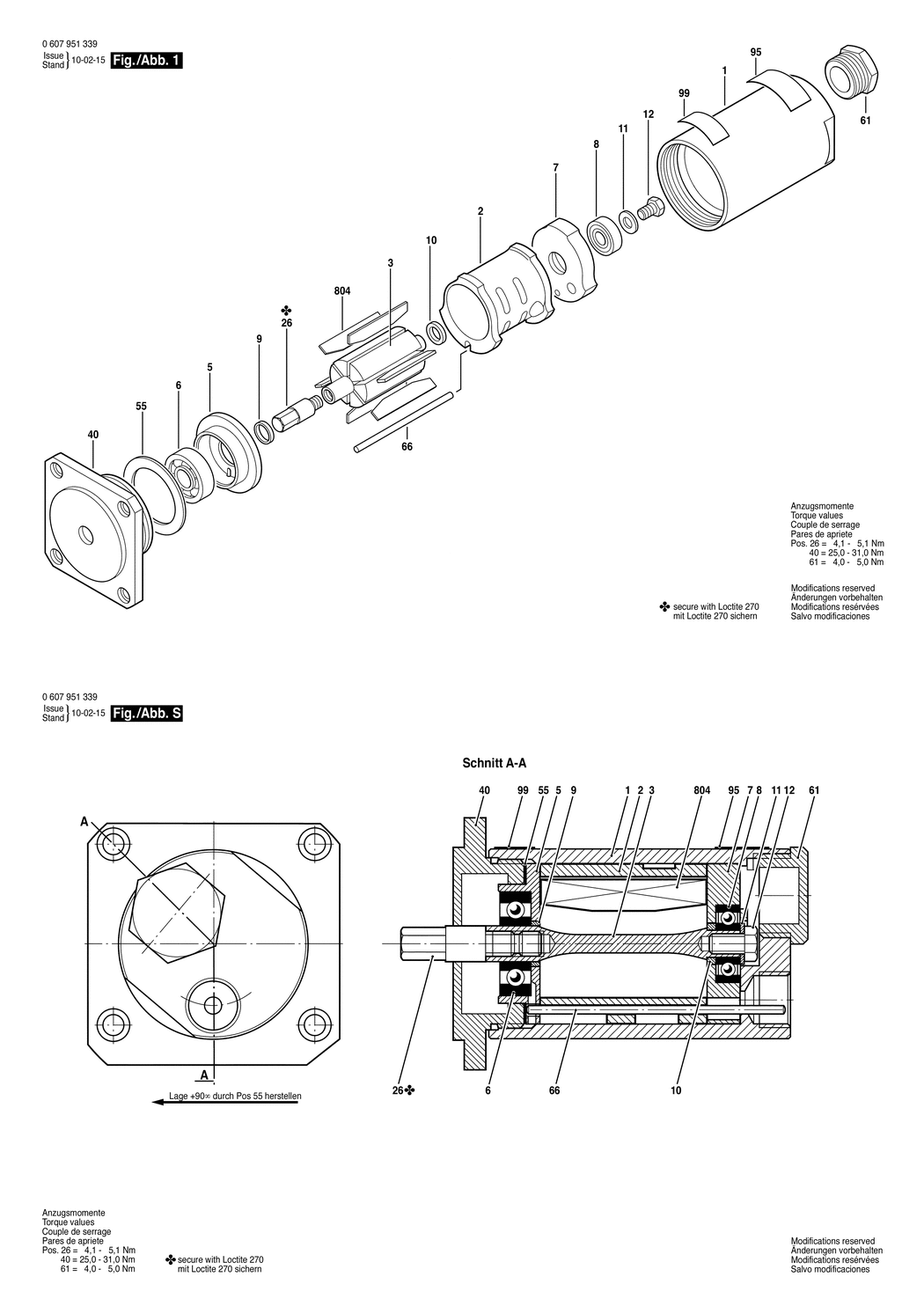

An exploded drawing and listing for the Bosch 370 WATT-SERIE / 0607951339 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605125060.A0 3605125060	£57.14	£68.57
2 - STATOR 550W BSD-3604090009.A5 3604090009	£98.57	£118.28
3 - ROTOR BSD-3604220005.A18 3604220005	£75.79	£90.95
5 - BEARING FLANGE BSD-3605700167.A0 3605700167	£25.05	£30.06
6 - GROOVE BALL BEARING 10x26x8 BSD-1900905127.A88 1900905127	£27.23	£32.68
7 - BEARING FLANGE BSD-3605700010.A2 3605700010	£62.51	£75.01
8 - BALL BEARING 8x22x7 BSD-1900905029.A12 1900905029	£22.60	£27.12
9 - SPACER RING BSD-2600200007.A21 2600200007	£10.61	£12.73
10 - SPACER RING BSD-3600202004.A12 3600202004	£11.30	£13.56
11 - PLAIN WASHER DIN 125-A5.3-ST BSD-2916011012.A272 2916011012	£1.84	£2.21
12 - HEX SCREW DIN 933-M5x8-8.8 BSD-2911061150.A97 2911061150	£2.74	£3.29
26 - CARRIER BSD-3606337209.A1 3606337209	£18.96	£22.75
40 - FLANGE BSD-3600390038.A0 3600390038	£50.80	£60.96
55 - SEALING DISC BSD-3600100048.A216 3600100048	£2.80	£3.36
61 - SILENCER BSD-3603462017.A0 3603462017	£15.65	£18.78
66 - STRAIGHT PIN BSD-3604710032.A5 3604710032	£7.36	£8.83
95 - NAMEPLATE BSD-160111A3HF.A503 160111A3HF	£3.91	£4.69
99 - REFERENCE PLATE BSD-3601119236.A499 3601119236	£3.91	£4.69
804 - ASSEMBLY OF SERVICE PARTS BSD-3607030260.A61 3607030260	£21.68	£26.01
