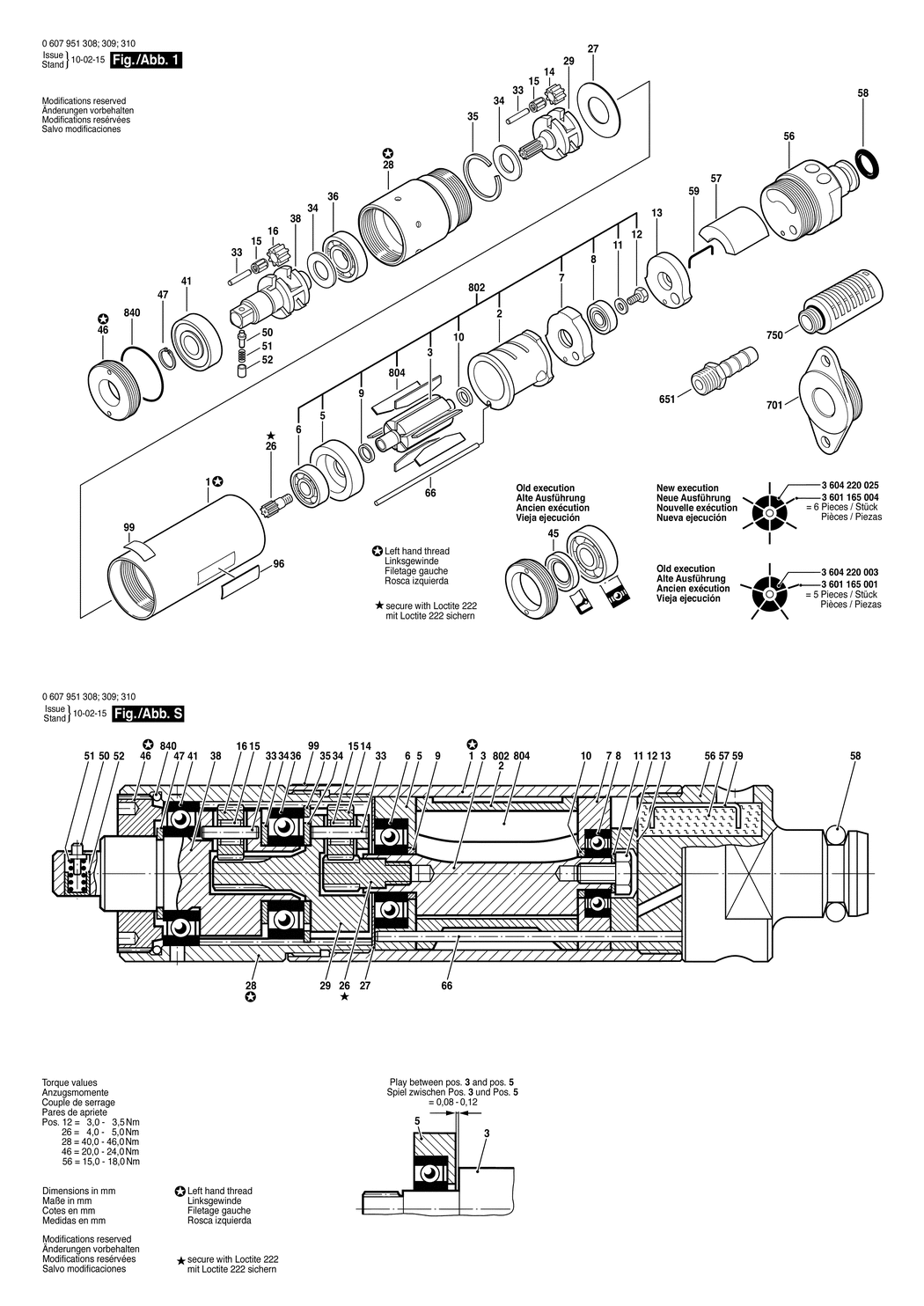

1 - MOTOR HOUSING
BSD-3600760001.A7
3600760001
|
£57.14
|
£68.57
|
|
|
2 - STATOR 370W
BSD-3604090003.A27
3604090003
|
£93.88
|
£112.65
|
|
|
3 - ROTOR
BSD-3604220025.A8
3604220025
|
£107.69
|
£129.23
|
|
|
5 - BEARING FLANGE
BSD-3605700005.A101
3605700005
|
£57.14
|
£68.57
|
|
|
6 - GROOVE BALL BEARING 9x24x7 MM
BSD-3600905039.A168
3600905039
|
£12.04
|
£14.45
|
|
|
7 - BEARING FLANGE
BSD-3605700007.A42
3605700007
|
£63.50
|
£76.20
|
|
|
8 - GROOVE BALL BEARING DIN 625-7x19x6
BSD-3600905148.A120
3600905148
|
£8.92
|
£10.70
|
|
|
9 - SPACER RING
BSD-2600202013.A147
2600202013
|
£8.67
|
£10.41
|
|
|
10 - SPACER RING
BSD-2600202014.A45
2600202014
|
£11.87
|
£14.24
|
|
|
11 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A266
2916011012
|
£1.84
|
£2.21
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A49
2911061150
|
£2.61
|
£3.13
|
|
|
13 - INTERMEDIATE PIECE
BSD-3602305004.A1
3602305004
|
-
|
|
|
|
14 - CYLINDRICAL GEAR Z=12
BSD-3606316098.A59
3606316098
|
£27.23
|
£32.68
|
|
|
15 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A144
3600913000
|
£4.26
|
£5.11
|
|
|
16 - CYLINDRICAL GEAR Z=16
BSD-3606316099.A30
3606316099
|
£22.76
|
£27.31
|
|
|
26 - PINION Z=23
BSD-3606300002.A32
3606300002
|
£25.05
|
£30.06
|
|
|
27 - STOP DISC
BSD-3600101001.A193
3600101001
|
£2.61
|
£3.13
|
|
|
28 - RING GEAR Z=49
BSD-3606334000.A59
3606334000
|
£107.69
|
£129.23
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337002.A7
3606337002
|
£93.88
|
£112.65
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A299
3603201000
|
£1.84
|
£2.21
|
|
|
34 - SHIM WASHER
BSD-3600103002.A14
3600103002
|
£3.72
|
£4.47
|
|
|
35 - RETAINING RING
BSD-3600224000.A18
3600224000
|
£1.75
|
£2.10
|
|
|
36 - GROOVE BALL BEARING 12x28x8
BSD-1900900287.A173
1900900287
|
£21.68
|
£26.01
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337038.A1
3606337038
|
£120.11
|
£144.13
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905027.A15
3600905027
|
£17.22
|
£20.67
|
|
|
46 - THREADED RING
BSD-3603344000.A31
3603344000
|
£16.41
|
£19.69
|
|
|
47 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A257
2916650006
|
£1.75
|
£2.10
|
|
|
50 - PRESSURE SPINDLE
BSD-1603124060.A20
1603124060
|
£5.58
|
£6.70
|
|
|
51 - COMPRESSION SPRING
BSD-1604611004.A12
1604611004
|
£2.80
|
£3.36
|
|
|
52 - GUIDE SLEEVE
BSD-3600320016.A49
3600320016
|
£14.91
|
£17.89
|
|
|
56 - CONNECTION HOUSING
BSD-3605190053.A0
3605190053
|
-
|
|
|
|
57 - SILENCER
BSD-3601010005.A0
3601010005
|
-
|
|
|
|
58 - O-RING 18x2.5 MM
BSD-1900210311.A0
1900210311
|
-
|
|
|
|
59 - TRANSPORT BRACKET
BSD-3604720002.A6
3604720002
|
-
|
|
|
|
66 - STRAIGHT PIN
BSD-3604710000.A12
3604710000
|
£5.87
|
£7.04
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601110331.A9
3601110331
|
£3.72
|
£4.47
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A452
3601119236
|
£3.91
|
£4.69
|
|
|
651 - HOSE FITTING
BSD-3603386067.A3
3603386067
|
£22.60
|
£27.12
|
|
|
701 - FASTENING FLANGE
BSD-3605700045.A9
3605700045
|
£126.12
|
£151.34
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031016.A5
3607031016
|
-
|
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030249.A24
3607030249
|
£35.42
|
£42.50
|
|
|
840 - PARTS SET
BSD-3607010007.A50
3607010007
|
£19.91
|
£23.89
|
|
