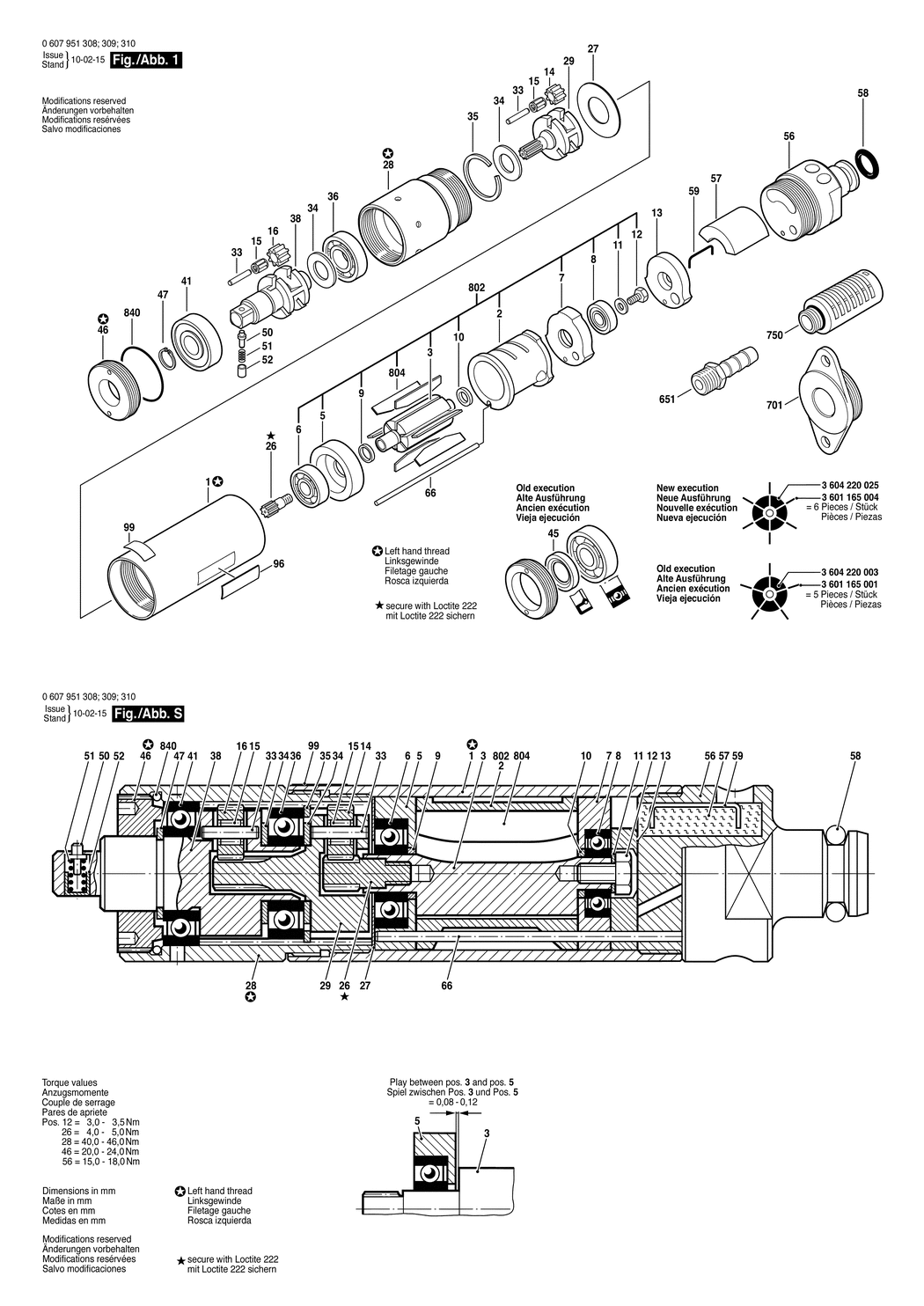

1 - MOTOR HOUSING
BSD-3600760001.A12
3600760001
|
£54.42
|
£65.30
|
|
|
2 - STATOR 370W
BSD-3604090003.A23
3604090003
|
£93.88
|
£112.65
|
|
|
3 - ROTOR
BSD-3604220025.A14
3604220025
|
£102.57
|
£123.08
|
|
|
5 - BEARING FLANGE
BSD-3605700005.A111
3605700005
|
£54.42
|
£65.30
|
|
|
6 - GROOVE BALL BEARING 9x24x7 MM
BSD-3600905039.A173
3600905039
|
£12.04
|
£14.45
|
|
|
7 - BEARING FLANGE
BSD-3605700007.A47
3605700007
|
£63.50
|
£76.20
|
|
|
8 - GROOVE BALL BEARING DIN 625-7x19x6
BSD-3600905148.A116
3600905148
|
£8.49
|
£10.19
|
|
|
9 - SPACER RING
BSD-2600202013.A142
2600202013
|
£8.67
|
£10.41
|
|
|
10 - SPACER RING
BSD-2600202014.A50
2600202014
|
£11.30
|
£13.56
|
|
|
11 - PLAIN WASHER DIN 433-5.3-ST
BSD-2916011011.A45
2916011011
|
£1.75
|
£2.10
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A58
2911061150
|
£2.61
|
£3.13
|
|
|
13 - INTERMEDIATE PIECE
BSD-3602305004.A0
3602305004
|
-
|
|
|
|
14 - CYLINDRICAL GEAR
BSD-3606316101.A22
3606316101
|
£21.68
|
£26.01
|
|
|
15 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A148
3600913000
|
£4.26
|
£5.11
|
|
|
16 - CYLINDRICAL GEAR
BSD-3606316100.A97
3606316100
|
£21.52
|
£25.83
|
|
|
26 - PINION
BSD-3606300005.A7
3606300005
|
£31.64
|
£37.97
|
|
|
27 - STOP DISC
BSD-3600101001.A181
3600101001
|
£2.61
|
£3.13
|
|
|
28 - RING GEAR Z=49
BSD-3606334000.A55
3606334000
|
£102.57
|
£123.08
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337004.A1
3606337004
|
£93.88
|
£112.65
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A304
3603201000
|
£1.75
|
£2.10
|
|
|
34 - SHIM WASHER
BSD-3600103002.A16
3600103002
|
£3.72
|
£4.47
|
|
|
35 - RETAINING RING
BSD-3600224000.A16
3600224000
|
£1.75
|
£2.10
|
|
|
36 - GROOVE BALL BEARING 12x28x8
BSD-1900900287.A172
1900900287
|
£21.68
|
£26.01
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337038.A3
3606337038
|
£120.11
|
£144.13
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905027.A17
3600905027
|
£16.41
|
£19.69
|
|
|
46 - THREADED RING
BSD-3603344000.A33
3603344000
|
£16.41
|
£19.69
|
|
|
47 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A258
2916650006
|
£1.75
|
£2.10
|
|
|
50 - PRESSURE SPINDLE
BSD-1603124060.A21
1603124060
|
£5.58
|
£6.70
|
|
|
51 - COMPRESSION SPRING
BSD-1604611004.A11
1604611004
|
£2.80
|
£3.36
|
|
|
52 - GUIDE SLEEVE
BSD-3600320016.A51
3600320016
|
£14.91
|
£17.89
|
|
|
56 - CONNECTION HOUSING
BSD-3605190053.A2
3605190053
|
-
|
|
|
|
57 - SILENCER
BSD-3601010005.A2
3601010005
|
-
|
|
|
|
58 - O-RING 18x2.5 MM
BSD-1900210311.A1
1900210311
|
-
|
|
|
|
59 - TRANSPORT BRACKET
BSD-3604720002.A4
3604720002
|
-
|
|
|
|
66 - STRAIGHT PIN
BSD-3604710000.A14
3604710000
|
£5.58
|
£6.70
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601110331.A7
3601110331
|
£3.72
|
£4.47
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A454
3601119236
|
£3.72
|
£4.47
|
|
|
651 - HOSE FITTING
BSD-3603386067.A1
3603386067
|
£21.52
|
£25.83
|
|
|
701 - FASTENING FLANGE
BSD-3605700045.A10
3605700045
|
£120.11
|
£144.13
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031016.A8
3607031016
|
-
|
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030249.A22
3607030249
|
£33.73
|
£40.48
|
|
|
840 - PARTS SET
BSD-3607010007.A52
3607010007
|
£18.96
|
£22.75
|
|
