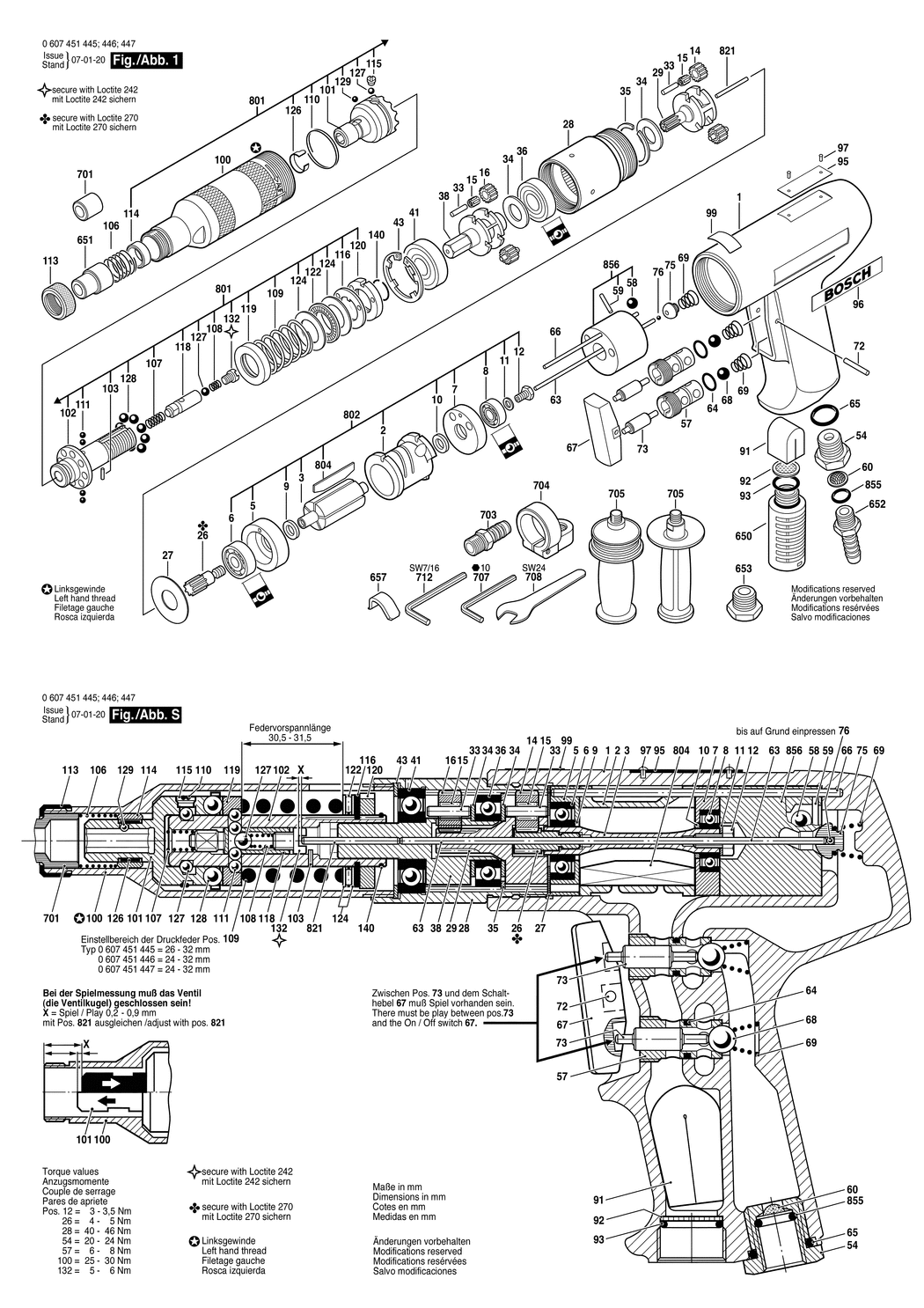

1 - MOTOR HOUSING
BSD-3605108032.A3
3605108032
|
-
|
|
|
|
2 - STATOR 370W
BSD-3604090002.A3
3604090002
|
£81.81
|
£98.17
|
|
|
3 - ROTOR
BSD-3604220002.A11
3604220002
|
£98.57
|
£118.28
|
|
|
5 - BEARING FLANGE
BSD-3605700005.A22
3605700005
|
£57.14
|
£68.57
|
|
|
6 - GROOVE BALL BEARING 9x24x7 MM
BSD-3600905039.A317
3600905039
|
£12.04
|
£14.45
|
|
|
7 - BEARING FLANGE
BSD-3605700009.A0
3605700009
|
-
|
|
|
|
8 - BALL BEARING 7x19x6
BSD-2600905032.A426
2600905032
|
£5.57
|
£6.68
|
|
|
9 - SPACER RING
BSD-2600202013.A32
2600202013
|
£8.67
|
£10.41
|
|
|
10 - SPACER RING
BSD-2600202014.A164
2600202014
|
£11.87
|
£14.24
|
|
|
11 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A141
2916011012
|
£1.84
|
£2.21
|
|
|
12 - HEX SCREW
BSD-3603450000.A13
3603450000
|
£7.36
|
£8.83
|
|
|
14 - CYLINDRICAL GEAR Z=12
BSD-3606316098.A2
3606316098
|
£27.23
|
£32.68
|
|
|
15 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A316
3600913000
|
£4.26
|
£5.11
|
|
|
16 - CYLINDRICAL GEAR Z=16
BSD-3606316099.A116
3606316099
|
£22.76
|
£27.31
|
|
|
26 - PINION
BSD-3606300000.A16
3606300000
|
£33.74
|
£40.49
|
|
|
27 - STOP DISC
BSD-3600101001.A73
3600101001
|
£2.61
|
£3.13
|
|
|
28 - RING GEAR Z=49
BSD-3606334000.A110
3606334000
|
£107.69
|
£129.23
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337000.A7
3606337000
|
-
|
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A177
3603201000
|
£1.84
|
£2.21
|
|
|
34 - SHIM WASHER
BSD-3600103002.A110
3600103002
|
£3.72
|
£4.47
|
|
|
35 - RETAINING RING
BSD-3600224000.A114
3600224000
|
£1.75
|
£2.10
|
|
|
36 - GROOVE BALL BEARING 12x28x8
BSD-1900900287.A85
1900900287
|
£21.68
|
£26.01
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337005.A36
3606337005
|
£120.11
|
£144.13
|
|
|
41 - GROOVE BALL BEARING 12x32x10
BSD-1600905007.A87
1600905007
|
£11.30
|
£13.56
|
|
|
43 - SPRING RETAINING RING
BSD-3600119000.A44
3600119000
|
£10.10
|
£12.12
|
|
|
54 - FITTING
BSD-3603458008.A55
3603458008
|
£8.67
|
£10.41
|
|
|
57 - VALVE BUSHING
BSD-3600364007.A11
3600364007
|
-
|
|
|
|
58 - BALL
BSD-3603230010.A6
3603230010
|
-
|
|
|
|
59 - SLOTTED SPRING PIN 2x10 DIN 1481
BSD-2917760036.A5
2917760036
|
-
|
|
|
|
60 - STRAINER
BSD-3600002000.A207
3600002000
|
£3.72
|
£4.47
|
|
|
63 - STRAIGHT PIN
BSD-3604710027.A6
3604710027
|
-
|
|
|
|
64 - O-RING 9.0x1.5 MM
BSD-2600210021.A31
2600210021
|
£1.75
|
£2.10
|
|
|
65 - O-RING 15.6x1.8 MM
BSD-3600210003.A89
3600210003
|
£1.84
|
£2.21
|
|
|
66 - STRAIGHT PIN
BSD-3604710025.A6
3604710025
|
£7.36
|
£8.83
|
|
|
67 - CONTROL LEVER
BSD-3602053000.A12
3602053000
|
-
|
|
|
|
68 - BALL
BSD-3603230000.A28
3603230000
|
£2.80
|
£3.36
|
|
|
69 - COMPRESSION SPRING
BSD-3604616002.A11
3604616002
|
£2.27
|
£2.72
|
|
|
72 - STRAIGHT PIN 3M6x24 DIN 7-C35K
BSD-2917610083.A97
2917610083
|
£1.75
|
£2.10
|
|
|
73 - VALVE SPOOL
BSD-3608750007.A2
3608750007
|
-
|
|
|
|
75 - VALVE CONE
BSD-3603230008.A18
3603230008
|
-
|
|
|
|
76 - BALL 2 MM III DIN 5401 ST
BSD-1903230002.A67
1903230002
|
£2.27
|
£2.72
|
|
|
91 - SILENCER
BSD-3601010006.A68
3601010006
|
£1.84
|
£2.21
|
|
|
92 - FILTER SCREEN
BSD-3600002004.A14
3600002004
|
£2.80
|
£3.36
|
|
|
93 - O-RING 14.0x3.0 MM
BSD-3600210009.A12
3600210009
|
£1.32
|
£1.58
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A40
160111A3HF
|
£3.91
|
£4.69
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A256
1601110481
|
£2.27
|
£2.72
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A233
3603133000
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1481
3601119236
|
£3.91
|
£4.69
|
|
|
100 - HOUSING
BSD-3605125013.A12
3605125013
|
-
|
|
|
|
101 - CLUTCH ELEMENT
BSD-3606445030.A31
3606445030
|
£107.69
|
£129.23
|
|
|
102 - DRIVE SHAFT
BSD-3606122008.A96
3606122008
|
£126.12
|
£151.34
|
|
|
103 - SLOTTED SPRING PIN 2x5 DIN 1481
BSD-2917760033.A95
2917760033
|
£1.75
|
£2.10
|
|
|
106 - COMPRESSION SPRING
BSD-3604615000.A29
3604615000
|
£1.75
|
£2.10
|
|
|
107 - COMPRESSION SPRING
BSD-3604610003.A27
3604610003
|
£3.91
|
£4.69
|
|
|
108 - COMPRESSION SPRING
BSD-3604610002.A130
3604610002
|
£3.91
|
£4.69
|
|
|
109 - COMPRESSION SPRING dia 3.5 MM
BSD-3604619005.A2
3604619005
|
£7.72
|
£9.27
|
|
|
110 - RETAINING RING
BSD-3604601001.A159
3604601001
|
£2.16
|
£2.59
|
|
|
111 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A343
1903230007
|
£1.84
|
£2.21
|
|
|
113 - UNION NUT
BSD-3603340000.A28
3603340000
|
£4.26
|
£5.11
|
|
|
114 - BUSHING
BSD-3600202000.A24
3600202000
|
£5.87
|
£7.04
|
|
|
115 - SEALING PLATE
BSD-3600001000.A54
3600001000
|
£2.80
|
£3.36
|
|
|
116 - ADJUSTING DISC
BSD-3600134000.A56
3600134000
|
£2.80
|
£3.36
|
|
|
118 - LOCKING BOLT
BSD-3603150203.A142
3603150203
|
£45.67
|
£54.80
|
|
|
119 - COUPLING PLATE
BSD-3600114001.A49
3600114001
|
£19.91
|
£23.89
|
|
|
120 - ROUND NUT
BSD-3603301004.A49
3603301004
|
£21.68
|
£26.01
|
|
|
122 - ROLLER THRUST BEARING
BSD-3600921000.A137
3600921000
|
£6.85
|
£8.22
|
|
|
124 - SUPPORT DISC
BSD-3600101002.A103
3600101002
|
£2.16
|
£2.59
|
|
|
126 - LEAF SPRING
BSD-2601250001.A5
2601250001
|
£3.72
|
£4.47
|
|
|
127 - BALL DIN 5401-5 G28
BSD-1903230009.A334
1903230009
|
£1.84
|
£2.21
|
|
|
128 - BALL DIN 5401-6 G28
BSD-1903230011.A242
1903230011
|
£2.74
|
£3.29
|
|
|
129 - BALL DIN 5401-2.5MM-III-ST
BSD-1903230003.A314
1903230003
|
£2.74
|
£3.29
|
|
|
132 - SCREW PLUG
BSD-3603463000.A46
3603463000
|
£2.74
|
£3.29
|
|
|
140 - RETAINING RING 14 DIN 9045
BSD-2916600008.A38
2916600008
|
£2.80
|
£3.36
|
|
|
650 - SILENCER
BSD-3607000073.A161
3607000073
|
£19.91
|
£23.89
|
|
|
651 - GUIDE SLEEVE
BSD-3600329000.A73
3600329000
|
£7.36
|
£8.83
|
|
|
652 - HOSE FITTING
BSD-2603386002.A256
2603386002
|
£5.30
|
£6.36
|
|
|
653 - SILENCER
BSD-3603462000.A96
3603462000
|
£16.41
|
£19.69
|
|
|
657 - ANGLE PIECE
BSD-3601329007.A71
3601329007
|
£4.48
|
£5.37
|
|
|
701 - GUIDE SLEEVE
BSD-3600328003.A0
3600328003
|
-
|
|
|
|
703 - HOSE FITTING dia 8 MM
BSD-3603386001.A115
3603386001
|
£16.41
|
£19.69
|
|
|
704 - SUPPORT CLAMP
BSD-3608040000.A40
3608040000
|
-
|
|
|
|
705 - AUXILIARY HANDLE M14
BSD-1602025022.A653
1602025022
|
£13.41
|
£16.09
|
|
|
705 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A702
1602025030
|
£18.96
|
£22.75
|
|
|
707 - OFFSET SCREWDRIVER DIN 911 SW10
BSD-1907950009.A64
1907950009
|
£22.76
|
£27.31
|
|
|
708 - SINGLE-HEAD ENG. WRENCH DIN 894 SW24
BSD-1907950513.A58
1907950513
|
£17.22
|
£20.67
|
|
|
712 - HEXAGON-SOCKET KEY
BSD-3607950001.A257
3607950001
|
£2.80
|
£3.36
|
|
|
801 - ASSEMBLY OF SERVICE PARTS
BSD-3607031110.A0
3607031110
|
-
|
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031026.A7
3607031026
|
-
|
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030248.A86
3607030248
|
£33.22
|
£39.87
|
|
|
821 - ASSEMBLY OF SERVICE PARTS
BSD-3607031087.A103
3607031087
|
£12.64
|
£15.17
|
|
|
855 - O-RING 10x2 MM
BSD-1900210306.A169
1900210306
|
£1.84
|
£2.21
|
|
|
856 - VALVE BODY
BSD-3605190057.A5
3605190057
|
-
|
|
|
