Bosch 370 WATT-SERIE / 0607351105 / --- Spare Parts

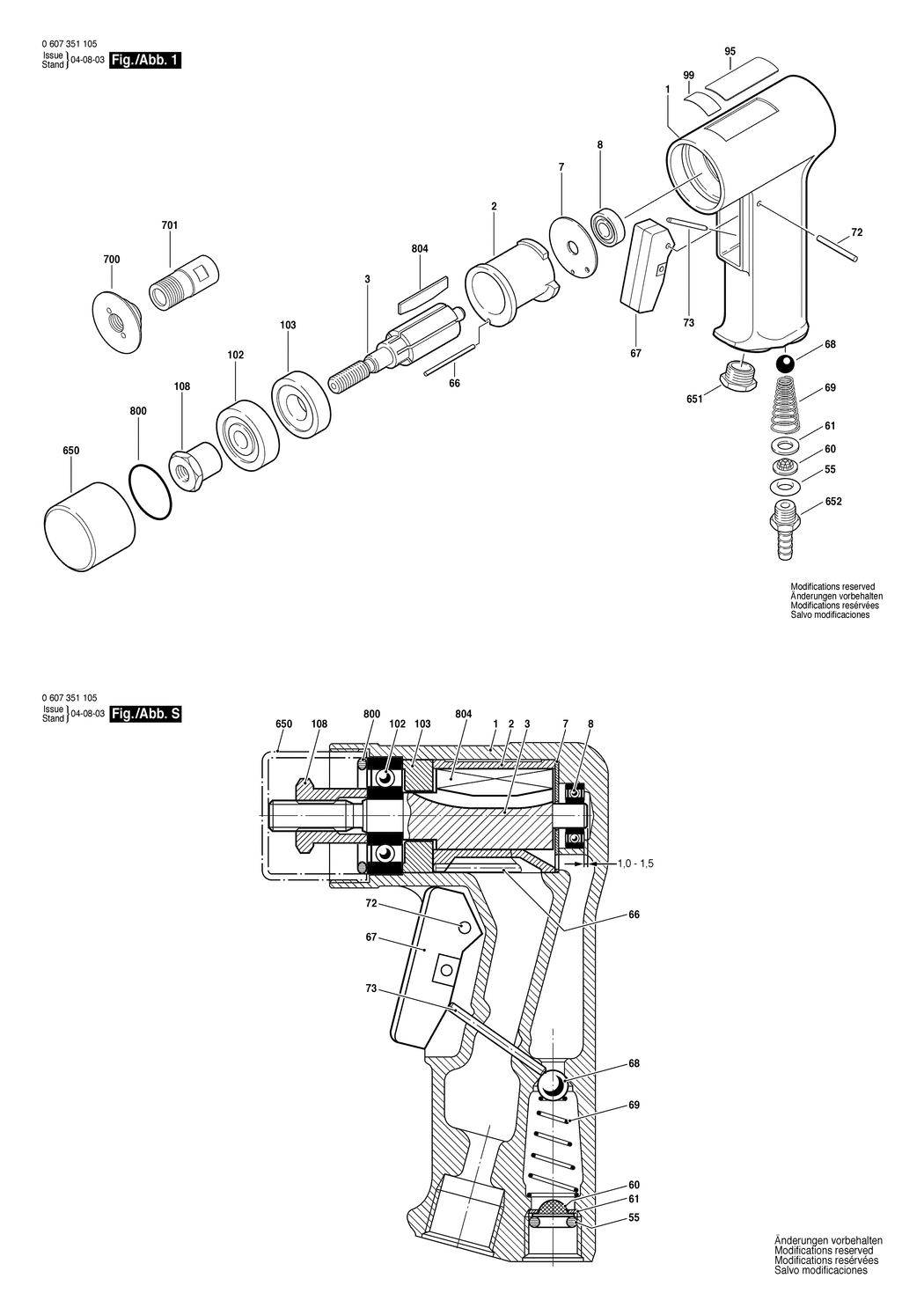

An exploded drawing and listing for the Bosch 370 WATT-SERIE / 0607351105 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605108074.A0 3605108074	-
2 - STATOR 370W BSD-3604090003.A85 3604090003	£93.88	£112.65
3 - ROTOR BSD-3604220010.A0 3604220010	-
7 - COVER DISC BSD-3600132000.A1 3600132000	-
8 - GROOVE BALL BEARING DIN 625-7x19x6 BSD-3600905148.A14 3600905148	£8.92	£10.70
55 - O-RING 10x3 MM BSD-1900210108.A1 1900210108	£11.87	£14.24
60 - STRAINER BSD-3600002000.A229 3600002000	£3.72	£4.47
61 - PLAIN WASHER BSD-1600100011.A1 1600100011	-
66 - STRAIGHT PIN BSD-3604710009.A1 3604710009	-
67 - CONTROL LEVER BSD-3602053001.A43 3602053001	£2.80	£3.36
68 - BALL dia9 MM BSD-3603230004.A80 3603230004	£3.91	£4.69
69 - COMPRESSION SPRING BSD-3604643004.A0 3604643004	-
72 - STRAIGHT PIN 3M6x24 DIN 7-C35K BSD-2917610083.A91 2917610083	£1.75	£2.10
73 - STRAIGHT PIN BSD-3604710023.A0 3604710023	-
95 - NAMEPLATE BSD-160111A3HF.A58 160111A3HF	£3.91	£4.69
99 - REFERENCE PLATE BSD-3601119236.A1434 3601119236	£3.91	£4.69
102 - GROOVE BALL BEARING 6300-Z/C3 DIN 625 BSD-1900905315.A4 1900905315	£31.64	£37.97
103 - BEARING COVER BSD-3605500005.A0 3605500005	-
108 - HEX NUT BSD-3603315000.A1 3603315000	-
650 - PROTECTIVE CAP BSD-3600508015.A0 3600508015	-
651 - SILENCER BSD-3603462000.A92 3603462000	£17.22	£20.67
652 - HOSE FITTING BSD-3603386003.A3 3603386003	-
700 - ROUND NUT BSD-3603340004.A1 3603340004	-
701 - COLLET JAWS BSD-3608570003.A1 3608570003	£120.11	£144.13
800 - PARTS SET BSD-3607010029.A0 3607010029	£8.17	£9.80
804 - ASSEMBLY OF SERVICE PARTS BSD-3607030248.A89 3607030248	£33.22	£39.87

Attribute Name	Value
Brand	Bosch
