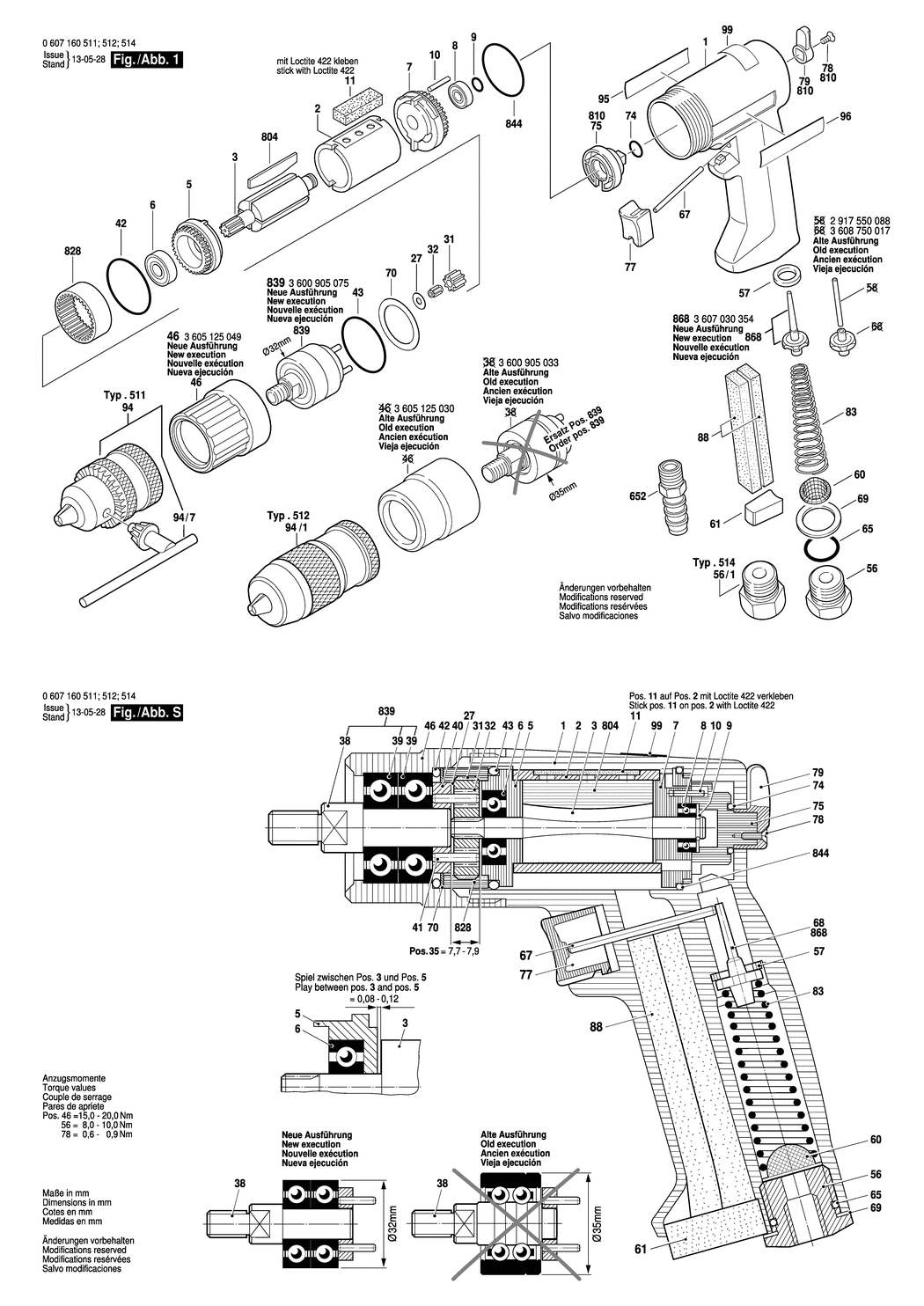

1 - MOTOR HOUSING
BSD-3605108056.A5
3605108056
|
£22.60
|
£27.12
|
|
|
2 - STATOR 220-320W
BSD-3604090034.A4
3604090034
|
£21.68
|
£26.01
|
|
|
3 - ROTOR
BSD-3604220034.A9
3604220034
|
£66.68
|
£80.01
|
|
|
5 - BEARING FLANGE
BSD-3605700040.A3
3605700040
|
£6.52
|
£7.83
|
|
|
6 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A662
1600905011
|
£5.87
|
£7.04
|
|
|
7 - BEARING FLANGE
BSD-3605700064.A4
3605700064
|
£11.87
|
£14.24
|
|
|
8 - GROOVE BALL BEARING 7x14x5
BSD-1900905030.A48
1900905030
|
£33.74
|
£40.49
|
|
|
9 - O-RING 4.0x1.0 MM
BSD-3600210015.A54
3600210015
|
£3.72
|
£4.47
|
|
|
10 - NEEDLE ROLLER A 2x11.8G2DIN5402
BSD-1903201002.A37
1903201002
|
£1.75
|
£2.10
|
|
|
11 - SILENCER
BSD-3601010020.A4
3601010020
|
-
|
|
|
|
27 - STOP DISC
BSD-3600100015.A11
3600100015
|
£2.80
|
£3.36
|
|
|
31 - CYLINDRICAL GEAR
BSD-3606316090.A5
3606316090
|
£2.61
|
£3.13
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A59
3600913000
|
£4.26
|
£5.11
|
|
|
43 - O-RING 30x2.5 MM
BSD-1900210131.A97
1900210131
|
£4.48
|
£5.37
|
|
|
46 - GEAR HOUSING
BSD-3605125049.A6
3605125049
|
£11.87
|
£14.24
|
|
|
56 - FITTING
BSD-3603462007.A57
3603462007
|
£7.36
|
£8.83
|
|
|
57 - VALVE BUSHING
BSD-3600209004.A2
3600209004
|
£2.27
|
£2.72
|
|
|
60 - STRAINER
BSD-3600002006.A36
3600002006
|
£3.72
|
£4.47
|
|
|
61 - SILENCER
BSD-2607000179.A11
2607000179
|
£9.11
|
£10.93
|
|
|
65 - O-RING 15x2 MM
BSD-1900210112.A175
1900210112
|
£2.61
|
£3.13
|
|
|
67 - STRAIGHT PIN
BSD-3603201043.A10
3603201043
|
£2.27
|
£2.72
|
|
|
69 - SHIM WASHER
BSD-3600105001.A39
3600105001
|
£1.75
|
£2.10
|
|
|
70 - SHIM 0.15 MM
BSD-1600102634.A36
1600102634
|
£2.74
|
£3.29
|
|
|
74 - O-RING 12.0x2.0 MM
BSD-1610210233.A46
1610210233
|
£2.94
|
£3.53
|
|
|
75 - VALVE SPOOL
BSD-3608750031.A2
3608750031
|
£15.65
|
£18.78
|
|
|
77 - PUSH-BUTTON
BSD-3602053003.A19
3602053003
|
£2.74
|
£3.29
|
|
|
78 - COUNTERSUNK-HEAD SCREW M 3x10 DIN 963-5.8
BSD-2910771052.A21
2910771052
|
-
|
|
|
|
79 - CONTROL LEVER
BSD-3602000000.A1
3602000000
|
£2.80
|
£3.36
|
|
|
83 - COMPRESSION SPRING
BSD-3604643012.A18
3604643012
|
£1.75
|
£2.10
|
|
|
88 - SILENCER
BSD-3601010001.A131
3601010001
|
£2.16
|
£2.59
|
|
|
94 - KEYLESS CHUCK dia 1-10 MM. 3/8
BSD-1608572018.A10
1608572018
|
-
|
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A560
160111A3HF
|
£3.91
|
£4.69
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601119055.A157
3601119055
|
£3.72
|
£4.47
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A315
3601119236
|
£3.91
|
£4.69
|
|
|
652 - HOSE FITTING
BSD-2603386002.A102
2603386002
|
£5.30
|
£6.36
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030244.A26
3607030244
|
£25.05
|
£30.06
|
|
|
810 - VALVE SPOOL
BSD-3608750030.A4
3608750030
|
£33.74
|
£40.49
|
|
|
828 - RING GEAR Z=49
BSD-3606334018.A10
3606334018
|
£4.26
|
£5.11
|
|
|
839 - GROOVE BALL BEARING
BSD-3600905075.A4
3600905075
|
£81.81
|
£98.17
|
|
|
844 - PARTS SET
BSD-3607010026.A29
3607010026
|
£8.67
|
£10.41
|
|
|
868 - VALVE CONE
BSD-3608750042.A13
3608750042
|
£6.52
|
£7.83
|
|
