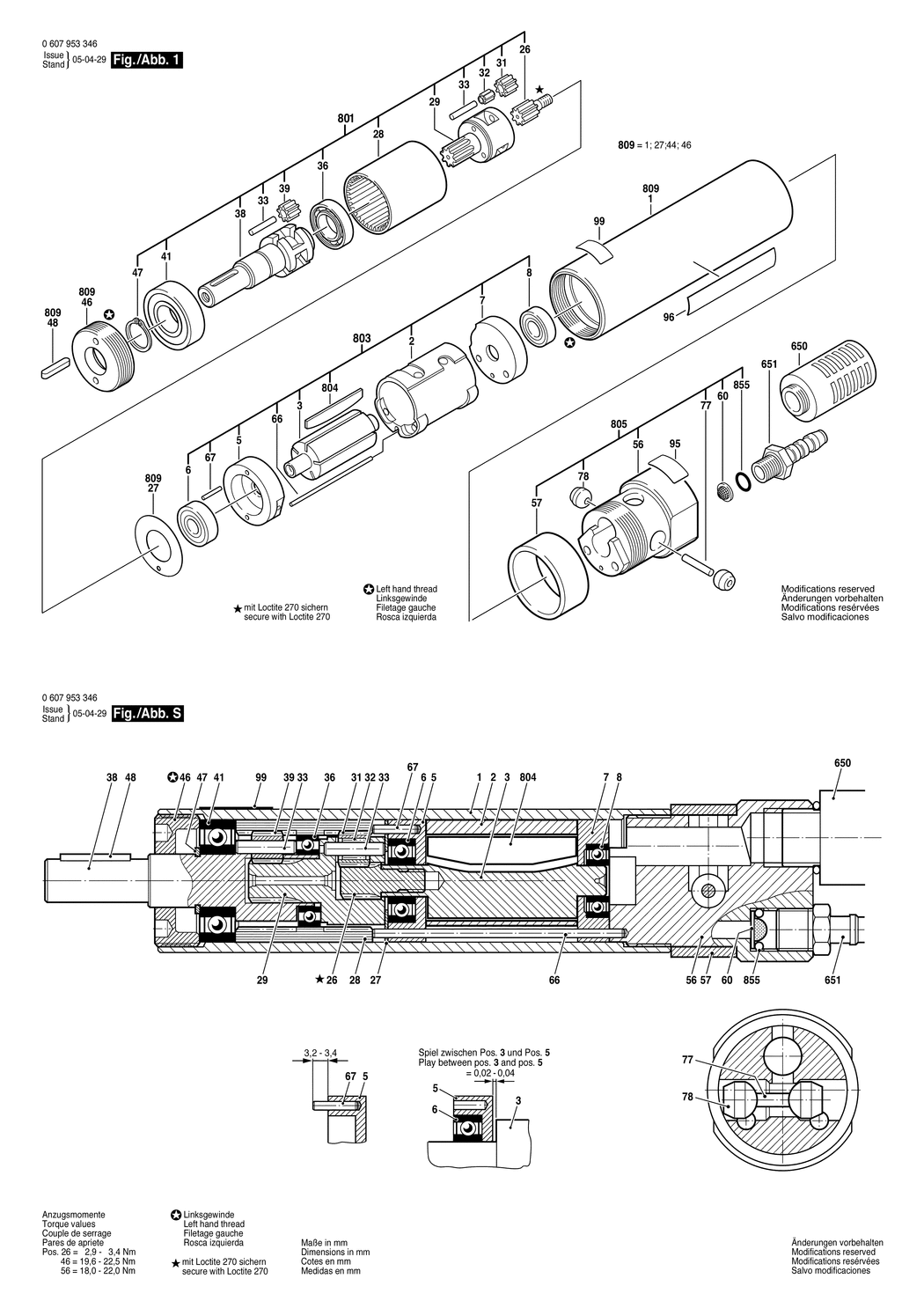

1 - MOTOR HOUSING
BSD-3600760110.A0
3600760110
|
£75.79
|
£90.95
|
|
|
2 - STATOR 180W
BSD-3604090061.A3
3604090061
|
£135.25
|
£162.30
|
|
|
3 - ROTOR
BSD-3604220080.A19
3604220080
|
£102.57
|
£123.08
|
|
|
5 - BEARING FLANGE
BSD-3605700107.A18
3605700107
|
£39.13
|
£46.96
|
|
|
6 - GROOVE BALL BEARING 7x19x6
BSD-1900905044.A2
1900905044
|
£7.72
|
£9.27
|
|
|
7 - BEARING FLANGE
BSD-3605700159.A2
3605700159
|
£54.42
|
£65.30
|
|
|
8 - GROOVE BALL BEARING 7x17x5
BSD-1900905028.A49
1900905028
|
£33.74
|
£40.49
|
|
|
26 - PINION Z=15
BSD-3606300018.A11
3606300018
|
£28.68
|
£34.41
|
|
|
27 - STOP DISC
BSD-3600101047.A42
3600101047
|
£2.16
|
£2.59
|
|
|
28 - RING GEAR dia19.5 MM
BSD-3606334085.A36
3606334085
|
£8.67
|
£10.41
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337181.A30
3606337181
|
£48.38
|
£58.06
|
|
|
31 - CYLINDRICAL GEAR Z=13
BSD-3606316010.A44
3606316010
|
-
|
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A438
3600913000
|
£4.26
|
£5.11
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A31
3603201000
|
£1.84
|
£2.21
|
|
|
36 - GROOVE BALL BEARING 12x21x5
BSD-3600905002.A127
3600905002
|
£16.41
|
£19.69
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337199.A0
3606337199
|
-
|
|
|
|
39 - CYLINDRICAL GEAR
BSD-3606316114.A29
3606316114
|
£13.78
|
£16.54
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905015.A140
3600905015
|
£17.22
|
£20.67
|
|
|
46 - THREADED RING
BSD-3603344048.A1
3603344048
|
-
|
|
|
|
47 - SPRING RETAINING RING DIN 471-12x1-FSt
BSD-2916650003.A269
2916650003
|
£1.75
|
£2.10
|
|
|
48 - PARALLEL KEY A3x3x16DIN6885-ST50K
BSD-1902300024.A1
1902300024
|
£1.84
|
£2.21
|
|
|
56 - CONNECTION HOUSING
BSD-3605190083.A2
3605190083
|
£205.02
|
£246.03
|
|
|
57 - PROTECTION SLEEVE
BSD-3600200003.A2
3600200003
|
£42.84
|
£51.41
|
|
|
60 - STRAINER
BSD-3600002001.A33
3600002001
|
£2.61
|
£3.13
|
|
|
66 - STRAIGHT PIN
BSD-3603201083.A3
3603201083
|
£7.36
|
£8.83
|
|
|
67 - HALF-LENGTH GROOVED PIN ISO 8741-2x10-ST
BSD-2917690036.A32
2917690036
|
£1.75
|
£2.10
|
|
|
77 - HOLDING PIN
BSD-3603203008.A3
3603203008
|
£2.80
|
£3.36
|
|
|
78 - VALVE CONE
BSD-3603231000.A49
3603231000
|
£2.80
|
£3.36
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A191
160111A3HF
|
£3.91
|
£4.69
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601119169.A9
3601119169
|
-
|
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1817
3601119236
|
£3.91
|
£4.69
|
|
|
650 - SILENCER
BSD-3607000075.A2
3607000075
|
£16.41
|
£19.69
|
|
|
651 - HOSE FITTING
BSD-3603386002.A27
3603386002
|
£3.34
|
£4.01
|
|
|
801 - ASSEMBLY KIT
BSD-3607030397.A0
3607030397
|
-
|
|
|
|
803 - ASSEMBLY KIT
BSD-3607030381.A5
3607030381
|
£431.32
|
£517.59
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607031304.A43
3607031304
|
£28.59
|
£34.31
|
|
|
805 - ASSEMBLY KIT
BSD-3607030382.A1
3607030382
|
-
|
|
|
|
809 - ASSEMBLY KIT
BSD-3607030400.A0
3607030400
|
£126.12
|
£151.34
|
|
|
855 - PARTS SET
BSD-3607010020.A28
3607010020
|
£9.11
|
£10.93
|
|
