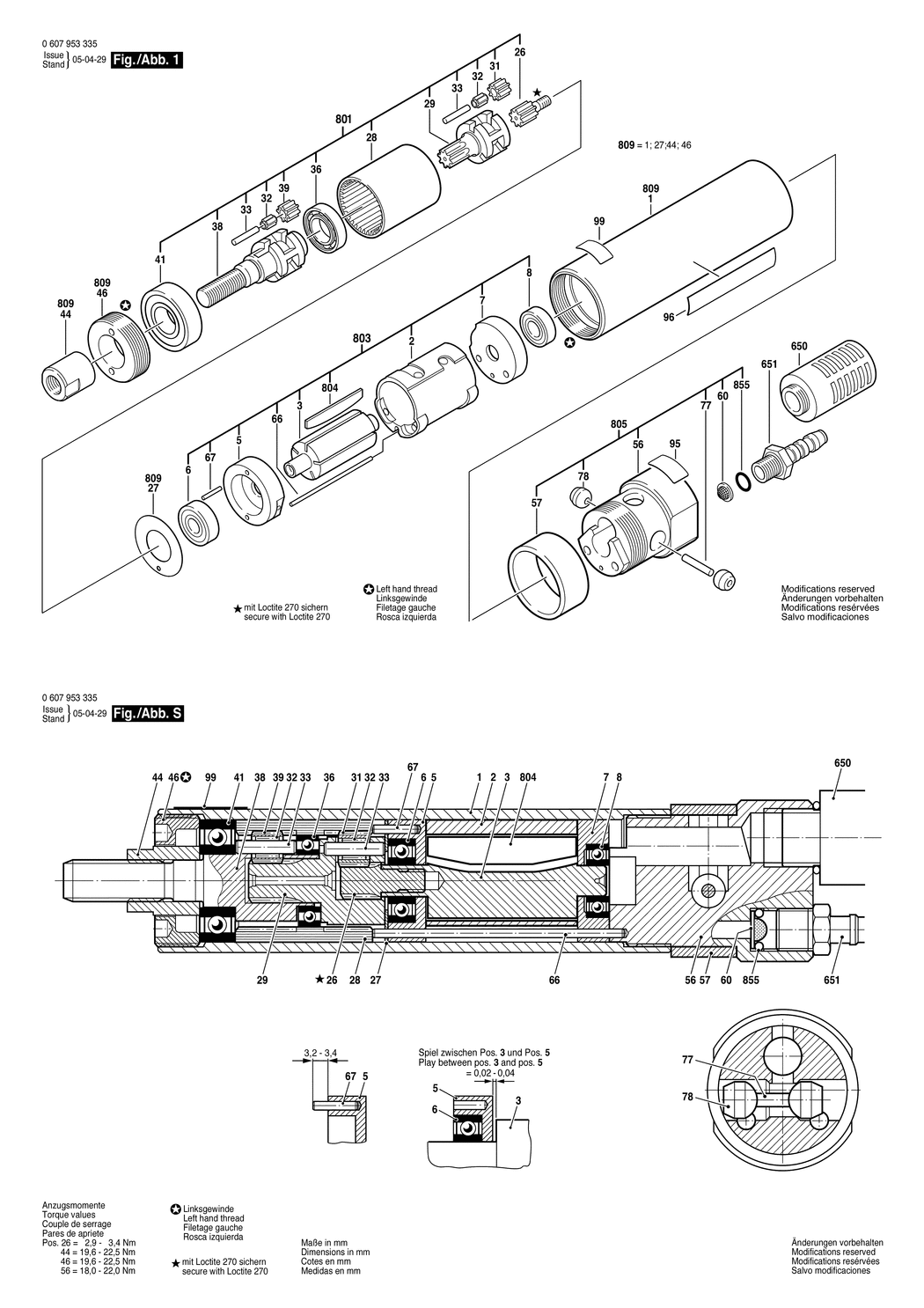

1 - MOTOR HOUSING
BSD-3600760110.A1
3600760110
|
£72.18
|
£86.62
|
|
|
2 - STATOR 180W
BSD-3604090061.A9
3604090061
|
£135.25
|
£162.30
|
|
|
3 - ROTOR
BSD-3604220080.A24
3604220080
|
£102.57
|
£123.08
|
|
|
5 - BEARING FLANGE
BSD-3605700107.A21
3605700107
|
£37.27
|
£44.72
|
|
|
6 - GROOVE BALL BEARING 7x19x6
BSD-1900905044.A8
1900905044
|
£7.36
|
£8.83
|
|
|
7 - BEARING FLANGE
BSD-3605700159.A4
3605700159
|
£54.42
|
£65.30
|
|
|
8 - GROOVE BALL BEARING 7x17x5
BSD-1900905028.A55
1900905028
|
£33.74
|
£40.49
|
|
|
26 - PINION
BSD-3606300013.A12
3606300013
|
£13.41
|
£16.09
|
|
|
27 - STOP DISC
BSD-3600101047.A48
3600101047
|
£2.16
|
£2.59
|
|
|
28 - RING GEAR dia19.5 MM
BSD-3606334085.A35
3606334085
|
£8.67
|
£10.41
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337056.A38
3606337056
|
£48.38
|
£58.06
|
|
|
31 - CYLINDRICAL GEAR Z=14
BSD-3606316093.A25
3606316093
|
£2.61
|
£3.13
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A446
3600913000
|
£4.26
|
£5.11
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A35
3603201000
|
£1.75
|
£2.10
|
|
|
36 - GROOVE BALL BEARING 12x21x5
BSD-3600905002.A138
3600905002
|
£16.41
|
£19.69
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337017.A6
3606337017
|
£72.18
|
£86.62
|
|
|
39 - CYLINDRICAL GEAR Z=14
BSD-3606316093.A26
3606316093
|
£2.61
|
£3.13
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905015.A144
3600905015
|
£16.41
|
£19.69
|
|
|
44 - THREADED BUSHING
BSD-3600390003.A86
3600390003
|
£12.04
|
£14.45
|
|
|
46 - THREADED RING
BSD-3603344004.A60
3603344004
|
£14.91
|
£17.89
|
|
|
56 - CONNECTION HOUSING
BSD-3605190083.A4
3605190083
|
£195.26
|
£234.31
|
|
|
57 - PROTECTION SLEEVE
BSD-3600200003.A3
3600200003
|
£40.80
|
£48.96
|
|
|
60 - STRAINER
BSD-3600002001.A25
3600002001
|
£2.61
|
£3.13
|
|
|
66 - STRAIGHT PIN
BSD-3603201083.A11
3603201083
|
£7.36
|
£8.83
|
|
|
67 - HALF-LENGTH GROOVED PIN ISO 8741-2x10-ST
BSD-2917690036.A39
2917690036
|
£1.75
|
£2.10
|
|
|
77 - HOLDING PIN
BSD-3603203008.A0
3603203008
|
£2.80
|
£3.36
|
|
|
78 - VALVE CONE
BSD-3603231000.A52
3603231000
|
£2.80
|
£3.36
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A185
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601119169.A0
3601119169
|
-
|
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1827
3601119236
|
£3.72
|
£4.47
|
|
|
650 - SILENCER
BSD-3607000075.A10
3607000075
|
£16.41
|
£19.69
|
|
|
651 - HOSE FITTING
BSD-3603386002.A40
3603386002
|
£3.34
|
£4.01
|
|
|
801 - ASSEMBLY KIT
BSD-3607030380.A0
3607030380
|
£195.26
|
£234.31
|
|
|
803 - ASSEMBLY KIT
BSD-3607030381.A0
3607030381
|
£410.78
|
£492.94
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607031304.A47
3607031304
|
£27.23
|
£32.68
|
|
|
805 - ASSEMBLY KIT
BSD-3607030382.A6
3607030382
|
-
|
|
|
|
809 - ASSEMBLY KIT
BSD-3607030383.A0
3607030383
|
£102.57
|
£123.08
|
|
|
855 - PARTS SET
BSD-3607010020.A19
3607010020
|
£8.67
|
£10.41
|
|
