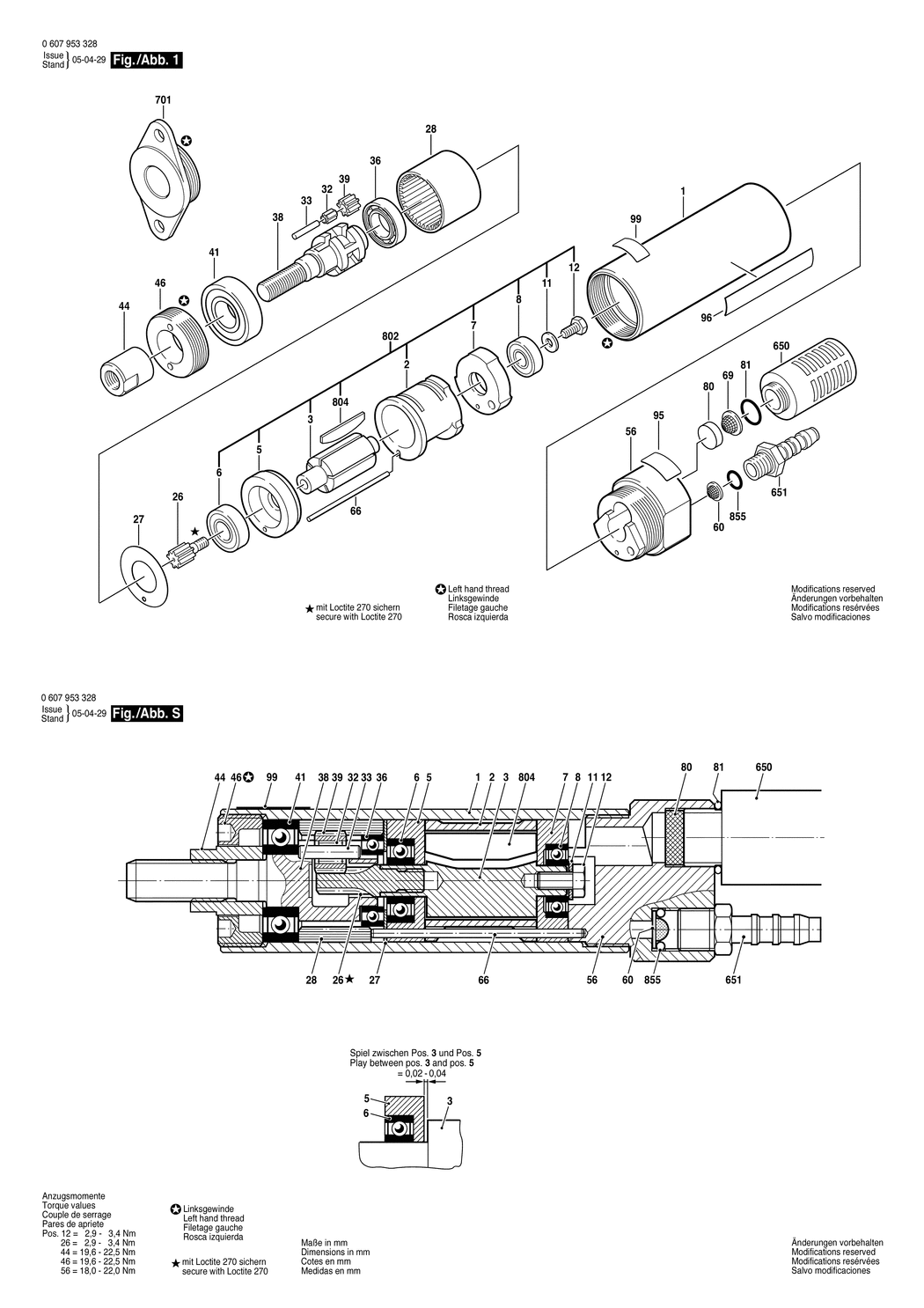

1 - MOTOR HOUSING
BSD-3600760006.A1
3600760006
|
£63.50
|
£76.20
|
|
|
2 - STATOR 180W
BSD-3604090011.A52
3604090011
|
£81.81
|
£98.17
|
|
|
3 - ROTOR
BSD-3604220009.A52
3604220009
|
£72.18
|
£86.62
|
|
|
5 - BEARING FLANGE
BSD-3605700015.A0
3605700015
|
£45.67
|
£54.80
|
|
|
6 - GROOVE BALL BEARING DIN 625-7x19x6
BSD-3600905148.A51
3600905148
|
£8.49
|
£10.19
|
|
|
7 - BEARING FLANGE
BSD-3605700016.A54
3605700016
|
£59.53
|
£71.44
|
|
|
8 - GROOVE BALL BEARING 7x17x5
BSD-1900905028.A72
1900905028
|
£33.74
|
£40.49
|
|
|
11 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A60
2916011012
|
£1.75
|
£2.10
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A207
2911061150
|
£2.61
|
£3.13
|
|
|
26 - PINION Z=6
BSD-3606300010.A19
3606300010
|
£16.74
|
£20.09
|
|
|
27 - STOP DISC
BSD-3600101047.A61
3600101047
|
£2.16
|
£2.59
|
|
|
28 - RING GEAR
BSD-3606334004.A23
3606334004
|
£40.80
|
£48.96
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A427
3600913000
|
£4.26
|
£5.11
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A50
3603201000
|
£1.75
|
£2.10
|
|
|
36 - GROOVE BALL BEARING 12x21x5
BSD-3600905002.A139
3600905002
|
£16.41
|
£19.69
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337019.A6
3606337019
|
£81.81
|
£98.17
|
|
|
39 - CYLINDRICAL GEAR
BSD-3606316104.A7
3606316104
|
£21.68
|
£26.01
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905015.A166
3600905015
|
£16.41
|
£19.69
|
|
|
44 - THREADED BUSHING
BSD-3600390003.A97
3600390003
|
£12.04
|
£14.45
|
|
|
46 - THREADED RING
BSD-3603344004.A58
3603344004
|
£14.91
|
£17.89
|
|
|
56 - CONNECTION HOUSING
BSD-3605190202.A15
3605190202
|
£102.57
|
£123.08
|
|
|
60 - STRAINER
BSD-3600002001.A5
3600002001
|
£2.61
|
£3.13
|
|
|
66 - STRAIGHT PIN
BSD-3603201009.A23
3603201009
|
£5.58
|
£6.70
|
|
|
69 - STRAINER
BSD-3600002000.A292
3600002000
|
£3.72
|
£4.47
|
|
|
80 - SILENCER
BSD-3600009000.A34
3600009000
|
£2.16
|
£2.59
|
|
|
81 - O-RING 9.0x1.5 MM
BSD-3600210081.A0
3600210081
|
£2.80
|
£3.36
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A169
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601110331.A80
3601110331
|
£3.72
|
£4.47
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1836
3601119236
|
£3.72
|
£4.47
|
|
|
650 - SILENCER
BSD-3607000016.A7
3607000016
|
£21.52
|
£25.83
|
|
|
651 - HOSE FITTING
BSD-3603286002.A0
3603286002
|
-
|
|
|
|
701 - FASTENING FLANGE
BSD-3605700044.A13
3605700044
|
£72.18
|
£86.62
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031047.A7
3607031047
|
£243.45
|
£292.14
|
|
|
804 - PARTS SET
BSD-3607030256.A24
3607030256
|
£30.42
|
£36.51
|
|
|
855 - PARTS SET
BSD-3607010020.A22
3607010020
|
£8.67
|
£10.41
|
|
