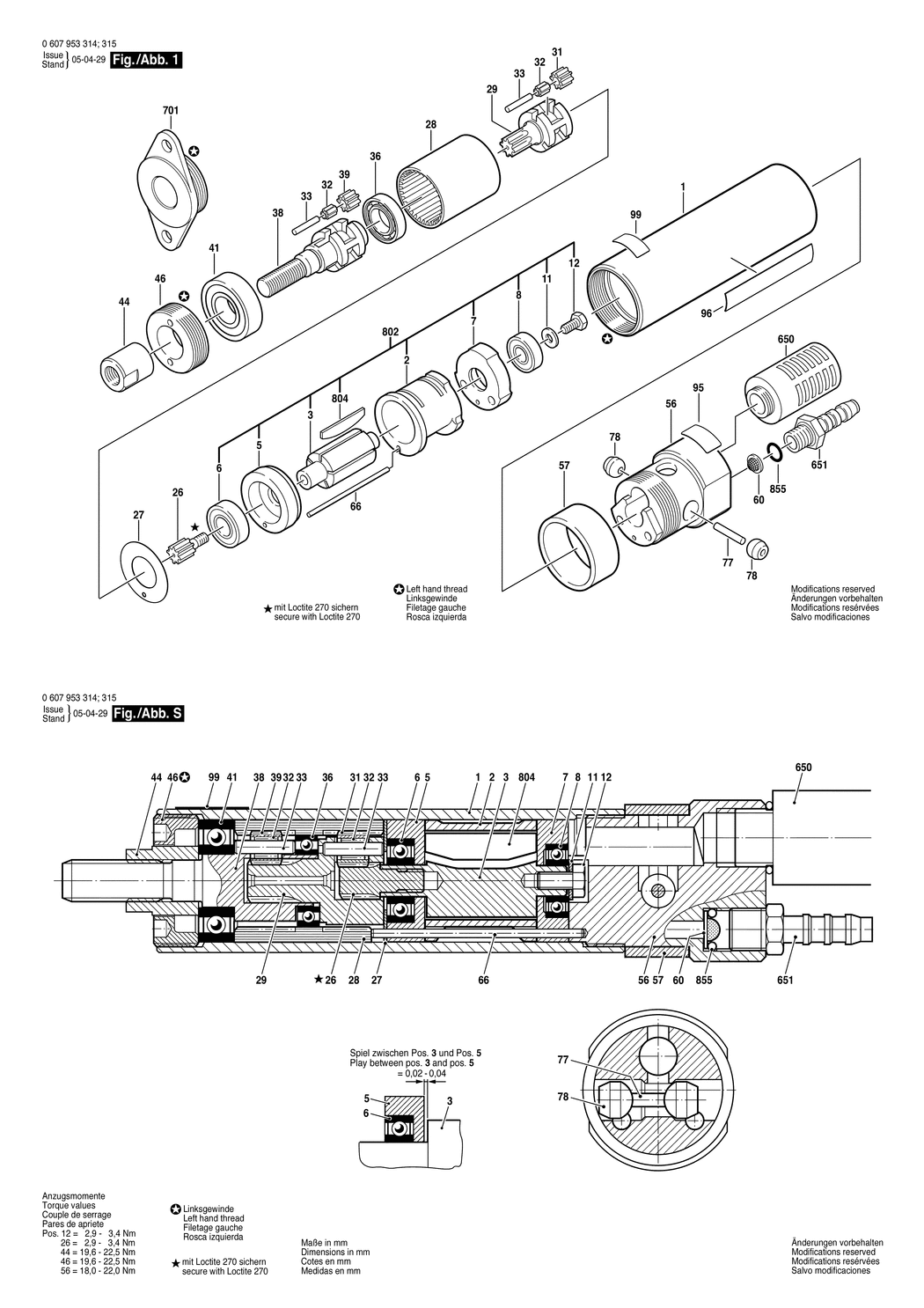

1 - MOTOR HOUSING
BSD-3600760007.A10
3600760007
|
-
|
|
|
|
2 - STATOR 180W
BSD-3604090010.A19
3604090010
|
£85.90
|
£103.08
|
|
|
3 - ROTOR
BSD-3604220009.A63
3604220009
|
£72.18
|
£86.62
|
|
|
5 - BEARING FLANGE
BSD-3605700015.A13
3605700015
|
£47.95
|
£57.54
|
|
|
6 - GROOVE BALL BEARING DIN 625-7x19x6
BSD-3600905148.A56
3600905148
|
£8.49
|
£10.19
|
|
|
7 - BEARING FLANGE
BSD-3605700017.A8
3605700017
|
£50.80
|
£60.96
|
|
|
8 - GROOVE BALL BEARING 7x17x5
BSD-1900905028.A61
1900905028
|
£33.74
|
£40.49
|
|
|
11 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A57
2916011012
|
£1.84
|
£2.21
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A199
2911061150
|
£2.61
|
£3.13
|
|
|
26 - PINION
BSD-3606300013.A7
3606300013
|
£14.08
|
£16.89
|
|
|
27 - STOP DISC
BSD-3600101047.A60
3600101047
|
£2.16
|
£2.59
|
|
|
28 - RING GEAR Z=42
BSD-3606334005.A3
3606334005
|
£59.53
|
£71.44
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337057.A10
3606337057
|
£48.38
|
£58.06
|
|
|
31 - CYLINDRICAL GEAR Z=30
BSD-3606316057.A12
3606316057
|
£7.36
|
£8.83
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A422
3600913000
|
£4.26
|
£5.11
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A55
3603201000
|
£1.84
|
£2.21
|
|
|
36 - GROOVE BALL BEARING 12x21x5
BSD-3600905002.A149
3600905002
|
£16.41
|
£19.69
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337018.A11
3606337018
|
£85.90
|
£103.08
|
|
|
39 - CYLINDRICAL GEAR
BSD-3606316114.A34
3606316114
|
£13.12
|
£15.75
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905015.A156
3600905015
|
£17.22
|
£20.67
|
|
|
44 - THREADED BUSHING
BSD-3600390003.A95
3600390003
|
£12.64
|
£15.17
|
|
|
46 - THREADED RING
BSD-3603344004.A57
3603344004
|
£14.91
|
£17.89
|
|
|
56 - CONNECTION HOUSING
BSD-3605190083.A12
3605190083
|
£205.02
|
£246.03
|
|
|
57 - PROTECTION SLEEVE
BSD-3600200003.A12
3600200003
|
£42.84
|
£51.41
|
|
|
60 - STRAINER
BSD-3600002001.A20
3600002001
|
£2.61
|
£3.13
|
|
|
66 - STRAIGHT PIN
BSD-3603201009.A19
3603201009
|
£5.58
|
£6.70
|
|
|
77 - HOLDING PIN
BSD-3603203008.A11
3603203008
|
£2.80
|
£3.36
|
|
|
78 - VALVE CONE
BSD-3603231000.A41
3603231000
|
£2.80
|
£3.36
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A180
160111A3HF
|
£3.91
|
£4.69
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601110331.A83
3601110331
|
£3.72
|
£4.47
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1833
3601119236
|
£3.91
|
£4.69
|
|
|
650 - SILENCER
BSD-3607000016.A17
3607000016
|
£21.52
|
£25.83
|
|
|
651 - HOSE FITTING
BSD-3603386002.A45
3603386002
|
£3.34
|
£4.01
|
|
|
701 - FASTENING FLANGE
BSD-3605700044.A1
3605700044
|
£75.79
|
£90.95
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031047.A12
3607031047
|
£243.45
|
£292.14
|
|
|
804 - PARTS SET
BSD-3607030256.A15
3607030256
|
£31.95
|
£38.34
|
|
|
855 - PARTS SET
BSD-3607010020.A40
3607010020
|
£9.11
|
£10.93
|
|
