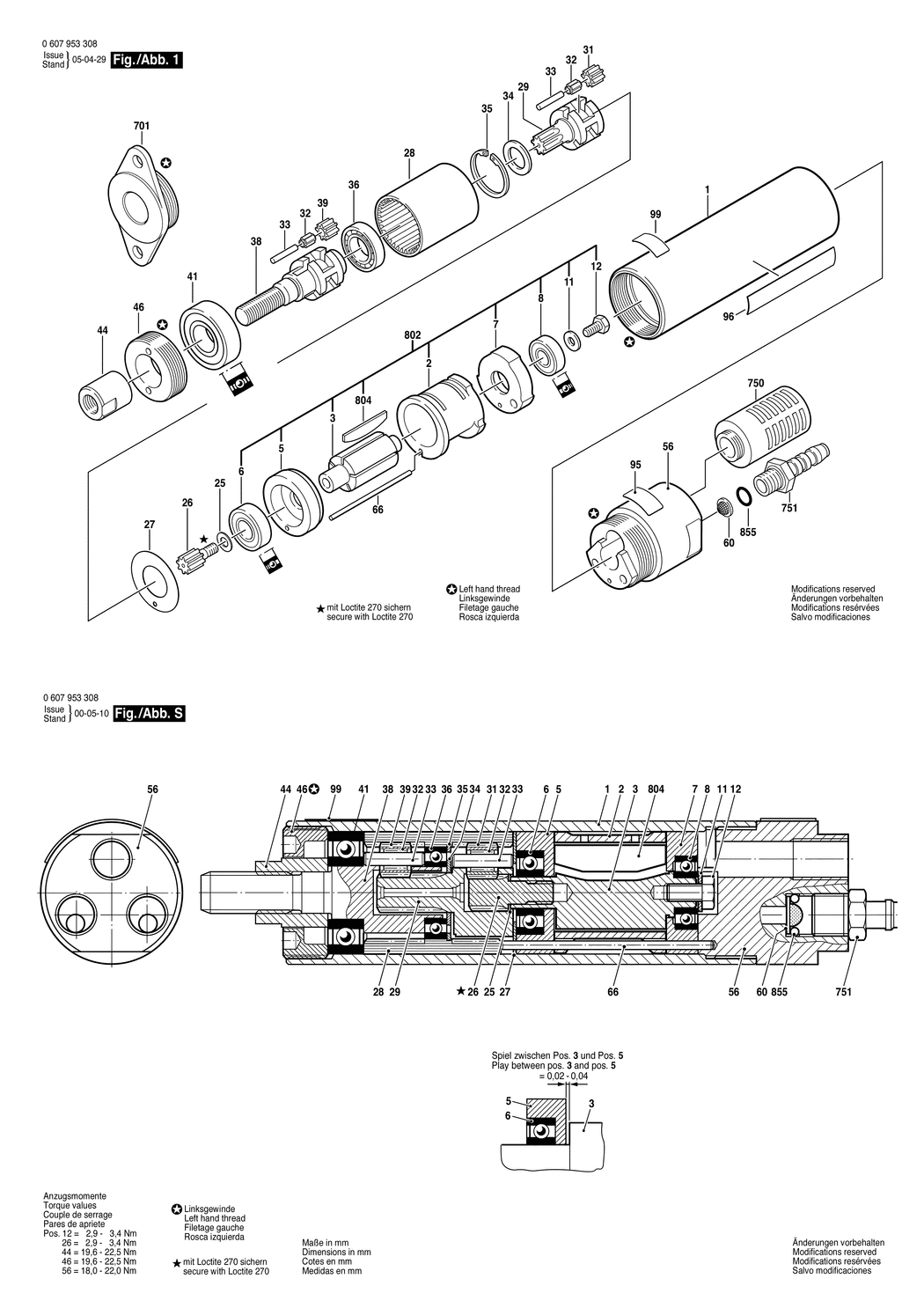

1 - MOTOR HOUSING
BSD-3600760007.A0
3600760007
|
-
|
|
|
|
2 - STATOR 180W
BSD-3604090011.A56
3604090011
|
£81.81
|
£98.17
|
|
|
3 - ROTOR
BSD-3604220009.A48
3604220009
|
£75.79
|
£90.95
|
|
|
5 - BEARING FLANGE
BSD-3605700015.A26
3605700015
|
£47.95
|
£57.54
|
|
|
6 - GROOVE BALL BEARING DIN 625-7x19x6
BSD-3600905148.A46
3600905148
|
£8.92
|
£10.70
|
|
|
7 - BEARING FLANGE
BSD-3605700016.A42
3605700016
|
£59.53
|
£71.44
|
|
|
8 - GROOVE BALL BEARING 7x17x5
BSD-1900905028.A81
1900905028
|
£33.74
|
£40.49
|
|
|
11 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A41
2916011012
|
£1.84
|
£2.21
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A158
2911061150
|
£2.74
|
£3.29
|
|
|
25 - SHIM WASHER
BSD-3600100007.A14
3600100007
|
£1.75
|
£2.10
|
|
|
26 - PINION Z=9
BSD-3606300046.A7
3606300046
|
£21.42
|
£25.71
|
|
|
27 - STOP DISC
BSD-3600101047.A32
3600101047
|
£2.16
|
£2.59
|
|
|
28 - RING GEAR Z=42
BSD-3606334005.A12
3606334005
|
£59.53
|
£71.44
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337041.A22
3606337041
|
£93.88
|
£112.65
|
|
|
31 - CYLINDRICAL GEAR
BSD-3606316112.A35
3606316112
|
£22.76
|
£27.31
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A386
3600913000
|
£4.26
|
£5.11
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A6
3603201000
|
£1.84
|
£2.21
|
|
|
34 - STOP DISC
BSD-3600103003.A3
3600103003
|
£2.80
|
£3.36
|
|
|
35 - RETAINING RING
BSD-3600224002.A14
3600224002
|
£1.84
|
£2.21
|
|
|
36 - GROOVE BALL BEARING 12x21x5
BSD-3600905002.A164
3600905002
|
£16.41
|
£19.69
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337019.A3
3606337019
|
£85.90
|
£103.08
|
|
|
39 - CYLINDRICAL GEAR
BSD-3606316112.A36
3606316112
|
£22.76
|
£27.31
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905015.A173
3600905015
|
£17.22
|
£20.67
|
|
|
44 - THREADED BUSHING
BSD-3600390003.A69
3600390003
|
£12.64
|
£15.17
|
|
|
46 - THREADED RING
BSD-3603344004.A49
3603344004
|
£15.65
|
£18.78
|
|
|
56 - CONNECTION HOUSING
BSD-3605190202.A7
3605190202
|
£102.57
|
£123.08
|
|
|
60 - STRAINER
BSD-3600002001.A51
3600002001
|
£2.61
|
£3.13
|
|
|
66 - STRAIGHT PIN
BSD-3603201009.A8
3603201009
|
£5.58
|
£6.70
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A247
160111A3HF
|
£3.91
|
£4.69
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601110331.A63
3601110331
|
£3.72
|
£4.47
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1895
3601119236
|
£3.91
|
£4.69
|
|
|
701 - FASTENING FLANGE
BSD-3605700044.A18
3605700044
|
£75.79
|
£90.95
|
|
|
750 - SILENCER
BSD-3607000016.A0
3607000016
|
£21.52
|
£25.83
|
|
|
751 - HOSE FITTING
BSD-3603386002.A56
3603386002
|
£3.34
|
£4.01
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031048.A11
3607031048
|
-
|
|
|
|
804 - PARTS SET
BSD-3607030256.A26
3607030256
|
£31.95
|
£38.34
|
|
|
855 - PARTS SET
BSD-3607010020.A48
3607010020
|
£9.11
|
£10.93
|
|
