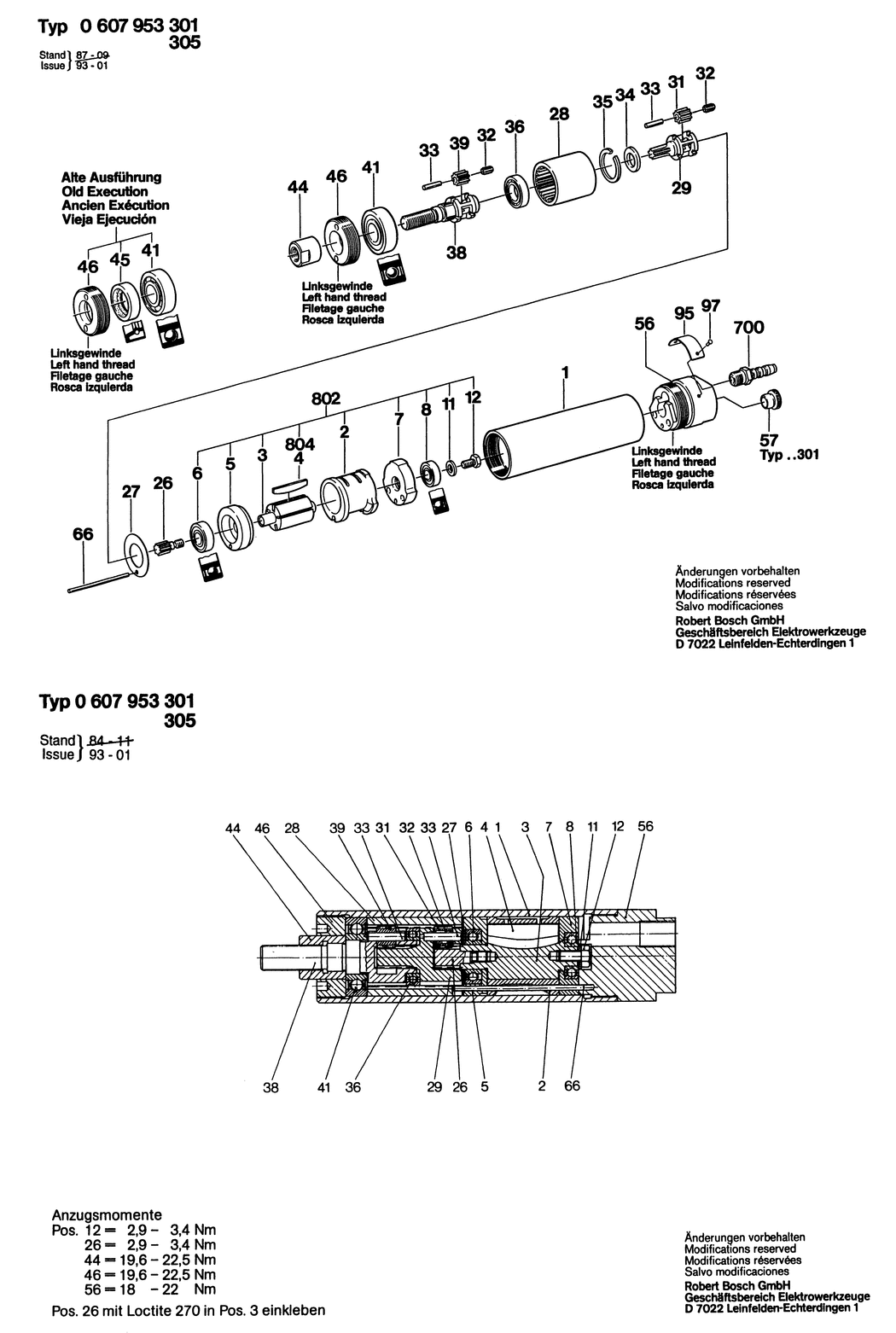

1 - MOTOR HOUSING
BSD-3600760007.A1
3600760007
|
-
|
|
|
|
2 - STATOR 180W
BSD-3604090010.A8
3604090010
|
£85.90
|
£103.08
|
|
|
3 - ROTOR
BSD-3604220009.A51
3604220009
|
£72.18
|
£86.62
|
|
|
5 - BEARING FLANGE
BSD-3605700015.A29
3605700015
|
£47.95
|
£57.54
|
|
|
6 - BALL BEARING 7x19x6
BSD-2600905032.A1261
2600905032
|
£5.57
|
£6.68
|
|
|
7 - BEARING FLANGE
BSD-3605700017.A11
3605700017
|
£50.80
|
£60.96
|
|
|
8 - GROOVE BALL BEARING 7x17x5
BSD-1900905028.A78
1900905028
|
£33.74
|
£40.49
|
|
|
11 - PLAIN WASHER DIN 433-5.3-ST
BSD-2916011011.A252
2916011011
|
£1.75
|
£2.10
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A154
2911061150
|
£2.61
|
£3.13
|
|
|
26 - PINION
BSD-3606300013.A4
3606300013
|
£14.08
|
£16.89
|
|
|
27 - STOP DISC
BSD-3600101047.A36
3600101047
|
£2.16
|
£2.59
|
|
|
28 - RING GEAR Z=42
BSD-3606334005.A13
3606334005
|
£59.53
|
£71.44
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337057.A6
3606337057
|
£48.38
|
£58.06
|
|
|
31 - CYLINDRICAL GEAR Z=14
BSD-3606316093.A36
3606316093
|
£2.61
|
£3.13
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A389
3600913000
|
£4.26
|
£5.11
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A3
3603201000
|
£1.84
|
£2.21
|
|
|
34 - STOP DISC
BSD-3600103003.A1
3600103003
|
£2.80
|
£3.36
|
|
|
35 - RETAINING RING
BSD-3600224002.A16
3600224002
|
£1.75
|
£2.10
|
|
|
36 - GROOVE BALL BEARING 12x21x5
BSD-3600905002.A163
3600905002
|
£16.41
|
£19.69
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337018.A17
3606337018
|
£85.90
|
£103.08
|
|
|
39 - CYLINDRICAL GEAR
BSD-3606316114.A49
3606316114
|
£13.12
|
£15.75
|
|
|
41 - GROOVE BALL BEARING 6001 Y DIN 625 FD150
BSD-1900900271.A11
1900900271
|
-
|
|
|
|
44 - THREADED BUSHING
BSD-3600390003.A67
3600390003
|
£12.64
|
£15.17
|
|
|
45 - RADIAL SEAL
BSD-3600283000.A2
3600283000
|
-
|
|
|
|
46 - THREADED RING
BSD-3603344004.A45
3603344004
|
£14.91
|
£17.89
|
|
|
56 - CONNECTION HOUSING
BSD-3605190018.A5
3605190018
|
-
|
|
|
|
66 - STRAIGHT PIN
BSD-3603201009.A12
3603201009
|
£5.58
|
£6.70
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A244
160111A3HF
|
£3.91
|
£4.69
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A28
3603133000
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1898
3601119236
|
£3.91
|
£4.69
|
|
|
700 - HOSE FITTING
BSD-3603386002.A60
3603386002
|
£3.34
|
£4.01
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031047.A6
3607031047
|
£243.45
|
£292.14
|
|
|
804 - PARTS SET
BSD-3607030256.A33
3607030256
|
£31.95
|
£38.34
|
|
