Bosch 180 WATT-SERIE / 0607453221 / --- Spare Parts

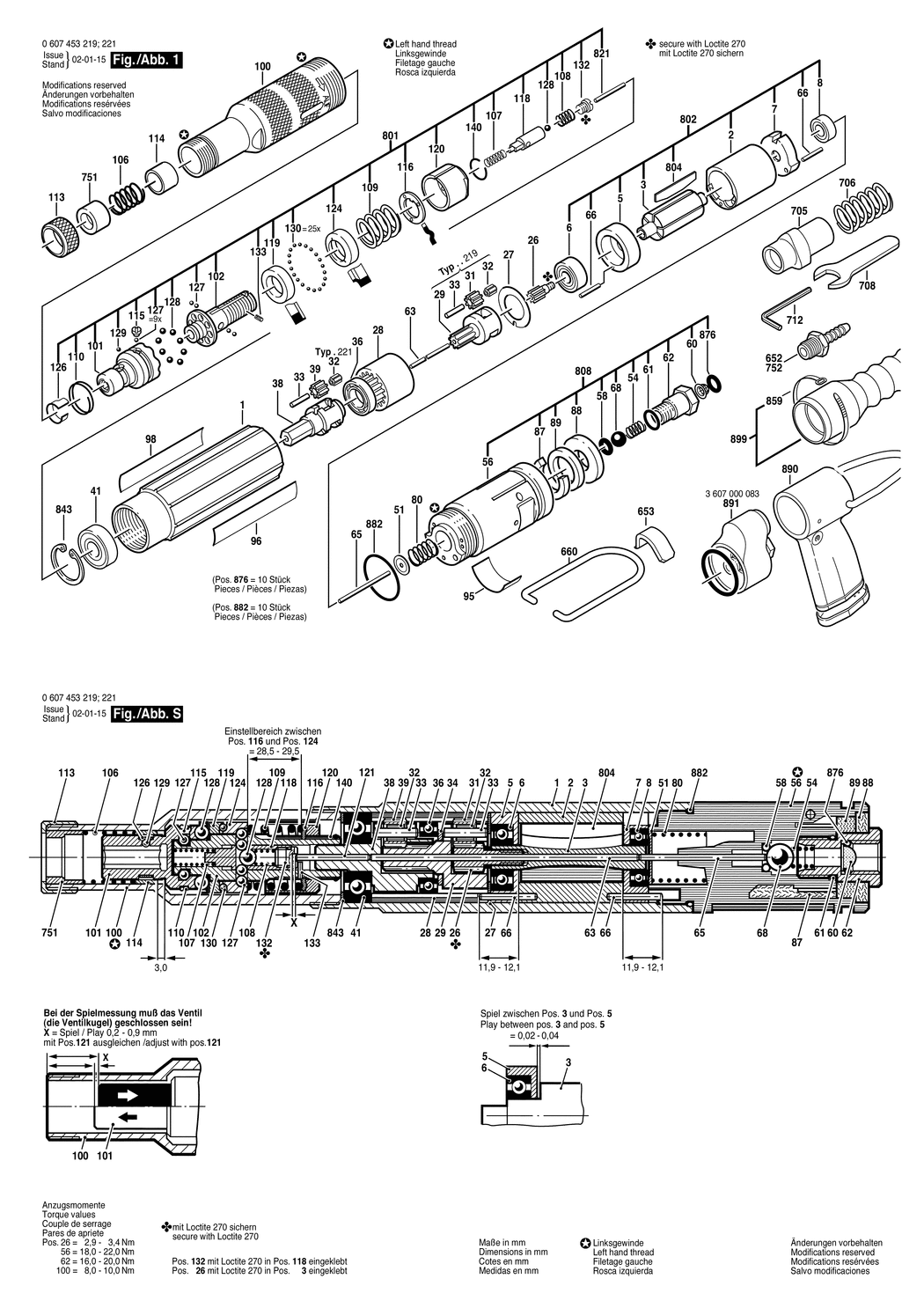

An exploded drawing and listing for the Bosch 180 WATT-SERIE / 0607453221 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3600760084.A0 3600760084	£80.61	£96.73
2 - STATOR 180W BSD-3604090050.A78 3604090050	£93.88	£112.65
3 - ROTOR BSD-3604220081.A20 3604220081	£102.57	£123.08
5 - BEARING FLANGE BSD-3605700107.A47 3605700107	£37.27	£44.72
6 - GROOVE BALL BEARING 7x19x6 BSD-1900905044.A37 1900905044	£7.36	£8.83
7 - BEARING FLANGE BSD-3605700109.A3 3605700109	£45.67	£54.80
8 - GROOVE BALL BEARING 7x17x5 BSD-1900905028.A108 1900905028	£33.74	£40.49
26 - PINION BSD-3606300180.A14 3606300180	£31.64	£37.97
27 - STOP DISC BSD-3600101047.A70 3600101047	£2.16	£2.59
28 - RING GEAR Z=42/54 BSD-3606334080.A15 3606334080	£23.86	£28.63
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7 BSD-3600913000.A471 3600913000	£4.26	£5.11
33 - NEEDLE ROLLER BSD-3603201000.A116 3603201000	£1.75	£2.10
36 - GROOVE BALL BEARING 12x21x5 BSD-3600905002.A186 3600905002	£16.41	£19.69
38 - PLANETARY-GEAR CARRIER BSD-3606337175.A6 3606337175	£156.22	£187.46
39 - CYLINDRICAL GEAR BSD-3606316104.A13 3606316104	£21.68	£26.01
41 - GROOVE BALL BEARING BSD-3600905015.A180 3600905015	£16.41	£19.69
51 - COVER DISC BSD-3600100065.A2 3600100065	£7.78	£9.33
54 - COMPRESSION SPRING BSD-3604611017.A3 3604611017	£2.61	£3.13
56 - VALVE HOUSING BSD-3605190177.A2 3605190177	-
58 - O-RING 4.3x2.4 MM BSD-3600210084.A28 3600210084	£2.61	£3.13
60 - STRAINER BSD-3600002000.A322 3600002000	£3.72	£4.47
61 - O-RING 9.0x1.5 MM BSD-2600210021.A60 2600210021	£1.75	£2.10
62 - FITTING BSD-3603458016.A75 3603458016	£11.30	£13.56
63 - STRAIGHT PIN L=64.5 MM BSD-3603201064.A7 3603201064	£4.26	£5.11
65 - STRAIGHT PIN BSD-3603201026.A14 3603201026	£7.36	£8.83
66 - STRAIGHT PIN BSD-3603201077.A33 3603201077	£11.30	£13.56
68 - BALL DIN 5401-8 MM III-ST BSD-1903230014.A116 1903230014	£1.75	£2.10
80 - COMPRESSION SPRING BSD-3604615009.A24 3604615009	£2.16	£2.59
87 - SILENCER BSD-3601010010.A124 3601010010	£2.16	£2.59
88 - SILENCER BSD-3601010037.A1 3601010037	£11.30	£13.56
89 - SILENCER BSD-3601010044.A75 3601010044	£7.36	£8.83
95 - NAMEPLATE BSD-160111A3HF.A259 160111A3HF	£3.72	£4.47
96 - MANUFACTURER'S NAMEPLATE BSD-3601119055.A25 3601119055	£3.72	£4.47
98 - STICKER BSD-3601110204.A21 3601110204	£1.75	£2.10
99 - REFERENCE PLATE BSD-3601119236.A1922 3601119236	£3.72	£4.47
100 - HOUSING BSD-3605125011.A21 3605125011	£48.38	£58.06
101 - CLUTCH ELEMENT BSD-3606432006.A11 3606432006	£81.81	£98.17
102 - DRIVE SHAFT BSD-3606122011.A25 3606122011	£120.11	£144.13
106 - COMPRESSION SPRING BSD-3604615000.A12 3604615000	£1.75	£2.10
107 - COMPRESSION SPRING BSD-3604610006.A5 3604610006	£2.16	£2.59
108 - COMPRESSION SPRING BSD-3604610002.A86 3604610002	£3.72	£4.47
109 - COMPRESSION SPRING BSD-3604619003.A40 3604619003	£5.58	£6.70
110 - RETAINING RING BSD-3604601002.A14 3604601002	£1.75	£2.10
113 - UNION NUT BSD-3603340000.A20 3603340000	£4.26	£5.11
114 - BUSHING BSD-3600202000.A10 3600202000	£5.58	£6.70
115 - SEALING PLATE BSD-3600001002.A58 3600001002	£3.72	£4.47
116 - ADJUSTING DISC BSD-3600134003.A22 3600134003	£2.61	£3.13
118 - LOCKING BOLT BSD-3603150203.A87 3603150203	£45.67	£54.80
119 - SUPPORT DISC BSD-3600114002.A60 3600114002	£12.04	£14.45
120 - ROUND NUT BSD-3603344009.A56 3603344009	£27.23	£32.68
124 - COUPLING PLATE BSD-3600220001.A29 3600220001	£11.30	£13.56
126 - LEAF SPRING BSD-2601250001.A75 2601250001	£3.72	£4.47
127 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A149 1903230007	£1.75	£2.10
128 - BALL DIN 5401-5 G28 BSD-1903230009.A177 1903230009	£1.75	£2.10
129 - BALL DIN 5401-2.5MM-III-ST BSD-1903230003.A447 1903230003	£2.61	£3.13
130 - BALL DIN 5401-2.5MM-III-ST BSD-1903230003.A448 1903230003	£2.61	£3.13
132 - SCREW PLUG BSD-3603463000.A29 3603463000	£2.61	£3.13
133 - COILED SPRING PIN DIN 7343-2x5 BSD-2917800033.A34 2917800033	£1.75	£2.10
140 - RETAINING RING 14 DIN 9045 BSD-2916600008.A84 2916600008	£2.80	£3.36
652 - HOSE FITTING BSD-3603386066.A0 3603386066	£14.91	£17.89
653 - ANGLE PIECE BSD-3601329007.A52 3601329007	£4.26	£5.11
660 - SUSPENSION LOOP BSD-2604720004.A109 2604720004	£4.26	£5.11
705 - HANDLE BSD-3600499001.A28 3600499001	£31.64	£37.97
706 - COMPRESSION SPRING BSD-3604618003.A57 3604618003	£7.36	£8.83
708 - SINGLE-HEAD ENG. WRENCH SW22 BSD-1607950505.A122 1607950505	£16.41	£19.69
712 - HEXAGON-SOCKET KEY BSD-3607950001.A173 3607950001	£2.80	£3.36
751 - GUIDE SLEEVE BSD-3600329000.A79 3600329000	£7.36	£8.83
801 - CUTOFF COUPLING SP SET BSD-3607031117.A1 3607031117	£251.67	£302.00
802 - ASSEMBLY OF SERVICE PARTS BSD-3607031219.A1 3607031219	-
804 - ASSEMBLY OF SERVICE PARTS BSD-3607031304.A17 3607031304	£27.23	£32.68
808 - ASSEMBLY OF SERVICE PARTS BSD-3607031363.A3 3607031363	-
821 - ASSEMBLY OF SERVICE PARTS BSD-3607031087.A126 3607031087	£12.04	£14.45
843 - PARTS SET BSD-3607010010.A80 3607010010	£7.36	£8.83
859 - HOLDING BELT BSD-3604710062.A10 3604710062	£1.75	£2.10
876 - PARTS SET BSD-3607010020.A49 3607010020	£8.67	£10.41
882 - O-RING BSD-3607010006.A132 3607010006	£31.64	£37.97
890 - AUXILIARY HANDLE BSD-3607031351.A3 3607031351	£72.18	£86.62
891 - AIR HOSE BSD-3607000083.A38 3607000083	£59.53	£71.44
899 - AIR HOSE BSD-3607000064.A20 3607000064	£27.23	£32.68

Attribute Name	Value
Brand	Bosch
