Bosch 180 WATT-SERIE / 0607453215 / --- Spare Parts

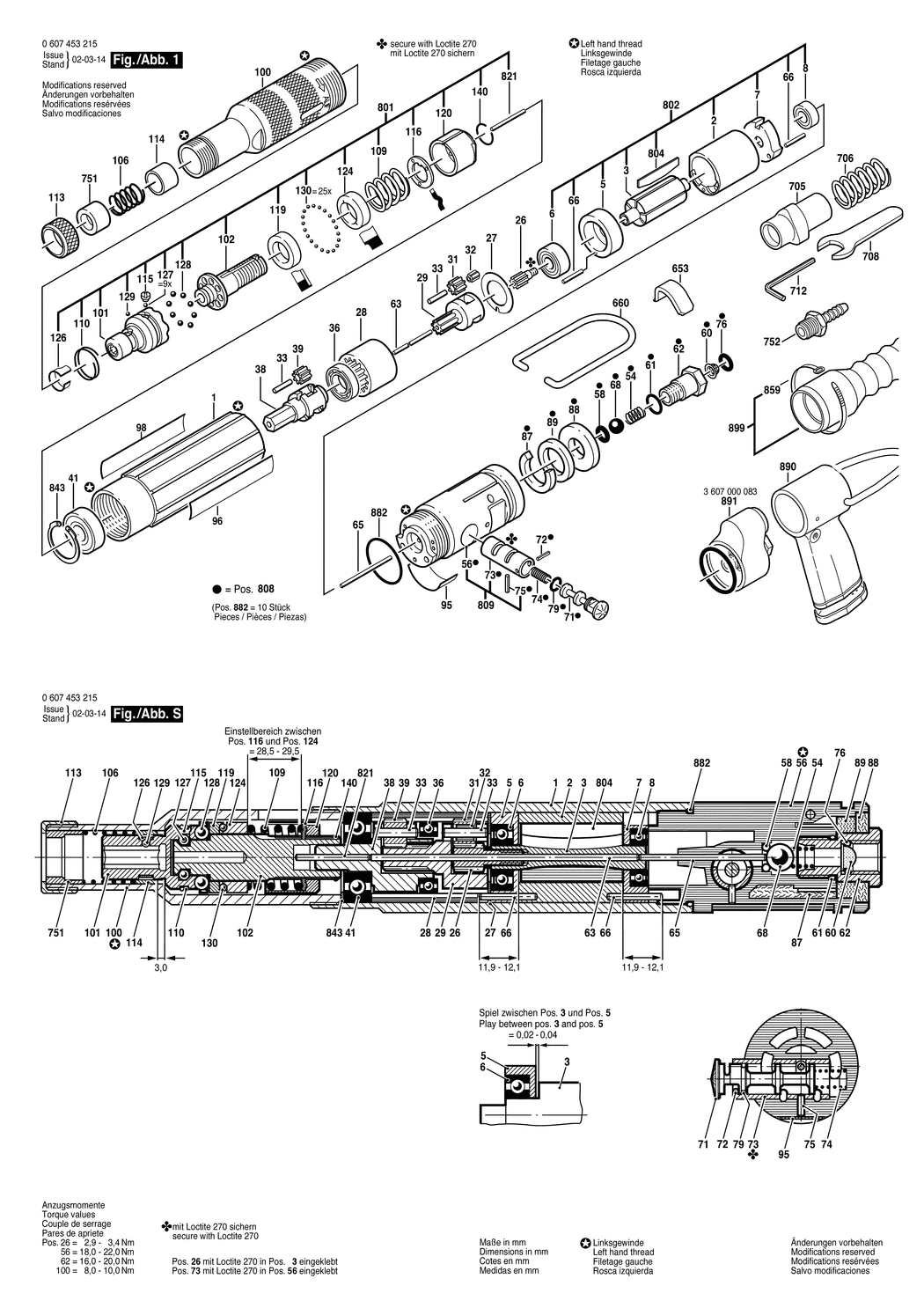

An exploded drawing and listing for the Bosch 180 WATT-SERIE / 0607453215 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-16051082JD.A38 16051082JD	-
2 - STATOR 180W BSD-3604090050.A31 3604090050	£93.88	£112.65
3 - ROTOR BSD-3604220081.A41 3604220081	£102.57	£123.08
5 - BEARING FLANGE BSD-3605700107.A59 3605700107	£37.27	£44.72
6 - GROOVE BALL BEARING 7x19x6 BSD-1900905044.A113 1900905044	£7.36	£8.83
7 - BEARING FLANGE BSD-3605700108.A14 3605700108	£45.67	£54.80
8 - GROOVE BALL BEARING 7x17x5 BSD-1900905028.A267 1900905028	£33.74	£40.49
26 - PINION Z=15 BSD-3606300015.A16 3606300015	-
27 - STOP DISC BSD-3600101047.A134 3600101047	£2.16	£2.59
28 - RING GEAR dia19.5 MM BSD-3606334085.A42 3606334085	£8.67	£10.41
29 - PLANETARY-GEAR CARRIER BSD-3606337181.A14 3606337181	£48.38	£58.06
31 - CYLINDRICAL GEAR Z=13 BSD-3606316010.A16 3606316010	-
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7 BSD-3600913000.A125 3600913000	£4.26	£5.11
33 - NEEDLE ROLLER BSD-3603201000.A264 3603201000	£1.75	£2.10
36 - GROOVE BALL BEARING 12x21x5 BSD-3600905002.A33 3600905002	£16.41	£19.69
38 - PLANETARY-GEAR CARRIER BSD-3606337015.A10 3606337015	£93.88	£112.65
39 - CYLINDRICAL GEAR BSD-3606316114.A94 3606316114	£13.12	£15.75
41 - GROOVE BALL BEARING BSD-3600905015.A45 3600905015	£16.41	£19.69
54 - COMPRESSION SPRING BSD-3604611017.A61 3604611017	£2.61	£3.13
56 - VALVE HOUSING BSD-3605190173.A12 3605190173	£45.67	£54.80
58 - O-RING 4.3x2.4 MM BSD-3600210084.A55 3600210084	£2.61	£3.13
60 - STRAINER BSD-3600002000.A316 3600002000	£3.72	£4.47
61 - O-RING 9.0x1.5 MM BSD-2600210021.A58 2600210021	£1.75	£2.10
62 - FITTING BSD-3603458016.A70 3603458016	£11.30	£13.56
63 - STRAIGHT PIN L=9.5 MM BSD-3603201062.A3 3603201062	£6.52	£7.83
65 - STRAIGHT PIN BSD-3603201026.A12 3603201026	£7.36	£8.83
66 - STRAIGHT PIN BSD-3603201077.A38 3603201077	£11.30	£13.56
68 - BALL DIN 5401-8 MM III-ST BSD-1903230014.A118 1903230014	£1.75	£2.10
71 - CONTROL PISTON BSD-3608750038.A43 3608750038	£23.86	£28.63
72 - COILED SPRING PIN DIN 7343-1.5x10 BSD-2917800016.A26 2917800016	£1.75	£2.10
73 - VALVE BUSHING BSD-3600340008.A15 3600340008	£45.67	£54.80
74 - COMPRESSION SPRING BSD-3604611007.A89 3604611007	£2.16	£2.59
75 - STRAIGHT PIN DIN6325-2M6X6 BSD-2917550034.A1 2917550034	£1.75	£2.10
76 - O-RING BSD-3600210094.A18 3600210094	£2.80	£3.36
79 - O-RING BSD-3600210093.A52 3600210093	£1.75	£2.10
87 - SILENCER BSD-3601010010.A119 3601010010	£2.16	£2.59
88 - SILENCER BSD-3601010037.A6 3601010037	£11.30	£13.56
89 - SILENCER BSD-3601010044.A70 3601010044	£7.36	£8.83
95 - NAMEPLATE BSD-160111A3HF.A253 160111A3HF	£3.72	£4.47
96 - MANUFACTURER'S NAMEPLATE BSD-3601119055.A20 3601119055	£3.72	£4.47
98 - STICKER BSD-3601110204.A26 3601110204	£1.75	£2.10
99 - REFERENCE PLATE BSD-3601119236.A1927 3601119236	£3.72	£4.47
100 - HOUSING BSD-3605125011.A26 3605125011	£48.38	£58.06
101 - CLUTCH ELEMENT BSD-3606432006.A13 3606432006	£81.81	£98.17
102 - DRIVE SHAFT BSD-3606122009.A2 3606122009	£81.81	£98.17
106 - COMPRESSION SPRING BSD-3604615000.A14 3604615000	£1.75	£2.10
109 - COMPRESSION SPRING BSD-3604619003.A36 3604619003	£5.58	£6.70
110 - RETAINING RING BSD-3604601002.A10 3604601002	£1.75	£2.10
113 - UNION NUT BSD-3603340000.A15 3603340000	£4.26	£5.11
114 - BUSHING BSD-3600202000.A15 3600202000	£5.58	£6.70
115 - SEALING PLATE BSD-3600001002.A63 3600001002	£3.72	£4.47
116 - ADJUSTING DISC BSD-3600134003.A16 3600134003	£2.61	£3.13
119 - SUPPORT DISC BSD-3600114002.A58 3600114002	£12.04	£14.45
120 - ROUND NUT BSD-3603344009.A62 3603344009	£27.23	£32.68
124 - COUPLING PLATE BSD-3600220000.A5 3600220000	£10.10	£12.12
126 - LEAF SPRING BSD-2601250001.A78 2601250001	£3.72	£4.47
127 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A152 1903230007	£1.75	£2.10
128 - BALL DIN 5401-5 G28 BSD-1903230009.A174 1903230009	£1.75	£2.10
129 - BALL DIN 5401-2.5MM-III-ST BSD-1903230003.A457 1903230003	£2.61	£3.13
130 - BALL DIN 5401-2.5MM-III-ST BSD-1903230003.A458 1903230003	£2.61	£3.13
140 - RETAINING RING 14 DIN 9045 BSD-2916600008.A87 2916600008	£2.80	£3.36
653 - ANGLE PIECE BSD-3601329007.A47 3601329007	£4.26	£5.11
660 - SUSPENSION LOOP BSD-2604720004.A106 2604720004	£4.26	£5.11
705 - HANDLE BSD-3600499001.A25 3600499001	£31.64	£37.97
706 - COMPRESSION SPRING BSD-3604618003.A60 3604618003	£7.36	£8.83
708 - SINGLE-HEAD ENG. WRENCH SW22 BSD-1607950505.A117 1607950505	£16.41	£19.69
712 - HEXAGON-SOCKET KEY BSD-3607950001.A172 3607950001	£2.80	£3.36
751 - GUIDE SLEEVE BSD-3600329000.A84 3600329000	£7.36	£8.83
752 - HOSE FITTING BSD-3603386002.A0 3603386002	£3.34	£4.01
801 - OVERRIDING CLUTCH BSD-3607031119.A2 3607031119	-
802 - ASSEMBLY OF SERVICE PARTS BSD-3607031217.A2 3607031217	£458.51	£550.21
804 - ASSEMBLY OF SERVICE PARTS BSD-3607031304.A21 3607031304	£27.23	£32.68
808 - ASSEMBLY OF SERVICE PARTS BSD-3607031362.A12 3607031362	£357.27	£428.72
809 - ASSEMBLY OF SERVICE PARTS BSD-3607031416.A0 3607031416	£156.22	£187.46
821 - ASSEMBLY OF SERVICE PARTS BSD-3607031087.A129 3607031087	£12.04	£14.45
843 - PARTS SET BSD-3607010010.A74 3607010010	£7.36	£8.83
859 - HOLDING BELT BSD-3604710062.A6 3604710062	£1.75	£2.10
882 - O-RING BSD-3607010006.A139 3607010006	£31.64	£37.97
890 - AUXILIARY HANDLE BSD-3607031351.A20 3607031351	£72.18	£86.62
891 - AIR HOSE BSD-3607000083.A49 3607000083	£59.53	£71.44
899 - AIR HOSE BSD-3607000064.A27 3607000064	£27.23	£32.68
