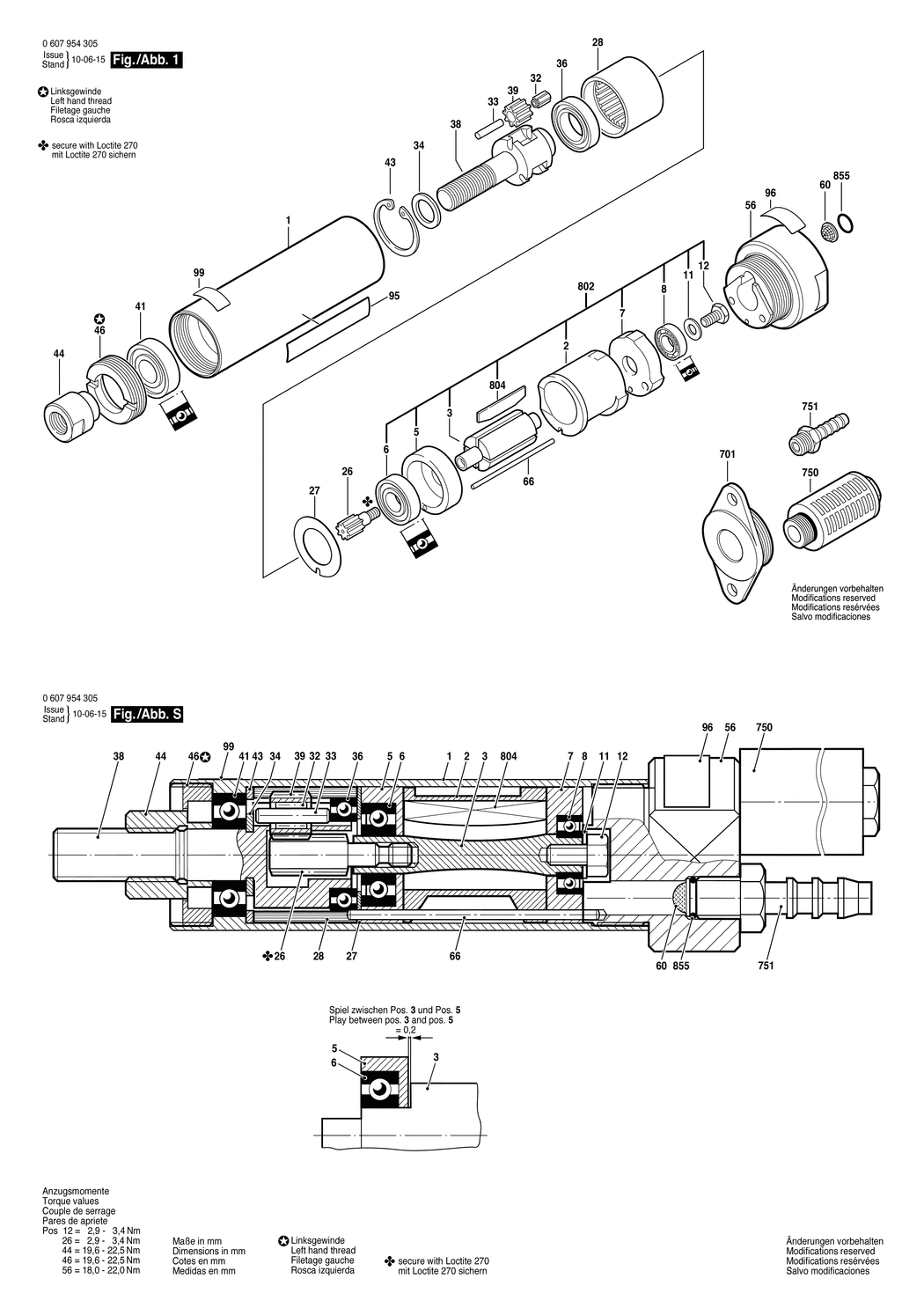

1 - MOTOR HOUSING
BSD-3600760010.A3
3600760010
|
£63.50
|
£76.20
|
|
|
2 - STATOR 120W
BSD-3604090017.A17
3604090017
|
£85.90
|
£103.08
|
|
|
3 - ROTOR
BSD-3604220013.A19
3604220013
|
£102.57
|
£123.08
|
|
|
5 - BEARING FLANGE
BSD-3605700023.A13
3605700023
|
£23.86
|
£28.63
|
|
|
6 - GROOVE BALL BEARING DIN 625-7x19x6
BSD-3600905148.A50
3600905148
|
£8.92
|
£10.70
|
|
|
7 - BEARING FLANGE
BSD-3605700022.A10
3605700022
|
£72.18
|
£86.62
|
|
|
8 - GROOVE BALL BEARING 7x14x5
BSD-1900905030.A13
1900905030
|
£33.74
|
£40.49
|
|
|
11 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A63
2916011012
|
£1.84
|
£2.21
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A191
2911061150
|
£2.74
|
£3.29
|
|
|
26 - PINION
BSD-3606300011.A2
3606300011
|
£35.42
|
£42.51
|
|
|
27 - STOP DISC
BSD-3600101008.A61
3600101008
|
£1.75
|
£2.10
|
|
|
28 - RING GEAR
BSD-3606334007.A4
3606334007
|
£63.50
|
£76.20
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A405
3600913000
|
£4.26
|
£5.11
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A60
3603201000
|
£1.84
|
£2.21
|
|
|
34 - STOP DISC
BSD-3600103003.A31
3600103003
|
£2.80
|
£3.36
|
|
|
36 - GROOVE BALL BEARING 12x21x5
BSD-3600905002.A123
3600905002
|
£16.41
|
£19.69
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337028.A2
3606337028
|
£102.57
|
£123.08
|
|
|
39 - CYLINDRICAL GEAR
BSD-3606316112.A42
3606316112
|
£22.76
|
£27.31
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905026.A9
3600905026
|
£22.76
|
£27.31
|
|
|
43 - SPRING RETAINING RING
BSD-2600119000.A95
2600119000
|
£1.84
|
£2.21
|
|
|
44 - THREADED BUSHING
BSD-3600390003.A76
3600390003
|
£12.64
|
£15.17
|
|
|
46 - THREADED RING
BSD-3603344005.A6
3603344005
|
£14.91
|
£17.89
|
|
|
56 - CONNECTION HOUSING
BSD-3605190081.A2
3605190081
|
£103.14
|
£123.77
|
|
|
60 - STRAINER
BSD-3600002001.A49
3600002001
|
£2.61
|
£3.13
|
|
|
66 - STRAIGHT PIN
BSD-3603201014.A16
3603201014
|
£11.87
|
£14.24
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A204
160111A3HF
|
£3.91
|
£4.69
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601110331.A71
3601110331
|
£3.72
|
£4.47
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1859
3601119236
|
£3.91
|
£4.69
|
|
|
701 - FASTENING FLANGE
BSD-3605700043.A12
3605700043
|
£85.90
|
£103.08
|
|
|
750 - SILENCER
BSD-3607000016.A24
3607000016
|
£21.52
|
£25.83
|
|
|
751 - HOSE FITTING
BSD-3603386002.A24
3603386002
|
£3.34
|
£4.01
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031059.A2
3607031059
|
£321.98
|
£386.38
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030259.A33
3607030259
|
£33.22
|
£39.87
|
|
|
855 - PARTS SET
BSD-3607010020.A11
3607010020
|
£9.11
|
£10.93
|
|
