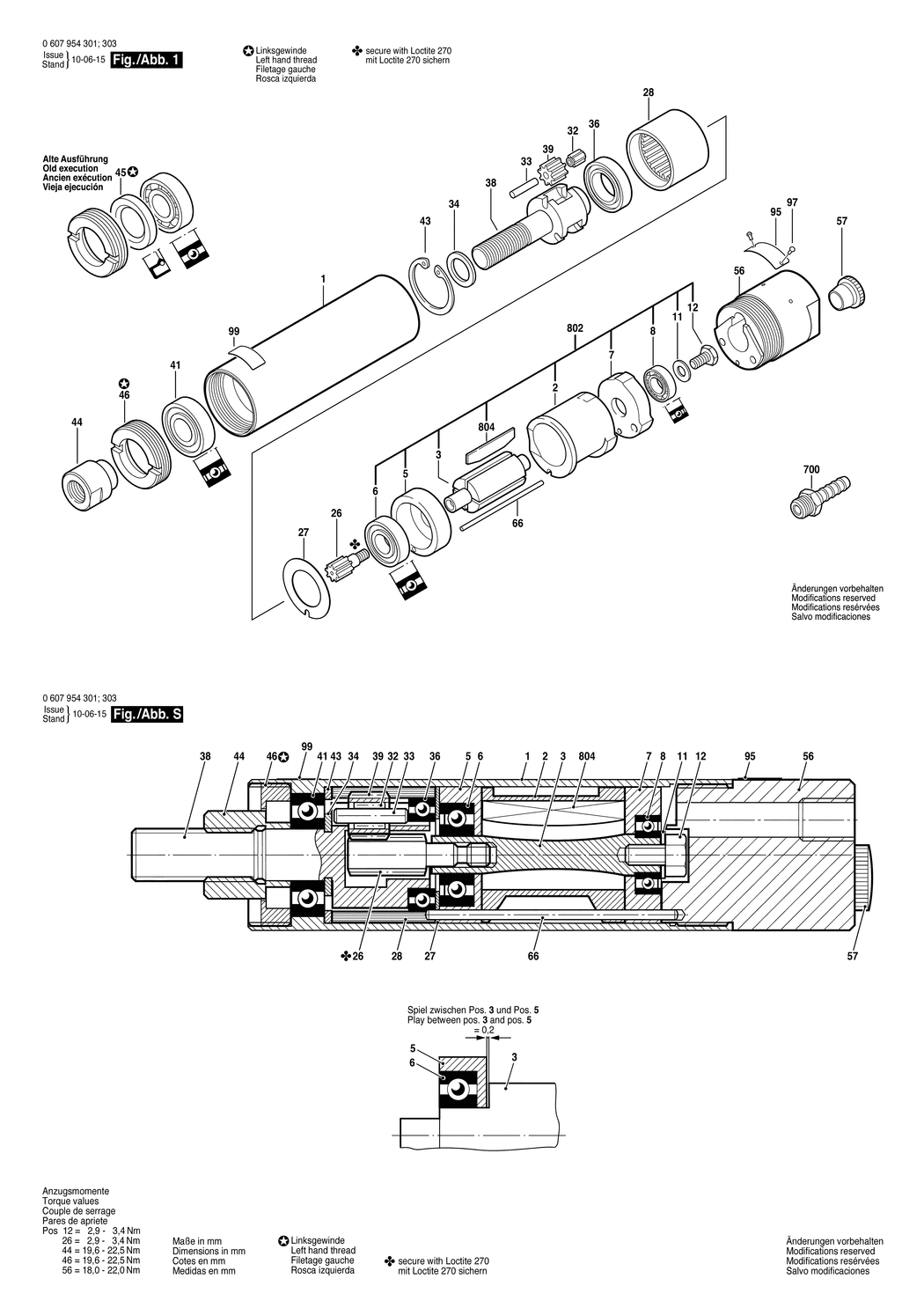

1 - MOTOR HOUSING
BSD-3600760010.A0
3600760010
|
£63.50
|
£76.20
|
|
|
2 - STATOR 120W
BSD-3604090014.A1
3604090014
|
£81.81
|
£98.17
|
|
|
3 - ROTOR
BSD-3604220013.A6
3604220013
|
£102.57
|
£123.08
|
|
|
5 - BEARING FLANGE
BSD-3605700023.A8
3605700023
|
£23.86
|
£28.63
|
|
|
6 - BALL BEARING 7x19x6
BSD-2600905032.A1275
2600905032
|
£5.57
|
£6.68
|
|
|
7 - BEARING FLANGE
BSD-3605700021.A2
3605700021
|
£62.51
|
£75.01
|
|
|
8 - GROOVE BALL BEARING 7x14x5
BSD-1900905030.A29
1900905030
|
£33.74
|
£40.49
|
|
|
11 - PLAIN WASHER DIN 433-5.3-ST
BSD-2916011011.A227
2916011011
|
£1.75
|
£2.10
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A209
2911061150
|
£2.61
|
£3.13
|
|
|
26 - PINION
BSD-3606300011.A0
3606300011
|
£35.42
|
£42.51
|
|
|
27 - STOP DISC
BSD-3600101008.A78
3600101008
|
£1.75
|
£2.10
|
|
|
28 - RING GEAR
BSD-3606334007.A2
3606334007
|
£63.50
|
£76.20
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A436
3600913000
|
£4.26
|
£5.11
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A29
3603201000
|
£1.84
|
£2.21
|
|
|
34 - STOP DISC
BSD-3600103003.A30
3600103003
|
£2.80
|
£3.36
|
|
|
36 - GROOVE BALL BEARING 12x21x5
BSD-3600905002.A121
3600905002
|
£16.41
|
£19.69
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337028.A1
3606337028
|
£102.57
|
£123.08
|
|
|
39 - CYLINDRICAL GEAR
BSD-3606316112.A43
3606316112
|
£22.76
|
£27.31
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905026.A7
3600905026
|
£22.76
|
£27.31
|
|
|
43 - SPRING RETAINING RING
BSD-2600119000.A93
2600119000
|
£1.84
|
£2.21
|
|
|
44 - THREADED BUSHING
BSD-3600390003.A73
3600390003
|
£12.64
|
£15.17
|
|
|
45 - RADIAL SEAL
BSD-3600283003.A0
3600283003
|
-
|
|
|
|
46 - THREADED RING
BSD-3603344005.A7
3603344005
|
£14.91
|
£17.89
|
|
|
56 - CONNECTION HOUSING
BSD-3605190040.A0
3605190040
|
-
|
|
|
|
66 - STRAIGHT PIN
BSD-3603201014.A19
3603201014
|
£11.30
|
£13.56
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A202
160111A3HF
|
£3.91
|
£4.69
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A39
3603133000
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1857
3601119236
|
£3.91
|
£4.69
|
|
|
700 - HOSE FITTING
BSD-3603386002.A23
3603386002
|
£3.34
|
£4.01
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031058.A3
3607031058
|
£321.98
|
£386.38
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030259.A36
3607030259
|
£31.64
|
£37.97
|
|
