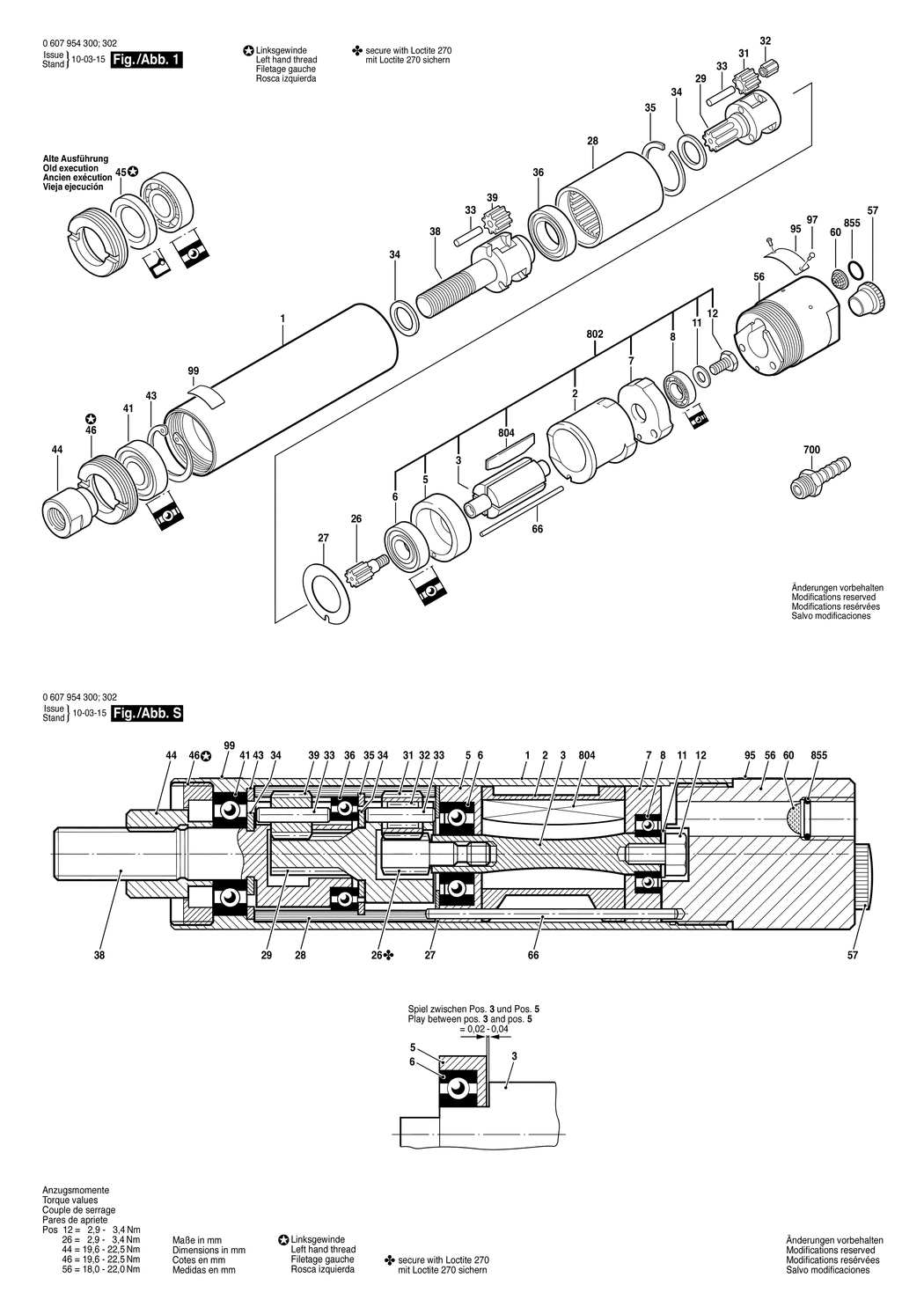

1 - MOTOR HOUSING
BSD-3600760011.A13
3600760011
|
£63.50
|
£76.20
|
|
|
2 - STATOR 120W
BSD-3604090017.A20
3604090017
|
£85.90
|
£103.08
|
|
|
3 - ROTOR
BSD-3604220013.A5
3604220013
|
£102.57
|
£123.08
|
|
|
5 - BEARING FLANGE
BSD-3605700023.A6
3605700023
|
£23.86
|
£28.63
|
|
|
6 - BALL BEARING 7x19x6
BSD-2600905032.A1273
2600905032
|
£5.57
|
£6.68
|
|
|
7 - BEARING FLANGE
BSD-3605700022.A13
3605700022
|
£72.18
|
£86.62
|
|
|
8 - GROOVE BALL BEARING 7x14x5
BSD-1900905030.A27
1900905030
|
£33.74
|
£40.49
|
|
|
11 - PLAIN WASHER DIN 433-5.3-ST
BSD-2916011011.A225
2916011011
|
£1.75
|
£2.10
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A211
2911061150
|
£2.61
|
£3.13
|
|
|
26 - PINION Z=15
BSD-3606300018.A12
3606300018
|
£27.31
|
£32.77
|
|
|
27 - STOP DISC
BSD-3600101008.A75
3600101008
|
£1.75
|
£2.10
|
|
|
28 - RING GEAR Z=42
BSD-3606334011.A35
3606334011
|
£66.68
|
£80.01
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337021.A4
3606337021
|
£93.88
|
£112.65
|
|
|
31 - CYLINDRICAL GEAR Z=13
BSD-3606316010.A46
3606316010
|
-
|
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A433
3600913000
|
£4.26
|
£5.11
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A27
3603201000
|
£1.84
|
£2.21
|
|
|
34 - STOP DISC
BSD-3600103003.A14
3600103003
|
£2.80
|
£3.36
|
|
|
35 - RETAINING RING
BSD-3600224002.A23
3600224002
|
£1.75
|
£2.10
|
|
|
36 - GROOVE BALL BEARING 12x21x5
BSD-3600905002.A130
3600905002
|
£16.41
|
£19.69
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337035.A1
3606337035
|
£135.25
|
£162.30
|
|
|
39 - CYLINDRICAL GEAR
BSD-3606316114.A28
3606316114
|
£13.12
|
£15.75
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905026.A21
3600905026
|
£22.76
|
£27.31
|
|
|
43 - SPRING RETAINING RING
BSD-2600119000.A97
2600119000
|
£1.84
|
£2.21
|
|
|
44 - THREADED BUSHING
BSD-3600390003.A78
3600390003
|
£12.64
|
£15.17
|
|
|
45 - RADIAL SEAL
BSD-3600283003.A3
3600283003
|
-
|
|
|
|
46 - THREADED RING
BSD-3603344005.A0
3603344005
|
£14.91
|
£17.89
|
|
|
56 - CONNECTION HOUSING
BSD-3605190040.A3
3605190040
|
-
|
|
|
|
57 - PROTECTIVE CAP M 10x1MM
BSD-1900508004.A3
1900508004
|
-
|
|
|
|
60 - STRAINER
BSD-3600002001.A30
3600002001
|
£2.61
|
£3.13
|
|
|
66 - STRAIGHT PIN
BSD-3603201014.A3
3603201014
|
£11.30
|
£13.56
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A193
160111A3HF
|
£3.91
|
£4.69
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A42
3603133000
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1813
3601119236
|
£3.91
|
£4.69
|
|
|
700 - HOSE FITTING
BSD-3603386002.A32
3603386002
|
£3.34
|
£4.01
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031059.A4
3607031059
|
£306.65
|
£367.98
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030259.A21
3607030259
|
£31.64
|
£37.97
|
|
|
855 - PARTS SET
BSD-3607010020.A25
3607010020
|
£9.11
|
£10.93
|
|
