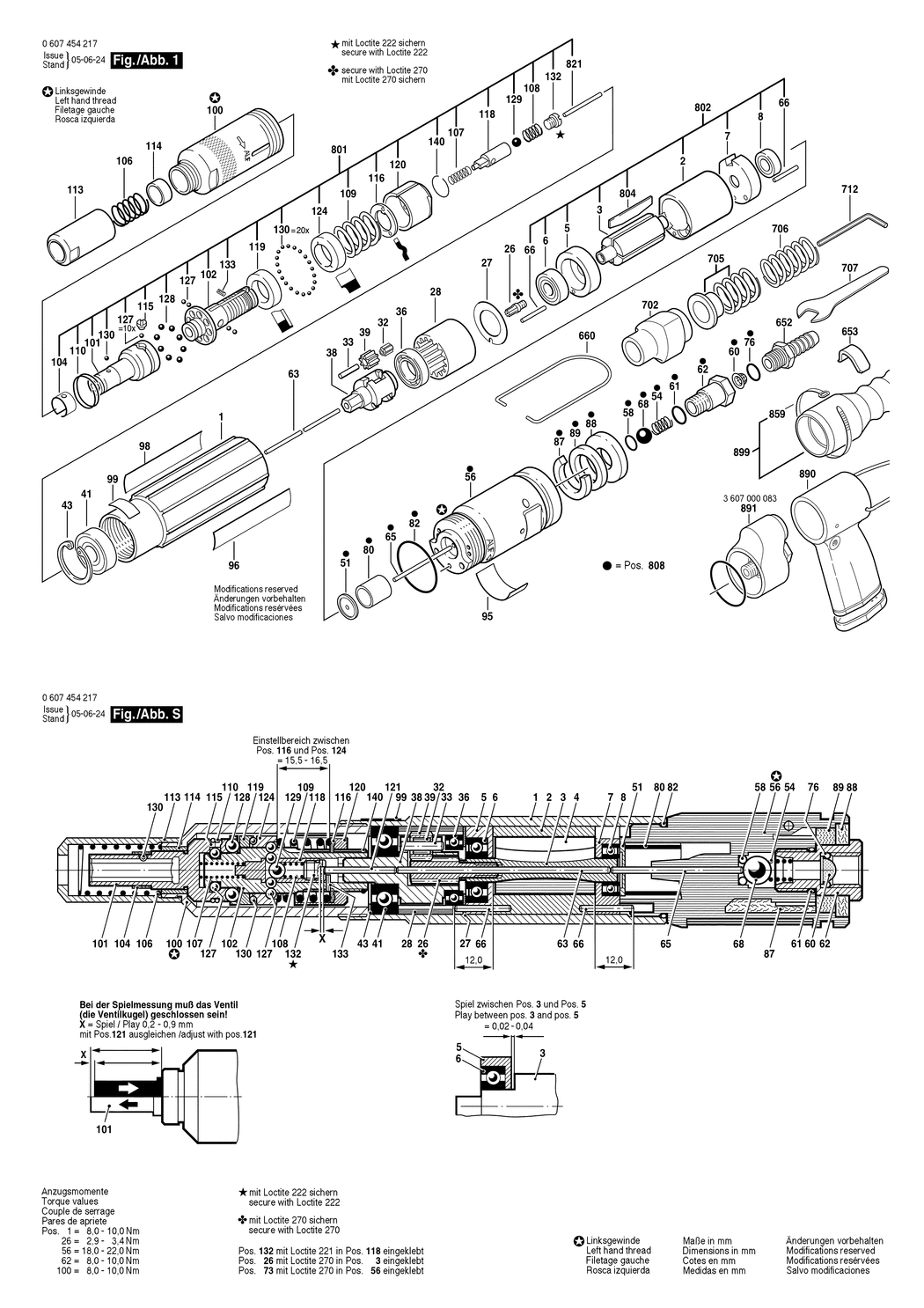

1 - MOTOR HOUSING
BSD-3600760096.A5
3600760096
|
£37.72
|
£45.27
|
|
|
2 - STATOR 120W
BSD-3604090058.A16
3604090058
|
£135.25
|
£162.30
|
|
|
3 - ROTOR
BSD-3604220087.A16
3604220087
|
£107.69
|
£129.23
|
|
|
5 - BEARING FLANGE
BSD-3605700111.A17
3605700111
|
£42.84
|
£51.41
|
|
|
6 - GROOVE BALL BEARING 7x19x6
BSD-1900905044.A131
1900905044
|
£7.72
|
£9.27
|
|
|
7 - BEARING FLANGE
BSD-3605700113.A1
3605700113
|
£36.63
|
£43.96
|
|
|
8 - GROOVE BALL BEARING 7x14x5
BSD-1900905030.A92
1900905030
|
£33.74
|
£40.49
|
|
|
26 - PINION
BSD-3606300180.A2
3606300180
|
£33.22
|
£39.87
|
|
|
27 - STOP DISC
BSD-3600101008.A11
3600101008
|
£1.75
|
£2.10
|
|
|
28 - RING GEAR
BSD-3606334084.A6
3606334084
|
£39.13
|
£46.96
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A172
3600913000
|
£4.26
|
£5.11
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A267
3603201000
|
£1.84
|
£2.21
|
|
|
36 - GROOVE BALL BEARING 12x21x5
BSD-3600905002.A53
3600905002
|
£16.41
|
£19.69
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337178.A1
3606337178
|
£142.02
|
£170.42
|
|
|
39 - CYLINDRICAL GEAR
BSD-3606316104.A22
3606316104
|
£21.68
|
£26.01
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905023.A33
3600905023
|
£22.60
|
£27.12
|
|
|
43 - SPRING RETAINING RING
BSD-3600118006.A35
3600118006
|
£2.74
|
£3.29
|
|
|
51 - COVER DISC
BSD-3600100065.A5
3600100065
|
£7.78
|
£9.33
|
|
|
54 - COMPRESSION SPRING
BSD-3604611017.A73
3604611017
|
£2.74
|
£3.29
|
|
|
56 - VALVE HOUSING
BSD-3605190181.A1
3605190181
|
-
|
|
|
|
58 - O-RING 4.3x2.4 MM
BSD-3600210084.A44
3600210084
|
£2.61
|
£3.13
|
|
|
60 - STRAINER
BSD-3600002000.A2
3600002000
|
£3.72
|
£4.47
|
|
|
61 - O-RING 9.0x1.5 MM
BSD-2600210021.A101
2600210021
|
£1.75
|
£2.10
|
|
|
62 - FITTING
BSD-3603458016.A21
3603458016
|
£11.87
|
£14.24
|
|
|
63 - STRAIGHT PIN L=62 MM
BSD-3603201070.A13
3603201070
|
£5.57
|
£6.68
|
|
|
65 - STRAIGHT PIN
BSD-3603201026.A29
3603201026
|
£7.72
|
£9.27
|
|
|
66 - STRAIGHT PIN
BSD-3604710044.A12
3604710044
|
£8.67
|
£10.41
|
|
|
68 - BALL DIN 5401-8 MM III-ST
BSD-1903230014.A46
1903230014
|
£1.75
|
£2.10
|
|
|
76 - O-RING
BSD-3600210094.A53
3600210094
|
£2.94
|
£3.53
|
|
|
80 - SLEEVE
BSD-3600313012.A0
3600313012
|
-
|
|
|
|
82 - O-RING 26.0x1.0 MM
BSD-3600210056.A24
3600210056
|
£1.84
|
£2.21
|
|
|
87 - SILENCER
BSD-3601010010.A71
3601010010
|
£2.16
|
£2.59
|
|
|
88 - SILENCER
BSD-3601010037.A58
3601010037
|
£11.87
|
£14.24
|
|
|
89 - SILENCER
BSD-3601010044.A18
3601010044
|
£7.72
|
£9.27
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A652
160111A3HF
|
£3.91
|
£4.69
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601119055.A119
3601119055
|
£3.72
|
£4.47
|
|
|
98 - STICKER
BSD-3601110204.A65
3601110204
|
£1.75
|
£2.10
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A471
3601119236
|
£3.91
|
£4.69
|
|
|
100 - HOUSING
BSD-3605125053.A3
3605125053
|
-
|
|
|
|
101 - CLUTCH ELEMENT
BSD-3606445034.A8
3606445034
|
£107.69
|
£129.23
|
|
|
102 - DRIVE SHAFT
BSD-3606122012.A12
3606122012
|
£98.57
|
£118.28
|
|
|
104 - LEAF SPRING
BSD-3601250002.A8
3601250002
|
£4.48
|
£5.37
|
|
|
106 - COMPRESSION SPRING
BSD-3604615004.A46
3604615004
|
£1.75
|
£2.10
|
|
|
107 - COMPRESSION SPRING
BSD-3604610008.A29
3604610008
|
£1.75
|
£2.10
|
|
|
108 - COMPRESSION SPRING
BSD-3604610007.A7
3604610007
|
£1.75
|
£2.10
|
|
|
109 - COMPRESSION SPRING
BSD-3604619007.A16
3604619007
|
£2.94
|
£3.53
|
|
|
110 - RETAINING RING
BSD-3604603000.A21
3604603000
|
-
|
|
|
|
113 - UNION NUT
BSD-3603343000.A14
3603343000
|
£11.87
|
£14.24
|
|
|
114 - BUSHING
BSD-3600300001.A7
3600300001
|
-
|
|
|
|
115 - SEALING PLATE
BSD-3600001003.A16
3600001003
|
-
|
|
|
|
116 - ADJUSTING DISC
BSD-3600134002.A17
3600134002
|
£1.75
|
£2.10
|
|
|
118 - LOCKING BOLT
BSD-3603150201.A20
3603150201
|
£22.76
|
£27.31
|
|
|
119 - SUPPORT DISC
BSD-3600114007.A19
3600114007
|
£10.61
|
£12.73
|
|
|
120 - ROUND NUT
BSD-3603340003.A6
3603340003
|
£25.05
|
£30.06
|
|
|
124 - COUPLING PLATE
BSD-3600114005.A11
3600114005
|
£7.72
|
£9.27
|
|
|
127 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A413
1903230004
|
£2.27
|
£2.72
|
|
|
128 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A787
1903230007
|
£1.84
|
£2.21
|
|
|
129 - BALL DIN 5401-5 G28
BSD-1903230009.A896
1903230009
|
£1.84
|
£2.21
|
|
|
130 - BALL DIN 5401-2.5MM-III-ST
BSD-1903230003.A73
1903230003
|
£2.74
|
£3.29
|
|
|
132 - SCREW PLUG
BSD-3603463001.A12
3603463001
|
£2.27
|
£2.72
|
|
|
133 - COILED SPRING PIN DIN 7343-1.5x4
BSD-2917800012.A10
2917800012
|
-
|
|
|
|
140 - RETAINING RING 10 DIN 9045
BSD-2916600006.A103
2916600006
|
£1.84
|
£2.21
|
|
|
660 - SUSPENSION LOOP
BSD-2604720004.A68
2604720004
|
£4.26
|
£5.11
|
|
|
652 - HOSE FITTING
BSD-3603386066.A52
3603386066
|
£14.91
|
£17.89
|
|
|
653 - ANGLE PIECE
BSD-3601329007.A161
3601329007
|
£4.48
|
£5.37
|
|
|
702 - HANDLE
BSD-3600499002.A23
3600499002
|
£22.76
|
£27.31
|
|
|
705 - CLUTCH ELEMENT
BSD-3607031085.A13
3607031085
|
-
|
|
|
|
706 - COMPRESSION SPRING
BSD-3604618007.A3
3604618007
|
£4.99
|
£5.99
|
|
|
707 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A198
2607950511
|
£4.48
|
£5.37
|
|
|
712 - HEXAGON-SOCKET KEY
BSD-3607950001.A79
3607950001
|
£2.80
|
£3.36
|
|
|
801 - CUTOFF COUPLING SP SET
BSD-3607031120.A8
3607031120
|
£321.98
|
£386.38
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031302.A1
3607031302
|
-
|
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607031305.A21
3607031305
|
£23.86
|
£28.63
|
|
|
808 - ASSEMBLY OF SERVICE PARTS
BSD-3607031426.A1
3607031426
|
£92.47
|
£110.96
|
|
|
821 - ASSEMBLY OF SERVICE PARTS
BSD-3607031086.A16
3607031086
|
£9.11
|
£10.93
|
|
|
859 - HOLDING BELT
BSD-3604710062.A104
3604710062
|
£1.84
|
£2.21
|
|
|
890 - AUXILIARY HANDLE
BSD-3607031352.A2
3607031352
|
£98.57
|
£118.28
|
|
|
891 - AIR HOSE
BSD-3607000083.A17
3607000083
|
£62.51
|
£75.01
|
|
|
899 - AIR HOSE
BSD-3607000064.A55
3607000064
|
£27.23
|
£32.68
|
|
