Bosch ---- / 1608588000 / --- Spare Parts

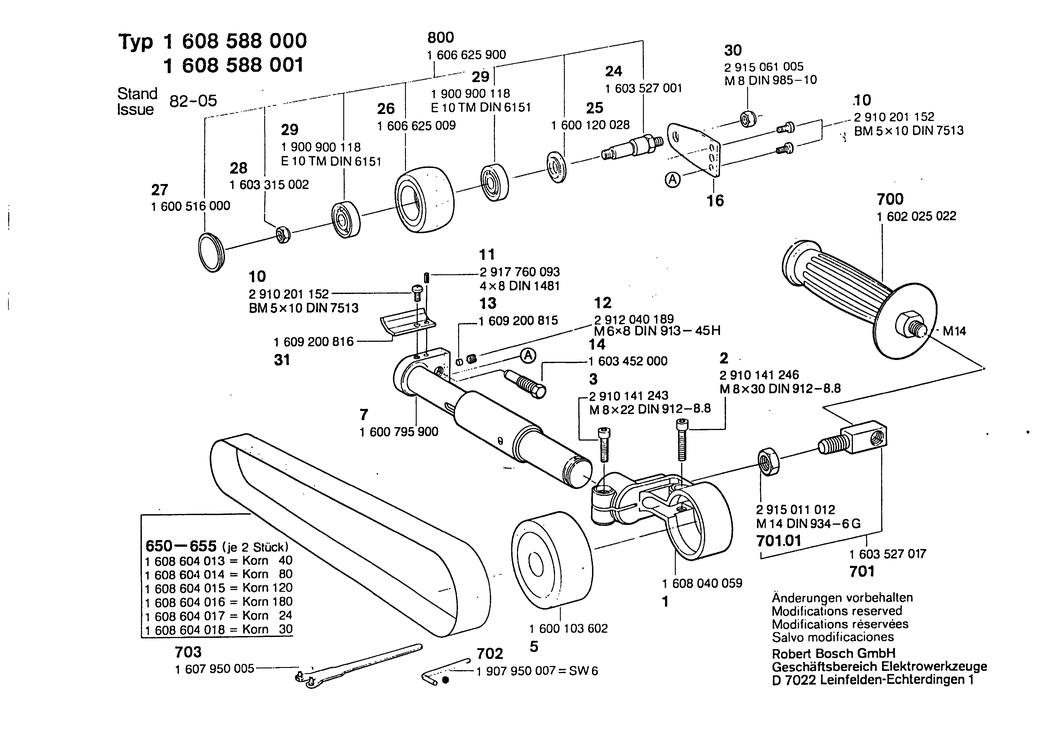

An exploded drawing and listing for the Bosch ---- / 1608588000 / ---

	Ex VAT	Inc VAT
1 - SUPPORT CLAMP BSD-1608040059.A1 1608040059	-
2 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x30-8.8 BSD-2910141246.A4 2910141246	-
3 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x22-8.8 BSD-2910142243.A1 2910142243	-
5 - ROLLER BSD-1600103602.A0 1600103602	-
7 - GUIDE TUBE BSD-1600795900.A1 1600795900	-
10 - SELF-CUTTING SCREW DIN 7513-BM5x10 BSD-2910201152.A0 2910201152	-
11 - SLOTTED SPRING PIN 4x8 DIN 1481 BSD-2917760093.A2 2917760093	-
12 - SET SCREW DIN 913-M6x8-45H BSD-2912040189.A1 2912040189	-
13 - PRESSURE SPINDLE BSD-1609200815.A1 1609200815	-
14 - HEX SCREW BSD-1603452000.A1 1603452000	-
24 - STUD BOLT BSD-1603527001.A0 1603527001	-
25 - COVER DISC BSD-1600120028.A1 1600120028	-
26 - ROLLER BSD-1606625009.A0 1606625009	-
27 - SEALING CAP BSD-1600516000.A0 1600516000	-
28 - HEX NUT BSD-1603315002.A0 1603315002	-
29 - MAGNETO BALL BEARING DIN 615-E 10 TM BSD-1900900118.A1 1900900118	-
30 - HEX NUT DIN 985-M8-8 BSD-2915061005.A5 2915061005	£2.61	£3.13
31 - TAB WASHER BSD-1609200816.A0 1609200816	-
700 - AUXILIARY HANDLE M14x1.5 MM BSD-2602025075.A151 2602025075	£10.30	£12.36
701 - THREADED FITTING M14. L=70 MM BSD-1603527017.A1 1603527017	-
701/01 - HEX NUT DIN 934-M 14-6G BSD-2915011012.A0 2915011012	-
702 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A249 1907950007	£5.30	£6.36
703 - OFFSET SCREWDRIVER DIN 911-4 BSD-2607950004.A576 2607950004	£1.75	£2.10
800 - ROLLER BSD-1606625900.A1 1606625900	-
