Bosch ---- / 0607950940 / --- Spare Parts

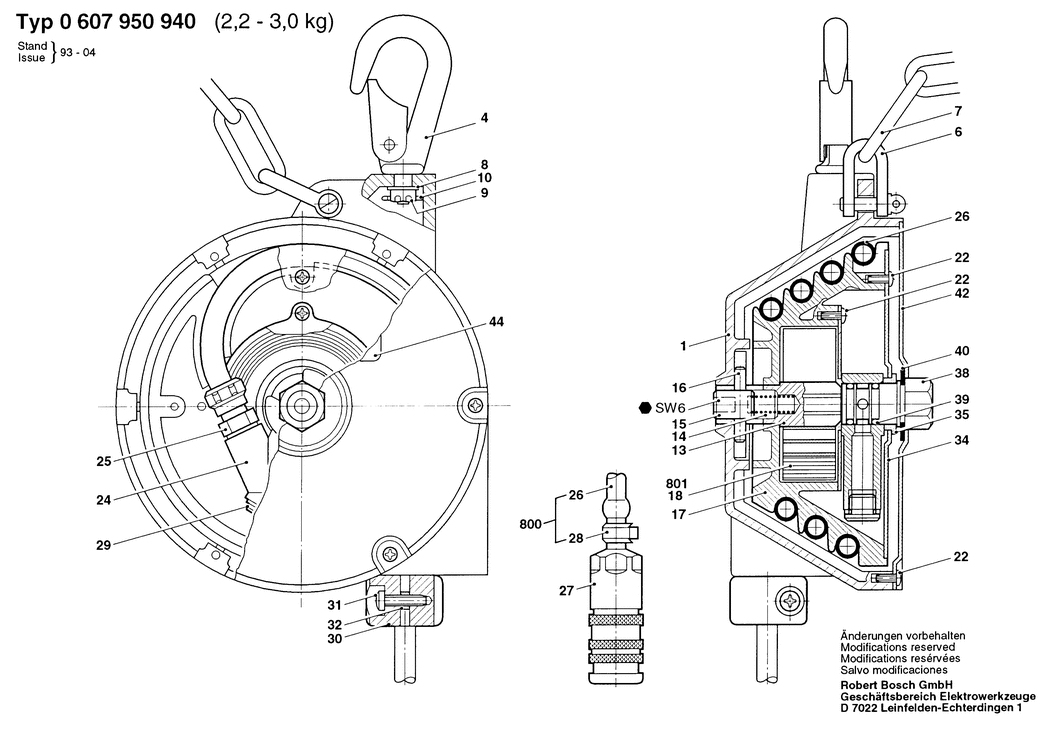

An exploded drawing and listing for the Bosch ---- / 0607950940 / ---

	Ex VAT	Inc VAT
1 - HOUSING BSD-3609202000.A2 3609202000	-
4 - HOOK BSD-3609202001.A0 3609202001	-
6 - CHAIN LINK BSD-3609202004.A0 3609202004	-
7 - CHAIN BSD-3609202003.A2 3609202003	-
8 - PLAIN WASHER BSD-3609202005.A2 3609202005	-
9 - CASTLE NUT BSD-3609202006.A0 3609202006	-
10 - SPLIT PIN BSD-3609202007.A2 3609202007	-
13 - SPRING GUIDE BSD-3609202008.A0 3609202008	-
14 - COMPRESSION SPRING BSD-3609202009.A2 3609202009	-
15 - DETENT ROLLER BSD-3609202010.A0 3609202010	-
16 - SLOTTED SPRING PIN BSD-3609202011.A2 3609202011	-
17 - HOSE GUIDE BSD-3609202012.A0 3609202012	-
18 - SPIRAL SPRING BSD-3609201175.A0 3609201175	-
19 - COVER PLATE BSD-3609202016.A1 3609202016	-
22 - OVAL-HEAD SCREW BSD-3609202017.A1 3609202017	-
24 - CONNECTING PIECE BSD-3609202018.A1 3609202018	-
25 - QUICK-LOCK BSD-3609202020.A2 3609202020	-
26 - HOSE BSD-3609202021.A0 3609202021	£16.41	£19.69
27 - SEALING CAP BSD-3609202025.A1 3609202025	-
28 - CLAMP BSD-3609202026.A1 3609202026	-
29 - PLUG BSD-3609202019.A1 3609202019	-
30 - CLAMP BSD-3609202022.A2 3609202022	£14.91	£17.89
31 - ROUND-HEAD SCREW BSD-3609202023.A0 3609202023	£2.61	£3.13
32 - SPACER ROLLER BSD-3609202024.A2 3609202024	-
34 - COVER PLATE BSD-3609202027.A1 3609202027	-
35 - SUPPORT DISC BSD-3609202030.A1 3609202030	-
38 - CONNECTOR BUSHING BSD-3609202028.A1 3609202028	-
39 - SEAL RING BSD-3609202031.A1 3609202031	£16.41	£19.69
40 - LOCKING WASHER BSD-3609202029.A1 3609202029	-
42 - HOUSING COVER BSD-3609202032.A1 3609202032	-
44 - NAMEPLATE BSD-3609201178.A0 3609201178	-
99 - REFERENCE PLATE BSD-3601119236.A427 3601119236	£3.72	£4.47
800 - HOSE BSD-3609201172.A1 3609201172	-
