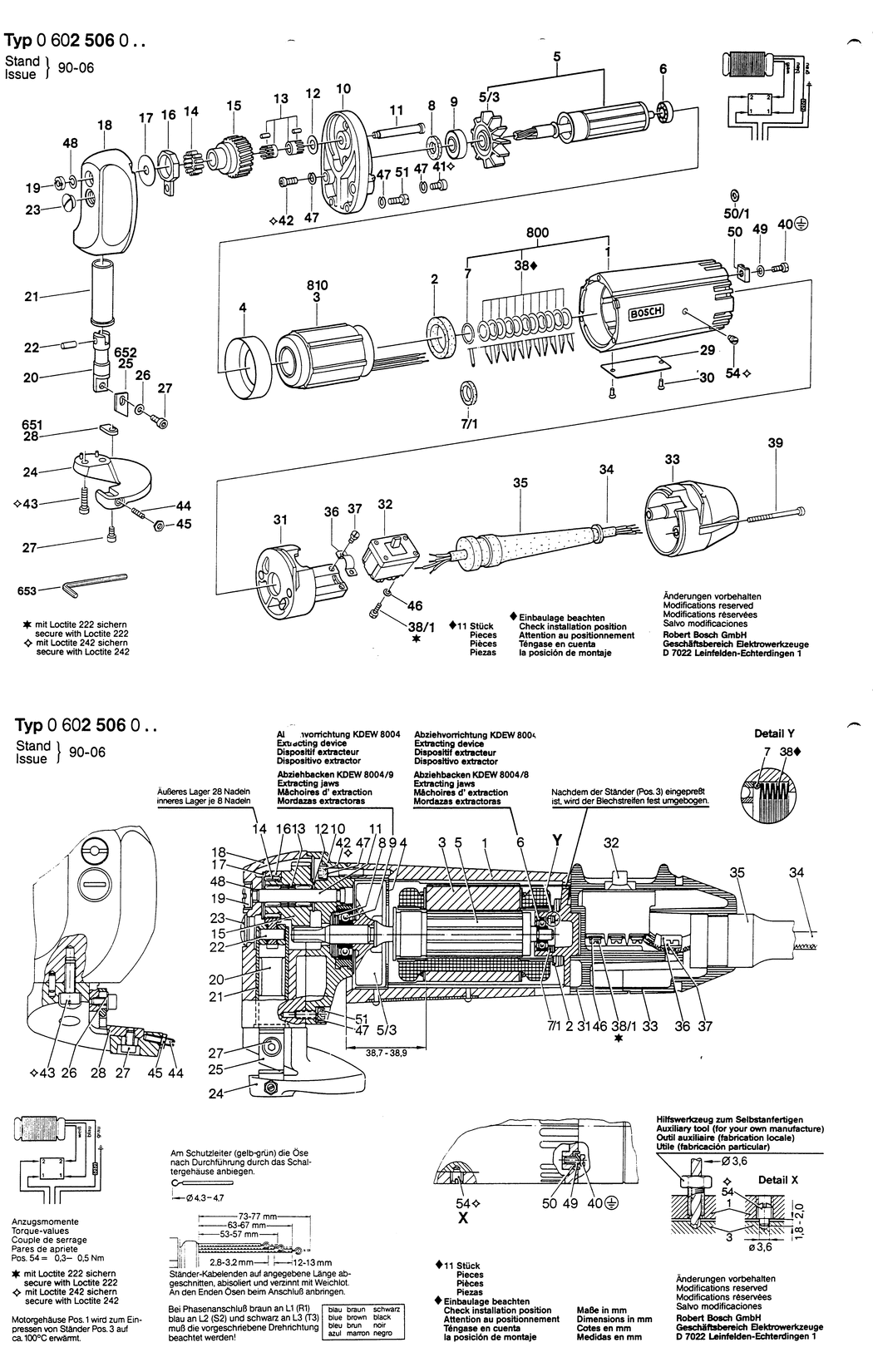

2 - SEAL RING
BSD-1600209011.A107
1600209011
|
£2.80
|
£3.36
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600502005.A262
1600502005
|
£2.61
|
£3.13
|
|
|
5 - ROTOR
BSD-3604080020.A84
3604080020
|
-
|
|
|
|
5/3 - FAN
BSD-1606610105.A68
1606610105
|
£14.91
|
£17.89
|
|
|
6 - GROOVE BALL BEARING 625-2Z DIN 625
BSD-1900905015.A285
1900905015
|
£30.42
|
£36.51
|
|
|
7 - O-RING 12.0x2.25 MM
BSD-3600210039.A99
3600210039
|
£7.36
|
£8.83
|
|
|
7/1 - RUBBER RING 6MM.dia12xdia16.4x3MM
BSD-3600206002.A91
3600206002
|
-
|
|
|
|
8 - SEALING DISK
BSD-1600108053.A6
1600108053
|
-
|
|
|
|
9 - GROOVE BALL BEARING 9x24x7
BSD-1900905017.A71
1900905017
|
£23.86
|
£28.63
|
|
|
10 - BEARING FLANGE
BSD-3605820060.A7
3605820060
|
-
|
|
|
|
11 - BEARING BOLT
BSD-2603520001.A11
2603520001
|
-
|
|
|
|
12 - SHIM 0.5 MM
BSD-1600100624.A8
1600100624
|
-
|
|
|
|
13 - NEEDLE-ROLLER CAGE
BSD-2600913034.A22
2600913034
|
-
|
|
|
|
14 - NEEDLE ROLLER 2x7.8 G 2 DIN 5402
BSD-1903201000.A8
1903201000
|
-
|
|
|
|
15 - ECCENTRIC COG WHEEL Z=43
BSD-2606319040.A8
2606319040
|
-
|
|
|
|
16 - CONNECTING ROD
BSD-2602001000.A19
2602001000
|
-
|
|
|
|
17 - SHIM
BSD-2600100519.A10
2600100519
|
-
|
|
|
|
18 - GEAR HOUSING
BSD-2605806032.A9
2605806032
|
-
|
|
|
|
19 - ROUND NUT
BSD-2603341002.A14
2603341002
|
-
|
|
|
|
20 - LIFTING ROD
BSD-2603070005.A12
2603070005
|
-
|
|
|
|
21 - GUIDE SLEEVE
BSD-2600422000.A16
2600422000
|
-
|
|
|
|
22 - STRAIGHT PIN
BSD-2603100000.A16
2603100000
|
-
|
|
|
|
23 - SCREW PLUG
BSD-2603463001.A40
2603463001
|
-
|
|
|
|
24 - BLADE HOLDER
BSD-2608042000.A18
2608042000
|
£154.03
|
£184.84
|
|
|
25 - SET OF KNIVES
BSD-3607010028.A30
3607010028
|
£28.87
|
£34.64
|
|
|
26 - PLAIN WASHER DIN 125-A4.3-ST
BSD-2916011010.A8
2916011010
|
£1.75
|
£2.10
|
|
|
27 - HEX SOCKET HEAD CAP SCREW DIN 912-M4x8-12.8
BSD-2910405118.A14
2910405118
|
£1.32
|
£1.58
|
|
|
28 - SET OF KNIVES
BSD-3607010028.A29
3607010028
|
£28.87
|
£34.64
|
|
|
29 - NAMEPLATE
BSD-3601106053.A36
3601106053
|
£5.30
|
£6.36
|
|
|
30 - GROOVED NAIL
BSD-3603133000.A193
3603133000
|
£2.61
|
£3.13
|
|
|
31 - CONNECTION HOUSING
BSD-3600099004.A133
3600099004
|
£21.68
|
£26.01
|
|
|
32 - ON-OFF SWITCH
BSD-1607200023.A2
1607200023
|
-
|
|
|
|
33 - SEALING CAP
BSD-1605500070.A0
1605500070
|
-
|
|
|
|
34 - POWER SUPPLY CORD
BSD-1604461034.A0
1604461034
|
-
|
|
|
|
35 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A1268
3600703011
|
£2.80
|
£3.36
|
|
|
36 - FASTENING CLAMP
BSD-1601302014.A691
1601302014
|
£2.61
|
£3.13
|
|
|
37 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A177
2910021116
|
£2.16
|
£2.59
|
|
|
38 - DISC SPRING
BSD-3600150013.A36
3600150013
|
£3.72
|
£4.47
|
|
|
38/1 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A462
2910110048
|
£1.75
|
£2.10
|
|
|
39 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8
BSD-2910141140.A109
2910141140
|
£1.75
|
£2.10
|
|
|
40 - PAN HEAD SCREW DIN 85-AM4x8-MS
BSD-2910110118.A241
2910110118
|
£1.75
|
£2.10
|
|
|
41 - HEX SOCKET HEAD CAP SCREW M 4x10 DIN 912-8.8
BSD-2910141120.A8
2910141120
|
£1.75
|
£2.10
|
|
|
42 - HEX SOCKET HEAD CAP SCREW DIN 912-M4x18-8.8
BSD-2910141128.A3
2910141128
|
£1.75
|
£2.10
|
|
|
43 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8
BSD-2910141158.A49
2910141158
|
£1.75
|
£2.10
|
|
|
44 - SET SCREW M 3.5x15 DIN 551-5.8
BSD-2912031091.A2
2912031091
|
-
|
|
|
|
45 - HEX NUT DIN 439-BM 13.5-4
BSD-2915051109.A9
2915051109
|
-
|
|
|
|
46 - SPRING WASHER A 3 DIN 137-ST
BSD-2916060003.A288
2916060003
|
£1.32
|
£1.58
|
|
|
47 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A435
2916690003
|
£1.75
|
£2.10
|
|
|
48 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A377
2916680006
|
-
|
|
|
|
49 - SPRING WASHER DIN 137-A4
BSD-1600150006.A112
1600150006
|
-
|
|
|
|
50 - CLAMPING SADDLE
BSD-3601321001.A755
3601321001
|
£3.72
|
£4.47
|
|
|
50/1 - PLAIN WASHER DIN 46 255-DPG 9
BSD-2916010409.A219
2916010409
|
-
|
|
|
|
51 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8
BSD-2910141122.A9
2910141122
|
£2.16
|
£2.59
|
|
|
52 - SOCKET-TERMINAL STRIP 1x1.5 MM/2
BSD-1901091012.A273
1901091012
|
£5.30
|
£6.36
|
|
|
54 - SET SCREW
BSD-3603402000.A105
3603402000
|
£1.75
|
£2.10
|
|
|
650 - FEELER GAUGE
BSD-2607970009.A22
2607970009
|
-
|
|
|
|
651 - SET OF KNIVES
BSD-3607010028.A38
3607010028
|
£28.87
|
£34.64
|
|
|
653 - OFFSET SCREWDRIVER DIN 911. SW3
BSD-1907950004.A181
1907950004
|
£5.58
|
£6.70
|
|
|
800 - MOTOR HOUSING
BSD-3605102028.A16
3605102028
|
£156.22
|
£187.46
|
|
|
801 - HANDLE
BSD-3607031145.A62
3607031145
|
-
|
|
|
|
810 - STATOR 42V/200HZ
BSD-1604229206.A1
1604229206
|
-
|
|
|
