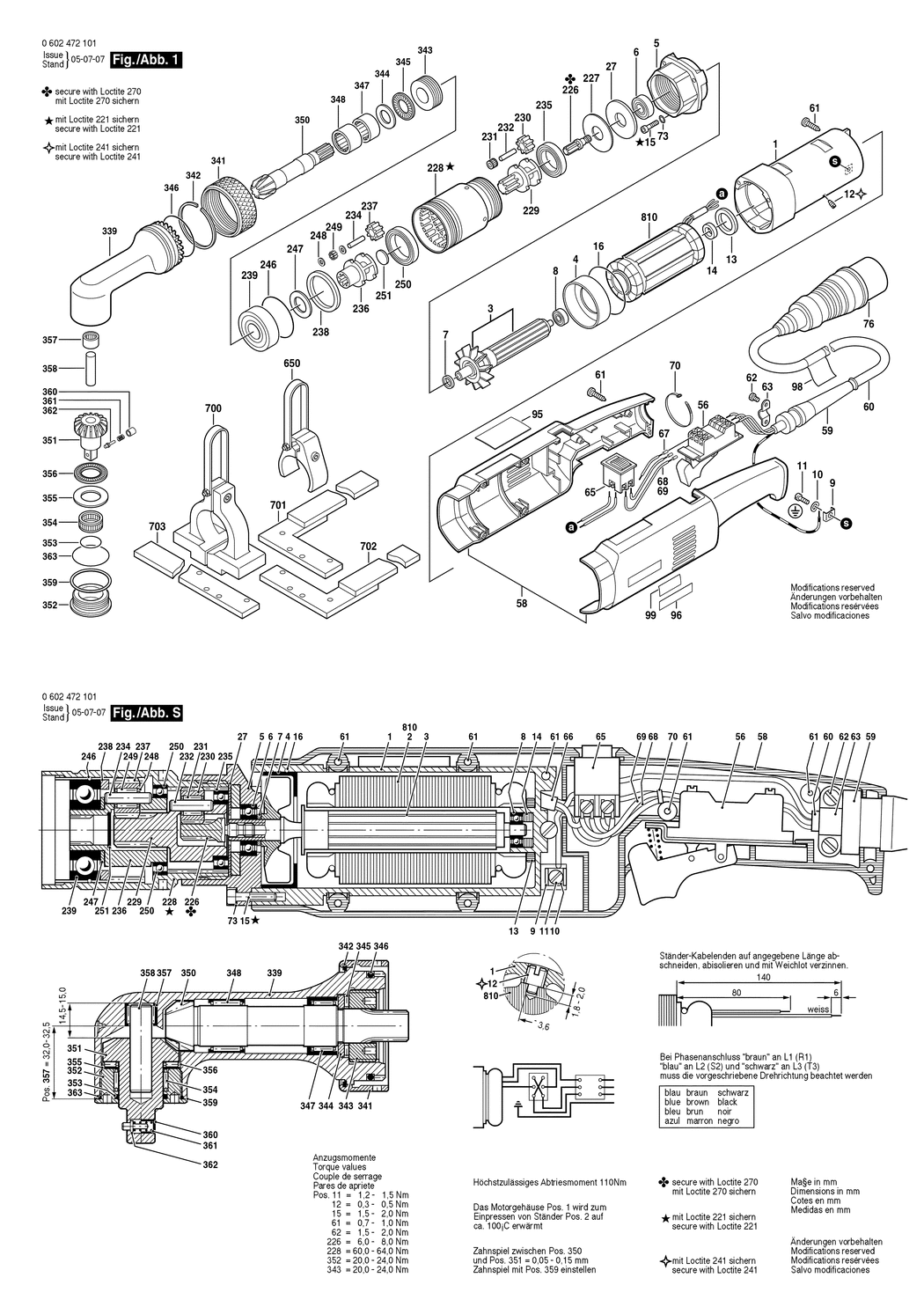

1 - MOTOR HOUSING
BSD-3605102034.A4
3605102034
|
£218.41
|
£262.09
|
|
|
3 - ROTOR
BSD-3604080018.A5
3604080018
|
£195.26
|
£234.31
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600502005.A253
1600502005
|
£2.61
|
£3.13
|
|
|
5 - INTERMEDIATE BEARING
BSD-3605700072.A5
3605700072
|
-
|
|
|
|
6 - GROOVE BALL BEARING 9x24x7
BSD-1900905017.A79
1900905017
|
£23.86
|
£28.63
|
|
|
7 - SPACER RING
BSD-3600200008.A12
3600200008
|
£6.52
|
£7.83
|
|
|
8 - GROOVE BALL BEARING 625-2Z DIN 625
BSD-1900905015.A199
1900905015
|
£30.42
|
£36.51
|
|
|
9 - CLAMPING SADDLE
BSD-3601321001.A521
3601321001
|
£3.72
|
£4.47
|
|
|
10 - SPRING WASHER dia4.2 MM
BSD-3600150006.A640
3600150006
|
£2.61
|
£3.13
|
|
|
11 - PAN HEAD SCREW DIN 85-AM4x10-MS
BSD-2910110120.A131
2910110120
|
£1.75
|
£2.10
|
|
|
12 - SET SCREW
BSD-3603402000.A86
3603402000
|
£1.75
|
£2.10
|
|
|
13 - FELT WASHER
BSD-1600205026.A6
1600205026
|
£2.61
|
£3.13
|
|
|
14 - RUBBER RING 6MM.dia12xdia16.4x3MM
BSD-3600206002.A12
3600206002
|
-
|
|
|
|
15 - SOCKET HEAD CAP SCREW DIN 84-AM4x16-8.8
BSD-2910021126.A83
2910021126
|
£1.75
|
£2.10
|
|
|
16 - O-RING 53.0x2.0 MM
BSD-3600210017.A77
3600210017
|
£3.72
|
£4.47
|
|
|
27 - STOP DISC
BSD-3600102014.A22
3600102014
|
-
|
|
|
|
56 - SWITCH
BSD-3607200041.A40
3607200041
|
-
|
|
|
|
58 - HANDLE
BSD-3605132040.A7
3605132040
|
£21.52
|
£25.83
|
|
|
59 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A879
3600703011
|
£2.80
|
£3.36
|
|
|
59 - GROMMET dia9.0-dia11.0x75 MM
BSD-1600703005.A4
1600703005
|
-
|
|
|
|
60 - HELICAL CONDUCTOR
BSD-3604462005.A13
3604462005
|
-
|
|
|
|
61 - TAPPING SCREW DIN 7971-BZ3.9x19
BSD-2910211020.A135
2910211020
|
£2.16
|
£2.59
|
|
|
62 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A289
2910021116
|
£2.16
|
£2.59
|
|
|
63 - FASTENING CLAMP
BSD-1601302014.A1165
1601302014
|
£2.61
|
£3.13
|
|
|
65 - SWITCH
BSD-3607200000.A36
3607200000
|
£21.52
|
£25.83
|
|
|
67 - END SPLICE
BSD-3604477008.A103
3604477008
|
£1.75
|
£2.10
|
|
|
68 - PVC-INSULATED CABLE
BSD-3604412000.A6
3604412000
|
-
|
|
|
|
69 - ELEC. CABLE W/CONNECTION
BSD-3604412008.A5
3604412008
|
-
|
|
|
|
70 - CABLE CLIP
BSD-3601025001.A14
3601025001
|
-
|
|
|
|
73 - SERRATED LOCK-WASHER A 4.3 DIN 6798-ST
BSD-2916070006.A31
2916070006
|
£1.75
|
£2.10
|
|
|
76 - CONNECTOR PLUG
BSD-3604484003.A20
3604484003
|
-
|
|
|
|
95 - NAMEPLATE
BSD-3601106053.A646
3601106053
|
£5.30
|
£6.36
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-1601110483.A103
1601110483
|
£2.61
|
£3.13
|
|
|
98 - STICKER
BSD-3601103012.A9
3601103012
|
-
|
|
|
|
99 - STICKER
BSD-3601119066.A8
3601119066
|
£1.95
|
£2.34
|
|
|
226 - PINION
BSD-3606300170.A7
3606300170
|
£31.64
|
£37.97
|
|
|
227 - STOP DISC
BSD-3600101004.A51
3600101004
|
£2.61
|
£3.13
|
|
|
228 - RING GEAR Z=46
BSD-3606334045.A5
3606334045
|
-
|
|
|
|
229 - PLANETARY-GEAR CARRIER
BSD-3606337088.A1
3606337088
|
-
|
|
|
|
230 - CYLINDRICAL GEAR
BSD-3606316102.A15
3606316102
|
£31.64
|
£37.97
|
|
|
231 - NEEDLE-ROLLER ASSEMBLY
BSD-3600910000.A37
3600910000
|
£4.26
|
£5.11
|
|
|
232 - NEEDLE ROLLER
BSD-3603201005.A28
3603201005
|
£2.80
|
£3.36
|
|
|
234 - NEEDLE ROLLER
BSD-3603201031.A3
3603201031
|
£2.61
|
£3.13
|
|
|
235 - GROOVE BALL BEARING 25x37x7
BSD-3600905001.A4
3600905001
|
£31.64
|
£37.97
|
|
|
236 - PLANETARY-GEAR CARRIER
BSD-3606337089.A2
3606337089
|
-
|
|
|
|
237 - CYLINDRICAL GEAR Z=12
BSD-3606317003.A1
3606317003
|
-
|
|
|
|
238 - SPACER RING
BSD-3600101012.A30
3600101012
|
£18.96
|
£22.75
|
|
|
239 - GROOVE BALL BEARING
BSD-3600905057.A80
3600905057
|
£21.68
|
£26.01
|
|
|
246 - O-RING 47.0x1.5 MM
BSD-3600210109.A222
3600210109
|
£2.16
|
£2.59
|
|
|
247 - PLAIN WASHER
BSD-3600102011.A4
3600102011
|
-
|
|
|
|
248 - STOP DISC
BSD-3600100006.A19
3600100006
|
£5.58
|
£6.70
|
|
|
249 - NEEDLE ROLLER
BSD-3603201053.A3
3603201053
|
£1.75
|
£2.10
|
|
|
250 - GROOVE BALL BEARING
BSD-3600905103.A21
3600905103
|
£23.86
|
£28.63
|
|
|
251 - SEALING WASHER
BSD-2916090009.A9
2916090009
|
-
|
|
|
|
339 - SPINDLE HOUSING
BSD-3608873665.A5
3608873665
|
-
|
|
|
|
341 - UNION NUT
BSD-3603340015.A11
3603340015
|
-
|
|
|
|
342 - RETAINING RING
BSD-3600224017.A15
3600224017
|
£2.61
|
£3.13
|
|
|
343 - THREADED RING
BSD-3603340006.A8
3603340006
|
£23.86
|
£28.63
|
|
|
344 - SUPPORT DISC 15X28X2.75
BSD-3600150003.A24
3600150003
|
£12.04
|
£14.45
|
|
|
345 - THRUST NEEDLE RIM
BSD-1610913000.A50
1610913000
|
£2.80
|
£3.36
|
|
|
346 - O-RING 45x2.5MM
BSD-1900210145.A59
1900210145
|
£1.75
|
£2.10
|
|
|
347 - NEEDLE BEARING
BSD-3600917010.A22
3600917010
|
£27.23
|
£32.68
|
|
|
348 - NEEDLE-ROLLER BEARING
BSD-2000910002.A12
2000910002
|
£3.72
|
£4.47
|
|
|
350 - BEVEL GEAR Z=8
BSD-3606100010.A8
3606100010
|
£195.26
|
£234.31
|
|
|
351 - CROWN GEAR Z=16
BSD-3606100008.A10
3606100008
|
£251.67
|
£302.00
|
|
|
352 - BEARING FLANGE
BSD-3603490001.A9
3603490001
|
£102.57
|
£123.08
|
|
|
353 - O-RING 20x2 MM
BSD-1900210118.A30
1900210118
|
£2.80
|
£3.36
|
|
|
354 - NEEDLE-ROLLER ASSEMBLY
BSD-3600915001.A3
3600915001
|
£14.91
|
£17.89
|
|
|
355 - THRUST BEARING DISC
BSD-1600102011.A30
1600102011
|
£2.80
|
£3.36
|
|
|
356 - THRUST NEEDLE RIM
BSD-1600920000.A2
1600920000
|
£5.30
|
£6.36
|
|
|
357 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A912
2600910001
|
£4.26
|
£5.11
|
|
|
358 - NEEDLE ROLLER
BSD-3603201037.A11
3603201037
|
£10.10
|
£12.12
|
|
|
359 - SHIM
BSD-3600102005.A10
3600102005
|
£3.72
|
£4.47
|
|
|
359 - SHIM
BSD-3600102006.A3
3600102006
|
£2.61
|
£3.13
|
|
|
360 - GUIDE SLEEVE
BSD-1600506009.A43
1600506009
|
£7.36
|
£8.83
|
|
|
361 - COMPRESSION SPRING
BSD-1604611019.A50
1604611019
|
£2.80
|
£3.36
|
|
|
362 - DETENT PIN
BSD-1603124085.A39
1603124085
|
£3.72
|
£4.47
|
|
|
363 - PARTS SET
BSD-3607010007.A21
3607010007
|
£18.96
|
£22.75
|
|
|
650 - SUSPENSION LOOP
BSD-3604720023.A0
3604720023
|
-
|
|
|
|
700 - SUSPENSION LOOP
BSD-3604720010.A8
3604720010
|
-
|
|
|
|
701 - STOP BRACKET
BSD-3601328001.A4
3601328001
|
-
|
|
|
|
702 - STOP BRACKET
BSD-3601328003.A4
3601328003
|
-
|
|
|
|
703 - PLATE
BSD-3602319003.A4
3602319003
|
-
|
|
|
|
810 - STATOR 72V/200HZ
BSD-3604229007.A25
3604229007
|
£306.65
|
£367.98
|
|
