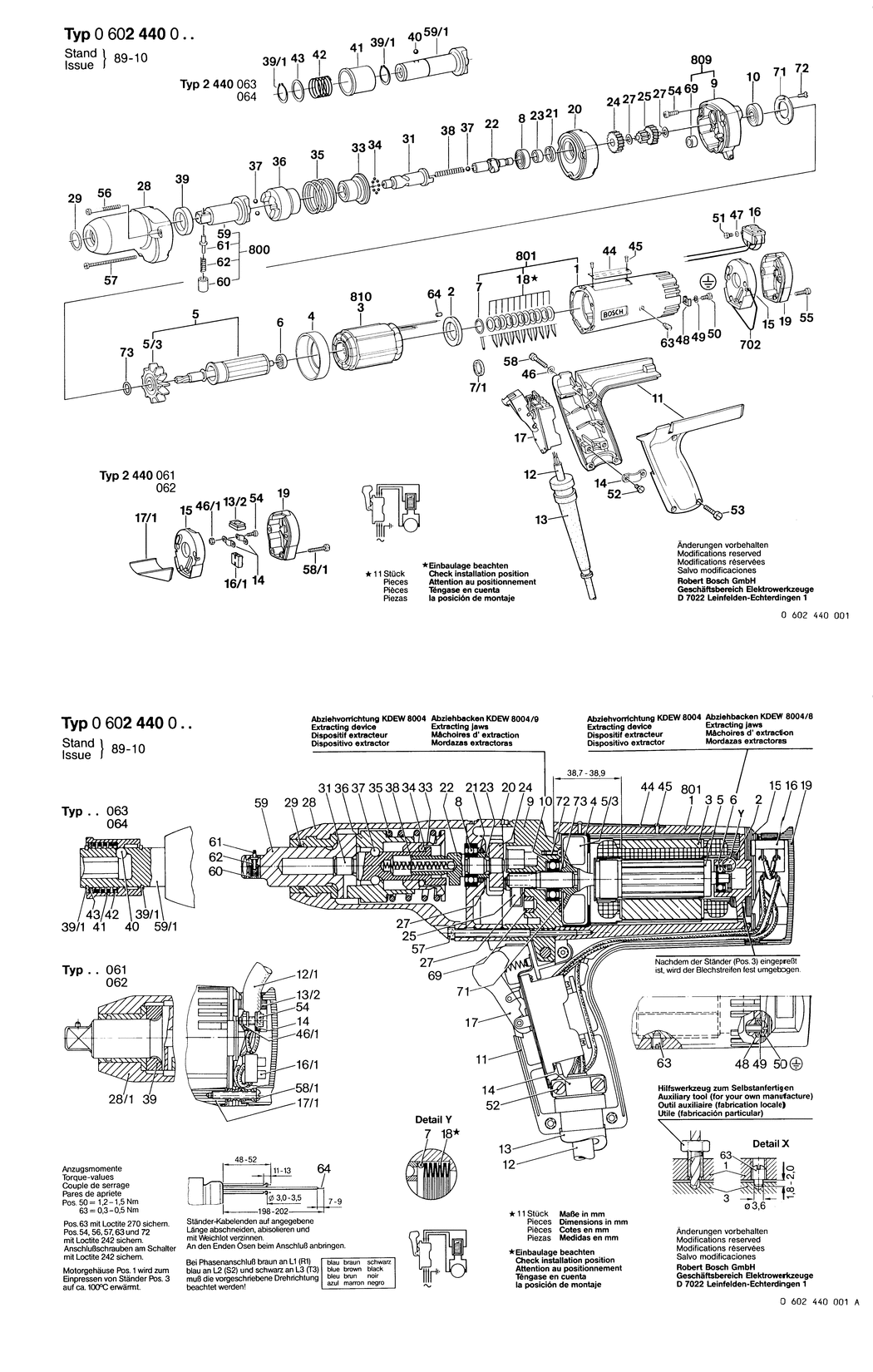

1 - MOTOR HOUSING
BSD-3605102058.A61
3605102058
|
£120.11
|
£144.13
|
|
|
2 - SEAL RING
BSD-1600209011.A286
1600209011
|
£2.94
|
£3.53
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600502005.A147
1600502005
|
£2.61
|
£3.13
|
|
|
5 - ROTOR
BSD-3604080020.A116
3604080020
|
-
|
|
|
|
5/3 - FAN
BSD-1606610105.A147
1606610105
|
£15.65
|
£18.78
|
|
|
6 - GROOVE BALL BEARING 625-2Z DIN 625
BSD-1900905015.A149
1900905015
|
£30.42
|
£36.51
|
|
|
7 - O-RING 12.0x2.25 MM
BSD-3600210039.A5
3600210039
|
£7.36
|
£8.83
|
|
|
8 - GROOVE BALL BEARING 9x24x7
BSD-1900905017.A181
1900905017
|
£23.86
|
£28.63
|
|
|
9 - BEARING HOUSING
BSD-3605820046.A60
3605820046
|
-
|
|
|
|
10 - GROOVE BALL BEARING 9x24x7
BSD-1610905011.A57
1610905011
|
£14.91
|
£17.89
|
|
|
11 - HANDLE
BSD-3605132044.A32
3605132044
|
-
|
|
|
|
12 - ELEC. CABLE W/CONNECTION
BSD-3604462049.A7
3604462049
|
-
|
|
|
|
13 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A394
3600703011
|
£2.94
|
£3.53
|
|
|
14 - FASTENING CLAMP
BSD-1601302014.A144
1601302014
|
£2.74
|
£3.29
|
|
|
15 - CONNECTION HOUSING
BSD-3600099005.A39
3600099005
|
£16.41
|
£19.69
|
|
|
16 - REVERSING SWITCH
BSD-1607200043.A14
1607200043
|
-
|
|
|
|
17 - SWITCH
BSD-3607200041.A21
3607200041
|
-
|
|
|
|
18 - DISC SPRING
BSD-3600150013.A179
3600150013
|
£3.91
|
£4.69
|
|
|
19 - SEALING CAP
BSD-3605500071.A20
3605500071
|
£17.22
|
£20.67
|
|
|
20 - INTERMEDIATE BEARING
BSD-3605820061.A8
3605820061
|
-
|
|
|
|
21 - SEALING DISK
BSD-1600108033.A1
1600108033
|
£2.27
|
£2.72
|
|
|
22 - COUPLING HALF
BSD-1606455050.A8
1606455050
|
-
|
|
|
|
23 - SPACER RING
BSD-1600201010.A8
1600201010
|
-
|
|
|
|
24 - CYLINDRICAL GEAR Z=23
BSD-1606317066.A3
1606317066
|
-
|
|
|
|
25 - SPINDLE WITH GEAR Z=13/34
BSD-1606328090.A8
1606328090
|
-
|
|
|
|
27 - SHIM 0.50 MM
BSD-2600100613.A144
2600100613
|
£1.75
|
£2.10
|
|
|
28 - SPINDLE BEARING
BSD-3605806118.A7
3605806118
|
-
|
|
|
|
29 - O-RING 22x2 MM
BSD-1900210321.A13
1900210321
|
£5.57
|
£6.68
|
|
|
31 - DRIVE SHAFT
BSD-1603123024.A13
1603123024
|
-
|
|
|
|
33 - BUSHING
BSD-1600521005.A15
1600521005
|
-
|
|
|
|
34 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A176
1903230004
|
£2.27
|
£2.72
|
|
|
35 - COMPRESSION SPRING
BSD-1604619011.A36
1604619011
|
-
|
|
|
|
36 - STRIKER
BSD-1608710025.A13
1608710025
|
-
|
|
|
|
37 - BALL DIN 5401-5 G28
BSD-1903230009.A432
1903230009
|
£1.84
|
£2.21
|
|
|
38 - COMPRESSION SPRING
BSD-1604611018.A6
1604611018
|
-
|
|
|
|
44 - NAMEPLATE
BSD-3601106053.A907
3601106053
|
£5.57
|
£6.68
|
|
|
45 - GROOVED NAIL
BSD-3603133000.A666
3603133000
|
£2.61
|
£3.13
|
|
|
46 - SPRING WASHER DIN 137-A5-FST
BSD-2916060006.A198
2916060006
|
£1.38
|
£1.66
|
|
|
47 - SPRING WASHER A 3 DIN 137-ST
BSD-2916060003.A110
2916060003
|
£1.32
|
£1.58
|
|
|
48 - CLAMPING SADDLE
BSD-3601321001.A199
3601321001
|
£3.72
|
£4.47
|
|
|
49 - SPRING WASHER dia4.2 MM
BSD-3600150006.A389
3600150006
|
£2.74
|
£3.29
|
|
|
50 - PAN HEAD SCREW DIN 85-AM4x8-MS
BSD-2910110118.A91
2910110118
|
£1.84
|
£2.21
|
|
|
51 - PAN HEAD SCREW DIN 85-AM3.5x15-4.8
BSD-2910091046.A53
2910091046
|
£1.84
|
£2.21
|
|
|
52 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A706
2910021116
|
£2.27
|
£2.72
|
|
|
53 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A295
2910021122
|
£2.27
|
£2.72
|
|
|
54 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8
BSD-2910141122.A221
2910141122
|
£2.27
|
£2.72
|
|
|
55 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x22-8.8
BSD-2910141131.A57
2910141131
|
£2.16
|
£2.59
|
|
|
56 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8
BSD-2910141140.A64
2910141140
|
£1.75
|
£2.10
|
|
|
57 - SOCKET HEAD CAP SCREW
BSD-1603410005.A6
1603410005
|
-
|
|
|
|
58 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8
BSD-2910011162.A403
2910011162
|
£1.84
|
£2.21
|
|
|
59 - COUPLING HALF
BSD-1606455051.A5
1606455051
|
-
|
|
|
|
60 - GUIDE SLEEVE
BSD-1600506009.A8
1600506009
|
£7.72
|
£9.27
|
|
|
61 - DETENT PIN
BSD-1603124085.A6
1603124085
|
£3.91
|
£4.69
|
|
|
62 - COMPRESSION SPRING
BSD-1604611019.A5
1604611019
|
£2.94
|
£3.53
|
|
|
63 - SET SCREW
BSD-3603402000.A323
3603402000
|
£1.84
|
£2.21
|
|
|
64 - END SPLICE
BSD-3604477008.A358
3604477008
|
£1.75
|
£2.10
|
|
|
69 - BUSHING
BSD-2600300058.A42
2600300058
|
-
|
|
|
|
71 - RETAINING WASHER
BSD-3600190012.A117
3600190012
|
-
|
|
|
|
72 - COUNTERSUNK-HEAD SCREW DIN 963-M3x8-8.8
BSD-2910780050.A73
2910780050
|
-
|
|
|
|
73 - O-RING 8.0x1.0 MM
BSD-1600210045.A104
1600210045
|
£1.84
|
£2.21
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A800
3601119236
|
£3.91
|
£4.69
|
|
|
700 - COMPRESSION SPRING
BSD-1604619011.A31
1604619011
|
-
|
|
|
|
702 - SUSPENSION LOOP
BSD-3604682000.A31
3604682000
|
£15.46
|
£18.55
|
|
|
703 - HEX SOCKET HEAD CAP SCREW
BSD-2910131193.A23
2910131193
|
£1.75
|
£2.10
|
|
|
800 - COUPLING HALF
BSD-1606455052.A6
1606455052
|
-
|
|
|
|
801 - MOTOR HOUSING
BSD-3605102028.A100
3605102028
|
£156.22
|
£187.46
|
|
|
809 - BEARING HOUSING
BSD-1605820162.A27
1605820162
|
-
|
|
|
|
810 - STATOR 200V/300HZ.135V/200HZ
BSD-1604229201.A50
1604229201
|
£431.32
|
£517.59
|
|
