Bosch ---- / 0602439001 / --- 265 Volt Spare Parts

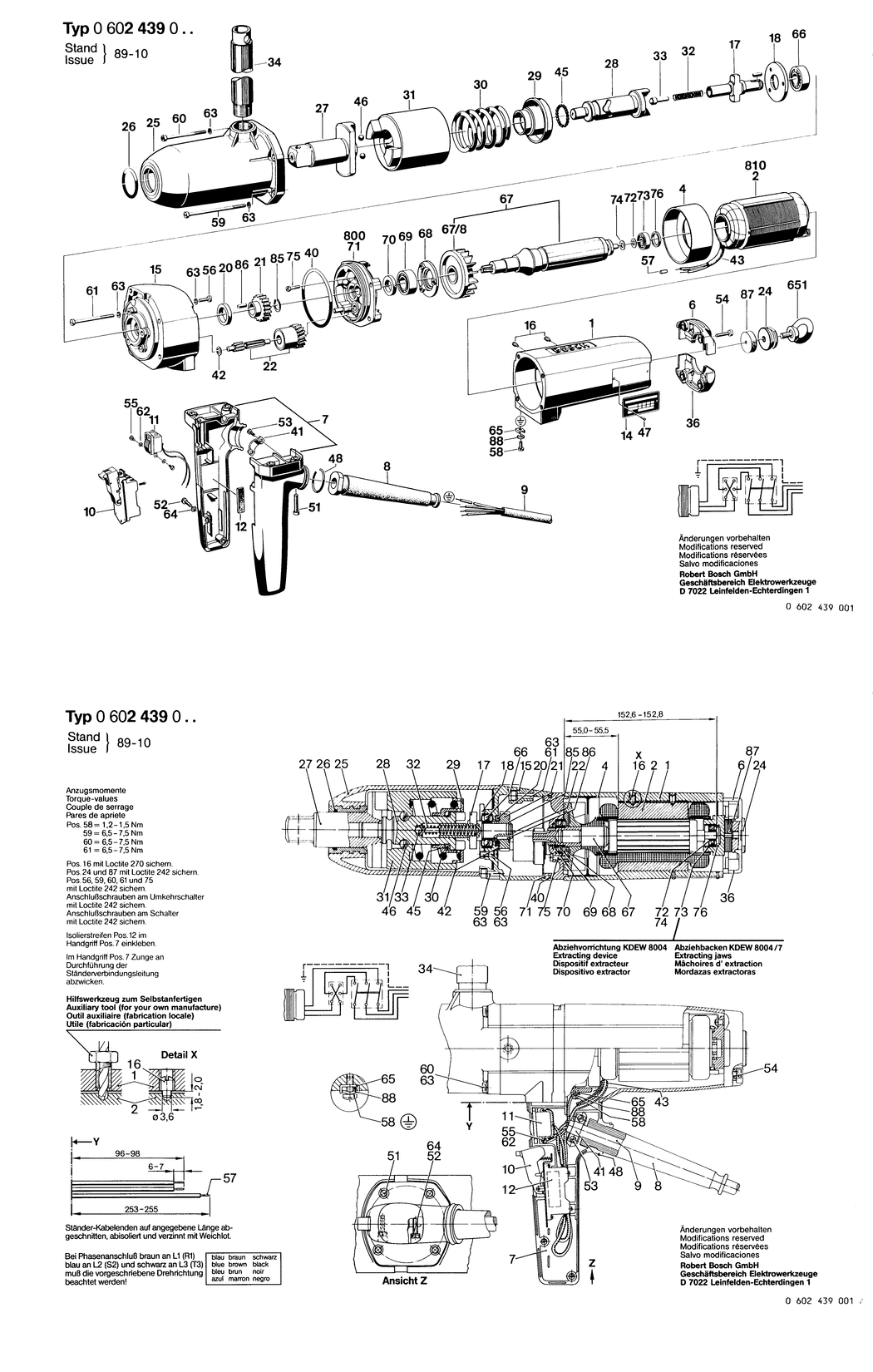

An exploded drawing and listing for the Bosch ---- / 0602439001 / --- 265 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1605102095.A1 1605102095	-
4 - AIR-DEFLECTOR RING BSD-1600209002.A374 1600209002	£5.30	£6.36
6 - SEALING CAP BSD-3605500059.A42 3605500059	£14.91	£17.89
7 - HANDLE BSD-3605132030.A9 3605132030	£46.82	£56.18
8 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A34 1600703009	£5.58	£6.70
9 - ASSEMBLY OF SERVICE PARTS BSD-3607030232.A3 3607030232	-
10 - SWITCH BSD-1607200038.A11 1607200038	£54.42	£65.30
11 - REVERSING SWITCH BSD-1607200044.A0 1607200044	-
12 - INSULATING STRIP 33x10x6 MM BSD-1602381001.A173 1602381001	-
14 - NAMEPLATE BSD-3601106053.A756 3601106053	£5.30	£6.36
15 - BEARING HOUSING BSD-3605820051.A3 3605820051	-
16 - SET SCREW BSD-1603402002.A313 1603402002	£1.75	£2.10
17 - COUPLING HALF BSD-1606455053.A0 1606455053	-
18 - BEARING COVER BSD-1605808044.A8 1605808044	-
20 - FELT WASHER BSD-1600205016.A7 1600205016	-
21 - CYLINDRICAL GEAR Z=37 BSD-1606320054.A3 1606320054	-
22 - MULTIPLATE CLUTCH BSD-1606401008.A3 1606401008	-
24 - THREADED RING BSD-1603343006.A0 1603343006	-
25 - SPINDLE BEARING BSD-3605806119.A8 3605806119	£156.22	£187.46
26 - O-RING 35.0x3.0 MM BSD-3600210131.A9 3600210131	£3.72	£4.47
27 - COUPLING HALF BSD-1606455054.A8 1606455054	£195.26	£234.31
28 - DRIVE SHAFT BSD-1603123025.A0 1603123025	-
29 - BUSHING BSD-1605801021.A2 1605801021	-
30 - COMPRESSION SPRING BSD-1604624007.A10 1604624007	-
31 - STRIKER BSD-1608710027.A8 1608710027	-
32 - COMPRESSION SPRING BSD-1604611020.A0 1604611020	-
33 - PRESSURE SPINDLE BSD-1603121007.A2 1603121007	-
34 - HANDLE 400 MM BSD-1600763010.A61 1600763010	£40.80	£48.96
36 - SEALING CAP BSD-3605500058.A60 3605500058	£13.12	£15.75
40 - O-RING 74.0x3.0 MM BSD-1600210006.A249 1600210006	£1.75	£2.10
41 - FASTENING CLAMP BSD-1601303003.A7 1601303003	£2.16	£2.59
42 - SHIM 0.5 MM BSD-1600100631.A0 1600100631	£1.75	£2.10
45 - BALL DIN 5401-5 G28 BSD-1903230009.A434 1903230009	£1.75	£2.10
46 - O-RING 35.0x3.0 MM BSD-3600210131.A8 3600210131	£3.72	£4.47
47 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A2 3603133001	£2.61	£3.13
48 - RETAINING RING 32 DIN 9045 BSD-2916600017.A11 2916600017	£1.32	£1.58
50 - TERMINAL LUG BSD-1601353002.A0 1601353002	-
51 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x25-8.8 BSD-2910141164.A121 2910141164	£2.16	£2.59
52 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A250 2910021122	£2.16	£2.59
53 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A626 2910021116	£2.16	£2.59
54 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x20-8.8 BSD-2910141162.A81 2910141162	£2.16	£2.59
55 - SOCKET HEAD CAP SCREW DIN 84-AM3x4-5.8 BSD-2910011046.A45 2910011046	-
56 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8 BSD-2910011157.A250 2910011157	-
57 - END SPLICE BSD-3604477008.A384 3604477008	£1.75	£2.10
58 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A314 2910110120	£1.75	£2.10
59 - SOCKET HEAD CAP SCREW BSD-3603414005.A0 3603414005	-
60 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x25-8.8 BSD-2910141164.A122 2910141164	£2.16	£2.59
61 - SOCKET HEAD CAP SCREW BSD-3603414006.A8 3603414006	-
62 - SPRING WASHER A 3 DIN 137-ST BSD-2916060003.A47 2916060003	£1.32	£1.58
63 - SPRING LOCK WASHER DIN 128-A5-FST BSD-2916690004.A59 2916690004	£1.75	£2.10
64 - SPRING WASHER DIN 137-A4 BSD-1600150006.A787 1600150006	-
65 - CLAMPING SADDLE BSD-3601321001.A230 3601321001	£3.72	£4.47
66 - GROOVE BALL BEARING 15x35x11 BSD-1900900303.A104 1900900303	-
67 - ROTOR WITHOUT WINDING BSD-1604080056.A12 1604080056	-
68 - BEARING COVER BSD-1600501019.A165 1600501019	£23.86	£28.63
69 - GROOVE BALL BEARING 17x35x10 BSD-1600900001.A47 1600900001	-
70 - FELT DISC BSD-1600108003.A162 1600108003	£1.32	£1.58
71 - BEARING FLANGE BSD-3605820072.A0 3605820072	-
72 - SHIM BSD-1600A004DT.A16 1600A004DT	£2.16	£2.59
73 - GROOVE BALL BEARING 7x22x7 BSD-1900900224.A40 1900900224	£6.52	£7.83
74 - SHIM 0.2 MM BSD-1600100632.A383 1600100632	£1.75	£2.10
75 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A718 2910021125	£1.75	£2.10
76 - RUBBER RING BSD-1600206010.A0 1600206010	-
85 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A67 2916650006	£1.75	£2.10
86 - PARALLEL KEY BSD-1902300082.A8 1902300082	-
87 - SEALING PLATE BSD-1600109008.A1 1600109008	-
88 - SPRING WASHER dia4.2 MM BSD-3600150006.A330 3600150006	£2.61	£3.13
99 - REFERENCE PLATE BSD-3601119236.A558 3601119236	£3.72	£4.47
651 - LIFTING EYE BOLT DIN 580-M 8 BSD-2912521237.A38 2912521237	£11.78	£14.13
800 - BEARING FLANGE BSD-1605820038.A8 1605820038	-
800 - BEARING FLANGE BSD-1605820163.A1 1605820163	-
810 - STATOR 265V/200HZ BSD-1604229170.A3 1604229170	-
