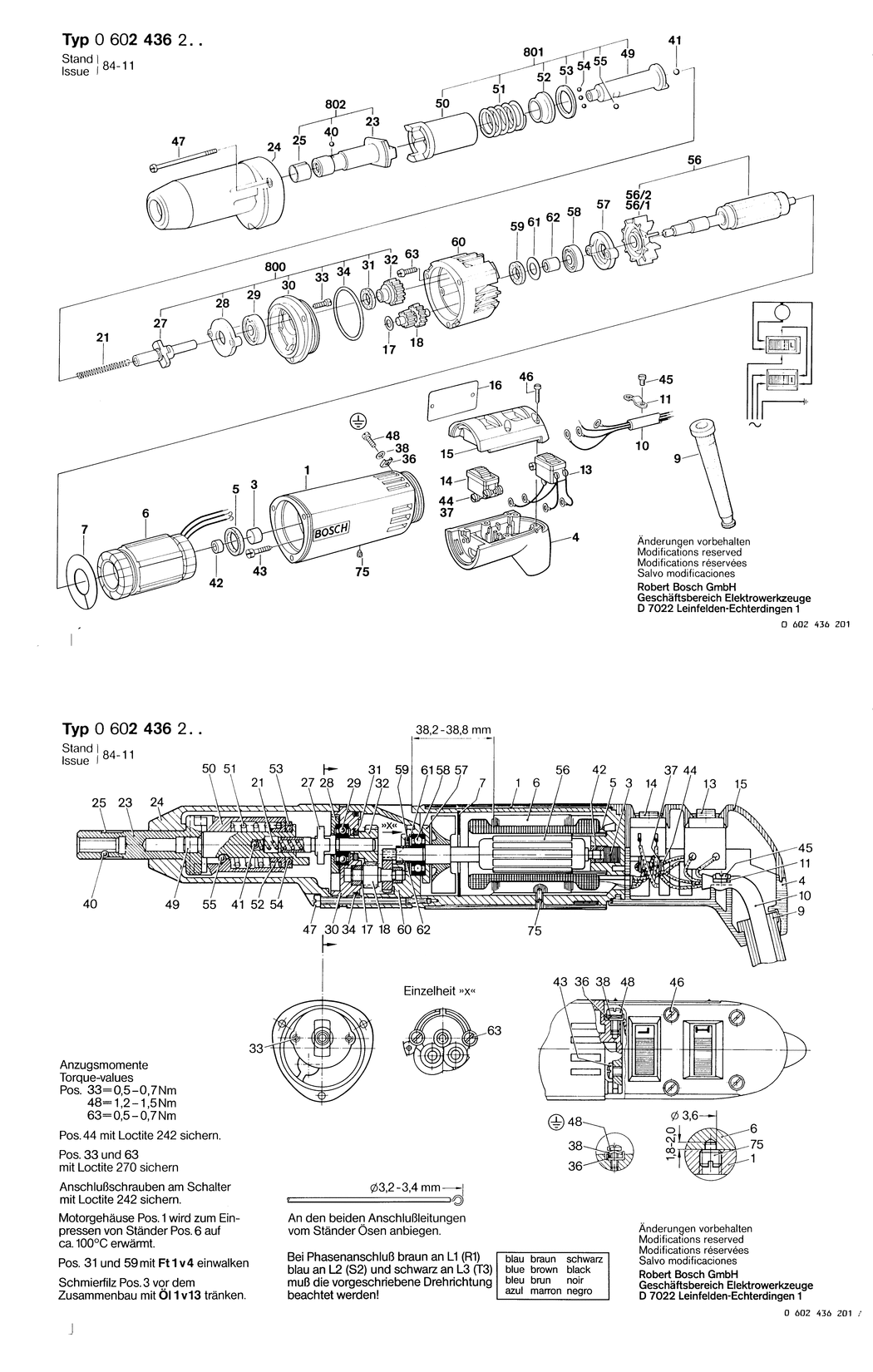

1 - MOTOR HOUSING
BSD-3605102048.A21
3605102048
|
£108.30
|
£129.96
|
|
|
3 - LUBRICATING FELT
BSD-1603212000.A54
1603212000
|
-
|
|
|
|
4 - HANDLE
BSD-3605132046.A85
3605132046
|
-
|
|
|
|
5 - FELT WASHER
BSD-1600205026.A137
1600205026
|
£2.74
|
£3.29
|
|
|
6 - STATOR 200V/300HZ.135V/200HZ
BSD-1604229182.A0
1604229182
|
£375.13
|
£450.16
|
|
|
7 - AIR-DEFLECTOR RING
BSD-1600117001.A29
1600117001
|
£2.16
|
£2.59
|
|
|
9 - GROMMET dia5.5-dia8.3x75 MM
BSD-1600703012.A68
1600703012
|
£2.52
|
£3.02
|
|
|
10 - ELEC. CABLE W/CONNECTION
BSD-3604462048.A48
3604462048
|
-
|
|
|
|
11 - FASTENING CLAMP
BSD-1601302001.A145
1601302001
|
£1.75
|
£2.10
|
|
|
13 - SWITCH
BSD-1607200067.A40
1607200067
|
-
|
|
|
|
14 - REVERSING SWITCH
BSD-1607200066.A56
1607200066
|
£66.68
|
£80.01
|
|
|
15 - HOUSING COVER
BSD-3605500067.A4
3605500067
|
-
|
|
|
|
16 - NAMEPLATE
BSD-3601106053.A936
3601106053
|
£5.57
|
£6.68
|
|
|
17 - SHIM 0.3 MM
BSD-1420100666.A12
1420100666
|
-
|
|
|
|
18 - SPINDLE WITH GEAR Z=13/25
BSD-1606328061.A11
1606328061
|
-
|
|
|
|
21 - COMPRESSION SPRING
BSD-1604626001.A19
1604626001
|
-
|
|
|
|
24 - SPINDLE BEARING
BSD-3605806122.A18
3605806122
|
-
|
|
|
|
25 - HOLDING SPRING
BSD-3604682003.A38
3604682003
|
-
|
|
|
|
27 - DRIVE SHAFT
BSD-1603124059.A18
1603124059
|
-
|
|
|
|
28 - CONICAL SPRING WASHER
BSD-1600501030.A133
1600501030
|
-
|
|
|
|
29 - GROOVE BALL BEARING 6x19x6
BSD-1900900428.A84
1900900428
|
£17.58
|
£21.09
|
|
|
30 - BEARING FLANGE
BSD-3605820057.A19
3605820057
|
-
|
|
|
|
31 - FELT WASHER
BSD-1600205025.A37
1600205025
|
-
|
|
|
|
32 - CYLINDRICAL GEAR Z=21
BSD-1606300000.A17
1606300000
|
£57.02
|
£68.42
|
|
|
33 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-4.8
BSD-2910001052.A252
2910001052
|
£2.27
|
£2.72
|
|
|
34 - O-RING 35.0x1.5 MM
BSD-1600210010.A88
1600210010
|
£2.80
|
£3.36
|
|
|
36 - CLAMPING SADDLE
BSD-3601321002.A81
3601321002
|
£2.64
|
£3.17
|
|
|
37 - SPRING WASHER A 3 DIN 137-ST
BSD-2916060003.A199
2916060003
|
£1.32
|
£1.58
|
|
|
38 - SPRING WASHER
BSD-3600150009.A5
3600150009
|
£2.80
|
£3.36
|
|
|
40 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A42
1903230006
|
£2.27
|
£2.72
|
|
|
41 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A714
1903230007
|
£1.84
|
£2.21
|
|
|
42 - SINTERED-METAL BUSHING J4G7x8R6x6DIN1850
BSD-1900301003.A79
1900301003
|
-
|
|
|
|
43 - TAPPING SCREW DIN 7971-BZ4.2x13
BSD-2910211025.A118
2910211025
|
£1.84
|
£2.21
|
|
|
44 - PAN HEAD SCREW DIN 85-AM3.5x15-4.8
BSD-2910091046.A87
2910091046
|
£1.84
|
£2.21
|
|
|
45 - SOCKET HEAD CAP SCREW DIN 84-AM3x6-5.8
BSD-2910011048.A101
2910011048
|
£1.75
|
£2.10
|
|
|
46 - TAPPING SCREW DIN 7971-BZ3.5x19
BSD-2910211013.A41
2910211013
|
-
|
|
|
|
47 - SOCKET HEAD CAP SCREW DIN 84-BM3x55-8.8
BSD-2910021076.A20
2910021076
|
-
|
|
|
|
48 - PAN HEAD SCREW DIN 85-AM3x8-MS
BSD-2910110050.A66
2910110050
|
£1.84
|
£2.21
|
|
|
49 - DRIVE SHAFT
BSD-1603123013.A26
1603123013
|
-
|
|
|
|
50 - STRIKER
BSD-1608710000.A13
1608710000
|
-
|
|
|
|
51 - COMPRESSION SPRING
BSD-1604618000.A2
1604618000
|
-
|
|
|
|
52 - BACKUP RING
BSD-1600222008.A14
1600222008
|
-
|
|
|
|
53 - RETAINING SNAP RING
BSD-1600200011.A24
1600200011
|
-
|
|
|
|
54 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A354
1903230004
|
£2.27
|
£2.72
|
|
|
55 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A713
1903230007
|
£1.84
|
£2.21
|
|
|
56 - ROTOR WITHOUT WINDING
BSD-1604080053.A18
1604080053
|
£134.16
|
£160.99
|
|
|
57 - CONICAL SPRING WASHER
BSD-1600501030.A134
1600501030
|
-
|
|
|
|
58 - GROOVE BALL BEARING 6x19x6
BSD-1900900428.A87
1900900428
|
£17.58
|
£21.09
|
|
|
59 - FELT WASHER
BSD-1600205025.A34
1600205025
|
-
|
|
|
|
60 - GEAR HOUSING
BSD-3605806105.A20
3605806105
|
£108.30
|
£129.96
|
|
|
61 - SHIM 0.60 MM
BSD-3600101016.A80
3600101016
|
-
|
|
|
|
62 - INTERMEDIATE RING
BSD-1600300044.A80
1600300044
|
-
|
|
|
|
63 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-4.8
BSD-2910001052.A253
2910001052
|
£2.27
|
£2.72
|
|
|
75 - SET SCREW DIN 915-M4x6-45H
BSD-2912081116.A405
2912081116
|
£2.61
|
£3.13
|
|
|
700 - TOOLHOLDER
BSD-1608504013.A18
1608504013
|
-
|
|
|
|
701 - TOOLHOLDER
BSD-1608504014.A0
1608504014
|
-
|
|
|
|
703 - QUICK-CHANGE COLLET CHUCK 1/4
BSD-3608120002.A23
3608120002
|
-
|
|
|
|
710 - COUPLING HALF 3/8
BSD-3606455004.A31
3606455004
|
-
|
|
|
|
711 - SUSPENSION LOOP
BSD-3604682001.A47
3604682001
|
-
|
|
|
|
712 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A745
2910021118
|
£1.84
|
£2.21
|
|
|
800 - INTERMEDIATE BEARING
BSD-1605820125.A17
1605820125
|
-
|
|
|
|
802 - COUPLING HALF
BSD-3606455021.A24
3606455021
|
-
|
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A60
3601119236
|
£3.91
|
£4.69
|
|
