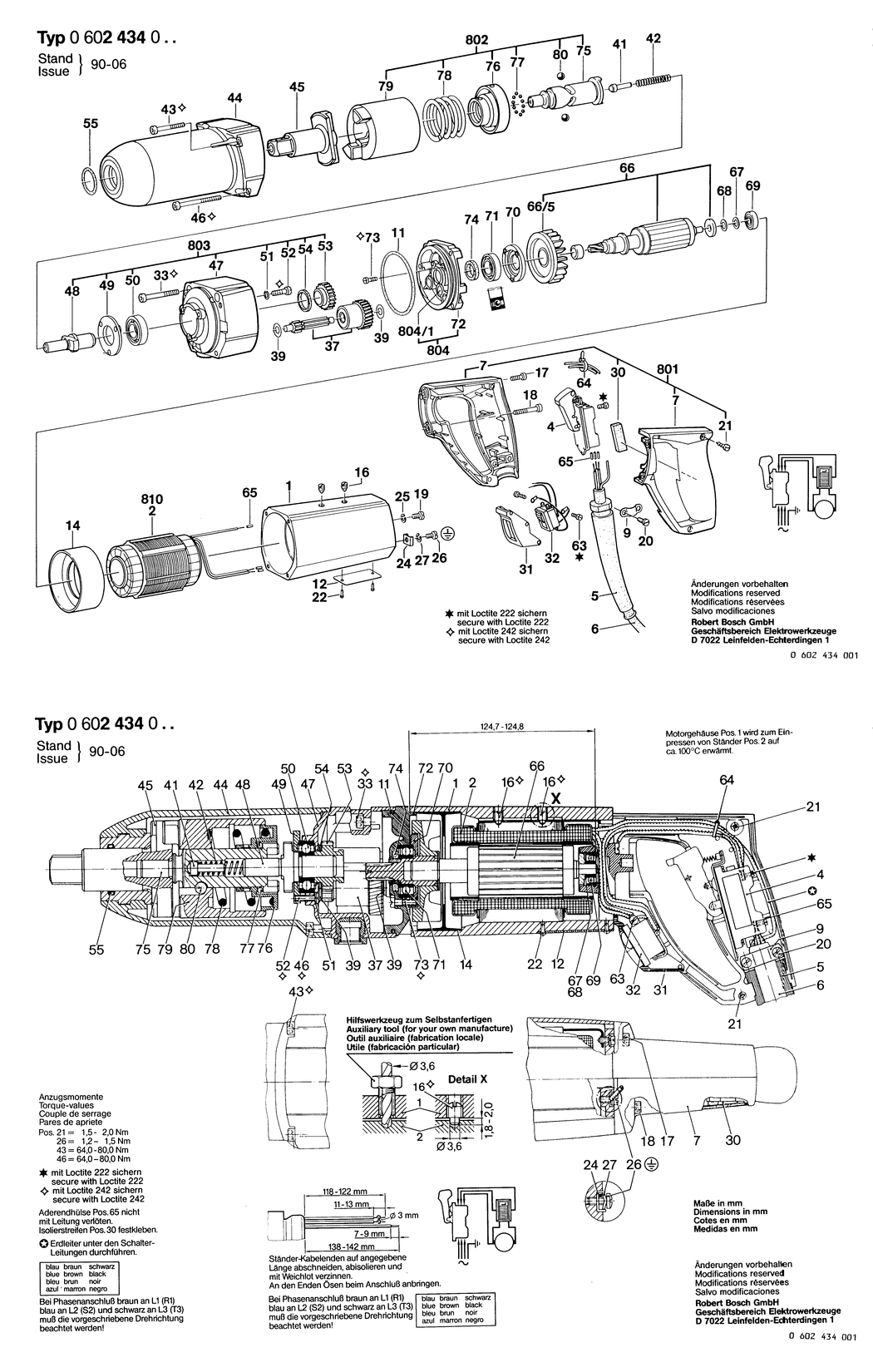

1 - MOTOR HOUSING
BSD-3605102052.A4
3605102052
|
-
|
|
|
|
2 - STATOR 265V/200HZ. 200V/150HZ
BSD-1604229096.A2
1604229096
|
-
|
|
|
|
4 - SWITCH
BSD-1607200038.A5
1607200038
|
£57.14
|
£68.57
|
|
|
5 - GROMMET dia11.5-dia15.0x150 MM
BSD-1600703009.A149
1600703009
|
£5.87
|
£7.04
|
|
|
6 - ASSEMBLY OF SERVICE PARTS
BSD-3607030231.A3
3607030231
|
-
|
|
|
|
9 - FASTENING CLAMP
BSD-1601303003.A158
1601303003
|
£2.27
|
£2.72
|
|
|
11 - O-RING 74.0x3.0 MM
BSD-1600210006.A228
1600210006
|
£1.84
|
£2.21
|
|
|
12 - NAMEPLATE
BSD-3601106053.A1100
3601106053
|
£5.57
|
£6.68
|
|
|
14 - AIR-DEFLECTOR RING
BSD-1600209002.A233
1600209002
|
£5.30
|
£6.36
|
|
|
16 - SET SCREW
BSD-1603402002.A213
1603402002
|
£1.75
|
£2.10
|
|
|
17 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x12-8.8
BSD-2910141154.A7
2910141154
|
£1.75
|
£2.10
|
|
|
18 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x25-8.8
BSD-2910141164.A223
2910141164
|
£2.16
|
£2.59
|
|
|
19 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A571
2910021118
|
£1.84
|
£2.21
|
|
|
20 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A547
2910021116
|
£2.27
|
£2.72
|
|
|
21 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A561
2910211021
|
£1.75
|
£2.10
|
|
|
22 - GROOVED NAIL DIN 1476-2x5 MM
BSD-3603133001.A228
3603133001
|
£2.61
|
£3.13
|
|
|
24 - CLAMPING SADDLE
BSD-3601321001.A75
3601321001
|
£3.72
|
£4.47
|
|
|
25 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A1191
2916690003
|
£1.75
|
£2.10
|
|
|
26 - PAN HEAD SCREW DIN 85-AM4x10-MS
BSD-2910110120.A548
2910110120
|
£1.84
|
£2.21
|
|
|
27 - SPRING WASHER dia4.2 MM
BSD-3600150006.A14
3600150006
|
£2.74
|
£3.29
|
|
|
30 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A33
1602381001
|
-
|
|
|
|
31 - SWITCH HOUSING
BSD-3605130029.A19
3605130029
|
-
|
|
|
|
32 - REVERSING SWITCH
BSD-1607200031.A3
1607200031
|
-
|
|
|
|
33 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x45-8.8
BSD-2910141172.A92
2910141172
|
£1.84
|
£2.21
|
|
|
37 - MULTIPLATE CLUTCH
BSD-1606401007.A0
1606401007
|
-
|
|
|
|
39 - SHIM 0.2 MM
BSD-1600100609.A11
1600100609
|
-
|
|
|
|
41 - PRESSURE SPINDLE
BSD-1603121007.A29
1603121007
|
-
|
|
|
|
42 - COMPRESSION SPRING
BSD-1604611007.A2
1604611007
|
-
|
|
|
|
43 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x40-8.8
BSD-2910141170.A3
2910141170
|
£2.61
|
£3.13
|
|
|
44 - SPINDLE BEARING
BSD-3605806115.A0
3605806115
|
-
|
|
|
|
45 - COUPLING HALF 3/4
BSD-1606455031.A6
1606455031
|
£164.02
|
£196.83
|
|
|
46 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x85-8.8
BSD-2910141183.A10
2910141183
|
-
|
|
|
|
47 - BEARING HOUSING
BSD-3605805017.A3
3605805017
|
-
|
|
|
|
48 - DRIVE SHAFT
BSD-1603123018.A6
1603123018
|
-
|
|
|
|
49 - BEARING COVER
BSD-1600501062.A0
1600501062
|
-
|
|
|
|
50 - GROOVE BALL BEARING 15x35x11
BSD-1900900303.A143
1900900303
|
-
|
|
|
|
51 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A1192
2916690003
|
£1.75
|
£2.10
|
|
|
52 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A655
2910021125
|
£1.75
|
£2.10
|
|
|
53 - CYLINDRICAL GEAR Z=32
BSD-1606317049.A0
1606317049
|
-
|
|
|
|
54 - SEALING DISK
BSD-1600108029.A6
1600108029
|
£1.38
|
£1.66
|
|
|
55 - O-RING 28x3 MM
BSD-1900210129.A66
1900210129
|
£2.74
|
£3.29
|
|
|
63 - SOCKET HEAD CAP SCREW DIN 84-AM3x4-5.8
BSD-2910011046.A38
2910011046
|
-
|
|
|
|
65 - END SPLICE DIN 46 228-A2.5-7
BSD-1900452003.A45
1900452003
|
£2.61
|
£3.13
|
|
|
66 - ROTOR WITHOUT WINDING
BSD-1604080030.A0
1604080030
|
£196.93
|
£236.32
|
|
|
67 - SHIM 0.10 MM
BSD-1420100023.A309
1420100023
|
-
|
|
|
|
68 - SHIM 0.2 MM
BSD-1600100632.A234
1600100632
|
£1.84
|
£2.21
|
|
|
69 - MAGNETO BALL BEARING E 7 DIN 615
BSD-1900900005.A27
1900900005
|
£36.63
|
£43.96
|
|
|
70 - BEARING COVER
BSD-1600501019.A3
1600501019
|
£25.05
|
£30.06
|
|
|
71 - GROOVE BALL BEARING 17x35x10
BSD-1600900001.A57
1600900001
|
-
|
|
|
|
73 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A656
2910021125
|
£1.75
|
£2.10
|
|
|
74 - FELT DISC
BSD-1600108003.A282
1600108003
|
£1.38
|
£1.66
|
|
|
75 - DRIVE SHAFT
BSD-1603123008.A9
1603123008
|
-
|
|
|
|
76 - BACKUP RING
BSD-1600220015.A25
1600220015
|
£102.57
|
£123.08
|
|
|
77 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A777
1903230007
|
£1.84
|
£2.21
|
|
|
78 - COMPRESSION SPRING
BSD-1604624005.A1
1604624005
|
-
|
|
|
|
79 - STRIKER
BSD-1608710018.A14
1608710018
|
£251.67
|
£302.00
|
|
|
80 - BALL DIN 5401-8 MM III-ST
BSD-1903230014.A22
1903230014
|
£1.75
|
£2.10
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A138
3601119236
|
£3.91
|
£4.69
|
|
|
650 - AUXILIARY HANDLE M14
BSD-1602025022.A1042
1602025022
|
£13.41
|
£16.09
|
|
|
650 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A985
1602025030
|
£19.91
|
£23.89
|
|
|
700 - THREADED FITTING M14. L=70 MM
BSD-1603527017.A27
1603527017
|
-
|
|
|
|
801 - HANDLE
BSD-3605133009.A18
3605133009
|
£31.79
|
£38.15
|
|
|
802 - IMPACT MECHANISM
BSD-1608710019.A0
1608710019
|
-
|
|
|
|
803 - BEARING HOUSING
BSD-1605805034.A0
1605805034
|
-
|
|
|
|
804 - BEARING FLANGE
BSD-1605820038.A52
1605820038
|
-
|
|
|
|
804/1 - BUSHING
BSD-1600300902.A45
1600300902
|
£14.72
|
£17.67
|
|
