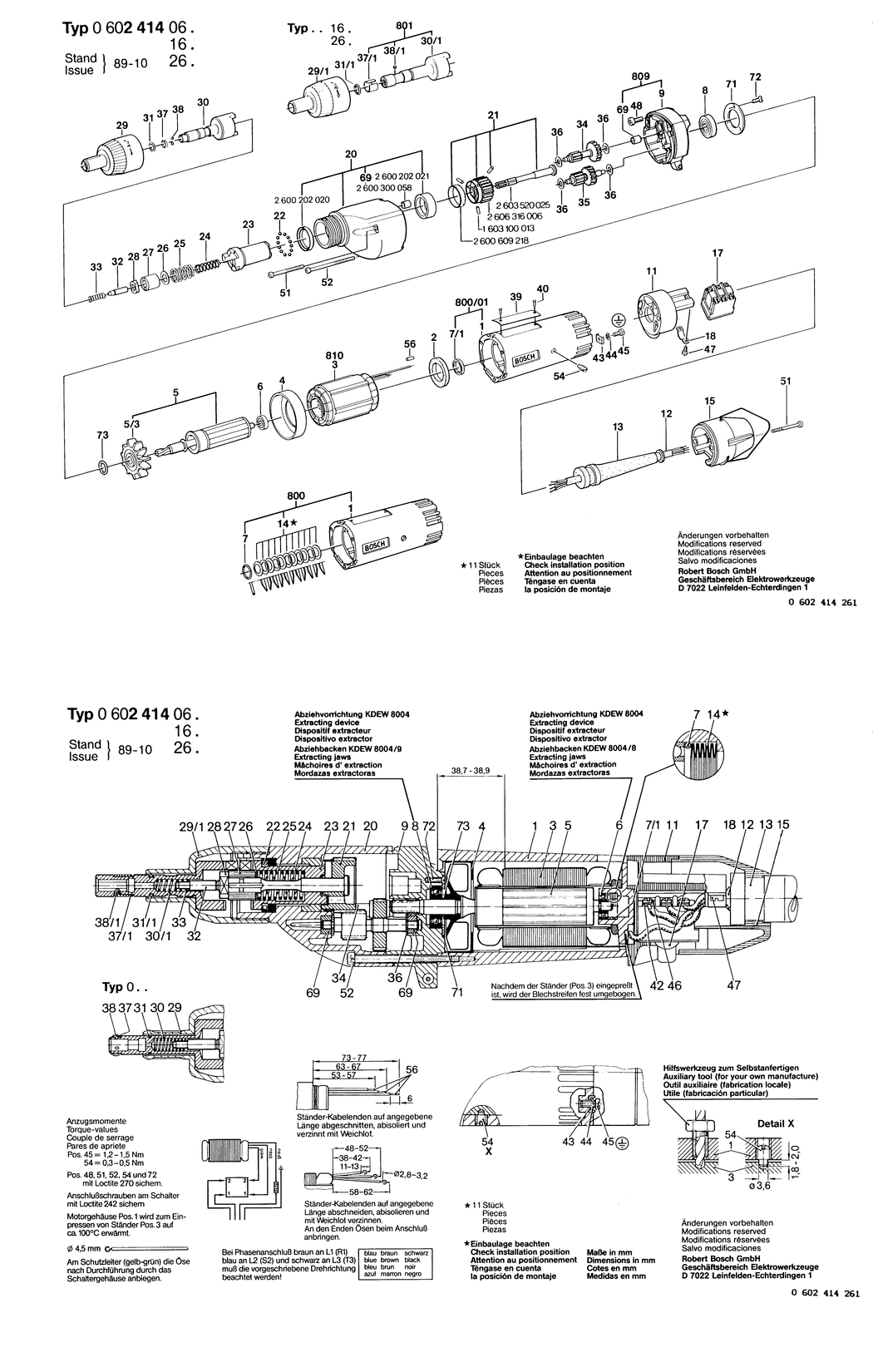

1 - MOTOR HOUSING
BSD-3605102058.A19
3605102058
|
£120.11
|
£144.13
|
|
|
2 - SEAL RING
BSD-1600209011.A29
1600209011
|
£2.94
|
£3.53
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600502005.A371
1600502005
|
£2.61
|
£3.13
|
|
|
5 - ROTOR
BSD-3604080020.A36
3604080020
|
-
|
|
|
|
5/3 - FAN
BSD-1606610105.A26
1606610105
|
£15.65
|
£18.78
|
|
|
6 - GROOVE BALL BEARING 625-2Z DIN 625
BSD-1900905015.A309
1900905015
|
£30.42
|
£36.51
|
|
|
7 - O-RING 12.0x2.25 MM
BSD-3600210039.A166
3600210039
|
£7.36
|
£8.83
|
|
|
8 - BALL BEARING 7x22x7
BSD-1900905018.A998
1900905018
|
£19.91
|
£23.89
|
|
|
9 - BEARING HOUSING
BSD-3605820046.A7
3605820046
|
-
|
|
|
|
11 - CONNECTION HOUSING
BSD-3600099004.A93
3600099004
|
£21.68
|
£26.01
|
|
|
12 - PVC-INSULATED CABLE
BSD-3604462052.A18
3604462052
|
£57.14
|
£68.57
|
|
|
13 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A1159
3600703011
|
£2.94
|
£3.53
|
|
|
14 - DISC SPRING
BSD-3600150013.A93
3600150013
|
£3.91
|
£4.69
|
|
|
15 - SEALING CAP
BSD-3605500074.A5
3605500074
|
£22.76
|
£27.31
|
|
|
17 - SWITCH
BSD-3607200001.A30
3607200001
|
£71.84
|
£86.21
|
|
|
18 - FASTENING CLAMP
BSD-1601302014.A794
1601302014
|
£2.74
|
£3.29
|
|
|
20 - GEAR HOUSING
BSD-2605806227.A33
2605806227
|
-
|
|
|
|
21 - SPINDLE WITH GEAR Z=37
BSD-2606100052.A4
2606100052
|
-
|
|
|
|
22 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A39
1903230004
|
£2.27
|
£2.72
|
|
|
23 - COUPLING HALF
BSD-2606445000.A67
2606445000
|
-
|
|
|
|
24 - COMPRESSION SPRING
BSD-1604616010.A53
1604616010
|
-
|
|
|
|
25 - COMPRESSION SPRING
BSD-1604619005.A61
1604619005
|
-
|
|
|
|
26 - SHIM
BSD-1600100607.A26
1600100607
|
-
|
|
|
|
27 - BUSHING
BSD-1600309004.A16
1600309004
|
-
|
|
|
|
28 - ROUND NUT
BSD-1603341000.A50
1603341000
|
-
|
|
|
|
29/1 - GUIDE SLEEVE
BSD-3600460003.A13
3600460003
|
-
|
|
|
|
30/1 - CARRIER
BSD-3606455016.A19
3606455016
|
-
|
|
|
|
31/1 - O-RING 10x2 MM
BSD-1900210106.A7
1900210106
|
£1.84
|
£2.21
|
|
|
32 - PRESSURE SPINDLE
BSD-1603120022.A64
1603120022
|
-
|
|
|
|
33 - COMPRESSION SPRING
BSD-1604626002.A47
1604626002
|
-
|
|
|
|
34 - SPINDLE WITH GEAR Z=16/34
BSD-1606328088.A0
1606328088
|
-
|
|
|
|
35 - SPINDLE WITH GEAR Z=18/31
BSD-1606328087.A20
1606328087
|
-
|
|
|
|
36 - SHIM 0.50 MM
BSD-2600100613.A252
2600100613
|
£1.75
|
£2.10
|
|
|
37/1 - HOLDING SPRING
BSD-3604682003.A105
3604682003
|
-
|
|
|
|
38/1 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A531
1903230006
|
£2.27
|
£2.72
|
|
|
39 - NAMEPLATE
BSD-3601106053.A318
3601106053
|
£5.57
|
£6.68
|
|
|
40 - GROOVED NAIL
BSD-3603133000.A136
3603133000
|
£2.61
|
£3.13
|
|
|
43 - CLAMPING SADDLE
BSD-3601321001.A607
3601321001
|
£3.72
|
£4.47
|
|
|
44 - SPRING WASHER dia4.2 MM
BSD-3600150006.A600
3600150006
|
£2.74
|
£3.29
|
|
|
45 - PAN HEAD SCREW DIN 85-AM4x10-MS
BSD-2910110120.A144
2910110120
|
£1.84
|
£2.21
|
|
|
47 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A21
2910021116
|
£2.27
|
£2.72
|
|
|
48 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8
BSD-2910141122.A28
2910141122
|
£2.27
|
£2.72
|
|
|
51 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8
BSD-2910141140.A157
2910141140
|
£1.75
|
£2.10
|
|
|
52 - HEX SOCKET HEAD CAP SCREW
BSD-3603414001.A12
3603414001
|
-
|
|
|
|
54 - SET SCREW
BSD-3603402000.A231
3603402000
|
£1.84
|
£2.21
|
|
|
56 - END SPLICE
BSD-3604477008.A153
3604477008
|
£1.75
|
£2.10
|
|
|
69 - BUSHING
BSD-2600300058.A102
2600300058
|
-
|
|
|
|
71 - RETAINING WASHER
BSD-3600190012.A21
3600190012
|
-
|
|
|
|
72 - COUNTERSUNK-HEAD SCREW DIN 963-M3x8-8.8
BSD-2910780050.A99
2910780050
|
-
|
|
|
|
73 - O-RING 8.0x1.0 MM
BSD-1600210045.A164
1600210045
|
£1.84
|
£2.21
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1636
3601119236
|
£3.91
|
£4.69
|
|
|
651 - SINGLE-HEAD ENG. WRENCH DIN 894 SW 12
BSD-1907950506.A20
1907950506
|
£13.78
|
£16.54
|
|
|
652 - STRAIGHT PIN 4x60 MM
BSD-2603101035.A88
2603101035
|
£2.94
|
£3.53
|
|
|
702 - SUSPENSION LOOP
BSD-3604682000.A2
3604682000
|
£15.46
|
£18.55
|
|
|
703 - HEX SOCKET HEAD CAP SCREW
BSD-2910131193.A43
2910131193
|
£1.75
|
£2.10
|
|
|
800 - CARRIER
BSD-3606455019.A14
3606455019
|
-
|
|
|
|
801 - MOTOR HOUSING
BSD-3605102028.A30
3605102028
|
£156.22
|
£187.46
|
|
|
809 - BEARING HOUSING
BSD-1605820162.A48
1605820162
|
-
|
|
|
|
810 - STATOR 200V/300HZ.135V/200HZ
BSD-1604229201.A70
1604229201
|
£431.32
|
£517.59
|
|
