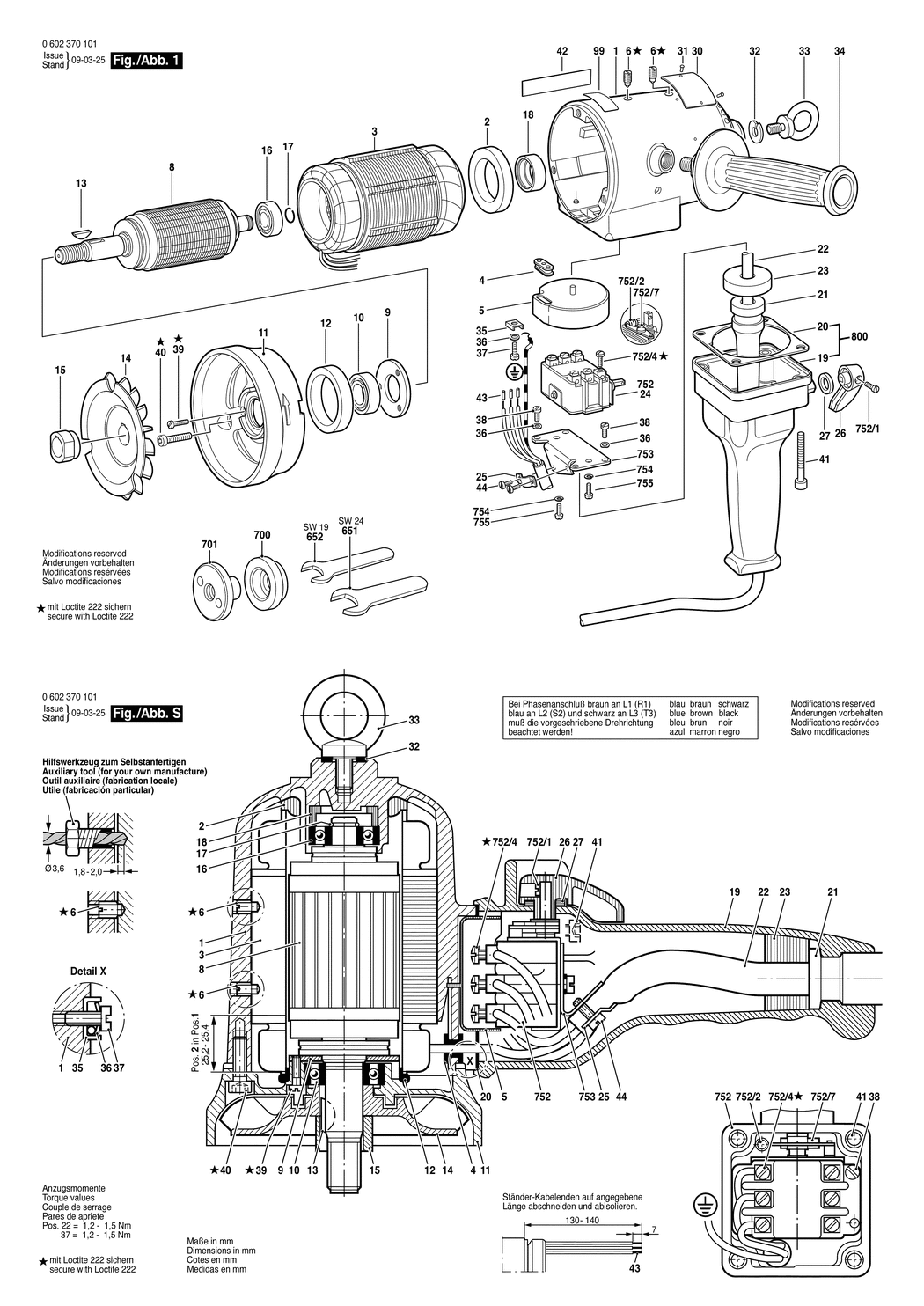

1 - MOTOR HOUSING
BSD-1605102088.A0
1605102088
|
-
|
|
|
|
2 - SEAL RING
BSD-1600209009.A66
1600209009
|
£6.85
|
£8.22
|
|
|
3 - STATOR 42V/200HZ
BSD-1604229211.A0
1604229211
|
-
|
|
|
|
4 - GROMMET
BSD-1600306000.A7
1600306000
|
£2.05
|
£2.46
|
|
|
5 - PROTECTIVE COVER
BSD-1600502004.A79
1600502004
|
£4.26
|
£5.11
|
|
|
6 - SET SCREW
BSD-1603402004.A150
1603402004
|
£2.61
|
£3.13
|
|
|
8 - ROTOR WITHOUT WINDING
BSD-1604081013.A4
1604081013
|
£264.25
|
£317.10
|
|
|
9 - BEARING COVER
BSD-3600134004.A5
3600134004
|
£15.65
|
£18.78
|
|
|
10 - GROOVE BALL BEARING
BSD-3600905016.A3
3600905016
|
£18.96
|
£22.75
|
|
|
11 - BEARING COVER
BSD-3605808007.A4
3605808007
|
£188.33
|
£226.00
|
|
|
12 - SEAL RING
BSD-1600209012.A2
1600209012
|
-
|
|
|
|
13 - WOODRUFF KEY DIN6888-3x6.5-ST60-2K
BSD-1900023007.A20
1900023007
|
-
|
|
|
|
14 - FAN
BSD-1606610056.A4
1606610056
|
£63.50
|
£76.20
|
|
|
15 - INTERMEDIATE RING
BSD-1600341000.A3
1600341000
|
-
|
|
|
|
16 - GROOVE BALL BEARING 12x28x8
BSD-1900900287.A118
1900900287
|
£21.68
|
£26.01
|
|
|
17 - RETAINING RING 12 DIN 9045
BSD-2916600007.A158
2916600007
|
£2.80
|
£3.36
|
|
|
18 - RUBBER RING
BSD-1600206015.A46
1600206015
|
£2.27
|
£2.72
|
|
|
19 - HANDLE
BSD-3605132035.A65
3605132035
|
£42.84
|
£51.41
|
|
|
20 - SEAL
BSD-1601015011.A98
1601015011
|
£3.80
|
£4.56
|
|
|
21 - GROMMET dia11.5-dia15.0x150 MM
BSD-1600703009.A533
1600703009
|
£5.87
|
£7.04
|
|
|
22 - ELEC. CABLE W/CONNECTION
BSD-3604462043.A47
3604462043
|
£54.42
|
£65.30
|
|
|
23 - SEALING PLATE
BSD-1600113003.A129
1600113003
|
£2.80
|
£3.36
|
|
|
24 - ON-OFF SWITCH
BSD-1607200017.A24
1607200017
|
£102.57
|
£123.08
|
|
|
25 - FASTENING CLAMP
BSD-1601303003.A336
1601303003
|
£2.27
|
£2.72
|
|
|
26 - CONTROL LEVER
BSD-1602026038.A156
1602026038
|
£5.30
|
£6.36
|
|
|
27 - SEALING DISK dia18xdia10x4 MM
BSD-1600108024.A10
1600108024
|
£1.84
|
£2.21
|
|
|
30 - NAMEPLATE
BSD-3601106053.A415
3601106053
|
£5.57
|
£6.68
|
|
|
31 - GROOVED NAIL DIN 1476-2x5 MM
BSD-3603133001.A390
3603133001
|
£2.61
|
£3.13
|
|
|
32 - SPRING LOCK WASHER DIN 127-B12
BSD-2916680011.A22
2916680011
|
-
|
|
|
|
33 - LIFTING EYE BOLT DIN 580-M 8
BSD-2912521237.A5
2912521237
|
£11.78
|
£14.13
|
|
|
34 - AUXILIARY HANDLE M14
BSD-1602025022.A16
1602025022
|
£13.41
|
£16.09
|
|
|
34 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A656
1602025030
|
£19.91
|
£23.89
|
|
|
35 - CLAMPING SADDLE
BSD-3601321001.A389
3601321001
|
£3.72
|
£4.47
|
|
|
36 - SPRING WASHER DIN 137-A4
BSD-1600150006.A238
1600150006
|
-
|
|
|
|
37 - PAN HEAD SCREW DIN 85-AM4x10-MS
BSD-2910110120.A53
2910110120
|
£1.84
|
£2.21
|
|
|
38 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1390
2910021118
|
£1.84
|
£2.21
|
|
|
39 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A257
2910021125
|
£1.75
|
£2.10
|
|
|
40 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x20-8.8
BSD-2910141201.A35
2910141201
|
£2.74
|
£3.29
|
|
|
41 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x40-8.8
BSD-2910141209.A72
2910141209
|
£2.74
|
£3.29
|
|
|
42 - MANUFACTURER'S NAMEPLATE
BSD-3601110104.A6
3601110104
|
£5.26
|
£6.31
|
|
|
43 - END SPLICE
BSD-3604477009.A267
3604477009
|
£2.61
|
£3.13
|
|
|
44 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1389
2910021118
|
£1.84
|
£2.21
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1028
3601119236
|
£3.91
|
£4.69
|
|
|
651 - SINGLE-HEAD ENG. WRENCH DIN 894 SW24
BSD-1907950513.A97
1907950513
|
£17.22
|
£20.67
|
|
|
652 - SINGLE-HEAD ENG. WRENCH SW 14
BSD-1907950508.A114
1907950508
|
£15.65
|
£18.78
|
|
|
700 - CLAMPING FLANGE
BSD-3605703052.A3
3605703052
|
-
|
|
|
|
701 - ROUND NUT
BSD-3605703053.A5
3605703053
|
-
|
|
|
|
752 - ON-OFF SWITCH
BSD-1607200006.A142
1607200006
|
£81.81
|
£98.17
|
|
|
752/1 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-4.8
BSD-2910001052.A98
2910001052
|
£2.27
|
£2.72
|
|
|
752/2 - EXTENSION SPRING
BSD-1604650009.A68
1604650009
|
£1.75
|
£2.10
|
|
|
752/4 - PAN HEAD SCREW DIN 85-AM4x8-4.8
BSD-2910091118.A400
2910091118
|
£1.84
|
£2.21
|
|
|
752/7 - DETENT ROLLER
BSD-1603200007.A70
1603200007
|
-
|
|
|
|
753 - FIXING PLATE
BSD-3601023015.A208
3601023015
|
£21.68
|
£26.01
|
|
|
754 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A340
2916690003
|
£1.75
|
£2.10
|
|
|
755 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1391
2910021118
|
£1.84
|
£2.21
|
|
