Bosch ---- / 0602304210 / --- Spare Parts

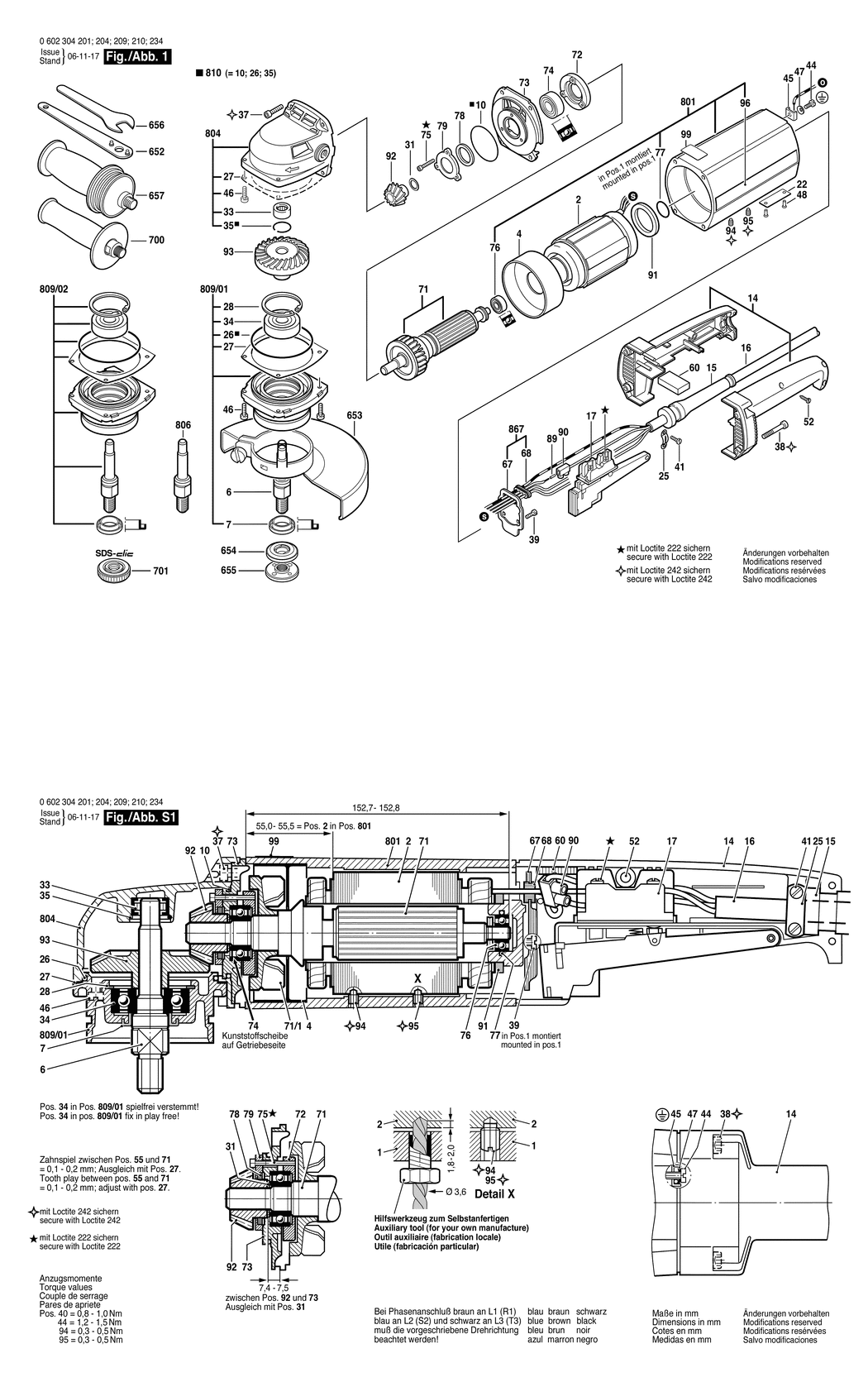

An exploded drawing and listing for the Bosch ---- / 0602304210 / ---

	Ex VAT	Inc VAT
2 - STATOR 72V/300HZ BSD-1604229101.A2 1604229101	£357.27	£428.72
4 - AIR-DEFLECTOR RING BSD-1600209002.A26 1600209002	£5.30	£6.36
6 - GRINDING SPINDLE BSD-3603523032.A15 3603523032	£57.14	£68.57
7 - SEAL RING BSD-1600290020.A205 1600290020	£1.84	£2.21
10 - O-RING 45x3MM BSD-1900210146.A69 1900210146	£4.48	£5.37
14 - HANDLE BSD-3605132077.A14 3605132077	£25.05	£30.06
15 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A579 1600703009	£5.87	£7.04
16 - ELEC. CABLE W/CONNECTION BSD-3604462045.A10 3604462045	£68.42	£82.10
17 - SWITCH BSD-3607200005.A12 3607200005	£120.11	£144.13
22 - NAMEPLATE BSD-3601106053.A467 3601106053	£5.57	£6.68
25 - FASTENING CLAMP BSD-1601303003.A299 1601303003	£2.27	£2.72
26 - O-RING 66.0x3.0 MM BSD-1600210005.A269 1600210005	£2.80	£3.36
27 - SHIM BSD-3600100075.A33 3600100075	£11.30	£13.56
27 - SHIM BSD-3600100076.A15 3600100076	£11.30	£13.56
27 - SHIM BSD-3600100077.A33 3600100077	£12.04	£14.45
28 - SPRING RETAINING RING BSD-3603435038.A47 3603435038	£2.74	£3.29
31 - SHIM 0.1 MM BSD-1600101616.A121 1600101616	£2.74	£3.29
31 - SHIM 0.2 MM BSD-1600101617.A77 1600101617	£1.84	£2.21
31 - SHIM 0.3 MM BSD-1600101618.A177 1600101618	£2.74	£3.29
31 - SHIM 0.05 MM BSD-1600101619.A75 1600101619	£2.27	£2.72
33 - NEEDLE BEARING dia22x11.3 MM BSD-1600910010.A207 1600910010	£45.67	£54.80
34 - GROOVE BALL BEARING 6303-2RS1 BSD-3608870382.A1 3608870382	£33.22	£39.87
35 - RETAINING RING dia22 MM BSD-2916620011.A293 2916620011	£1.84	£2.21
37 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x20-8.8 BSD-2910141162.A35 2910141162	£2.27	£2.72
38 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x30-8.8 BSD-2910141166.A154 2910141166	£1.84	£2.21
39 - SOCKET HEAD CAP SCREW BSD-3603450008.A16 3603450008	£2.16	£2.59
41 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A272 2603490021	£1.84	£2.21
44 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A6 2910110120	£1.84	£2.21
45 - CLAMPING SADDLE BSD-3601321001.A355 3601321001	£3.72	£4.47
46 - THREAD-FORMING TAP. SCREW BSD-3603435004.A14 3603435004	£2.94	£3.53
47 - SPRING WASHER dia4.2 MM BSD-3600150006.A683 3600150006	£2.74	£3.29
48 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A411 3603133001	£2.61	£3.13
52 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A777 2910211021	£1.75	£2.10
60 - INSULATING PLATE 20x20x50 MM BSD-1602381006.A36 1602381006	£1.75	£2.10
67 - SEALING PLATE BSD-1602388006.A36 1602388006	£5.87	£7.04
68 - GROMMET BSD-1600306001.A241 1600306001	£2.61	£3.13
71 - ROTOR WITHOUT WINDING BSD-1604080032.A42 1604080032	£195.26	£234.31
72 - BEARING COVER BSD-1600501019.A520 1600501019	£25.05	£30.06
73 - BEARING FLANGE BSD-3605820064.A80 3605820064	£71.84	£86.21
74 - GROOVE BALL BEARING BSD-3600905095.A33 3600905095	£21.52	£25.83
75 - TORX FLAT-HEAD SCREW M4x20 BSD-3603435051.A0 3603435051	£1.84	£2.21
76 - GROOVE BALL BEARING 7x22x7 BSD-3600905147.A77 3600905147	£13.78	£16.54
77 - O-RING 22x2 MM BSD-1900210321.A109 1900210321	£5.57	£6.68
78 - FELT DISC BSD-1600108018.A169 1600108018	£2.61	£3.13
79 - COVER DISC BSD-1600501024.A11 1600501024	£17.22	£20.67
89 - END SPLICE BSD-3604477009.A275 3604477009	£2.61	£3.13
90 - STRIP TERMINAL BSD-1901091110.A27 1901091110	£1.84	£2.21
91 - SEAL RING BSD-1600209004.A24 1600209004	£2.94	£3.53
92 - BEVEL GEAR Z=22 BSD-1606333050.A15 1606333050	£431.32	£517.59
93 - BEVEL GEAR Z=46 BSD-1606333051.A35 1606333051	£93.88	£112.65
94 - SET SCREW BSD-1603402002.A116 1603402002	£1.75	£2.10
95 - SET SCREW BSD-1603402004.A129 1603402004	£2.61	£3.13
96 - MANUFACTURER'S NAMEPLATE BSD-3601110047.A240 3601110047	£2.94	£3.53
99 - REFERENCE PLATE BSD-3601119236.A1133 3601119236	£3.91	£4.69
652 - PIN-TYPE FACE-WRENCH BSD-1607950061.A90 1607950061	£5.69	£6.83
653 - PROTECTIVE COVER dia180 MM BSD-1600A00XL9.A48 1600A00XL9	£21.52	£25.83
654 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A694 2605703014	£7.72	£9.27
654/20 - O-RING 20.35x1.78 MM BSD-1600210039.A534 1600210039	£2.27	£2.72
655 - ROUND NUT M14 BSD-1603345043.A475 1603345043	£9.11	£10.93
656 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A642 2607950511	£4.48	£5.37
657 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A654 1602025030	£19.91	£23.89
700/10 - AUXILIARY HANDLE BSD-160202507H.A523 160202507H	£11.87	£14.24
700/20 - ADAPTER M8/M14 BSD-3603523013.A106 3603523013	£16.41	£19.69
801 - MOTOR HOUSING BSD-3605102079.A48 3605102079	£188.33	£226.00
804 - GEAR HOUSING BSD-3607030321.A1 3607030321	£297.68	£357.21
806 - GRINDING SPINDLE M14x1.5 MM BSD-1603523032.A209 1603523032	£37.27	£44.72
809/01 - BEARING FLANGE BSD-3607030376.A29 3607030376	£126.12	£151.34
809/02 - BEARING FLANGE BSD-3607030375.A46 3607030375	£205.02	£246.03
810 - SEAL KIT BSD-1607000039.A14 1607000039	£13.78	£16.54
814 - HOUSING SECTION BSD-3607031661.A8 3607031661	£35.42	£42.51
841 - SET OF SCREWS BSD-3607031663.A4 3607031663	-
867 - SEALING PLATE BSD-1602388007.A230 1602388007	£12.64	£15.17
