Bosch ---- / 0602242334 / --- Spare Parts

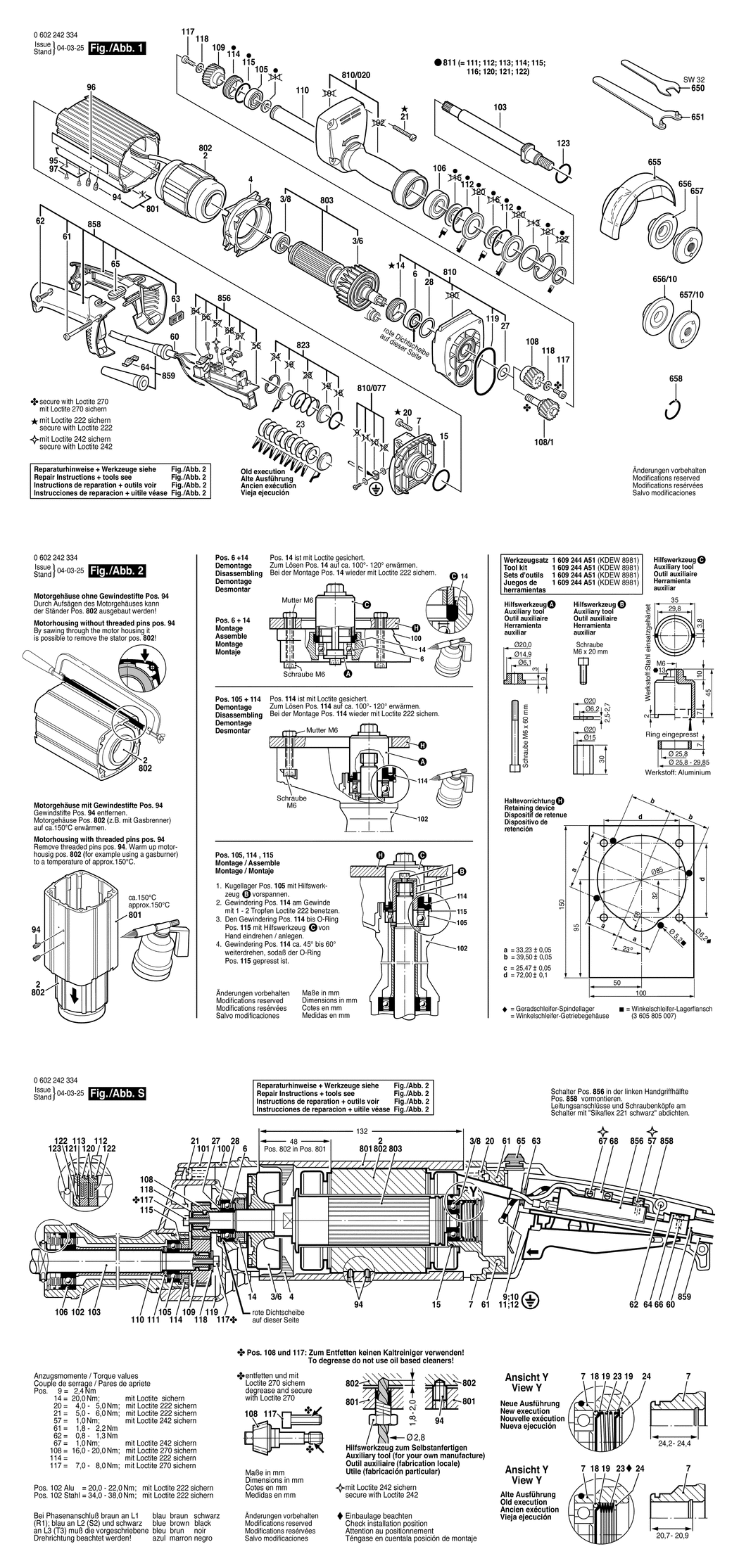

An exploded drawing and listing for the Bosch ---- / 0602242334 / ---

	Ex VAT	Inc VAT
2 - STATOR 135V/200HZ BSD-3604229082.A18 3604229082	£458.51	£550.21
3/8 - GROOVE BALL BEARING 12x32x10 BSD-3600905119.A21 3600905119	£27.23	£32.68
4 - AIR-DEFLECTOR RING BSD-3600209008.A34 3600209008	£8.67	£10.41
6 - GROOVE BALL BEARING BSD-3600905095.A305 3600905095	£21.52	£25.83
7 - BEARING FLANGE BSD-3605805009.A191 3605805009	£59.53	£71.44
14 - THREADED RING BSD-3603344024.A33 3603344024	£16.41	£19.69
15 - O-RING 38.1x2.2 MM BSD-1600210037.A234 1600210037	£2.61	£3.13
20 - THREAD-FORMING TAP. SCREW BSD-2914451079.A168 2914451079	£2.61	£3.13
21 - THREAD-FORMING TAP. SCREW AM 6x80-ST BSD-3603410007.A56 3603410007	£3.72	£4.47
23 - COMPRESSION SPRING BSD-3604611019.A104 3604611019	£2.61	£3.13
27 - SEALING DISC BSD-3600100049.A20 3600100049	£3.72	£4.47
28 - SEALING DISC BSD-3600100048.A257 3600100048	£2.80	£3.36
60 - ELEC. CABLE W/CONNECTION BSD-3604462017.A202 3604462017	£54.42	£65.30
61 - TAPPING SCREW BZ4.8x63 MM BSD-1603435008.A103 1603435008	£1.32	£1.58
62 - TAPPING SCREW DIN 7971-BZ3.9x19 BSD-2910211020.A469 2910211020	£2.16	£2.59
63 - CABLE ROUTING BSD-1602388027.A355 1602388027	£2.61	£3.13
64 - FASTENING CLAMP BSD-3601303002.A70 3601303002	£2.61	£3.13
64 - FASTENING CLAMP BSD-3601303004.A11 3601303004	£5.58	£6.70
65 - STORAGE LEDGE BSD-1602388029.A233 1602388029	£1.75	£2.10
94 - SET SCREW DIN 915-M4x6-45H BSD-2912081116.A249 2912081116	£2.61	£3.13
95 - NAMEPLATE BSD-3601106053.A803 3601106053	£5.30	£6.36
96 - MANUFACTURER'S NAMEPLATE BSD-3601110047.A193 3601110047	£2.80	£3.36
97 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A92 3603133001	£2.61	£3.13
99 - REFERENCE PLATE BSD-3601119236.A659 3601119236	£3.72	£4.47
103 - GRINDING SPINDLE BSD-3606120009.A4 3606120009	£218.41	£262.09
105 - GROOVE BALL BEARING BSD-3600905060.A56 3600905060	£21.52	£25.83
106 - GROOVE BALL BEARING BSD-3600905057.A4 3600905057	£21.68	£26.01
108 - TOOTHED GEAR Z=28 BSD-3606300087.A3 3606300087	-
109 - TOOTHED GEAR Z=41 BSD-3606300088.A0 3606300088	-
110 - SPACER SLEEVE BSD-3600700056.A1 3600700056	£40.80	£48.96
112 - O-RING 43.0x2.0 MM BSD-3600210058.A3 3600210058	£1.75	£2.10
114 - THREADED RING BSD-3603344024.A32 3603344024	£16.41	£19.69
115 - O-RING 33.0x2.5 MM BSD-3600210050.A132 3600210050	£2.61	£3.13
117 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x20-8.8 BSD-2910141201.A247 2910141201	£2.61	£3.13
118 - PLAIN WASHER BSD-3600100043.A69 3600100043	£3.72	£4.47
119 - O-RING 79.0x1.78 MM BSD-1600210033.A726 1600210033	£1.75	£2.10
123 - RETAINING RING 24x2 DIN9045-24 BSD-2916609112.A199 2916609112	£2.61	£3.13
650 - SINGLE-HEAD ENG. WRENCH SW32 BSD-3607950010.A4 3607950010	£27.23	£32.68
651 - PIN-TYPE FACE-WRENCH BSD-1607950061.A545 1607950061	£5.42	£6.50
655 - PROTECTIVE COVER dia 125 MM BSD-3605510030.A29 3605510030	£27.23	£32.68
656 - CLAMPING-FLANGE BSD-3605703112.A47 3605703112	£48.38	£58.06
656/10 - CLAMPING-FLANGE BSD-3605703071.A1 3605703071	-
657 - CLAMPING RING BSD-3605703077.A45 3605703077	£37.27	£44.72
657/10 - CLAMPING RING BSD-3605703075.A4 3605703075	£27.23	£32.68
658 - RETAINING RING 24x2 DIN9045-24 BSD-2916609112.A200 2916609112	£2.61	£3.13
801 - MOTOR HOUSING GR.83 BSD-3605108158.A43 3605108158	-
803 - ROTOR BSD-3604080038.A26 3604080038	£357.27	£428.72
810 - BEARING FLANGE BSD-3607031292.A18 3607031292	£156.22	£187.46
810/020 - SPINDLE BEARING BSD-3607031285.A4 3607031285	£500.46	£600.55
810/077 - SET OF EARTLING MATERIAL BSD-3607031299.A51 3607031299	£8.67	£10.41
811 - FASTENING PARTS KIT BSD-3607031290.A2 3607031290	£120.11	£144.13
823 - SPRING SET BSD-3607031296.A226 3607031296	£16.41	£19.69
856 - SWITCH KIT BSD-3607031298.A122 3607031298	£81.81	£98.17
858 - HANDLE BSD-3607031297.A51 3607031297	£37.27	£44.72
859 - GROMMET BSD-3607031550.A81 3607031550	£13.12	£15.75

Attribute Name	Value
Brand	Bosch
