Bosch ---- / 0602238134 / --- Spare Parts

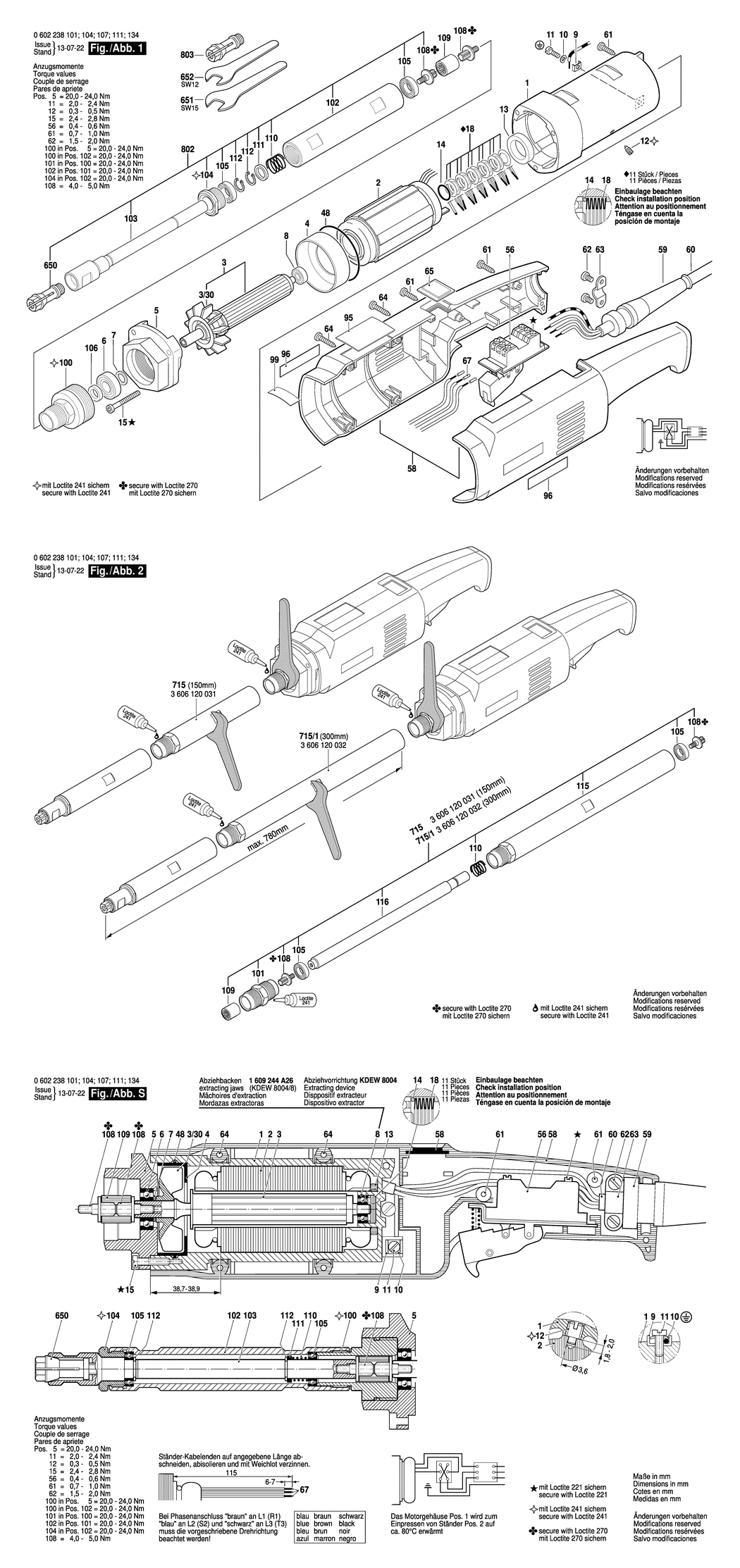

An exploded drawing and listing for the Bosch ---- / 0602238134 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605102034.A13 3605102034	£218.41	£262.09
2 - STATOR 135V/200HZ.200V/300HZ BSD-3604229006.A9 3604229006	£410.78	£492.94
3 - ROTOR BSD-3604080050.A8 3604080050	£410.78	£492.94
4 - AIR-DEFLECTOR RING BSD-1600502005.A307 1600502005	£2.61	£3.13
5 - INTERMEDIATE BEARING BSD-3605700101.A8 3605700101	£135.25	£162.30
6 - GROOVE BALL BEARING 9x24x7 BSD-1900905017.A15 1900905017	£23.86	£28.63
7 - SPACER RING BSD-3600200008.A5 3600200008	£6.52	£7.83
8 - GROOVE BALL BEARING 625-2Z DIN 625 BSD-1900905015.A357 1900905015	£30.42	£36.51
9 - CLAMPING SADDLE BSD-3601321001.A703 3601321001	£3.72	£4.47
10 - SPRING WASHER dia4.2 MM BSD-3600150006.A475 3600150006	£2.61	£3.13
11 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A192 2910110120	£1.75	£2.10
12 - SET SCREW BSD-3603402000.A150 3603402000	£1.75	£2.10
13 - SEAL RING BSD-1600209011.A57 1600209011	£2.80	£3.36
14 - O-RING 12.0x2.25 MM BSD-3600210039.A116 3600210039	£7.36	£8.83
15 - SOCKET HEAD CAP SCREW DIN 84-AM4x20-8.8 BSD-2910021130.A177 2910021130	£1.75	£2.10
18 - DISC SPRING BSD-3600150013.A57 3600150013	£3.72	£4.47
48 - O-RING 53.0x2.0 MM BSD-3600210017.A98 3600210017	£3.72	£4.47
56 - SWITCH BSD-1607200038.A40 1607200038	£54.42	£65.30
58 - HANDLE BSD-3605132040.A24 3605132040	£21.52	£25.83
59 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A1204 3600703011	£2.80	£3.36
60 - ELEC. CABLE W/CONNECTION BSD-3604462051.A11 3604462051	£45.67	£54.80
61 - SCREW 4x16 BSD-2603490022.A102 2603490022	£1.75	£2.10
62 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A63 2910021116	£2.16	£2.59
63 - FASTENING CLAMP BSD-1601302014.A745 1601302014	£2.61	£3.13
64 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1652 2603490023	£1.75	£2.10
65 - COVER PLATE BSD-3601060001.A10 3601060001	£5.58	£6.70
67 - END SPLICE BSD-3604477008.A171 3604477008	£1.75	£2.10
95 - NAMEPLATE BSD-3601106053.A66 3601106053	£5.30	£6.36
96 - MANUFACTURER'S NAMEPLATE BSD-1601110483.A143 1601110483	£2.61	£3.13
99 - REFERENCE PLATE BSD-3601119236.A1730 3601119236	£3.72	£4.47
100 - CONTOUR SLEEVE BSD-3600361004.A7 3600361004	£59.53	£71.44
101 - CONTOUR SLEEVE BSD-3600361003.A2 3600361003	£45.67	£54.80
102 - SPINDLE HOUSING BSD-3605806150.A6 3605806150	£135.25	£162.30
103 - GRINDING SPINDLE BSD-3606120035.A6 3606120035	£306.65	£367.98
104 - CLAMPING RING BSD-3603345007.A1 3603345007	£93.88	£112.65
105 - GROOVE BALL BEARING BSD-3600905085.A0 3600905085	£37.27	£44.72
106 - SPACER RING BSD-3600200033.A4 3600200033	£11.30	£13.56
108 - PINION BSD-3606300158.A8 3606300158	£45.67	£54.80
109 - CLUTCH ELEMENT BSD-3606334082.A1 3606334082	£33.74	£40.49
110 - COMPRESSION SPRING BSD-1604616017.A31 1604616017	£2.80	£3.36
111 - RETAINING SNAP RING BSD-3600200060.A0 3600200060	£14.91	£17.89
112 - RETAINING RING BSD-3600224060.A3 3600224060	£3.72	£4.47
115 - SPINDLE HOUSING BSD-3605806148.A6 3605806148	£179.37	£215.24
115 - SPINDLE HOUSING BSD-3605806149.A3 3605806149	£179.37	£215.24
116 - GRINDING SPINDLE BSD-3606120033.A6 3606120033	£135.25	£162.30
116 - GRINDING SPINDLE BSD-3606120034.A3 3606120034	£179.37	£215.24
650 - COLLET dia6 MM BSD-1608570025.A4 1608570025	£37.27	£44.72
651 - SINGLE-HEAD ENG. WRENCH DIN 894 SW 15 BSD-1907950509.A8 1907950509	£13.12	£15.75
652 - SINGLE-HEAD ENG. WRENCH DIN 894 SW 12 BSD-1907950506.A0 1907950506	£13.12	£15.75
715 - EXTENSION SET L=150 MM BSD-3606120031.A5 3606120031	£410.78	£492.94
715/1 - EXTENSION SET L=300 MM BSD-3606120032.A4 3606120032	£458.51	£550.21
802 - ASSEMBLY OF SERVICE PARTS BSD-3607031319.A9 3607031319	£702.95	£843.54
803 - COLLET BSD-2608570016.A31 2608570016	£37.27	£44.72
899 - MOTOR PROTECTION SWITCH 9.0 - 12.3 A BSD-1604482056.A0 1604482056	-
