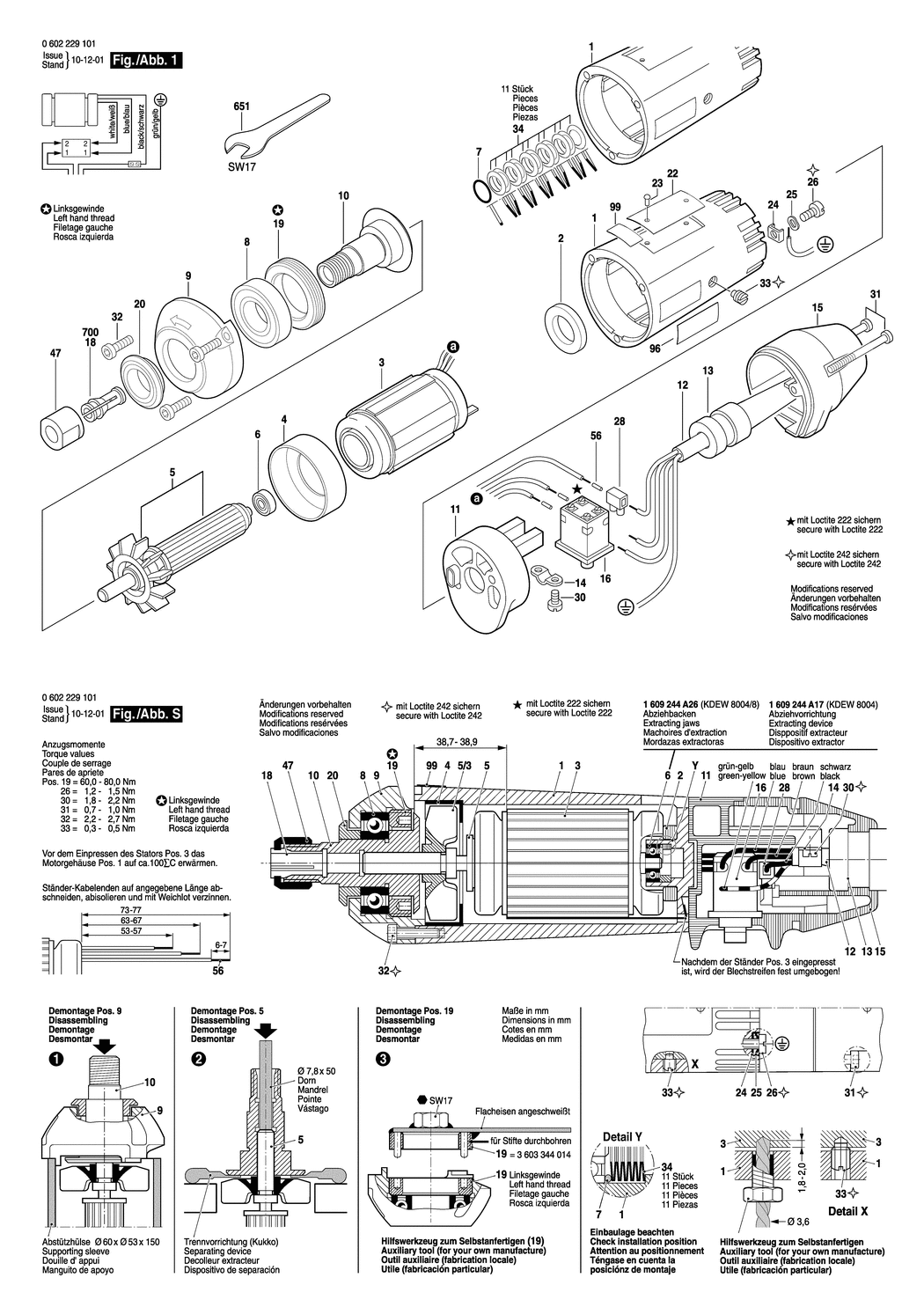

1 - MOTOR HOUSING
BSD-3605102058.A21
3605102058
|
£120.11
|
£144.13
|
|
|
2 - SEAL RING
BSD-1600209011.A89
1600209011
|
£2.80
|
£3.36
|
|
|
3 - STATOR 200V/300HZ.135V/200HZ
BSD-1604229201.A88
1604229201
|
£431.32
|
£517.59
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600502005.A313
1600502005
|
£2.61
|
£3.13
|
|
|
5 - ROTOR WITHOUT WINDING
BSD-3604080003.A30
3604080003
|
£179.37
|
£215.24
|
|
|
6 - GROOVE BALL BEARING 625-2Z DIN 625
BSD-1900905015.A339
1900905015
|
£30.42
|
£36.51
|
|
|
7 - O-RING 12.0x2.25 MM
BSD-3600210039.A145
3600210039
|
£7.36
|
£8.83
|
|
|
8 - GROOVE BALL BEARING
BSD-3600905032.A0
3600905032
|
£12.64
|
£15.17
|
|
|
9 - BEARING FLANGE
BSD-3605700095.A1
3605700095
|
£102.57
|
£123.08
|
|
|
10 - COLLET JAWS
BSD-3608570004.A5
3608570004
|
£156.22
|
£187.46
|
|
|
11 - CONNECTION HOUSING
BSD-3600099004.A110
3600099004
|
£21.68
|
£26.01
|
|
|
12 - PVC-INSULATED CABLE
BSD-3604462052.A4
3604462052
|
£57.14
|
£68.57
|
|
|
13 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A1231
3600703011
|
£2.94
|
£3.53
|
|
|
14 - FASTENING CLAMP
BSD-1601302014.A712
1601302014
|
£2.74
|
£3.29
|
|
|
15 - SEALING CAP
BSD-3605500074.A17
3605500074
|
£21.68
|
£26.01
|
|
|
16 - SWITCH
BSD-3607200001.A20
3607200001
|
£71.84
|
£86.21
|
|
|
17 - INTERMEDIATE RING
BSD-3600202008.A74
3600202008
|
£2.74
|
£3.29
|
|
|
18 - COLLET dia 6 MM
BSD-2608570129.A34
2608570129
|
£18.96
|
£22.75
|
|
|
19 - THREADED RING
BSD-3603344014.A1
3603344014
|
£23.86
|
£28.63
|
|
|
20 - RETAINING SNAP RING
BSD-3600220009.A0
3600220009
|
£23.86
|
£28.63
|
|
|
22 - NAMEPLATE
BSD-3601106053.A179
3601106053
|
£5.57
|
£6.68
|
|
|
23 - GROOVED NAIL
BSD-3603133000.A108
3603133000
|
£2.61
|
£3.13
|
|
|
24 - CLAMPING SADDLE
BSD-3601321001.A681
3601321001
|
£3.72
|
£4.47
|
|
|
25 - SPRING WASHER dia4.2 MM
BSD-3600150006.A543
3600150006
|
£2.74
|
£3.29
|
|
|
26 - PAN HEAD SCREW DIN 85-AM4x8-MS
BSD-2910110118.A174
2910110118
|
£1.75
|
£2.10
|
|
|
28 - SOCKET-TERMINAL STRIP 1x1.5 MM/2
BSD-1901091012.A218
1901091012
|
£5.57
|
£6.68
|
|
|
30 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A92
2910021116
|
£2.27
|
£2.72
|
|
|
31 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8
BSD-2910141140.A134
2910141140
|
£1.75
|
£2.10
|
|
|
32 - HEX SOCKET HEAD CAP SCREW DIN 912-M4x16-8.8
BSD-2910141126.A41
2910141126
|
-
|
|
|
|
33 - SET SCREW
BSD-3603402000.A171
3603402000
|
£1.75
|
£2.10
|
|
|
34 - DISC SPRING
BSD-3600150013.A70
3600150013
|
£3.72
|
£4.47
|
|
|
47 - ROUND NUT
BSD-3603342009.A92
3603342009
|
£14.91
|
£17.89
|
|
|
56 - END SPLICE
BSD-3604477008.A158
3604477008
|
£1.75
|
£2.10
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A33
1601110481
|
£2.16
|
£2.59
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1749
3601119236
|
£3.91
|
£4.69
|
|
|
651 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A407
2607950511
|
£4.48
|
£5.37
|
|
|
700 - COLLET dia 3 MM
BSD-2608570077.A43
2608570077
|
£21.68
|
£26.01
|
|
|
700 - COLLET dia 8 MM
BSD-2608570081.A42
2608570081
|
£21.68
|
£26.01
|
|
|
801 - MOTOR HOUSING
BSD-3605102028.A70
3605102028
|
£156.22
|
£187.46
|
|
