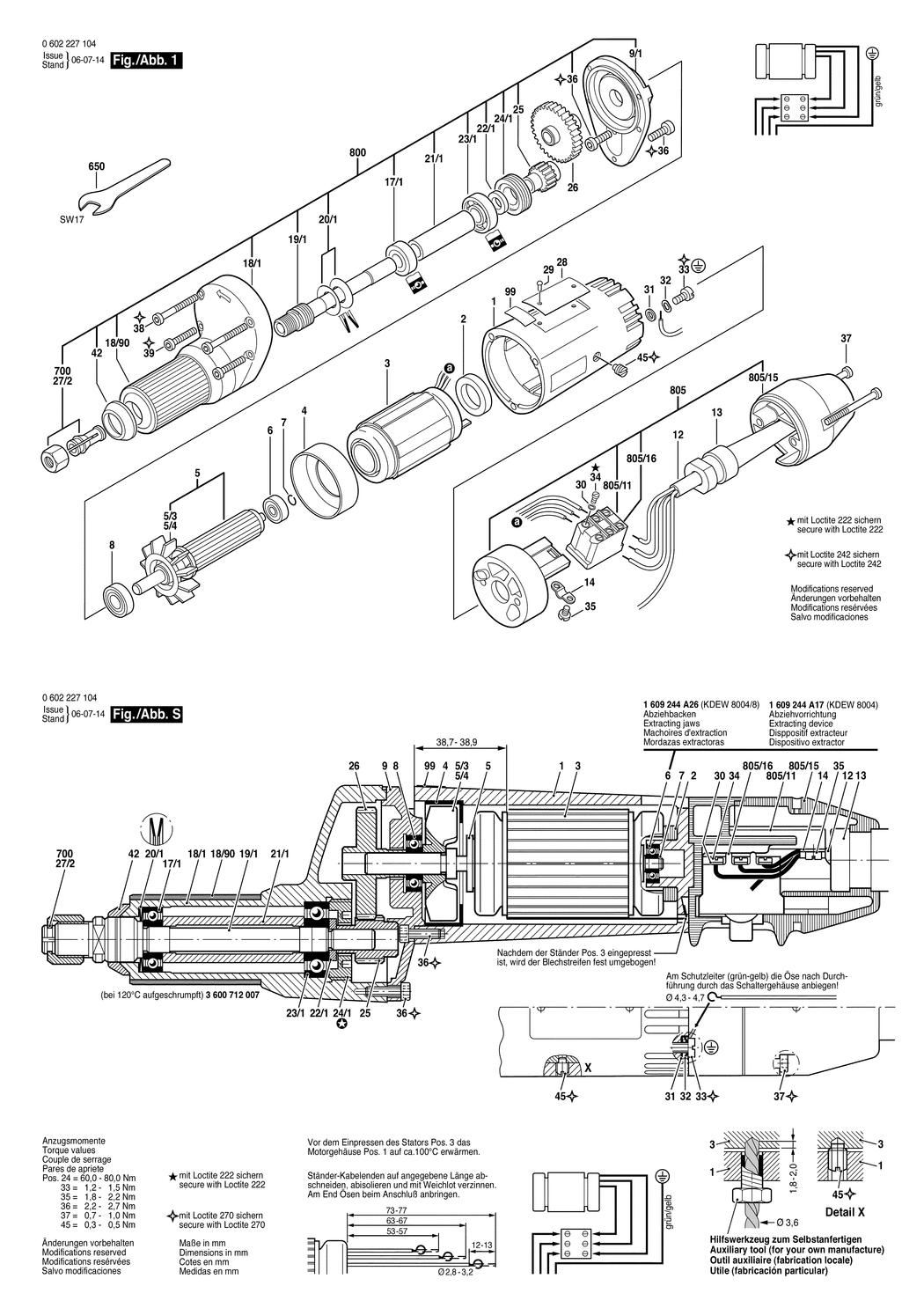

1 - MOTOR HOUSING
BSD-1605102085.A14
1605102085
|
-
|
|
|
|
3 - STATOR 200V/300HZ.135V/200HZ
BSD-1604229201.A23
1604229201
|
£431.32
|
£517.59
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600502005.A112
1600502005
|
£2.61
|
£3.13
|
|
|
5 - ROTOR WITHOUT WINDING
BSD-3604080003.A9
3604080003
|
£188.33
|
£226.00
|
|
|
5/4 - INTERMEDIATE RING
BSD-3600202008.A13
3600202008
|
£2.74
|
£3.29
|
|
|
6 - GROOVE BALL BEARING 5x16x5
BSD-1900900232.A27
1900900232
|
£16.74
|
£20.09
|
|
|
7 - RETAINING RING 5 DIN 9045
BSD-2916600002.A1
2916600002
|
-
|
|
|
|
8 - GROOVE BALL BEARING 9x24x7
BSD-1900905017.A239
1900905017
|
£23.86
|
£28.63
|
|
|
9/1 - INTERMEDIATE BEARING
BSD-3605820062.A1
3605820062
|
£126.12
|
£151.34
|
|
|
12 - POWER SUPPLY CORD
BSD-1604462053.A11
1604462053
|
-
|
|
|
|
13 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A296
3600703011
|
£2.94
|
£3.53
|
|
|
14 - FASTENING CLAMP
BSD-1601302014.A78
1601302014
|
£2.74
|
£3.29
|
|
|
17/1 - GROOVE BALL BEARING 12x28x8
BSD-1900905121.A11
1900905121
|
£18.96
|
£22.75
|
|
|
18/1 - SPINDLE BEARING
BSD-3605806120.A14
3605806120
|
£283.50
|
£340.20
|
|
|
18/90 - SHRINKABLE TUBE L=120 MM
BSD-3600712007.A1
3600712007
|
-
|
|
|
|
19/1 - GRINDING SPINDLE
BSD-1603523082.A10
1603523082
|
£179.37
|
£215.24
|
|
|
20/1 - DISC SPRING
BSD-1600550008.A33
1600550008
|
£2.94
|
£3.53
|
|
|
21/1 - SPACER BUSHING
BSD-1600300083.A24
1600300083
|
£18.96
|
£22.75
|
|
|
22/1 - SHIM WASHER
BSD-1600103027.A1
1600103027
|
£28.59
|
£34.31
|
|
|
23/1 - BALL BEARING 9x26x8
BSD-1900905025.A30
1900905025
|
£21.52
|
£25.83
|
|
|
24/1 - THREADED RING
BSD-1603344053.A1
1603344053
|
£57.14
|
£68.57
|
|
|
25 - CYLINDRICAL GEAR Z=29
BSD-1606329020.A7
1606329020
|
£85.90
|
£103.08
|
|
|
26 - CYLINDRICAL GEAR Z=47
BSD-1606329016.A1
1606329016
|
£135.25
|
£162.30
|
|
|
27/2 - COLLET dia 6 MM
BSD-2608570129.A12
2608570129
|
£19.91
|
£23.89
|
|
|
28 - NAMEPLATE
BSD-3601106053.A814
3601106053
|
£5.57
|
£6.68
|
|
|
29 - GROOVED NAIL
BSD-3603133000.A684
3603133000
|
£2.61
|
£3.13
|
|
|
30 - SPRING WASHER A 3 DIN 137-ST
BSD-2916060003.A90
2916060003
|
£1.32
|
£1.58
|
|
|
31 - PLAIN WASHER DIN 46 255-DPG 9
BSD-2916010409.A46
2916010409
|
-
|
|
|
|
32 - SPRING WASHER dia4.2 MM
BSD-3600150006.A304
3600150006
|
£2.74
|
£3.29
|
|
|
33 - PAN HEAD SCREW DIN 85 AM 4x6-MS
BSD-2910110116.A179
2910110116
|
£1.84
|
£2.21
|
|
|
34 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A21
2910110048
|
£1.84
|
£2.21
|
|
|
35 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A643
2910021116
|
£2.27
|
£2.72
|
|
|
36 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8
BSD-2910141122.A173
2910141122
|
£2.27
|
£2.72
|
|
|
37 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8
BSD-2910141140.A12
2910141140
|
£1.75
|
£2.10
|
|
|
38 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x35-8.8
BSD-2910141136.A166
2910141136
|
£2.80
|
£3.36
|
|
|
39 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x22-8.8
BSD-2910141131.A70
2910141131
|
£2.16
|
£2.59
|
|
|
42 - PROTECTIVE RING
BSD-3600250007.A2
3600250007
|
£22.60
|
£27.12
|
|
|
45 - SET SCREW
BSD-3603402000.A389
3603402000
|
£1.84
|
£2.21
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A671
3601119236
|
£3.91
|
£4.69
|
|
|
650 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A358
2607950511
|
£4.48
|
£5.37
|
|
|
700 - COLLET dia 8 MM
BSD-2608570081.A49
2608570081
|
£22.76
|
£27.31
|
|
|
800 - SPINDLE BEARING
BSD-1606120008.A2
1606120008
|
-
|
|
|
|
805 - HANDLE
BSD-3607031145.A12
3607031145
|
-
|
|
|
|
805/11 - CONNECTION HOUSING
BSD-3600099004.A6
3600099004
|
£21.68
|
£26.01
|
|
|
805/15 - SEALING CAP
BSD-3605500074.A103
3605500074
|
£22.76
|
£27.31
|
|
|
805/16 - SWITCH
BSD-3607200001.A111
3607200001
|
£71.84
|
£86.21
|
|
