Bosch ---- / 0602218111 / --- Spare Parts

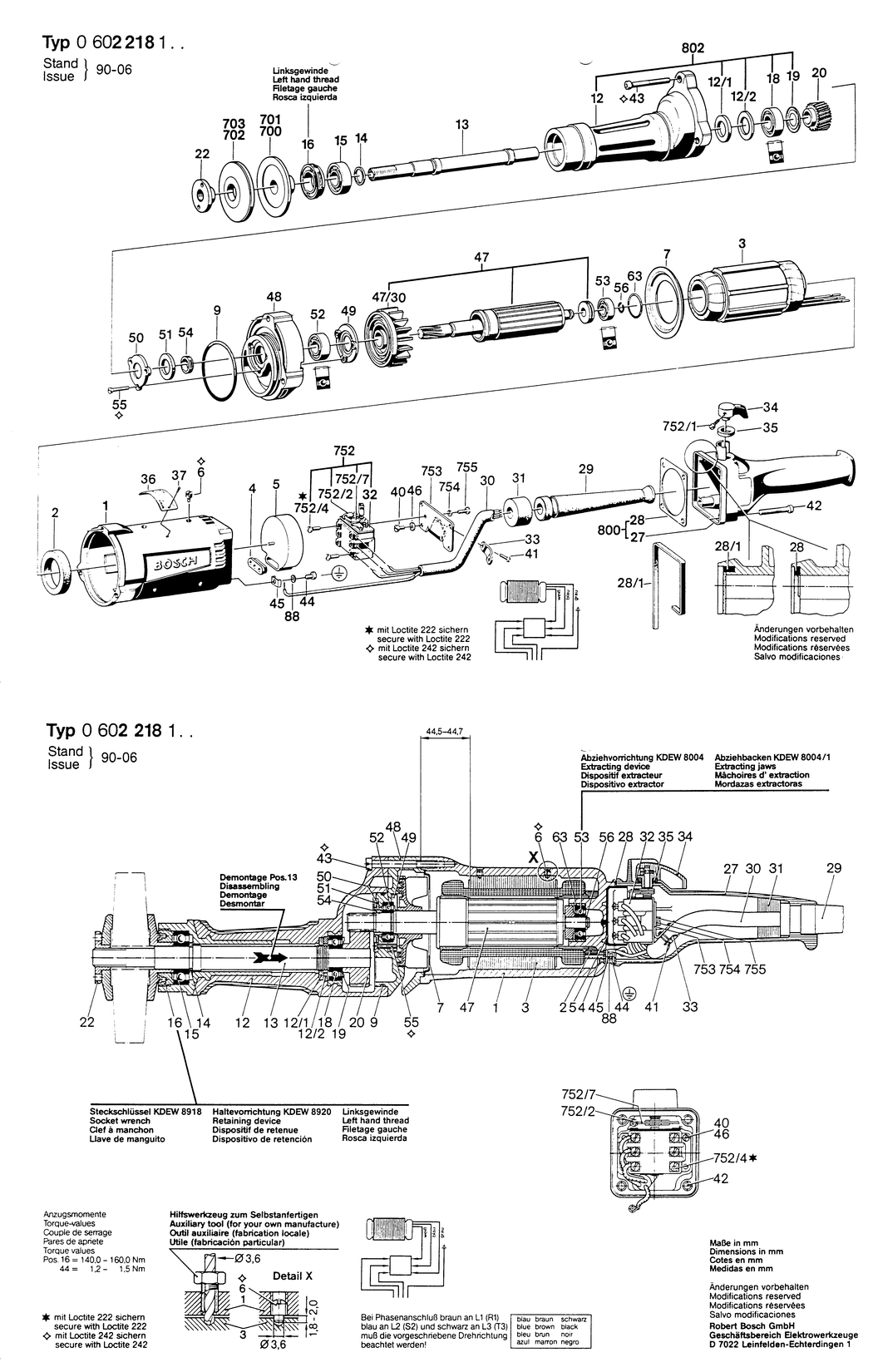

An exploded drawing and listing for the Bosch ---- / 0602218111 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1605102106.A4 1605102106	-
2 - SEAL RING BSD-1600209009.A74 1600209009	£6.52	£7.83
3 - STATOR 72V/300HZ BSD-1604229163.A8 1604229163	-
4 - GROMMET BSD-1600306000.A81 1600306000	£1.95	£2.34
5 - PROTECTIVE COVER BSD-1600502004.A47 1600502004	£4.26	£5.11
6 - SET SCREW BSD-1603402004.A6 1603402004	£2.61	£3.13
7 - GUIDE PULLEY BSD-1600500014.A93 1600500014	-
9 - O-RING 74.0x3.0 MM BSD-1600210006.A74 1600210006	£1.75	£2.10
12 - SPINDLE BEARING BSD-1605806118.A41 1605806118	-
12/1 - SEAL RING BSD-1600108043.A35 1600108043	-
12/2 - SEALING DISK 6203 ZAV NILOS-RI BSD-3600290004.A48 3600290004	-
13 - GRINDING SPINDLE M16x1.5 BSD-1603052007.A2 1603052007	-
14 - SHIM WASHER BSD-1600114035.A40 1600114035	-
15 - GROOVE BALL BEARING 6204-Y DIN 625 BSD-1900900306.A28 1900900306	-
16 - THREADED RING BSD-1603344005.A27 1603344005	£27.23	£32.68
18 - GROOVE BALL BEARING 6203 RSY DIN 625 BSD-1900905253.A52 1900905253	-
19 - SEALING DISK 6203 ZAV NILOS-RI BSD-3600290004.A47 3600290004	-
20 - CYLINDRICAL GEAR Z=36 BSD-1606320018.A1 1606320018	-
22 - ROUND NUT BSD-1603345027.A28 1603345027	-
27 - HANDLE BSD-3605132035.A34 3605132035	£40.80	£48.96
28 - SEAL BSD-1601015011.A6 1601015011	£3.80	£4.56
28/1 - SEAL BSD-1601015011.A7 1601015011	£3.80	£4.56
29 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A418 1600703009	£5.58	£6.70
30 - ELEC. CABLE W/CONNECTION BSD-1604462020.A2 1604462020	-
31 - SEALING PLATE BSD-1600113003.A47 1600113003	£2.80	£3.36
33 - FASTENING CLAMP BSD-1601303003.A281 1601303003	£2.16	£2.59
34 - CONTROL LEVER BSD-1602026038.A130 1602026038	£5.30	£6.36
35 - SEALING DISK dia18xdia10x4 MM BSD-1600108024.A24 1600108024	£1.75	£2.10
36 - NAMEPLATE BSD-3601106053.A156 3601106053	£5.30	£6.36
37 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A687 3603133001	£2.61	£3.13
40 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1743 2910021118	£1.75	£2.10
41 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A737 2910021122	£2.16	£2.59
42 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x40-8.8 BSD-2910141209.A7 2910141209	£2.61	£3.13
43 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x55-8.8 BSD-2910141215.A83 2910141215	£3.72	£4.47
44 - PAN HEAD SCREW DIN 85-MS-M 4x12 BSD-2910110122.A131 2910110122	£1.75	£2.10
45 - CLAMPING SADDLE BSD-3601321001.A661 3601321001	£3.72	£4.47
46 - SPRING WASHER DIN 137-A4 BSD-1600150006.A13 1600150006	-
47 - ROTOR WITHOUT WINDING BSD-1604080078.A5 1604080078	-
48 - BEARING HOUSING BSD-1605820147.A20 1605820147	-
49 - BEARING COVER BSD-1600501019.A371 1600501019	£23.86	£28.63
50 - COVER DISC BSD-1600501024.A123 1600501024	£16.41	£19.69
51 - FELT DISC BSD-1600108018.A25 1600108018	£2.61	£3.13
52 - GROOVE BALL BEARING 6003 Y DIN 625 BSD-1900900273.A37 1900900273	£21.68	£26.01
53 - GROOVE BALL BEARING 12x28x8 BSD-1900905121.A287 1900905121	£18.96	£22.75
54 - THREADED RING BSD-1603344042.A26 1603344042	-
55 - TORX FLAT-HEAD SCREW M4x20 BSD-3603435051.A58 3603435051	£1.75	£2.10
56 - RETAINING RING 12 DIN 9045 BSD-2916600007.A96 2916600007	£2.80	£3.36
63 - O-RING BSD-1120210000.A3 1120210000	-
88 - SPRING WASHER dia4.2 MM BSD-3600150006.A563 3600150006	£2.61	£3.13
99 - REFERENCE PLATE BSD-3601119236.A1765 3601119236	£3.72	£4.47
651 - OFFSET SCREWDRIVER SW8 BSD-1607950009.A10 1607950009	-
651 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A542 1907950007	£5.30	£6.36
652 - SINGLE-HEAD ENG. WRENCH DIN 894 SW24 BSD-1907950513.A116 1907950513	£16.41	£19.69
701 - CLAMPING-FLANGE dia 85 MM BSD-1605703008.A19 1605703008	-
703 - CONICAL SPRING WASHER dia 85 MM BSD-1600114033.A25 1600114033	-
752 - ON-OFF SWITCH BSD-1607200006.A88 1607200006	£81.81	£98.17
752/1 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-4.8 BSD-2910001052.A24 2910001052	£2.16	£2.59
752/2 - EXTENSION SPRING BSD-1604650009.A49 1604650009	£1.75	£2.10
752/4 - PAN HEAD SCREW DIN 85-AM4x8-4.8 BSD-2910091118.A311 2910091118	£1.75	£2.10
752/7 - DETENT ROLLER BSD-1603200007.A29 1603200007	-
753 - FIXING PLATE BSD-3601023015.A165 3601023015	£21.68	£26.01
754 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A477 2916690003	£1.75	£2.10
755 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1745 2910021118	£1.75	£2.10
800 - HANDLE BSD-1605132067.A80 1605132067	-
802 - SPINDLE BEARING BSD-1607000056.A27 1607000056	-

Attribute Name	Value
Brand	Bosch
