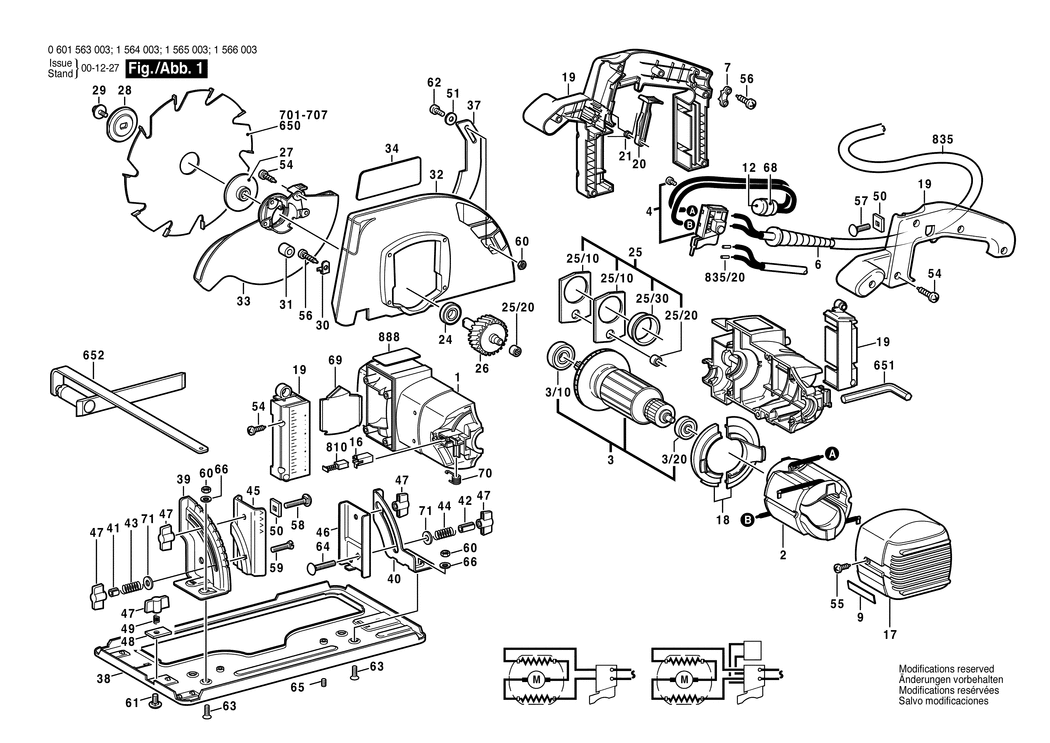

1 - MOTOR HOUSING
BSD-1609201133.A10
1609201133
|
-
|
|
|
|
2 - POLE SHOE 220V
BSD-1609201134.A0
1609201134
|
-
|
|
|
|
3 - ARMATURE 220V
BSD-1609201135.A3
1609201135
|
-
|
|
|
|
3/10 - GROOVE BALL BEARING
BSD-1609201136.A13
1609201136
|
-
|
|
|
|
3/20 - GROOVE BALL BEARING
BSD-1609201137.A15
1609201137
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-1609201397.A23
1609201397
|
-
|
|
|
|
6 - GROMMET dia9x90 MM
BSD-1609207001.A74
1609207001
|
-
|
|
|
|
7 - FASTENING CLAMP
BSD-1609213000.A180
1609213000
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1609201139.A7
1609201139
|
-
|
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-1609200750.A36
1609200750
|
-
|
|
|
|
16 - BRUSH HOLDER
BSD-1609201140.A5
1609201140
|
-
|
|
|
|
17 - COVERING HOOD
BSD-1609201141.A7
1609201141
|
-
|
|
|
|
18 - AIR-DEFLECTOR RING
BSD-1609201142.A5
1609201142
|
-
|
|
|
|
19 - HANDLE
BSD-1609201143.A23
1609201143
|
-
|
|
|
|
20 - LOCKING LEVER
BSD-1602099003.A31
1602099003
|
-
|
|
|
|
21 - COILED SPRING
BSD-1604651008.A43
1604651008
|
-
|
|
|
|
24 - GROOVE BALL BEARING 12x28x8
BSD-1900905161.A52
1900905161
|
£21.68
|
£26.01
|
|
|
25 - BEARING BRACKET
BSD-1609201213.A2
1609201213
|
-
|
|
|
|
25/20 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A639
1600910018
|
£5.30
|
£6.36
|
|
|
25/30 - BUSHING
BSD-1609201214.A24
1609201214
|
-
|
|
|
|
26 - TOOTHED GEAR Z=43
BSD-1609201149.A5
1609201149
|
-
|
|
|
|
27 - INTERMEDIATE FLANGE
BSD-1609201150.A23
1609201150
|
-
|
|
|
|
28 - CONICAL SPRING WASHER
BSD-1609201151.A5
1609201151
|
-
|
|
|
|
29 - HEX SOCKET HEAD CAP SCREW
BSD-1609201152.A23
1609201152
|
-
|
|
|
|
30 - STOP BRACKET
BSD-1609201153.A5
1609201153
|
-
|
|
|
|
31 - RUBBER BUFFER
BSD-1609201154.A23
1609201154
|
-
|
|
|
|
32 - PROTECTIVE COVER
BSD-1609201155.A5
1609201155
|
-
|
|
|
|
33 - PIVOTING BLADE GUARD
BSD-1609201156.A7
1609201156
|
-
|
|
|
|
34 - STICKER
BSD-1601110186.A5
1601110186
|
-
|
|
|
|
37 - RIVING KNIFE L=55 MM
BSD-1609201157.A5
1609201157
|
-
|
|
|
|
38 - BASE PLATE 396x202.5x2 MM
BSD-1609201158.A0
1609201158
|
-
|
|
|
|
39 - DIAL
BSD-1609201159.A28
1609201159
|
-
|
|
|
|
40 - SLIDE PLATE
BSD-1609201160.A0
1609201160
|
-
|
|
|
|
41 - CLAMP BUSHING
BSD-1609201161.A28
1609201161
|
-
|
|
|
|
42 - CLAMP BUSHING
BSD-1609201162.A0
1609201162
|
-
|
|
|
|
43 - COMPRESSION SPRING dia13.1xdia10.9x20 MM
BSD-1609201163.A28
1609201163
|
-
|
|
|
|
44 - COMPRESSION SPRING dia13.5xdia10.5x30 MM
BSD-1609201164.A0
1609201164
|
-
|
|
|
|
45 - DIAL
BSD-1609201165.A28
1609201165
|
-
|
|
|
|
46 - GUIDE RAIL
BSD-1609201166.A0
1609201166
|
-
|
|
|
|
47 - WING NUT M6
BSD-1609233000.A201
1609233000
|
-
|
|
|
|
48 - CLAMPING PIECE
BSD-1601030024.A64
1601030024
|
-
|
|
|
|
49 - COMPRESSION SPRING
BSD-1609201167.A28
1609201167
|
-
|
|
|
|
50 - BACKING PLATE
BSD-1609201168.A0
1609201168
|
-
|
|
|
|
51 - PLAIN WASHER dia6.4xdia16x2 MM
BSD-1609201082.A208
1609201082
|
-
|
|
|
|
54 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A775
2912401020
|
£2.16
|
£2.59
|
|
|
55 - TAPPING SCREW DIN 7981-ST3.9x13-C-H
BSD-2910611018.A192
2910611018
|
-
|
|
|
|
56 - TAPPING SCREW B 3.9x32 DIN 7981
BSD-2910611082.A143
2910611082
|
£1.75
|
£2.10
|
|
|
57 - ROUND-HEAD BOLT DIN 603-M6x25
BSD-2910281203.A98
2910281203
|
£2.61
|
£3.13
|
|
|
58 - ROUND-HEAD BOLT DIN 603-M6x40
BSD-2910281209.A18
2910281209
|
-
|
|
|
|
59 - ROUND-HEAD BOLT DIN 603-M6x35
BSD-2910281207.A36
2910281207
|
£1.75
|
£2.10
|
|
|
60 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A1122
2915011007
|
-
|
|
|
|
61 - ROUND-HEAD BOLT M6x15 DIN 603
BSD-2910281196.A280
2910281196
|
-
|
|
|
|
62 - HEX SOCKET HEAD CAP SCREW DIN 6912 M6x12-8.8
BSD-2910375193.A181
2910375193
|
-
|
|
|
|
63 - COUNTERSUNK-HEAD SCREW DIN 963-M6x12-8.8
BSD-2910781193.A20
2910781193
|
-
|
|
|
|
64 - COUNTERSUNK-HEAD SCREW
BSD-1609201170.A27
1609201170
|
-
|
|
|
|
65 - SET SCREW M 5x5-DIN 913-45H
BSD-2912041147.A47
2912041147
|
£2.16
|
£2.59
|
|
|
66 - SPRING WASHER DIN 137-A 6-ST
BSD-2916060007.A79
2916060007
|
£1.75
|
£2.10
|
|
|
68 - ADHESIVE TAPE
BSD-1609200550.A49
1609200550
|
-
|
|
|
|
69 - GUIDE PLATE
BSD-1609201216.A5
1609201216
|
-
|
|
|
|
70 - TORSION SPRING
BSD-1609201210.A20
1609201210
|
-
|
|
|
|
71 - PLAIN WASHER
BSD-1609201466.A1
1609201466
|
-
|
|
|
|
651 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A392
1907950006
|
£4.26
|
£5.11
|
|
|
652 - EDGE GUIDE
BSD-1609201118.A7
1609201118
|
-
|
|
|
|
701 - CIRCULAR SAW BLADE dia 170x30 MM. Z=64
BSD-1609286022.A0
1609286022
|
-
|
|
|
|
702 - CIRCULAR SAW BLADE dia 170x30 MM. Z=64
BSD-1609286023.A5
1609286023
|
-
|
|
|
|
706 - CIRCULAR SAW BLADE Z=16
BSD-2608640158.A5
2608640158
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-1609201460.A20
1609201460
|
-
|
|
|
|
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A693
1607000228
|
£23.86
|
£28.63
|
|
|
835/20 - END SPLICE
BSD-3604477009.A309
3604477009
|
£2.61
|
£3.13
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1057
160111A3H3
|
£2.61
|
£3.13
|
|
