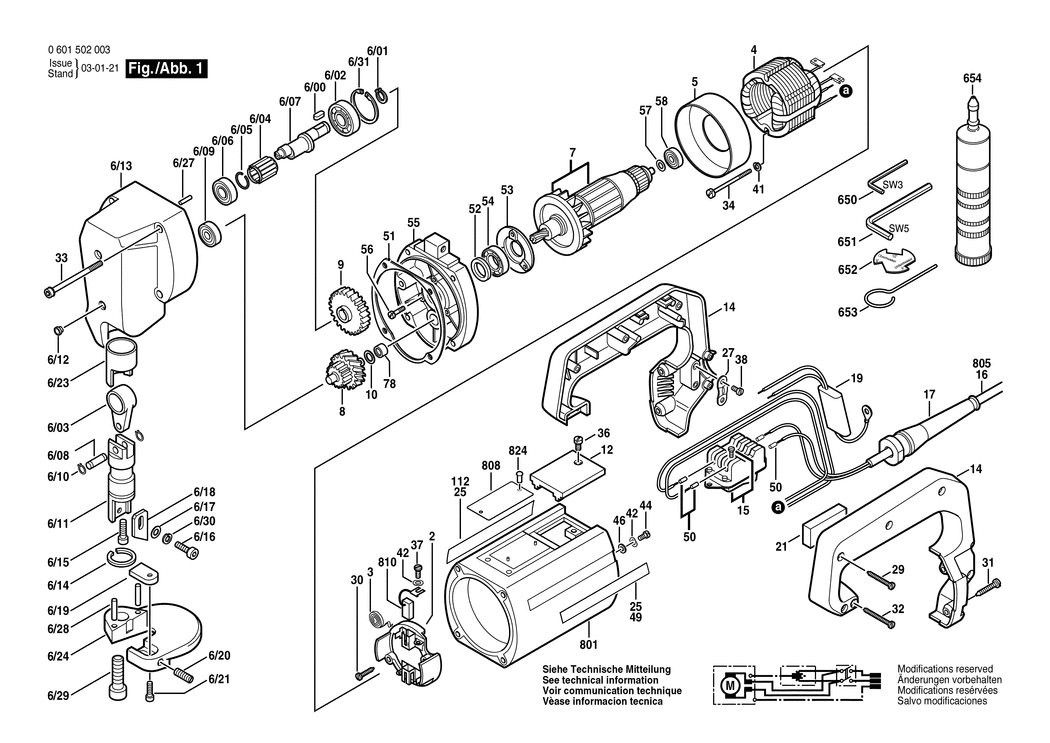

An exploded drawing and listing for the Bosch ---- / 0601502041 / GB 110 Volt
Ex VAT Inc VAT
2 - BRUSH HOLDER BSD-1604336005.A0 1604336005 -
3 - SPIRAL SPRING BSD-1604652001.A20 1604652001 -
4 - POLE SHOE 100-120V BSD-1604220206.A28 1604220206 -
5 - AIR-DEFLECTOR RING BSD-1600209002.A228 1600209002 £5.30 £6.36
6/00 - PARALLEL KEY DIN 6885-A4x4x10-ST BSD-1902300041.A7 1902300041 -
6/01 - SPRING RETAINING RING DIN 471-12x1-FSt BSD-2916650003.A333 2916650003 £1.75 £2.10
6/02 - GROOVE BALL BEARING 12x32x10 BSD-1900905225.A35 1900905225 £10.10 £12.12
6/03 - CONNECTING ROD BSD-1609220004.A3 1609220004 -
6/04 - NEEDLE-ROLLER CAGE BSD-1609209000.A3 1609209000 -
6/05 - CLAMP RING BSD-1609202003.A6 1609202003 -
6/06 - GROOVE BALL BEARING 6200-Z DIN 625 BSD-1900905200.A19 1900905200 -
6/07 - ECCENTRIC SHAFT BSD-1609261002.A1 1609261002 -
6/08 - CONROD PIN BSD-1609231002.A1 1609231002 -
6/09 - BALL BEARING 9x26x8 BSD-1900905025.A118 1900905025 £21.52 £25.83
6/10 - SPRING RETAINING RING DIN 471-8x0.8 FSt BSD-2916640005.A75 2916640005 £1.75 £2.10
6/11 - TAPPET BSD-1609231003.A3 1609231003 -
6/12 - LUBRICATING NIPPLE BSD-1609274002.A19 1609274002 -
6/13 - GEAR HOUSING BSD-1609251017.A3 1609251017 -
6/14 - PISTON RING DIN 24910-28x25.4x2 BSD-1609202005.A3 1609202005 -
6/15 - ADJUSTING SCREW BSD-1609234013.A1 1609234013 -
6/16 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x18-8.8 BSD-2910141199.A66 2910141199 £3.72 £4.47
6/17 - PLAIN WASHER BSD-1609201000.A8 1609201000 -
6/18 - CUTTER PLATE BSD-1608635015.A1 1608635015 -
6/19 - CUTTER PLATE BSD-1608635014.A10 1608635014 -
6/20 - SET SCREW M 6x10-DIN 913-45H BSD-2912041191.A0 2912041191 -
6/21 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A136 2910141197 £1.75 £2.10
6/23 - GUIDE BUSHING BSD-1609204000.A1 1609204000 -
6/24 - CUTTING TABLE BSD-1609280025.A1 1609280025 -
6/27 - STRAIGHT PIN 4 M 6x14 DIN 7-9S20K BSD-2917510096.A8 2917510096 -
6/28 - STRAIGHT PIN 5 M 6x36 DIN 7 BSD-2917510130.A3 2917510130 -
6/29 - HEX SOCKET HEAD CAP SCREW DIN 912-M 14x35-8.8 BSD-2910145392.A2 2910145392 -
6/30 - SPRING LOCK WASHER M6 BSD-2916690005.A40 2916690005 -
6/31 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A143 2916660013 £2.16 £2.59
7 - ARMATURE WITH FAN 100-120V BSD-1604010114.A1 1604010114 -
8 - SPINDLE WITH GEAR Z=18 BSD-1606328098.A3 1606328098 -
9 - CYLINDRICAL GEAR Z=35 BSD-1606317072.A3 1606317072 -
10 - SHIM 0.5 MM BSD-1600100631.A230 1600100631 £1.75 £2.10
12 - SEALING CAP BSD-3605500057.A270 3605500057 -
14 - HANDLE BSD-1605133029.A42 1605133029 -
15 - SWITCH BSD-1607200065.A19 1607200065 -
16 - POWER SUPPLY CORD BSD-3604460082.A3 3604460082 -
17 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A1358 3600703011 £2.80 £3.36
19 - SUPPRESSION CAPACITOR BSD-1607328012.A64 1607328012 -
21 - INSULATING STRIP 33x10x6 MM BSD-1602381001.A577 1602381001 -
25 - MANUFACTURER'S NAMEPLATE BSD-1601110004.A95 1601110004 -
27 - FASTENING CLAMP BSD-1601302014.A932 1601302014 £2.61 £3.13
29 - TAPPING SCREW DIN 7971-BZ3.9x25 BSD-2910211022.A7 2910211022 £1.75 £2.10
30 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A2520 2910211019 £1.75 £2.10
31 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8 BSD-2910011162.A43 2910011162 £1.75 £2.10
32 - TAPPING SCREW DIN 7971-3.9x38 BSD-2910215093.A60 2910215093 -
33 - HEX SOCKET HEAD CAP SCREW M 5x65 DIN 912-8.8 BSD-2910141179.A13 2910141179 £5.30 £6.36
34 - SOCKET HEAD CAP SCREW DIN 84-BM5x55-8.8 BSD-2910021176.A66 2910021176 -
36 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A19 2910021125 £1.75 £2.10
37 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1510 2910021118 £1.75 £2.10
38 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A264 2910021116 £2.16 £2.59
41 - SPRING LOCK WASHER DIN 127-B 5 BSD-2916680006.A448 2916680006 -
42 - SPRING WASHER DIN 137-A4 BSD-1600150006.A154 1600150006 -
44 - PAN HEAD SCREW DIN 85 AM 4x6-MS BSD-2910110116.A169 2910110116 £1.75 £2.10
46 - PLAIN WASHER A 4.3 DIN 125-ST BSD-2916010410.A197 2916010410 -
50 - END SPLICE BSD-3604477009.A234 3604477009 £2.61 £3.13
51 - SEAL BSD-1601015009.A7 1601015009 -
52 - FELT DISC BSD-1600108003.A158 1600108003 £1.32 £1.58
53 - BEARING COVER BSD-1600501019.A346 1600501019 £23.86 £28.63
54 - GROOVE BALL BEARING 17x35x10 BSD-1600900001.A138 1600900001 -
55 - BEARING FLANGE BSD-1605820183.A7 1605820183 -
56 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A20 2910021125 £1.75 £2.10
57 - SHIM 0.10 MM BSD-1420100023.A117 1420100023 -
57 - SHIM 0.2 MM BSD-1600100632.A149 1600100632 £1.75 £2.10
58 - BALL BEARING 7x22x7 BSD-1900905018.A1207 1900905018 £18.96 £22.75
78 - NEEDLE BEARING BSD-1600910013.A254 1600910013 £5.58 £6.70
650 - OFFSET SCREWDRIVER DIN 911. SW3 BSD-1907950004.A137 1907950004 £5.58 £6.70
651 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A88 1907950006 £4.26 £5.11
652 - HOLDING PIN dia 3x104 MM BSD-1604682009.A0 1604682009 -
653 - GRINDING GAUGE BSD-1607970010.A3 1607970010 -
654 - GREASE GUN BSD-1615437502.A11 1615437502 -
801 - MOTOR HOUSING BSD-1607000139.A18 1607000139 -
808 - NAMEPLATE BSD-160111A3H3.A1788 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014101.A105 1607014101 £11.30 £13.56
824 - ROUND-HEAD GROOVED PIN BSD-1603133000.A8 1603133000 -
