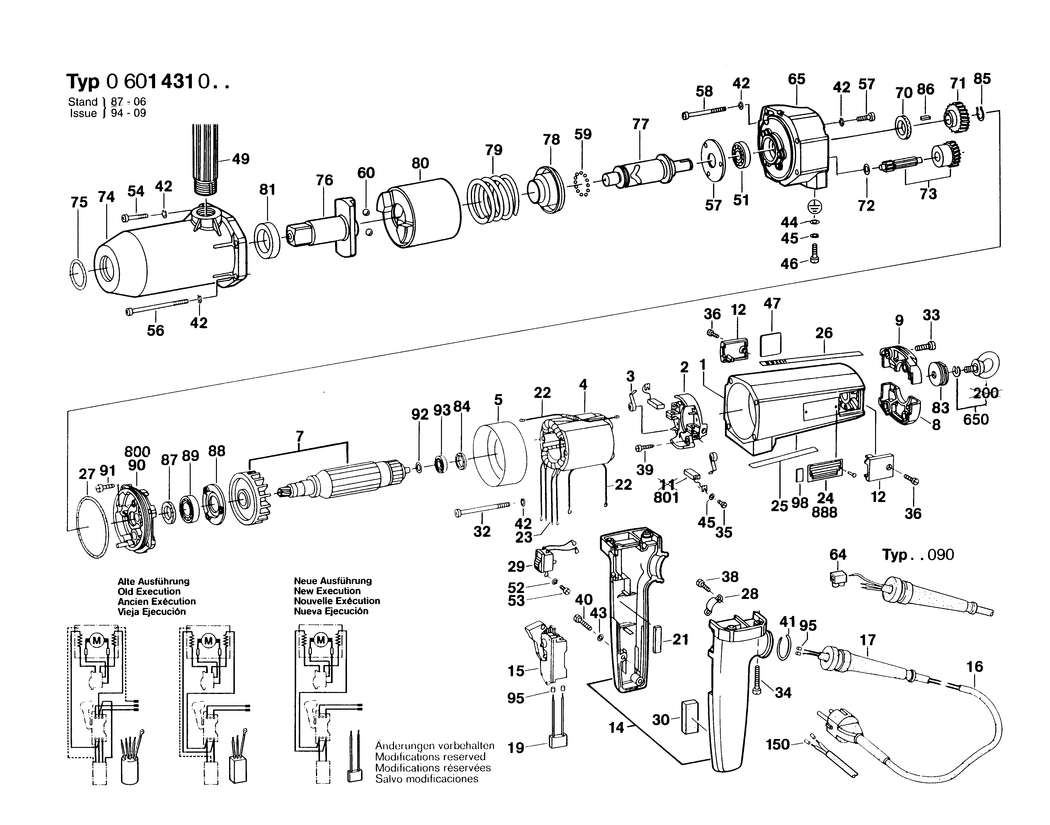

1 - MOTOR HOUSING
BSD-3605108095.A1
3605108095
|
-
|
|
|
|
2 - BRUSH HOLDER
BSD-1604336006.A81
1604336006
|
-
|
|
|
|
3 - SPIRAL SPRING
BSD-1604652015.A679
1604652015
|
£2.94
|
£3.53
|
|
|
4 - FIELD 220-230V
BSD-1604220088.A5
1604220088
|
-
|
|
|
|
5 - AIR-DEFLECTOR RING
BSD-1600209002.A319
1600209002
|
£5.30
|
£6.36
|
|
|
7 - ARMATURE 220-230V
BSD-1604010101.A5
1604010101
|
-
|
|
|
|
8 - SEALING CAP
BSD-3605500058.A71
3605500058
|
£13.78
|
£16.54
|
|
|
9 - SEALING CAP
BSD-3605500059.A31
3605500059
|
£14.91
|
£17.89
|
|
|
12 - SEALING CAP
BSD-3605500057.A47
3605500057
|
-
|
|
|
|
14 - HANDLE
BSD-3605132030.A0
3605132030
|
£49.16
|
£58.99
|
|
|
15 - SWITCH
BSD-1607200025.A2
1607200025
|
-
|
|
|
|
17 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A102
3600703011
|
£2.94
|
£3.53
|
|
|
17 - GROMMET dia11.5-dia15.0x150 MM
BSD-1600703009.A124
1600703009
|
£5.87
|
£7.04
|
|
|
19 - SUPPRESSION FILTER
BSD-1607328034.A227
1607328034
|
£4.48
|
£5.37
|
|
|
21 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A37
1602381001
|
-
|
|
|
|
25 - MANUFACTURER'S NAMEPLATE
BSD-1601110005.A110
1601110005
|
-
|
|
|
|
26 - MANUFACTURER'S NAMEPLATE
BSD-1601110003.A330
1601110003
|
-
|
|
|
|
27 - O-RING 74.0x3.0 MM
BSD-1600210006.A176
1600210006
|
£1.84
|
£2.21
|
|
|
28 - FASTENING CLAMP
BSD-1601302014.A614
1601302014
|
£2.74
|
£3.29
|
|
|
29 - REVERSING SWITCH
BSD-1607200046.A4
1607200046
|
-
|
|
|
|
30 - INSULATING PLATE 20x20x50 MM
BSD-1602381006.A173
1602381006
|
£1.75
|
£2.10
|
|
|
32 - SOCKET HEAD CAP SCREW
BSD-2910021181.A74
2910021181
|
-
|
|
|
|
32 - SOCKET HEAD CAP SCREW
BSD-1603410008.A106
1603410008
|
-
|
|
|
|
33 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8
BSD-2910011162.A273
2910011162
|
£1.84
|
£2.21
|
|
|
34 - HEX SOCKET HEAD CAP SCREW
BSD-3603414028.A91
3603414028
|
£1.84
|
£2.21
|
|
|
35 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A908
2910021118
|
£1.84
|
£2.21
|
|
|
36 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A512
2910021125
|
£1.75
|
£2.10
|
|
|
38 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A470
2910021116
|
£2.27
|
£2.72
|
|
|
39 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A982
2910211019
|
£1.84
|
£2.21
|
|
|
40 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A432
2910021122
|
£2.27
|
£2.72
|
|
|
41 - RETAINING RING 32 DIN 9045
BSD-2916600017.A2
2916600017
|
£1.32
|
£1.58
|
|
|
42 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A183
2916680006
|
-
|
|
|
|
43 - SPRING LOCK WASHER B 4 DIN 127
BSD-2916681005.A53
2916681005
|
£1.75
|
£2.10
|
|
|
44 - PLAIN WASHER A 4.3 DIN 125-ST
BSD-2916010410.A253
2916010410
|
-
|
|
|
|
45 - SPRING WASHER DIN 137-A4
BSD-1600150006.A544
1600150006
|
-
|
|
|
|
46 - PAN HEAD SCREW DIN 85 AM 4x6-MS
BSD-2910110116.A372
2910110116
|
£1.84
|
£2.21
|
|
|
49 - HANDLE 400 MM
BSD-1600763010.A73
1600763010
|
£42.84
|
£51.41
|
|
|
51 - GROOVE BALL BEARING 15x35x11
BSD-1900900303.A126
1900900303
|
-
|
|
|
|
52 - SPRING WASHER A 3 DIN 137-ST
BSD-2916060003.A169
2916060003
|
£1.32
|
£1.58
|
|
|
53 - SOCKET HEAD CAP SCREW DIN 84-AM3x4-5.8
BSD-2910011046.A25
2910011046
|
-
|
|
|
|
54 - HEX SOCKET HEAD CAP SCREW M5x25 DIN 912-10.9
BSD-2910151164.A29
2910151164
|
£1.75
|
£2.10
|
|
|
56 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x85-8.8
BSD-2910141183.A9
2910141183
|
-
|
|
|
|
57 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8
BSD-2910011157.A432
2910011157
|
-
|
|
|
|
58 - HEX SOCKET HEAD CAP SCREW M 5x65 DIN 912-8.8
BSD-2910141179.A15
2910141179
|
£5.57
|
£6.68
|
|
|
59 - BALL DIN 5401-5 G28
BSD-1903230009.A788
1903230009
|
£1.84
|
£2.21
|
|
|
60 - BALL DIN 5401-9 MM III-ST
BSD-1903230015.A12
1903230015
|
£2.74
|
£3.29
|
|
|
64 - INSULATION TUBING
BSD-5635211252.A2
5635211252
|
-
|
|
|
|
65 - BEARING HOUSING
BSD-3605820051.A2
3605820051
|
-
|
|
|
|
66 - HOLDING BELT
BSD-1604700002.A32
1604700002
|
-
|
|
|
|
67 - BEARING COVER
BSD-1605808044.A18
1605808044
|
-
|
|
|
|
70 - FELT WASHER
BSD-1600205016.A18
1600205016
|
-
|
|
|
|
71 - CYLINDRICAL GEAR Z=37
BSD-1606320054.A0
1606320054
|
-
|
|
|
|
72 - SHIM 0.5 MM
BSD-1600100631.A122
1600100631
|
£1.75
|
£2.10
|
|
|
73 - MULTIPLATE CLUTCH
BSD-1606401008.A0
1606401008
|
-
|
|
|
|
74 - SPINDLE BEARING
BSD-3605806119.A17
3605806119
|
£156.22
|
£187.46
|
|
|
75 - O-RING 35.0x3.0 MM
BSD-3600210131.A59
3600210131
|
£3.91
|
£4.69
|
|
|
76 - COUPLING HALF
BSD-1606455054.A24
1606455054
|
£205.02
|
£246.03
|
|
|
77 - DRIVE SHAFT
BSD-1603124087.A8
1603124087
|
-
|
|
|
|
78 - BUSHING
BSD-1605801021.A0
1605801021
|
-
|
|
|
|
79 - COMPRESSION SPRING
BSD-1604624007.A0
1604624007
|
-
|
|
|
|
80 - STRIKER
BSD-1608710027.A17
1608710027
|
-
|
|
|
|
81 - SPACER RING
BSD-3600202019.A2
3600202019
|
£23.86
|
£28.63
|
|
|
83 - THREADED RING
BSD-1603343006.A17
1603343006
|
-
|
|
|
|
84 - RUBBER RING
BSD-1600206010.A17
1600206010
|
-
|
|
|
|
85 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A232
2916650006
|
£1.75
|
£2.10
|
|
|
86 - PARALLEL KEY
BSD-1902300082.A18
1902300082
|
-
|
|
|
|
87 - FELT DISC
BSD-1600108003.A265
1600108003
|
£1.38
|
£1.66
|
|
|
88 - BEARING COVER
BSD-1600501019.A155
1600501019
|
£25.05
|
£30.06
|
|
|
89 - GROOVE BALL BEARING 17x35x10
BSD-1600900001.A58
1600900001
|
-
|
|
|
|
90 - BEARING FLANGE
BSD-3605820072.A17
3605820072
|
-
|
|
|
|
91 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A513
2910021125
|
£1.75
|
£2.10
|
|
|
92 - SHIM 0.10 MM
BSD-1420100023.A282
1420100023
|
-
|
|
|
|
92 - SHIM 0.2 MM
BSD-1600100632.A206
1600100632
|
£1.84
|
£2.21
|
|
|
93 - GROOVE BALL BEARING 7x22x7
BSD-1900900224.A22
1900900224
|
£6.52
|
£7.83
|
|
|
95 - END SPLICE
BSD-3604477009.A177
3604477009
|
£2.61
|
£3.13
|
|
|
650 - LIFTING EYE BOLT DIN 580-M 8
BSD-2912521237.A28
2912521237
|
£11.78
|
£14.13
|
|
|
651 - SPRING LOCK WASHER B 8 DIN 127
BSD-2916680009.A53
2916680009
|
-
|
|
|
|
700 - INTERMEDIATE PIECE
BSD-1609386021.A8
1609386021
|
-
|
|
|
|
800 - BEARING FLANGE
BSD-1605820038.A17
1605820038
|
-
|
|
|
|
801 - CARBON-BRUSH SET
BSD-1607014102.A202
1607014102
|
-
|
|
|
|
816 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A698
1607000227
|
£23.86
|
£28.63
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A5449
160111A3H3
|
£2.74
|
£3.29
|
|
