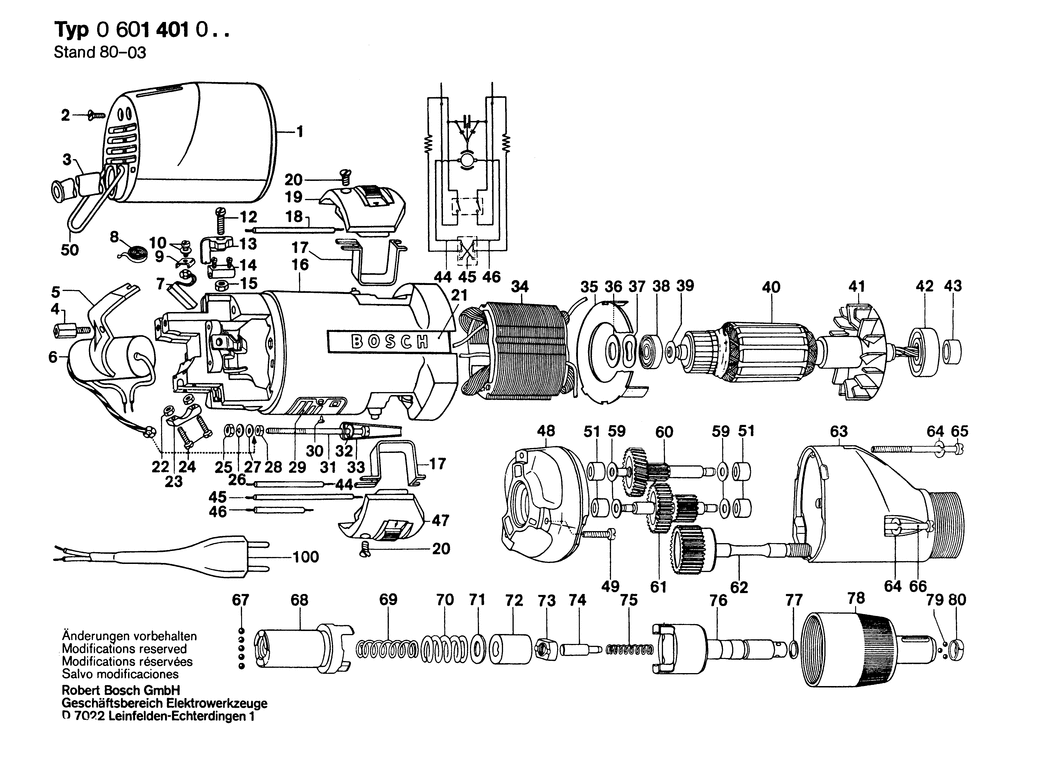

1 - HOUSING COVER
BSD-3600508023.A49
3600508023
|
£13.41
|
£16.09
|
|
|
2 - COUNTERSUNK-HEAD SCREW DIN 63-AM3.5x8-5.8
BSD-2910501084.A73
2910501084
|
-
|
|
|
|
3 - GROMMET dia7 MM
BSD-2600703007.A276
2600703007
|
-
|
|
|
|
3 - GROMMET dia8.2 MM
BSD-2600703008.A64
2600703008
|
£1.75
|
£2.10
|
|
|
3 - GROMMET dia9.5 MM
BSD-2600703006.A108
2600703006
|
-
|
|
|
|
4 - HEX SCREW
BSD-2603527004.A94
2603527004
|
£1.75
|
£2.10
|
|
|
5 - FASTENING CLAMP
BSD-2601301002.A72
2601301002
|
£2.16
|
£2.59
|
|
|
6 - SUPPRESSION FILTER
BSD-2607329048.A87
2607329048
|
-
|
|
|
|
7 - CARBON-BRUSH SET
BSD-2604320905.A74
2604320905
|
-
|
|
|
|
8 - SPIRAL SPRING
BSD-2604652000.A165
2604652000
|
-
|
|
|
|
9 - CLAMPING SADDLE
BSD-2601321005.A90
2601321005
|
-
|
|
|
|
10 - SOCKET HEAD CAP SCREW
BSD-2603410010.A223
2603410010
|
-
|
|
|
|
12 - SOCKET HEAD CAP SCREW M 2.6x5 DIN 84
BSD-2910011028.A48
2910011028
|
-
|
|
|
|
13 - CLAMPING PIECE
BSD-2602305034.A13
2602305034
|
-
|
|
|
|
14 - CONNECTING TERMINAL
BSD-2604490003.A34
2604490003
|
-
|
|
|
|
15 - HEX NUT M 2.6 DIN 934-M-6
BSD-2915011002.A24
2915011002
|
-
|
|
|
|
16 - MOTOR HOUSING
BSD-2605108033.A11
2605108033
|
-
|
|
|
|
17 - INSULATING PART
BSD-2601322002.A93
2601322002
|
£1.75
|
£2.10
|
|
|
18 - CABLE
BSD-2604411061.A43
2604411061
|
-
|
|
|
|
19 - SWITCH
BSD-2607200045.A24
2607200045
|
-
|
|
|
|
20 - COUNTERSUNK-HEAD SCREW M 3x6 DIN 63-5.8
BSD-2910501048.A24
2910501048
|
-
|
|
|
|
21 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A204
2601007003
|
-
|
|
|
|
22 - HEX NUT M 2.6 DIN 934-M-6
BSD-2915011002.A25
2915011002
|
-
|
|
|
|
23 - CABLE CLIP
BSD-2601035005.A18
2601035005
|
£1.75
|
£2.10
|
|
|
24 - SOCKET HEAD CAP SCREW DIN 84-AM2.6x15-5.8
BSD-2910011033.A3
2910011033
|
-
|
|
|
|
25 - HEX NUT DIN 439-BM 3
BSD-2915051103.A3
2915051103
|
£1.75
|
£2.10
|
|
|
26 - SPRING LOCK WASHER A3-FSt
BSD-2916690001.A105
2916690001
|
-
|
|
|
|
27 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A69
2916011005
|
£1.75
|
£2.10
|
|
|
28 - HEX NUT DIN 934-M 3-m-8
BSD-2915011003.A94
2915011003
|
£1.75
|
£2.10
|
|
|
29 - NAMEPLATE
BSD-160111A3H3.A3700
160111A3H3
|
£2.61
|
£3.13
|
|
|
30 - ROUND-HEAD GROOVED PIN 2x3 DIN 1476 ST
BSD-2917724031.A33
2917724031
|
-
|
|
|
|
31 - SOCKET HEAD CAP SCREW DIN 84-BM3x50-5.8
BSD-2910011074.A78
2910011074
|
£1.75
|
£2.10
|
|
|
32 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A70
2916011005
|
£1.75
|
£2.10
|
|
|
33 - CABLE CLIP
BSD-2601099015.A41
2601099015
|
£1.75
|
£2.10
|
|
|
34 - POLE SHOE 220-230V
BSD-2604220228.A0
2604220228
|
-
|
|
|
|
35 - SEAL RING
BSD-2600113019.A25
2600113019
|
£2.80
|
£3.36
|
|
|
36 - SHIM
BSD-2600100699.A96
2600100699
|
£1.75
|
£2.10
|
|
|
37 - SHIM
BSD-2600150002.A56
2600150002
|
-
|
|
|
|
38 - GROOVE BALL BEARING 625-2Z DIN 625
BSD-1900905015.A70
1900905015
|
£30.42
|
£36.51
|
|
|
39 - SHIM 0.3 MM
BSD-2600100612.A90
2600100612
|
£2.61
|
£3.13
|
|
|
40 - ARMATURE WITH FAN 220-230V
BSD-2604010323.A0
2604010323
|
-
|
|
|
|
41 - FAN
BSD-2606610038.A29
2606610038
|
-
|
|
|
|
42 - GROOVE BALL BEARING 609-ZY DIN 625
BSD-1900905007.A101
1900905007
|
-
|
|
|
|
43 - BEARING SLEEVE
BSD-2600300044.A29
2600300044
|
-
|
|
|
|
44 - CONNECTING CABLE
BSD-2604411037.A0
2604411037
|
-
|
|
|
|
45 - CABLE
BSD-2604411064.A16
2604411064
|
-
|
|
|
|
46 - CONNECTING CABLE
BSD-2604411505.A6
2604411505
|
-
|
|
|
|
47 - CHANGE-OVER SWITCH
BSD-2607200044.A3
2607200044
|
-
|
|
|
|
48 - INTERMEDIATE BEARING
BSD-2605820012.A11
2605820012
|
-
|
|
|
|
49 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A771
2910021125
|
£1.75
|
£2.10
|
|
|
50 - SUSPENSION LOOP
BSD-1604682003.A8
1604682003
|
-
|
|
|
|
51 - BUSHING
BSD-2600300058.A6
2600300058
|
-
|
|
|
|
59 - SHIM 0.50 MM
BSD-2600100613.A62
2600100613
|
£1.75
|
£2.10
|
|
|
60 - TOOTHED SHAFT Z=11/34
BSD-2606100051.A3
2606100051
|
-
|
|
|
|
61 - SPINDLE WITH GEAR Z=18/35
BSD-2606100050.A11
2606100050
|
-
|
|
|
|
62 - SPINDLE WITH GEAR Z=37
BSD-2606100052.A46
2606100052
|
-
|
|
|
|
63 - GEAR HOUSING
BSD-2605806227.A49
2605806227
|
-
|
|
|
|
64 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A653
2916690003
|
£1.75
|
£2.10
|
|
|
65 - SOCKET HEAD CAP SCREW DIN 84-BM4x45-8.8
BSD-2910021142.A12
2910021142
|
-
|
|
|
|
66 - SOCKET HEAD CAP SCREW DIN 84-BM4x45-5.8
BSD-2910011140.A12
2910011140
|
-
|
|
|
|
67 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A266
1903230004
|
£2.16
|
£2.59
|
|
|
68 - COUPLING HALF
BSD-2606445000.A36
2606445000
|
-
|
|
|
|
69 - COMPRESSION SPRING
BSD-1604616010.A19
1604616010
|
-
|
|
|
|
70 - COMPRESSION SPRING
BSD-1604619005.A19
1604619005
|
-
|
|
|
|
71 - SHIM
BSD-1600100607.A63
1600100607
|
-
|
|
|
|
72 - BUSHING
BSD-1600309004.A63
1600309004
|
-
|
|
|
|
73 - ROUND NUT
BSD-1603341000.A25
1603341000
|
-
|
|
|
|
74 - PRESSURE SPINDLE
BSD-1603120022.A26
1603120022
|
-
|
|
|
|
75 - COMPRESSION SPRING
BSD-1604626002.A32
1604626002
|
-
|
|
|
|
76 - CARRIER 6 KT.. 6.3 MM
BSD-2606455002.A8
2606455002
|
-
|
|
|
|
76 - .
BSD-2606455901.A4
2606455901
|
-
|
|
|
|
77 - O-RING 8.0x1.5 MM
BSD-1900210103.A92
1900210103
|
£2.80
|
£3.36
|
|
|
78 - GUIDE SLEEVE
BSD-2600460001.A12
2600460001
|
-
|
|
|
|
79 - BALL DIN 5401-2.5MM-III-ST
BSD-1903230003.A259
1903230003
|
£2.61
|
£3.13
|
|
|
80 - SPRING LOCK WASHER
BSD-1600224011.A32
1600224011
|
-
|
|
|
|
100 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A462
1607000227
|
£23.86
|
£28.63
|
|
|
651 - STRAIGHT PIN 4x60 MM
BSD-2603101035.A34
2603101035
|
£2.80
|
£3.36
|
|
