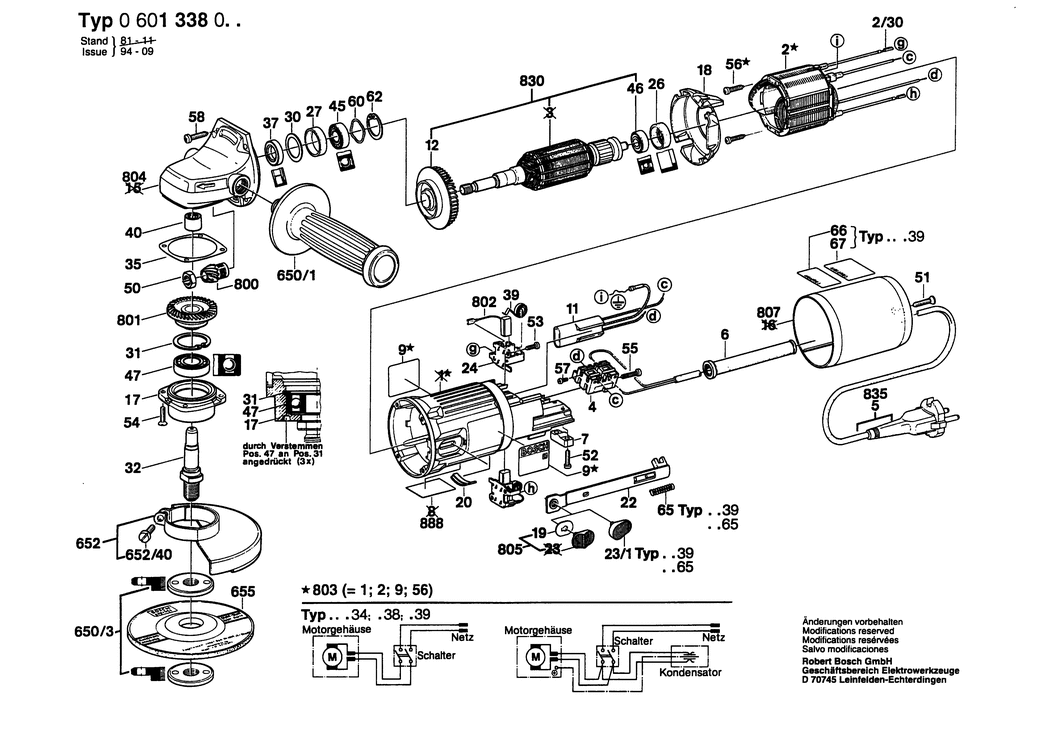

2/30 - RECEPTACLE B2.8-1DIN46 247BZ-BD
BSD-1904478007.A15
1904478007
|
-
|
|
|
|
4 - SWITCH
BSD-2607200674.A79
2607200674
|
£16.41
|
£19.69
|
|
|
5 - POWER SUPPLY CORD
BSD-3607030489.A32
3607030489
|
£31.64
|
£37.97
|
|
|
6 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A256
2600703011
|
£2.80
|
£3.36
|
|
|
7 - CABLE CLIP
BSD-2601035001.A415
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110083.A5
1601110083
|
-
|
|
|
|
12 - FAN
BSD-1606610112.A41
1606610112
|
-
|
|
|
|
17 - BEARING FLANGE
BSD-1605805054.A16
1605805054
|
-
|
|
|
|
18 - COVER DISC
BSD-2601328045.A59
2601328045
|
£2.16
|
£2.59
|
|
|
20 - INTERMEDIATE PIECE
BSD-1600026000.A93
1600026000
|
£1.75
|
£2.10
|
|
|
22 - ADJUSTING SLIDE
BSD-2602319005.A73
2602319005
|
£1.75
|
£2.10
|
|
|
24 - BRUSH HOLDER
BSD-1600A003G4.A248
1600A003G4
|
£3.72
|
£4.47
|
|
|
26 - RUBBER BUSHING
BSD-1600502020.A259
1600502020
|
£2.61
|
£3.13
|
|
|
27 - INTERMEDIATE RING
BSD-1600206021.A11
1600206021
|
-
|
|
|
|
30 - SHIM WASHER 0.8 MM
BSD-1600101022.A10
1600101022
|
-
|
|
|
|
31 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A413
2916660013
|
£2.16
|
£2.59
|
|
|
32 - GRINDING SPINDLE M14
BSD-1603523086.A6
1603523086
|
-
|
|
|
|
35 - SHIM 0.1 MM
BSD-2600136002.A20
2600136002
|
-
|
|
|
|
35 - SHIM 0.2 MM
BSD-2600136003.A45
2600136003
|
-
|
|
|
|
37 - ROTARY SHAFT LIP SEAL
BSD-1600290012.A29
1600290012
|
-
|
|
|
|
39 - SPIRAL SPRING
BSD-1604652013.A455
1604652013
|
£1.75
|
£2.10
|
|
|
40 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A835
2600910001
|
£4.26
|
£5.11
|
|
|
45 - GROOVE BALL BEARING 609-ZY DIN 625
BSD-1900905007.A26
1900905007
|
-
|
|
|
|
46 - BALL BEARING 7x19x6
BSD-2600905032.A318
2600905032
|
£5.30
|
£6.36
|
|
|
47 - GROOVE BALL BEARING 12x32x10
BSD-1600905006.A132
1600905006
|
£12.04
|
£14.45
|
|
|
50 - HEX NUT
BSD-1603300017.A62
1603300017
|
-
|
|
|
|
51 - TAPPING SCREW BZ 3.9x25 DIN 7972
BSD-2910601022.A12
2910601022
|
-
|
|
|
|
52 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1508
2910211019
|
£1.75
|
£2.10
|
|
|
53 - TAPPING SCREW DIN 7971-ST2.9x9.5-F
BSD-2910211005.A42
2910211005
|
£1.75
|
£2.10
|
|
|
54 - COUNTERSUNK-HEAD SCREW M 4x16 DIN 963-5.8
BSD-2910771126.A38
2910771126
|
-
|
|
|
|
56 - TAPPING SCREW DIN 7971-BZ2.9x16
BSD-2910211007.A60
2910211007
|
£1.75
|
£2.10
|
|
|
57 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A249
2603410001
|
£1.75
|
£2.10
|
|
|
58 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A600
2910211021
|
£1.75
|
£2.10
|
|
|
60 - SPRING WASHER dia18xdia26.4xdia0.4xdia2.7 MM
BSD-1600150010.A11
1600150010
|
-
|
|
|
|
62 - SPRING RETAINING RING
BSD-1600119007.A24
1600119007
|
-
|
|
|
|
150 - END SPLICE DIN 46 228-A1-6
BSD-1900452012.A329
1900452012
|
£1.75
|
£2.10
|
|
|
650 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A804
2607950511
|
£4.26
|
£5.11
|
|
|
650/1 - AUXILIARY HANDLE M14
BSD-1602025022.A210
1602025022
|
£13.41
|
£16.09
|
|
|
650/1 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A489
1602025030
|
£18.96
|
£22.75
|
|
|
650/3 - PARTS SET
BSD-1607000158.A9
1607000158
|
£7.67
|
£9.20
|
|
|
652 - PROTECTIVE COVER dia 125 MM (5)
BSD-1605510117.A32
1605510117
|
-
|
|
|
|
652/40 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8
BSD-2910022197.A295
2910022197
|
-
|
|
|
|
655 - CUTTING DISC 22.2x125x3 MM.GERADE
BSD-1608600268.A3
1608600268
|
-
|
|
|
|
800 - BEVEL GEAR Z=11
BSD-1606333183.A10
1606333183
|
-
|
|
|
|
801 - CROWN GEAR Z=36
BSD-1606333203.A10
1606333203
|
-
|
|
|
|
802 - CARBON-BRUSH SET
BSD-1607014116.A101
1607014116
|
£11.30
|
£13.56
|
|
|
804 - GEAR HOUSING
BSD-1605806402.A38
1605806402
|
-
|
|
|
|
805 - SWITCH HANDLE
BSD-1607000912.A19
1607000912
|
-
|
|
|
|
807 - HOUSING COVER
BSD-3600508031.A38
3600508031
|
-
|
|
|
|
813 - PUSH-BUTTON
BSD-1607000253.A12
1607000253
|
£2.49
|
£2.99
|
|
|
830 - ARMATURE 240V
BSD-1604010225.A1
1604010225
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A875
160111A3H3
|
£2.61
|
£3.13
|
|
