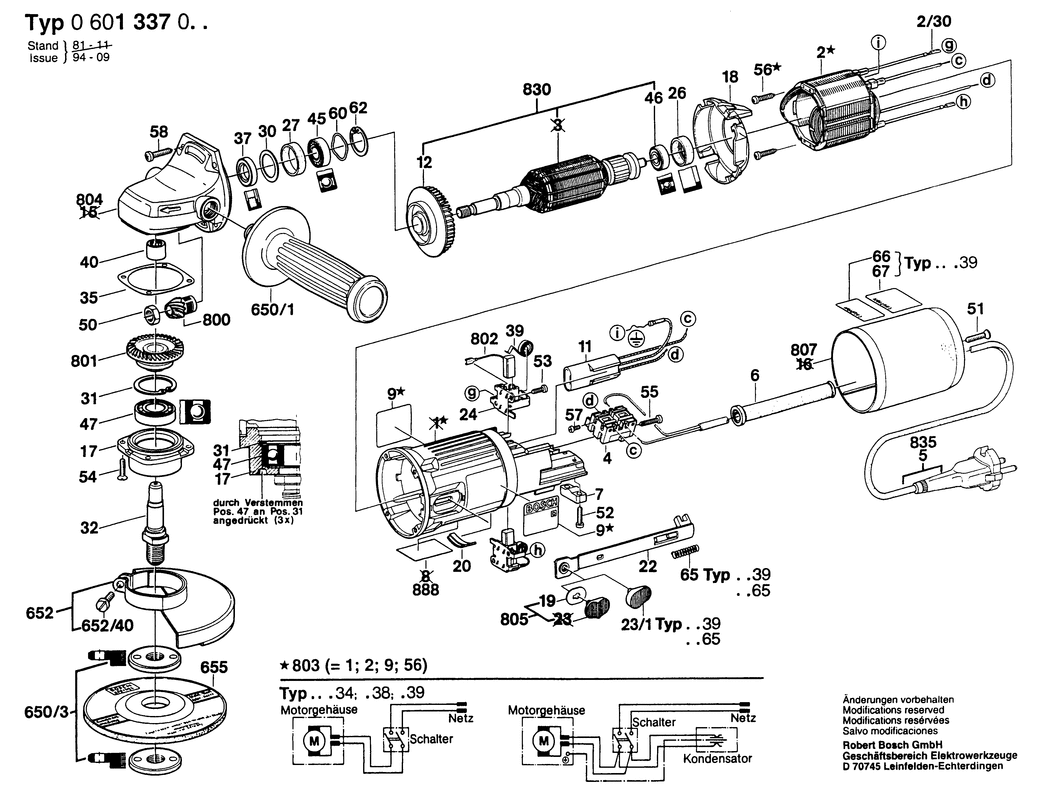

2/30 - RECEPTACLE B2.8-1DIN46 247BZ-BD
BSD-1904478007.A24
1904478007
|
-
|
|
|
|
4 - SWITCH
BSD-2607200674.A69
2607200674
|
£16.41
|
£19.69
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1183
2600703012
|
£2.80
|
£3.36
|
|
|
7 - CABLE CLIP
BSD-2601035001.A401
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110205.A5
1601110205
|
-
|
|
|
|
12 - FAN
BSD-1606610112.A26
1606610112
|
-
|
|
|
|
17 - BEARING FLANGE
BSD-1605805054.A6
1605805054
|
-
|
|
|
|
18 - COVER DISC
BSD-2601328045.A73
2601328045
|
£2.16
|
£2.59
|
|
|
19 - ADAPTOR PLATE
BSD-1600140009.A6
1600140009
|
-
|
|
|
|
20 - INTERMEDIATE PIECE
BSD-1600026000.A83
1600026000
|
£1.75
|
£2.10
|
|
|
22 - ADJUSTING SLIDE
BSD-2602319005.A83
2602319005
|
£1.75
|
£2.10
|
|
|
26 - RUBBER BUSHING
BSD-1600502020.A275
1600502020
|
£2.61
|
£3.13
|
|
|
27 - INTERMEDIATE RING
BSD-1600206021.A27
1600206021
|
-
|
|
|
|
30 - SHIM WASHER 0.8 MM
BSD-1600101022.A20
1600101022
|
-
|
|
|
|
31 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A402
2916660013
|
£2.16
|
£2.59
|
|
|
35 - SHIM 0.1 MM
BSD-2600136002.A13
2600136002
|
-
|
|
|
|
35 - SHIM 0.2 MM
BSD-2600136003.A52
2600136003
|
-
|
|
|
|
37 - ROTARY SHAFT LIP SEAL
BSD-1600290012.A16
1600290012
|
-
|
|
|
|
39 - SPIRAL SPRING
BSD-1604652013.A467
1604652013
|
£1.75
|
£2.10
|
|
|
40 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A852
2600910001
|
£4.26
|
£5.11
|
|
|
45 - GROOVE BALL BEARING 609-ZY DIN 625
BSD-1900905007.A36
1900905007
|
-
|
|
|
|
46 - BALL BEARING 7x19x6
BSD-2600905032.A305
2600905032
|
£5.30
|
£6.36
|
|
|
47 - GROOVE BALL BEARING 12x32x10
BSD-1600905006.A120
1600905006
|
£12.04
|
£14.45
|
|
|
50 - HEX NUT
BSD-1603300017.A52
1603300017
|
-
|
|
|
|
51 - TAPPING SCREW BZ 3.9x25 DIN 7972
BSD-2910601022.A3
2910601022
|
-
|
|
|
|
52 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1517
2910211019
|
£1.75
|
£2.10
|
|
|
53 - TAPPING SCREW DIN 7971-ST2.9x9.5-F
BSD-2910211005.A33
2910211005
|
£1.75
|
£2.10
|
|
|
54 - COUNTERSUNK-HEAD SCREW M 4x16 DIN 963-5.8
BSD-2910771126.A47
2910771126
|
-
|
|
|
|
56 - TAPPING SCREW DIN 7971-BZ2.9x16
BSD-2910211007.A48
2910211007
|
£1.75
|
£2.10
|
|
|
57 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A238
2603410001
|
£1.75
|
£2.10
|
|
|
58 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A611
2910211021
|
£1.75
|
£2.10
|
|
|
60 - SPRING WASHER dia18xdia26.4xdia0.4xdia2.7 MM
BSD-1600150010.A16
1600150010
|
-
|
|
|
|
62 - SPRING RETAINING RING
BSD-1600119007.A35
1600119007
|
-
|
|
|
|
650/1 - AUXILIARY HANDLE M14
BSD-1602025022.A196
1602025022
|
£13.41
|
£16.09
|
|
|
650/1 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A499
1602025030
|
£18.96
|
£22.75
|
|
|
652/40 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8
BSD-2910022197.A329
2910022197
|
-
|
|
|
|
800 - CROWN GEAR Z=11
BSD-1606333204.A7
1606333204
|
-
|
|
|
|
802 - CARBON-BRUSH SET
BSD-1607014116.A115
1607014116
|
£11.30
|
£13.56
|
|
|
803 - SERVICE KIT
BSD-1607000907.A4
1607000907
|
-
|
|
|
|
804 - GEAR HOUSING
BSD-1605806402.A20
1605806402
|
-
|
|
|
|
805 - SWITCH HANDLE
BSD-1607000912.A4
1607000912
|
-
|
|
|
|
807 - HOUSING COVER
BSD-3600508031.A29
3600508031
|
-
|
|
|
|
813 - PUSH-BUTTON
BSD-1607000253.A1
1607000253
|
£2.49
|
£2.99
|
|
|
830 - ARMATURE 220V
BSD-1604010222.A14
1604010222
|
-
|
|
|
|
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A44
1607000227
|
£23.86
|
£28.63
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A847
160111A3H3
|
£2.61
|
£3.13
|
|
