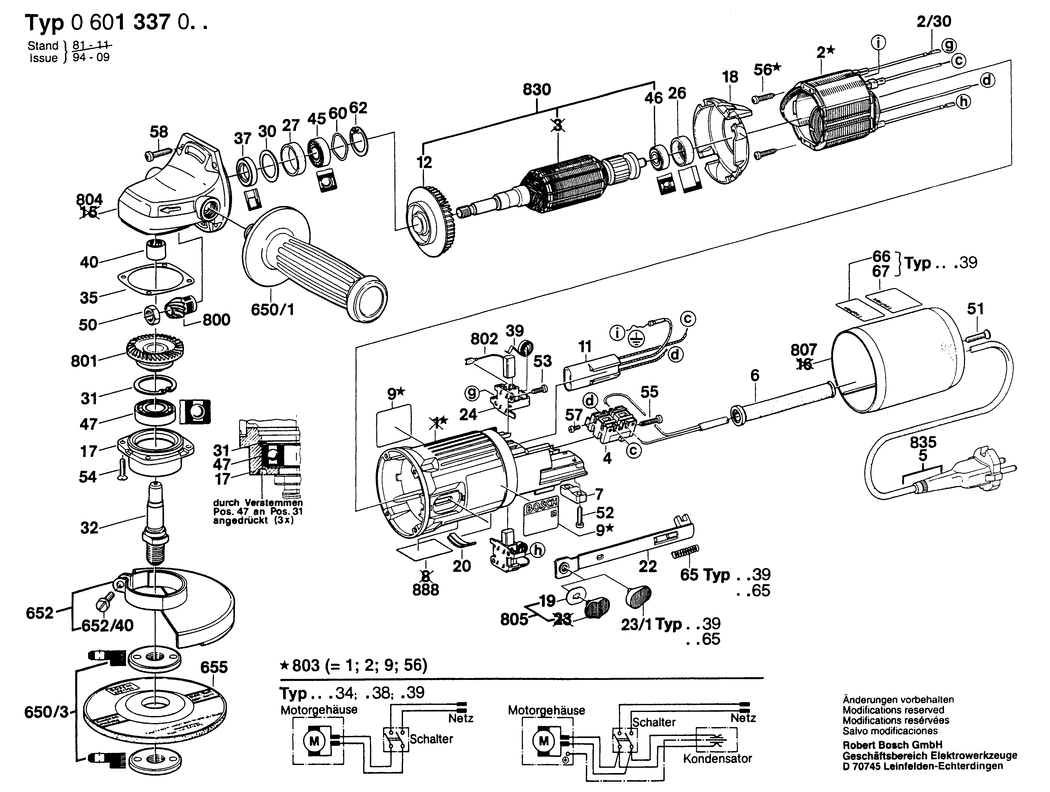

2/30 - RECEPTACLE B2.8-1DIN46 247BZ-BD
BSD-1904478007.A46
1904478007
|
-
|
|
|
|
4 - SWITCH
BSD-2607200674.A139
2607200674
|
£16.41
|
£19.69
|
|
|
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F
BSD-1604460110.A7
1604460110
|
-
|
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A655
2600703012
|
£2.80
|
£3.36
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2416
2601035001
|
£1.75
|
£2.10
|
|
|
9 - STICKER
BSD-1601110082.A3
1601110082
|
-
|
|
|
|
11 - SUPPRESSION CAPACITOR
BSD-2607329098.A3
2607329098
|
-
|
|
|
|
12 - FAN
BSD-1606610112.A15
1606610112
|
-
|
|
|
|
17 - BEARING FLANGE
BSD-1605805054.A28
1605805054
|
-
|
|
|
|
18 - COVER DISC
BSD-2601328045.A304
2601328045
|
£2.16
|
£2.59
|
|
|
19 - ADAPTOR PLATE
BSD-1600140009.A30
1600140009
|
-
|
|
|
|
20 - INTERMEDIATE PIECE
BSD-1600026000.A18
1600026000
|
£1.75
|
£2.10
|
|
|
22 - ADJUSTING SLIDE
BSD-2602319005.A188
2602319005
|
£1.75
|
£2.10
|
|
|
24 - BRUSH HOLDER
BSD-1600A003G4.A161
1600A003G4
|
£3.72
|
£4.47
|
|
|
26 - RUBBER BUSHING
BSD-1600502020.A418
1600502020
|
£2.61
|
£3.13
|
|
|
27 - INTERMEDIATE RING
BSD-1600206021.A0
1600206021
|
-
|
|
|
|
30 - SHIM WASHER 0.8 MM
BSD-1600101022.A23
1600101022
|
-
|
|
|
|
31 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A661
2916660013
|
£2.16
|
£2.59
|
|
|
32 - GRINDING SPINDLE M14
BSD-1603523086.A35
1603523086
|
-
|
|
|
|
35 - SHIM 0.1 MM
BSD-2600136002.A50
2600136002
|
-
|
|
|
|
35 - SHIM 0.2 MM
BSD-2600136003.A15
2600136003
|
-
|
|
|
|
37 - ROTARY SHAFT LIP SEAL
BSD-1600290012.A53
1600290012
|
-
|
|
|
|
39 - SPIRAL SPRING
BSD-1604652013.A219
1604652013
|
£1.75
|
£2.10
|
|
|
40 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A213
2600910001
|
£4.26
|
£5.11
|
|
|
45 - GROOVE BALL BEARING 609-ZY DIN 625
BSD-1900905007.A95
1900905007
|
-
|
|
|
|
46 - BALL BEARING 7x19x6
BSD-2600905032.A1456
2600905032
|
£5.30
|
£6.36
|
|
|
47 - GROOVE BALL BEARING 12x32x10
BSD-1600905006.A160
1600905006
|
£12.04
|
£14.45
|
|
|
50 - HEX NUT
BSD-1603300017.A0
1603300017
|
-
|
|
|
|
51 - TAPPING SCREW BZ 3.9x25 DIN 7972
BSD-2910601022.A29
2910601022
|
-
|
|
|
|
52 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A174
2910211019
|
£1.75
|
£2.10
|
|
|
53 - TAPPING SCREW DIN 7971-ST2.9x9.5-F
BSD-2910211005.A334
2910211005
|
£1.75
|
£2.10
|
|
|
54 - COUNTERSUNK-HEAD SCREW M 4x16 DIN 963-5.8
BSD-2910771126.A18
2910771126
|
-
|
|
|
|
56 - TAPPING SCREW DIN 7971-BZ2.9x16
BSD-2910211007.A234
2910211007
|
£1.75
|
£2.10
|
|
|
57 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2396
2603410001
|
£1.75
|
£2.10
|
|
|
58 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A73
2910211021
|
£1.75
|
£2.10
|
|
|
60 - SPRING WASHER dia18xdia26.4xdia0.4xdia2.7 MM
BSD-1600150010.A27
1600150010
|
-
|
|
|
|
62 - SPRING RETAINING RING
BSD-1600119007.A4
1600119007
|
-
|
|
|
|
650/1 - AUXILIARY HANDLE M14
BSD-1602025022.A1551
1602025022
|
£13.41
|
£16.09
|
|
|
650/1 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A1230
1602025030
|
£18.96
|
£22.75
|
|
|
650/3 - PARTS SET
BSD-1607000158.A4
1607000158
|
£7.67
|
£9.20
|
|
|
652 - PROTECTIVE COVER dia 115 MM(4 1/2)
BSD-2605510125.A39
2605510125
|
£27.23
|
£32.68
|
|
|
652/40 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8
BSD-2910022197.A98
2910022197
|
-
|
|
|
|
800 - BEVEL GEAR Z=11
BSD-1606333183.A0
1606333183
|
-
|
|
|
|
802 - CARBON-BRUSH SET
BSD-1607014116.A4
1607014116
|
£11.30
|
£13.56
|
|
|
803 - SERVICE KIT
BSD-1607000908.A0
1607000908
|
-
|
|
|
|
804 - GEAR HOUSING
BSD-1605806402.A4
1605806402
|
-
|
|
|
|
805 - SWITCH HANDLE
BSD-1607000912.A24
1607000912
|
-
|
|
|
|
807 - HOUSING COVER
BSD-3600508031.A18
3600508031
|
-
|
|
|
|
813 - PUSH-BUTTON
BSD-1607000253.A315
1607000253
|
£2.49
|
£2.99
|
|
|
830 - ARMATURE 100-110V
BSD-1604010223.A3
1604010223
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A3756
160111A3H3
|
£2.61
|
£3.13
|
|
