Bosch ---- / 0601326148 / F 220 Volt Spare Parts

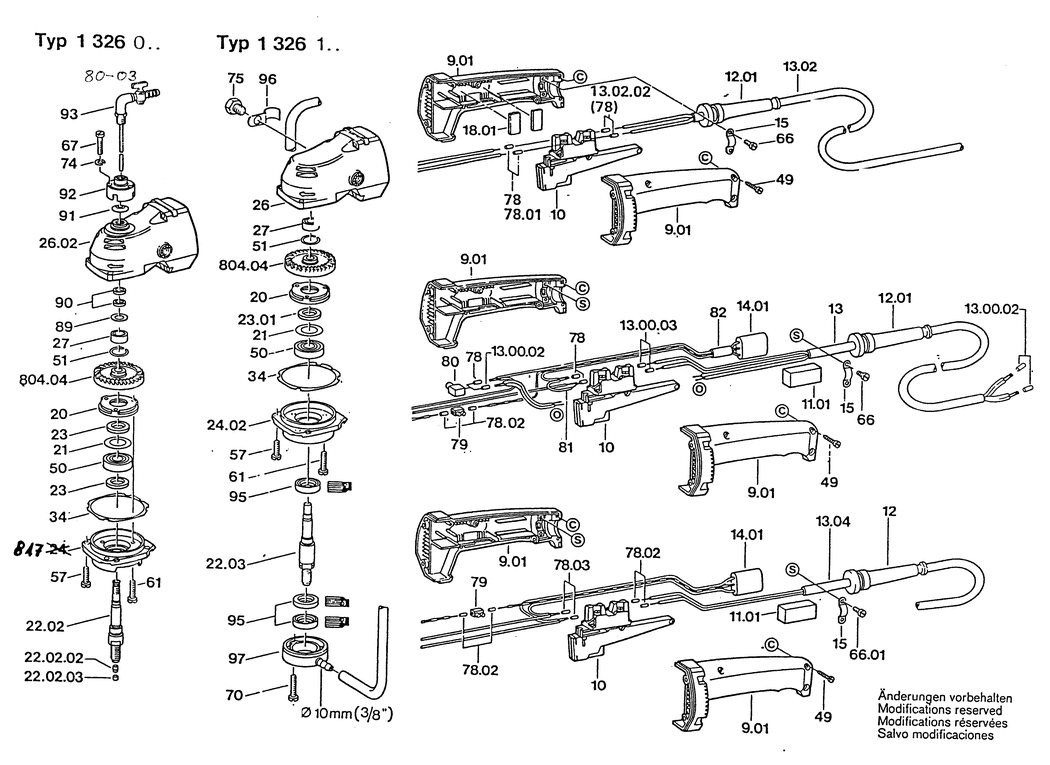

An exploded drawing and listing for the Bosch ---- / 0601326148 / F 220 Volt

	Ex VAT	Inc VAT
2 - BRUSH HOLDER BSD-1604336008.A59 1604336008	£21.52	£25.83
3 - POLE SHOE 220V BSD-1604220155.A1 1604220155	-
6 - SPIRAL SPRING BSD-1604652015.A305 1604652015	£2.80	£3.36
8 - SEALING CAP BSD-1605500089.A263 1605500089	-
9 - HANDLE BSD-1605132079.A99 1605132079	-
11 - SEAL BSD-1600113002.A299 1600113002	£1.75	£2.10
12 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A938 3600703011	£2.80	£3.36
14 - SUPPRESSION FILTER BSD-1607328034.A437 1607328034	£4.26	£5.11
15 - FASTENING CLAMP BSD-1601302013.A143 1601302013	£1.75	£2.10
17 - COVER PLATE BSD-1601037006.A73 1601037006	-
18 - PROFILE STRIP 3.4x7x240 MM BSD-1601014005.A154 1601014005	-
19 - CONTROL LEVER BSD-1602026041.A63 1602026041	-
19/80 - FELT WASHER BSD-1600205019.A197 1600205019	£1.75	£2.10
20 - BEARING COVER BSD-1605808054.A136 1605808054	-
21 - COVER DISC BSD-1600102012.A76 1600102012	-
22 - GRINDING SPINDLE BSD-1603523034.A9 1603523034	-
23 - SEALING DISK BSD-1600108055.A182 1600108055	£1.75	£2.10
25 - GROMMET BSD-1600306001.A381 1600306001	£2.61	£3.13
27 - NEEDLE BEARING dia22x11.3 MM BSD-1600910010.A156 1600910010	£45.67	£54.80
28 - RUBBER RING 10 MM BSD-1600206014.A79 1600206014	£1.75	£2.10
29 - AIR-DEFLECTOR RING BSD-1600502007.A55 1600502007	-
30 - RETAINING RING BSD-1600116002.A15 1600116002	-
32 - ROTARY SHAFT LIP SEAL BSD-1600290008.A137 1600290008	£2.61	£3.13
34 - SHIM 0.1 MM BSD-1600190004.A215 1600190004	-
34 - SHIM 0.2 MM BSD-1600190005.A68 1600190005	£1.32	£1.58
35 - TAB WASHER BSD-1601030022.A202 1601030022	£1.75	£2.10
36 - RUBBER BUSHING BSD-1600502006.A98 1600502006	£1.75	£2.10
38 - MANUFACTURER'S NAMEPLATE BSD-1601110003.A56 1601110003	-
45 - RETAINING RING BSD-1600116004.A43 1600116004	-
50 - GROOVE BALL BEARING 17x40x12 BSD-1900905281.A6 1900905281	£31.64	£37.97
51 - RETAINING RING dia22 MM BSD-2916620011.A313 2916620011	£1.75	£2.10
52 - GROOVE BALL BEARING 15x35x11 BSD-1900905234.A96 1900905234	£31.64	£37.97
53 - GROOVE BALL BEARING BSD-1600900029.A144 1600900029	-
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1045 2910021118	£1.75	£2.10
55 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A654 2910211006	£1.75	£2.10
55 - SOCKET HEAD CAP SCREW DIN 84-AM3x8-8.8 BSD-2910021050.A285 2910021050	£1.75	£2.10
56 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A510 2916011005	£1.75	£2.10
56 - SPRING WASHER A 3 DIN 137-ST BSD-2916060003.A370 2916060003	£1.32	£1.58
57 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-8.8 BSD-2910021157.A69 2910021157	£1.32	£1.58
58 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A535 2915011005	£1.75	£2.10
59 - TAPPING SCREW ST-4.8x57.5-TORX.T20 BSD-1613435009.A347 1613435009	£1.75	£2.10
60 - TAPPING SCREW DIN 7971-ST4.8x25-F BSD-2910211036.A206 2910211036	£1.75	£2.10
60 - SOCKET HEAD CAP SCREW DIN 84-AM5x16-8.8 BSD-2910021158.A1 2910021158	£1.32	£1.58
61 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-8.8 BSD-2910021162.A68 2910021162	-
63 - TAPPING SCREW B4.8x90 MM BSD-1603435006.A57 1603435006	-
63 - SOCKET HEAD CAP SCREW DIN 84-BM5x82 BSD-1603410001.A81 1603410001	-
64 - SPRING LOCK WASHER DIN 127-B 5 BSD-2916680006.A354 2916680006	-
65 - SPRING WASHER DIN 137-A4 BSD-1600150006.A269 1600150006	-
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A650 2910021122	£2.16	£2.59
69 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A176 2910211011	£1.75	£2.10
70 - SOCKET HEAD CAP SCREW DIN 84-AM5x25-8.8 BSD-2910021164.A1 2910021164	-
71 - SHIM 0.05 MM BSD-1600101635.A89 1600101635	-
72 - SHIM 0.05 MM BSD-1600101636.A19 1600101636	-
73 - SHIM 0.05 MM BSD-1600101637.A89 1600101637	-
75 - HEX SCREW M14x16x1.5 MM BSD-2603450007.A182 2603450007	£5.58	£6.70
75 - HEX SCREW DIN 933-M 14x16-5.8 BSD-2911051382.A4 2911051382	-
92 - CONNECTING FLANGE BSD-1600328012.A46 1600328012	-
93 - SHUT-OFF TAP BSD-1607415002.A80 1607415002	-
95 - ROTARY SHAFT LIP SEAL dia35x22x6/6.5 MM BSD-1600283004.A5 1600283004	£7.36	£8.83
96 - CLAMP BSD-1601300004.A17 1601300004	£2.16	£2.59
97 - CONNECTING FLANGE BSD-1605703061.A7 1605703061	-
650 - AUXILIARY HANDLE M14 BSD-1602025022.A187 1602025022	£13.41	£16.09
650 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A508 1602025030	£18.96	£22.75
651 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A787 2607950511	£4.26	£5.11
652/1/2 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1018 2915011007	-
652/1/3 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8 BSD-2910022197.A313 2910022197	-
652/2/2 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x20-8.8 BSD-2910141242.A9 2910141242	£1.75	£2.10
652/3/2 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1019 2915011007	-
652/3/3 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8 BSD-2910022197.A314 2910022197	-
652/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x20-8.8 BSD-2910141242.A8 2910141242	£1.75	£2.10
654 - CLAMPING-FLANGE dia45 MM BSD-2600501006.A205 2600501006	£16.43	£19.72
702 - TENSIONER PARTS SET BSD-1607000030.A44 1607000030	-
800 - CARBON-BRUSH SET BSD-1607014103.A177 1607014103	£14.91	£17.89
801 - ASSEMBLY OF SERVICE PARTS BSD-1605108902.A63 1605108902	-
803 - CONNECTING CABLE BSD-1604440004.A176 1604440004	-
803/010 - TERMINAL LUG BSD-1601353003.A115 1601353003	-
804 - BEVEL GEAR Z=59 BSD-1606333155.A1 1606333155	-
808 - ARMATURE 220V BSD-1604011109.A0 1604011109	-
809 - SWITCH KIT BSD-1607000034.A51 1607000034	-
809/040 - PAN HEAD SCREW DIN 85-AM4x8-4.8 BSD-2910091118.A433 2910091118	£1.75	£2.10
811 - SEAL KIT BSD-1607000044.A6 1607000044	£9.49	£11.39
824 - BEARING FLANGE BSD-1607000229.A45 1607000229	-
888 - NAMEPLATE BSD-160111A3H3.A858 160111A3H3	£2.61	£3.13
