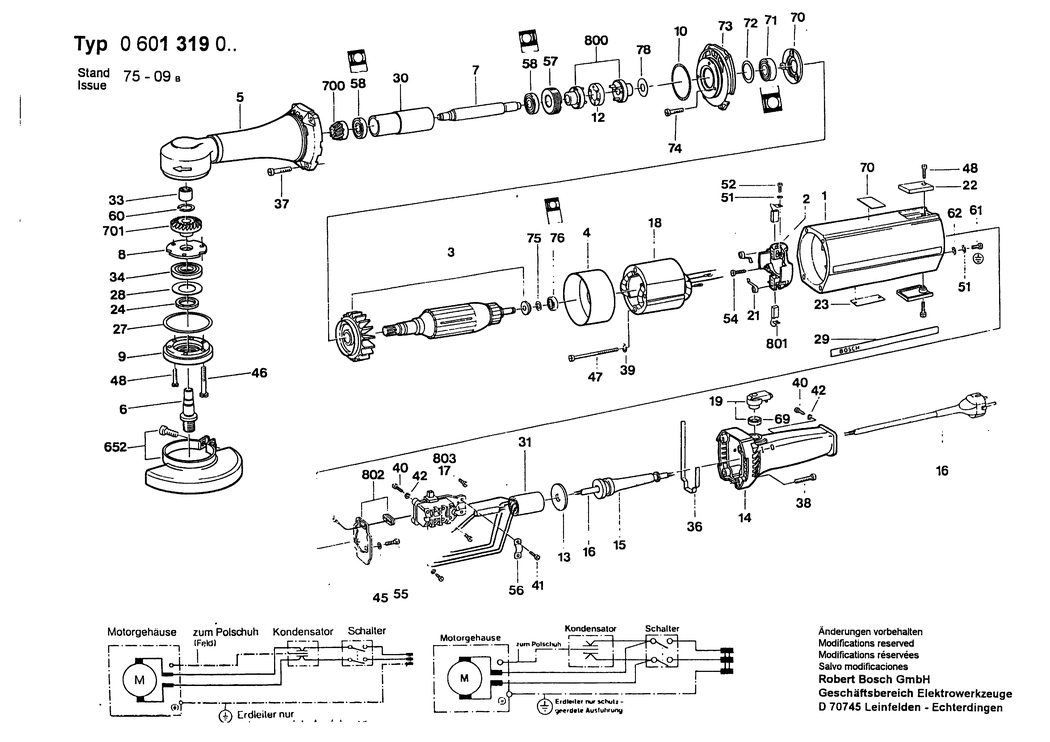

1 - MOTOR HOUSING
BSD-1605108042.A87
1605108042
|
-
|
|
|
|
2 - BRUSH HOLDER
BSD-1604336006.A93
1604336006
|
-
|
|
|
|
3 - ARMATURE 220V
BSD-1604010103.A1
1604010103
|
-
|
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600209002.A313
1600209002
|
£5.30
|
£6.36
|
|
|
5 - GEAR HOUSING
BSD-1605806286.A4
1605806286
|
-
|
|
|
|
6 - STUD BOLT M14
BSD-1603523065.A9
1603523065
|
-
|
|
|
|
7 - DRIVE SHAFT
BSD-1603022020.A1
1603022020
|
-
|
|
|
|
9 - BEARING COVER
BSD-1605808046.A10
1605808046
|
-
|
|
|
|
10 - O-RING 45x3MM
BSD-1900210146.A319
1900210146
|
£4.48
|
£5.37
|
|
|
12 - CARRIER
BSD-1606442000.A16
1606442000
|
£5.58
|
£6.70
|
|
|
13 - SEAL
BSD-1600113002.A130
1600113002
|
£1.84
|
£2.21
|
|
|
14 - HANDLE
BSD-3605132048.A375
3605132048
|
£66.68
|
£80.01
|
|
|
15 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A39
3600703011
|
£2.94
|
£3.53
|
|
|
16 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A87
1607000228
|
£23.86
|
£28.63
|
|
|
17 - SWITCH KIT
BSD-1607000034.A389
1607000034
|
-
|
|
|
|
18 - POLE SHOE 220V
BSD-1604220031.A35
1604220031
|
-
|
|
|
|
19 - CONTROL LEVER
BSD-1602026030.A476
1602026030
|
£10.10
|
£12.12
|
|
|
21 - SPIRAL SPRING
BSD-1604652015.A612
1604652015
|
£2.94
|
£3.53
|
|
|
22 - SEALING CAP
BSD-3605500057.A61
3605500057
|
-
|
|
|
|
23 - NAMEPLATE
BSD-160111A3H3.A5348
160111A3H3
|
£2.74
|
£3.29
|
|
|
24 - SEALING DISK
BSD-1600108054.A4
1600108054
|
-
|
|
|
|
27 - SHIM
BSD-1600102667.A13
1600102667
|
-
|
|
|
|
28 - SHIM
BSD-1600102666.A3
1600102666
|
-
|
|
|
|
29 - MANUFACTURER'S NAMEPLATE
BSD-1601110003.A316
1601110003
|
-
|
|
|
|
30 - SPACER SLEEVE
BSD-1600420004.A11
1600420004
|
-
|
|
|
|
31 - SUPPRESSION CAPACITOR
BSD-1607329005.A97
1607329005
|
-
|
|
|
|
33 - NEEDLE-ROLLER BEARING dia 17 MM
BSD-1600910009.A2
1600910009
|
-
|
|
|
|
34 - GROOVE BALL BEARING 16 004/C3 DIN 625
BSD-1900900209.A8
1900900209
|
-
|
|
|
|
36 - SEALING CORD
BSD-1601014000.A432
1601014000
|
£2.80
|
£3.36
|
|
|
37 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8
BSD-2910011162.A220
2910011162
|
£1.84
|
£2.21
|
|
|
38 - SOCKET HEAD CAP SCREW AM 5x28 DIN 84-5.8
BSD-2910011165.A9
2910011165
|
-
|
|
|
|
39 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A150
2916680006
|
-
|
|
|
|
40 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A336
2910211006
|
£1.75
|
£2.10
|
|
|
41 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A480
2910021122
|
£2.27
|
£2.72
|
|
|
42 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A329
2916011005
|
£1.84
|
£2.21
|
|
|
45 - PLAIN WASHER DIN 125-A3.2-ST
BSD-2916011006.A71
2916011006
|
£1.84
|
£2.21
|
|
|
46 - SOCKET HEAD CAP SCREW DIN 84-BM5x30-5.8
BSD-2910011166.A27
2910011166
|
£1.84
|
£2.21
|
|
|
47 - SOCKET HEAD CAP SCREW
BSD-1603410008.A118
1603410008
|
-
|
|
|
|
48 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A453
2910021125
|
£1.75
|
£2.10
|
|
|
51 - SPRING WASHER DIN 137-A4
BSD-1600150006.A491
1600150006
|
-
|
|
|
|
52 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-5.8
BSD-2910011120.A63
2910011120
|
£1.75
|
£2.10
|
|
|
54 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A954
2910211019
|
£1.84
|
£2.21
|
|
|
55 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A178
2910211004
|
-
|
|
|
|
56 - FASTENING CLAMP
BSD-1601302014.A582
1601302014
|
£2.74
|
£3.29
|
|
|
57 - THREADED RING
BSD-1603344044.A4
1603344044
|
-
|
|
|
|
58 - GROOVE BALL BEARING 12x28x8
BSD-1900905121.A218
1900905121
|
£18.96
|
£22.75
|
|
|
60 - SPRING RETAINING RING dia 17 MM
BSD-1600119001.A6
1600119001
|
-
|
|
|
|
61 - PAN HEAD SCREW DIN 85 AM 4x6-MS
BSD-2910110116.A365
2910110116
|
£1.84
|
£2.21
|
|
|
62 - PLAIN WASHER A 4.3 DIN 125-ST
BSD-2916010410.A239
2916010410
|
-
|
|
|
|
69 - FELT WASHER
BSD-1600205008.A454
1600205008
|
£1.75
|
£2.10
|
|
|
70 - BEARING COVER
BSD-1600501019.A129
1600501019
|
£25.05
|
£30.06
|
|
|
71 - GROOVE BALL BEARING 17x35x10
BSD-1600900020.A10
1600900020
|
-
|
|
|
|
72 - SHIM
BSD-1600102002.A43
1600102002
|
-
|
|
|
|
73 - BEARING FLANGE
BSD-3605820064.A142
3605820064
|
£71.84
|
£86.21
|
|
|
74 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A454
2910021125
|
£1.75
|
£2.10
|
|
|
75 - SHIM 0.10 MM
BSD-1420100023.A261
1420100023
|
-
|
|
|
|
75 - SHIM 0.2 MM
BSD-1600100632.A222
1600100632
|
£1.84
|
£2.21
|
|
|
76 - BALL BEARING 7x22x7
BSD-1900905018.A109
1900905018
|
£19.91
|
£23.89
|
|
|
78 - SHIM
BSD-1600101626.A12
1600101626
|
-
|
|
|
|
652 - PROTECTIVE COVER
BSD-1605510053.A8
1605510053
|
-
|
|
|
|
700 - BEVEL GEAR Z=17
BSD-1606333127.A5
1606333127
|
-
|
|
|
|
701 - BEVEL GEAR Z=33
BSD-1606333126.A9
1606333126
|
-
|
|
|
|
800 - CARRIER
BSD-1600320026.A40
1600320026
|
£48.38
|
£58.06
|
|
|
801 - CARBON-BRUSH SET
BSD-1607014102.A221
1607014102
|
-
|
|
|
|
802 - SEALING PLATE
BSD-1602388007.A116
1602388007
|
£12.64
|
£15.17
|
|
|
803 - SWITCH KIT
BSD-1607000034.A376
1607000034
|
-
|
|
|
