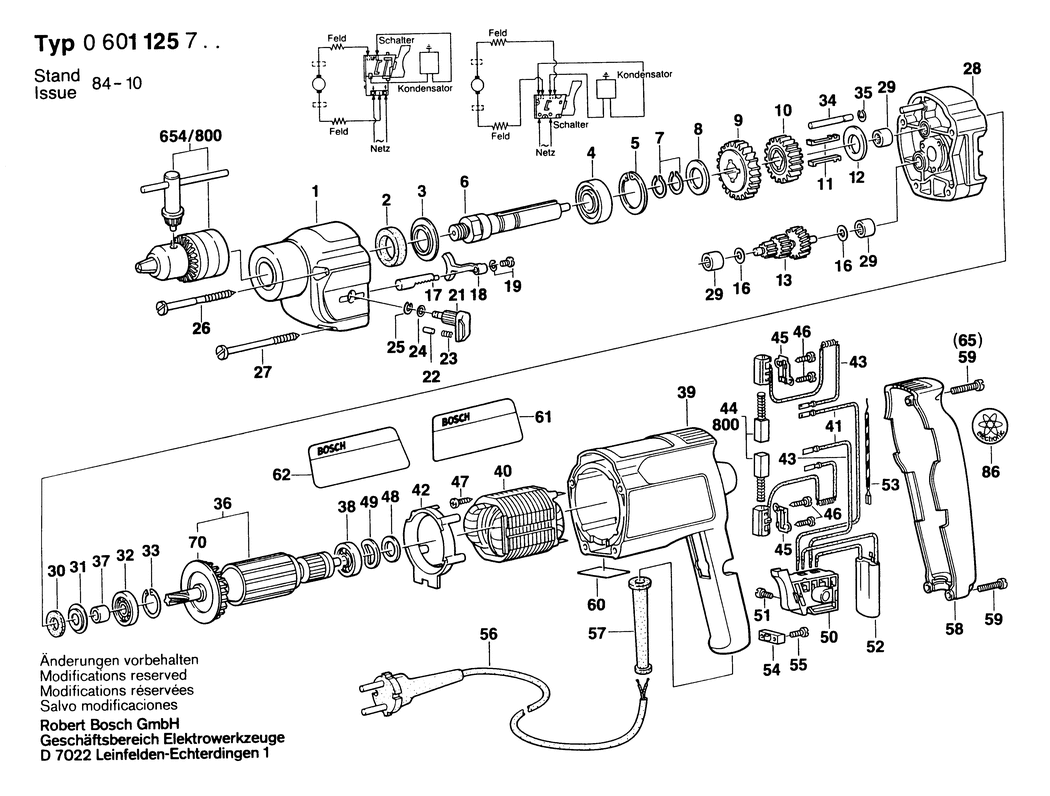

1 - GEAR HOUSING
BSD-2605806972.A3
2605806972
|
-
|
|
|
|
2 - FELT WASHER
BSD-2600108076.A8
2600108076
|
-
|
|
|
|
3 - CUPPED WASHER
BSD-2600550019.A37
2600550019
|
-
|
|
|
|
4 - BALL BEARING dia15 MM
BSD-1900905110.A5
1900905110
|
£10.10
|
£12.12
|
|
|
5 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A644
2916660013
|
£2.16
|
£2.59
|
|
|
6 - DRILLING SPINDLE 1/2. SW 17
BSD-2606135011.A18
2606135011
|
£27.31
|
£32.77
|
|
|
7 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A126
2916650006
|
£1.75
|
£2.10
|
|
|
8 - SHIM 0.5 MM
BSD-2600100695.A36
2600100695
|
£1.75
|
£2.10
|
|
|
9 - CYLINDRICAL GEAR
BSD-2606316316.A11
2606316316
|
£27.23
|
£32.68
|
|
|
10 - CYLINDRICAL GEAR Z=42
BSD-2606316103.A11
2606316103
|
-
|
|
|
|
11 - FLAT KEY
BSD-2602300033.A82
2602300033
|
£5.58
|
£6.70
|
|
|
12 - SHIM 1.5 MM
BSD-2600101668.A105
2600101668
|
£2.80
|
£3.36
|
|
|
13 - TOOTHED SHAFT Z= 11/23/29
BSD-2606308912.A1
2606308912
|
-
|
|
|
|
16 - SHIM 0.3 MM
BSD-2600100570.A188
2600100570
|
£1.75
|
£2.10
|
|
|
17 - TOOTHED RACK
BSD-2603070010.A62
2603070010
|
-
|
|
|
|
18 - FORK LEVER
BSD-2602033002.A9
2602033002
|
-
|
|
|
|
19 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8
BSD-2914501011.A93
2914501011
|
£1.75
|
£2.10
|
|
|
21 - ROTARY KNOB
BSD-2602026023.A65
2602026023
|
-
|
|
|
|
22 - RATCHET CAP
BSD-2600590006.A306
2600590006
|
£1.75
|
£2.10
|
|
|
23 - RATCHET CAP
BSD-2600590006.A307
2600590006
|
£1.75
|
£2.10
|
|
|
24 - SHIM WASHER
BSD-2600100618.A136
2600100618
|
£1.75
|
£2.10
|
|
|
25 - LOCKING WASHER DIN 6799-4-FSt
BSD-2916080007.A587
2916080007
|
£2.61
|
£3.13
|
|
|
26 - HEADLESS SCREW
BSD-2603435017.A64
2603435017
|
£2.61
|
£3.13
|
|
|
27 - HEADLESS SCREW
BSD-2603435018.A10
2603435018
|
-
|
|
|
|
28 - INTERMEDIATE FLANGE
BSD-2605700932.A14
2605700932
|
-
|
|
|
|
29 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A180
2600914010
|
£2.80
|
£3.36
|
|
|
30 - FELT WASHER
BSD-2600108002.A84
2600108002
|
£2.16
|
£2.59
|
|
|
31 - CUPPED WASHER
BSD-2600500002.A445
2600500002
|
£1.75
|
£2.10
|
|
|
32 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A10
2600905021
|
£8.67
|
£10.41
|
|
|
33 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A118
2916660008
|
£2.16
|
£2.59
|
|
|
34 - HOLDING PIN
BSD-2603100036.A13
2603100036
|
-
|
|
|
|
35 - LOCKING WASHER DIN 6799-2.3
BSD-2916080005.A3
2916080005
|
-
|
|
|
|
36 - ARMATURE 110-115V
BSD-2604010573.A9
2604010573
|
£59.53
|
£71.44
|
|
|
37 - RECEPTACLE
BSD-2600400008.A683
2600400008
|
£1.75
|
£2.10
|
|
|
38 - BALL BEARING 7x22x7
BSD-1900905018.A499
1900905018
|
£18.96
|
£22.75
|
|
|
39 - MOTOR HOUSING
BSD-2605104116.A102
2605104116
|
-
|
|
|
|
40 - FIELD 110-120V
BSD-2604220428.A34
2604220428
|
£27.23
|
£32.68
|
|
|
41 - CABLE L=130 MM
BSD-2604448005.A29
2604448005
|
£1.75
|
£2.10
|
|
|
42 - COVER DISC
BSD-2601328033.A181
2601328033
|
-
|
|
|
|
43 - SUPPRESSOR BOX
BSD-2604465025.A7
2604465025
|
-
|
|
|
|
45 - BRUSH PLATE
BSD-2601015047.A17
2601015047
|
-
|
|
|
|
46 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A428
2603490017
|
£2.16
|
£2.59
|
|
|
47 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F
BSD-2603435015.A247
2603435015
|
£2.16
|
£2.59
|
|
|
48 - SHIM 0.3 MM
BSD-2600101023.A327
2600101023
|
£1.75
|
£2.10
|
|
|
48 - SHIM 0.2 MM
BSD-2600101022.A236
2600101022
|
£1.75
|
£2.10
|
|
|
48 - SHIM 0.5 MM
BSD-2600101020.A396
2600101020
|
£1.75
|
£2.10
|
|
|
49 - SHIM
BSD-2600150004.A514
2600150004
|
£2.16
|
£2.59
|
|
|
50 - ON-OFF SWITCH
BSD-2607200372.A10
2607200372
|
-
|
|
|
|
51 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2480
2603410001
|
£1.75
|
£2.10
|
|
|
52 - SUPPRESSION FILTER
BSD-2607329096.A160
2607329096
|
£7.36
|
£8.83
|
|
|
53 - CABLE
BSD-2604448003.A118
2604448003
|
-
|
|
|
|
54 - CABLE CLIP
BSD-2601035001.A2525
2601035001
|
£1.75
|
£2.10
|
|
|
55 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A96
2910211019
|
£1.75
|
£2.10
|
|
|
56 - POWER SUPPLY CORD
BSD-3604460141.A15
3604460141
|
-
|
|
|
|
57 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A527
2600703011
|
£2.80
|
£3.36
|
|
|
57 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A706
2600703012
|
£2.80
|
£3.36
|
|
|
57 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A521
2600703013
|
£2.61
|
£3.13
|
|
|
58 - HOUSING COVER
BSD-2605132040.A12
2605132040
|
-
|
|
|
|
59 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A34
2910211021
|
£1.75
|
£2.10
|
|
|
60 - NAMEPLATE
BSD-160111A3H3.A4186
160111A3H3
|
£2.61
|
£3.13
|
|
|
61 - STICKER
BSD-2601110199.A0
2601110199
|
-
|
|
|
|
62 - STICKER
BSD-2601110093.A3
2601110093
|
-
|
|
|
|
64 - STICKER
BSD-2601110041.A38
2601110041
|
-
|
|
|
|
65 - TAPPING SCREW DIN 7971-BZ3.9x25
BSD-2910211022.A126
2910211022
|
£1.75
|
£2.10
|
|
|
70 - FAN
BSD-2606610049.A201
2606610049
|
£2.16
|
£2.59
|
|
|
653 - AUXILIARY HANDLE
BSD-2602025031.A30
2602025031
|
-
|
|
|
|
654/800 - KEY CHUCK dia0.8-10 MM. 1/2
BSD-1608571005.A40
1608571005
|
-
|
|
|
|
654/800 - CHUCK WRENCH SG2
BSD-2607950007.A734
2607950007
|
£6.52
|
£7.83
|
|
|
654/800 - KEYLESS CHUCK dia1-10 MM. 1/2
BSD-1608572007.A20
1608572007
|
-
|
|
|
|
800 - CARBON-BRUSH SET
BSD-2604321905.A246
2604321905
|
£11.30
|
£13.56
|
|
