Black & Decker XTC18BK Type 1 Cordless Drill Spare Parts

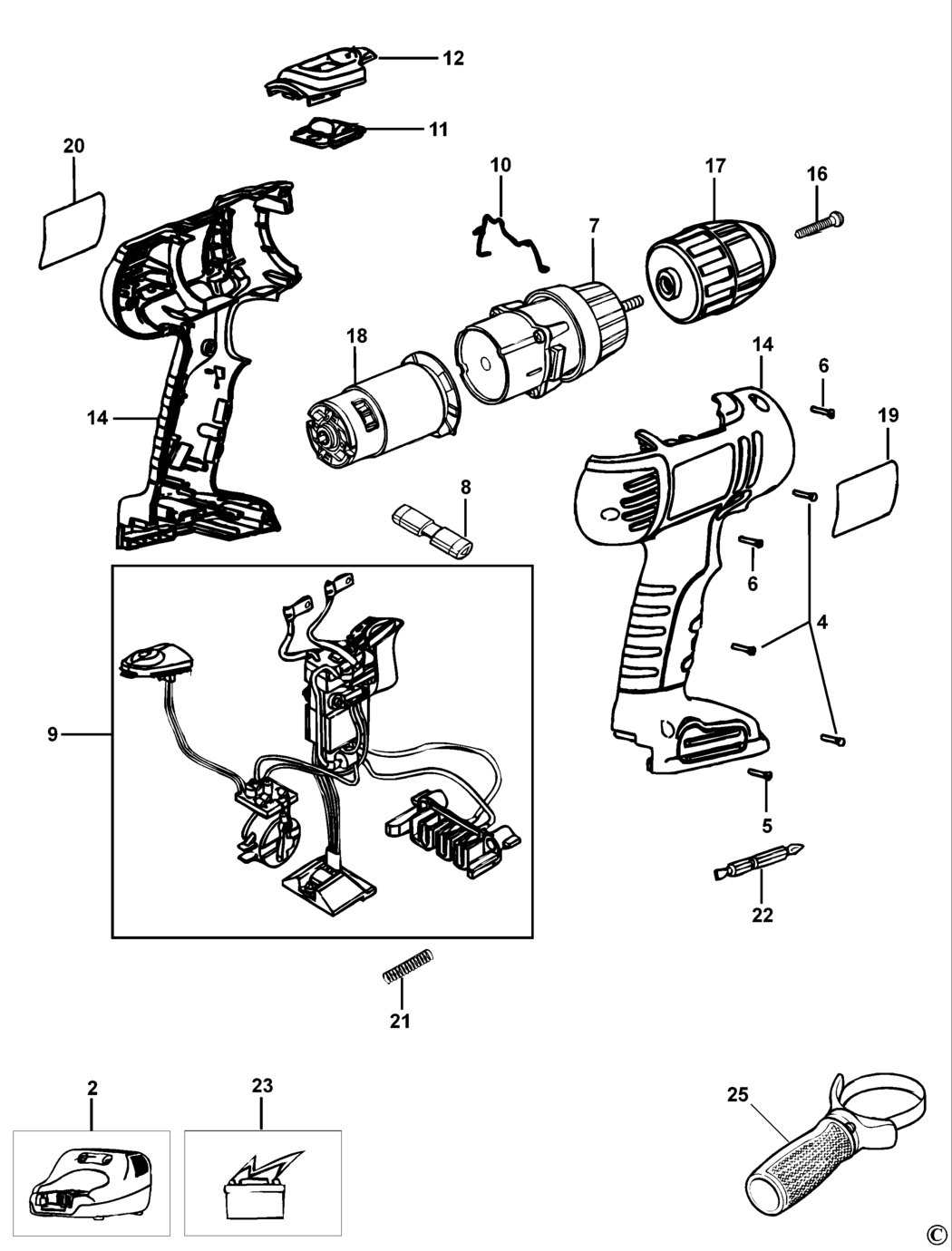

An exploded drawing and spare parts listing for the Black & Decker XTC18BK Type 1 Cordless Drill

	Ex VAT	Inc VAT
2 - NO LONGER AVAILABLE GB BDE-000000-00.A126520 000000-00	-
4 - SCREW BDE-311993-00.A35 311993-00	£1.66	£1.99
5 - SCREW BDE-486562-00.A20 486562-00	£1.66	£1.99
6 - SCREW BDE-498099-00.A17 498099-00	£1.66	£1.99
7 - NO LONGER AVAILABLE BDE-000000-00.A126525 000000-00	-
8 - ACTUATOR BDE-5100111-00.A11 5100111-00	-
9 - NO LONGER AVAILABLE BDE-000000-00.A126521 000000-00	-
10 - NO LONGER AVAILABLE BDE-000000-00.A126522 000000-00	-
11 - NO LONGER AVAILABLE BDE-000000-00.A126523 000000-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A126524 000000-00	-
14 - CLAMSHELL SET BDE-5101937-01.A3 5101937-01	£18.42	£22.10
16 - NO LONGER AVAILABLE BDE-000000-00.A126526 000000-00	-
17 - CHUCK KEYLESS BDE-5103032-03.A3 5103032-03	-
18 - NO LONGER AVAILABLE BDE-000000-00.A126527 000000-00	-
19 - NO LONGER AVAILABLE XTC18BKH BDE-000000-00.A126528 000000-00	-
19 - NO LONGER AVAILABLE XTC18BK BDE-000000-00.A126529 000000-00	-
20 - NO LONGER AVAILABLE BDE-000000-00.A126530 000000-00	-
21 - SPRING BDE-5100035-01.A7 5100035-01	£1.66	£1.99
22 - BIT BDE-419581-01.A55 419581-01	£1.66	£1.99
23 - NO LONGER AVAILABLE XTC18BKH BDE-000000-00.A126531 000000-00	-
23 - BATTERY 18V - 1.7AH XTC18BK BDE-5100385-57.A2 5100385-57	-
25 - HANDLE SA BDE-5101990-00.A0 5101990-00	-
